Waterproof Metal Box

Waterproof Metal Box

model:FHS-02
size:530*340*320mm (Batch- Size Can Be Customized)
material:Cold-Roll Steel Sheets With Color Spray

The waterproof metal box is a waterproof metal storage box for outdoor use in industrial communication.If you would like to consult or order waterproof metal box, please contact us at marketing@koontech.com or online server, we will provide you with competitive prices.
waterproof metal box feature

Waterproof Metal Box FHS-02

The waterproof metal box is made of sheer metal and cold rolled steel. The whole is rectangular and the exterior is galvanized. As a large outdoor storage box, the waterproof level reaches ip66. After closing the door, it can be dust-proof and moisture-proof. The waterproof metal box has a welded steel compartment inside, which can store communication devices such as pbx servers and network switches. The waterproof metal box is wall mounted, m8*30 flat head socket cap screws + m6 top blasting screw per 6sets.

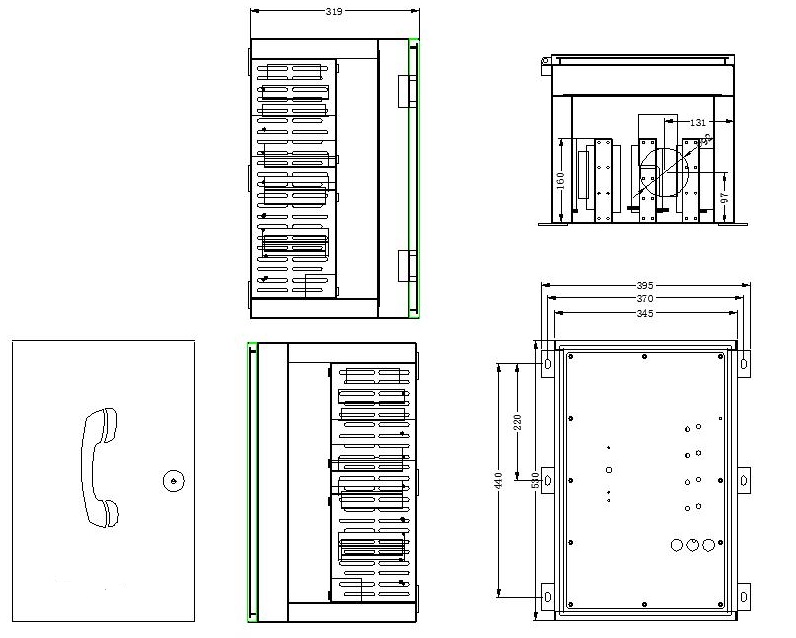

Waterproof Metal Box Size

waterproof metal box size



Product Specification

Model:FHS-02

Waterproof Degree: IP66

Mounting Type: Wall Mounting

Installation Screws: m8*30 flat head socket cap screws + m6 top blasting screw per 6sets

Size Layout: As below drawing

Tags:weatherproof phone box,waterproof enclosure box,explosion proof box,waterproof box .


Telephone System

Waterproof metal box use in construction system

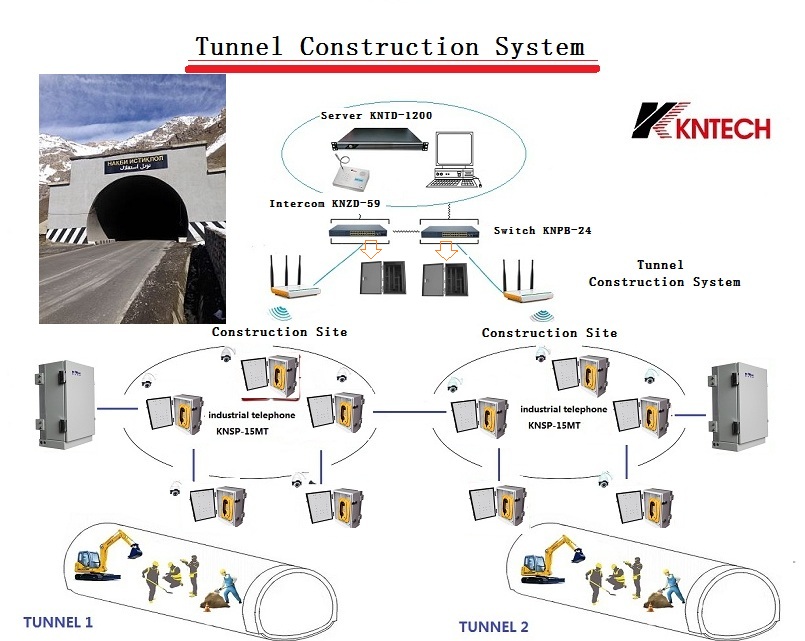

waterproof metal box use in tunnel construction system Containment server

Product Application

waterproof metal box waterproof metal box

Product Detailed Pictures

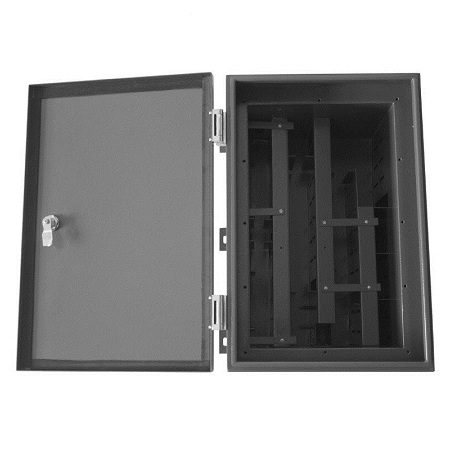

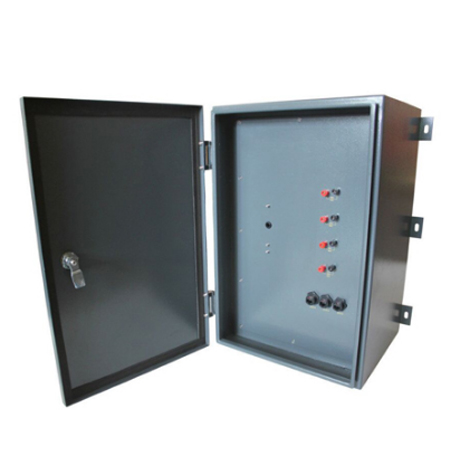

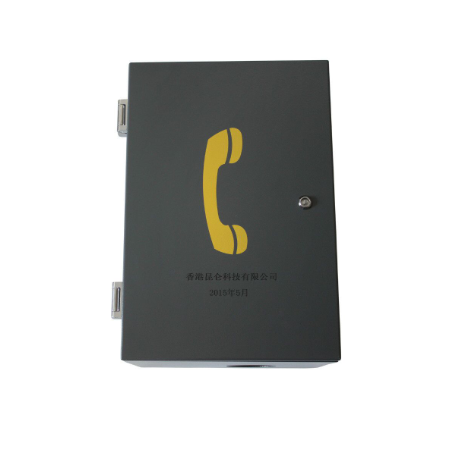

Waterproof Metal Box (mian view,open the door,front view)

waterproof metal box waterproof metal box waterproof metal box open the door waterproof metal box front view

Product Video


Please Email US
marketing@koontech.com

This product model:FHS-02

*
*
*
*

Curry-Kevin 21, 2018-English

Very good, engineers can customize the waterproof metal box.
