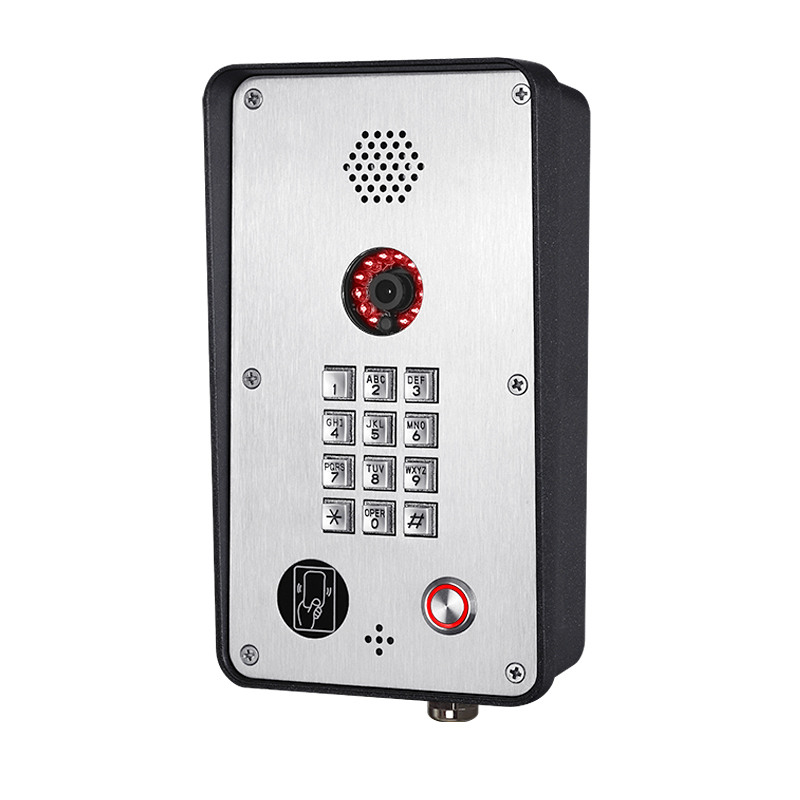

Video RFID doorphone

Video RFID doorphone

model:KNZD-52V
size:235*131*78.7mm
material:

KNZD-52V VoIP camera RFID keypad button
Access-control-system
Video RFID doorphone, RFID is an easy to operate, simple and practical and is especially suitable for the flexibility of application technology for automation control, identify work without manual intervention, it can support the read-only mode can also support reading and writing work mode.

video RFID Doorphone

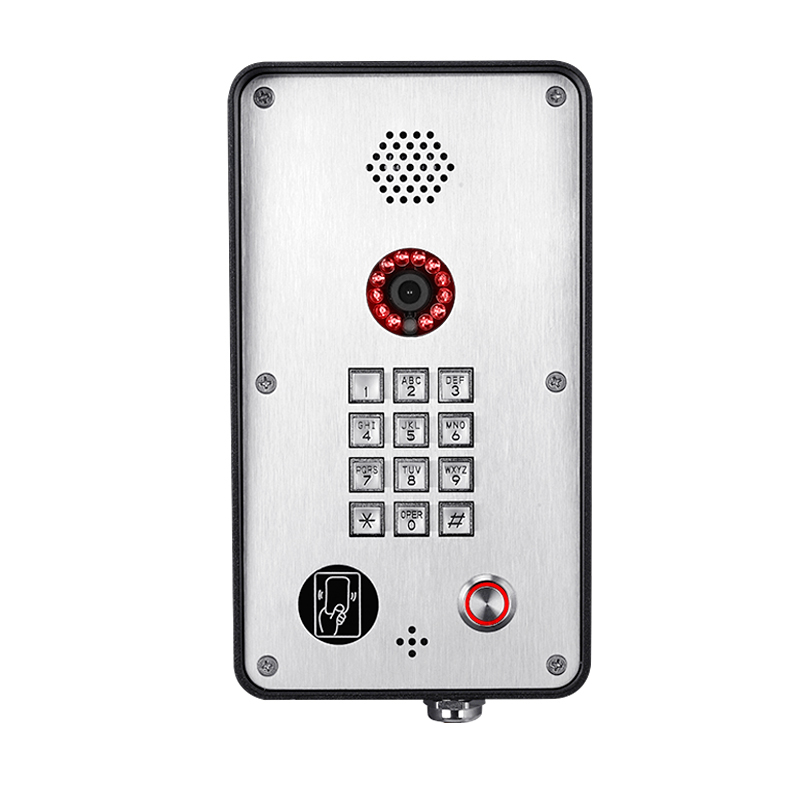

KNZD-52V Video RFID doorphone

      Video RFID doorphone is the most widely used access control system in residential apartments. The access control system can use an RFID card to control access to the access control, and can also use the keyboard on the access control to enter a password for access control.We specializing in the production and sales of Stainless steel sip doorphone audio intercom with RFID card support password to open the door for home security.

Robust IP INTERCOM

       *Supper good sound clarity during conversation

       *Support standard Session Initiation Protocol(SIP), RFC 3261

       *Remote software upgrade, configuration and mornitoring

       *Power over Ethernet(PoE,802.3af), local 12V DC

       *IP66 vandal resistant marine grade stainless steel faceplate

       *LED indicator

       *Echo cancellation

       *Password, RFID card, Video, Remote program

video RFID Doorphone

Model KNZD-52V
Construction Robust aluminium alloy die-cast body stainless steel face plate
Dimensions(W*H*D) Unit size: 235*131*78.7mm; Carton size each box:32.5*18*13.5cm/G.W.: 2.3kg
Weight 2.3kg
Operating Temperature -40°F to +158°F/ -40℃ to +70℃
Relative Humidity Up to 95% non-condensing
Protection IP66, vandal-resistant and water-resistant design
Communication Full duplex 2-way hands-free communication
Call Control Signaling SIP(RFC compliant), SIP Info(DTMF), RFC 2833(DTMF)
Audio Codes G.711, G.722, G.729
Camera Image Sensor OV9712
Total Pixels 480P 15fps
Min. illumination 0.1lux
Field of view 150° horizontal Opposite angles 170°
Lens 2.75mm
Framerate 15fps, 30fps, MJPEG, H.264
Streamine Dual-stream at different frame rate and bandwidth
ONVIF compliant Yes
Power Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
Auxiliary Contacts 1 Aux Output, dry contact
Contact Ratings
Load: Resistive load
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
Rated carry current:1A
Max.switching voltage:125 VAC,60VDC
Max.switching current:1A
Network 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Programming Non-volatile flash memory programming and configuration through Web GUI
Management and Operation DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code G.167/G.168

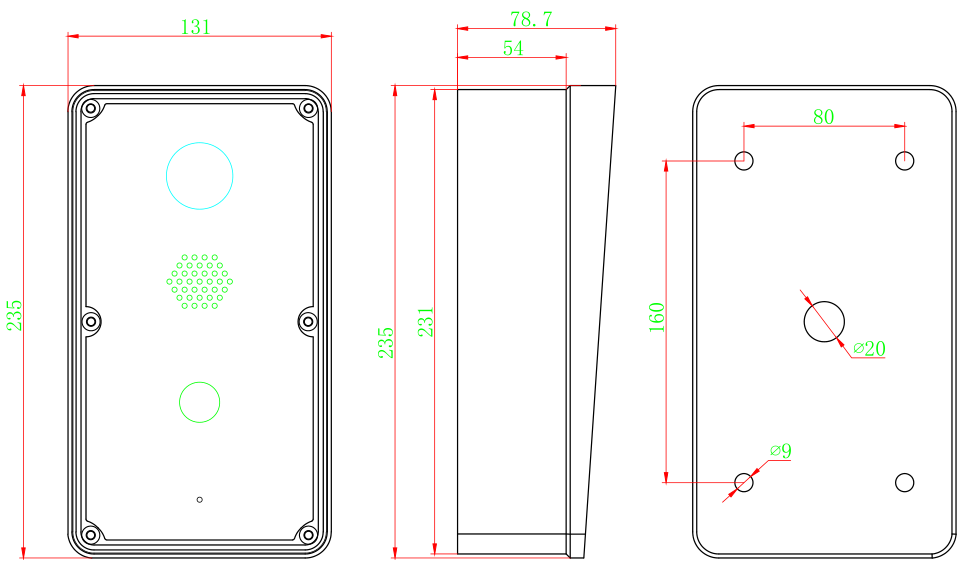

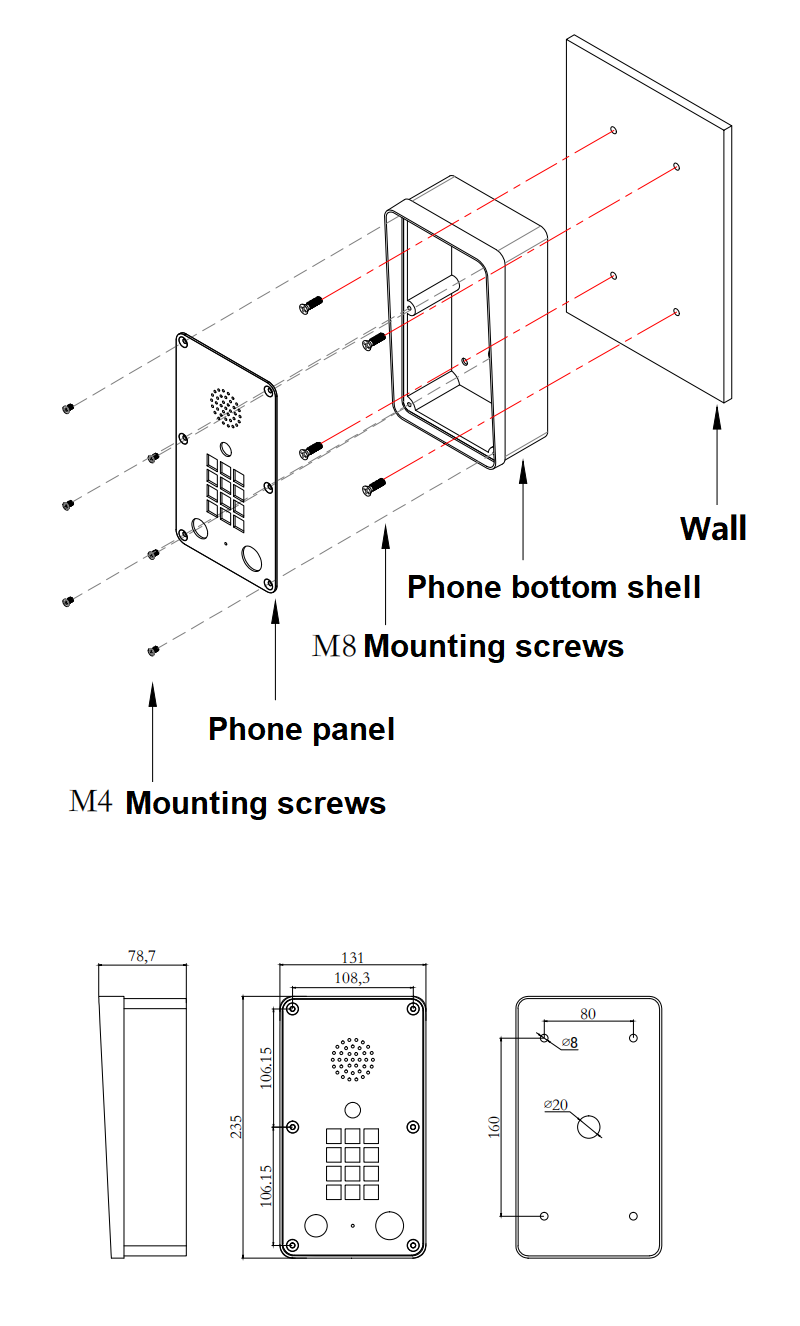

Size & Packing

video RFID Doorphone

      Kntech standard export carton packing

      Unit size: 235*131*78.7mm;  N.W.: 2.3kg;

      1pc carton:32.5*18*13.5cm;  N.W.: 2.3kg; G.W.: 2.6kg

      4pcs carton: 37*35*27cm;  G.W.: 8.7kg


You May Like:

KNZD-51

KNZD-58

KNZD-60M

KNZD-30-2IPIL




==>>>> Product Specification

 SPECIFICATION - Analogue

1. PSTN analogue telephone                                          2. DTMF dialing

3. MTBF:100000hours                                                    4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable               6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

 SPECIFICATION - VoIP

1. VoIP SIP2.0 telephone                                              2. DTMF dialing

3. MTBF100000hours                                                   4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact            6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load                      8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A                                             10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC                 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

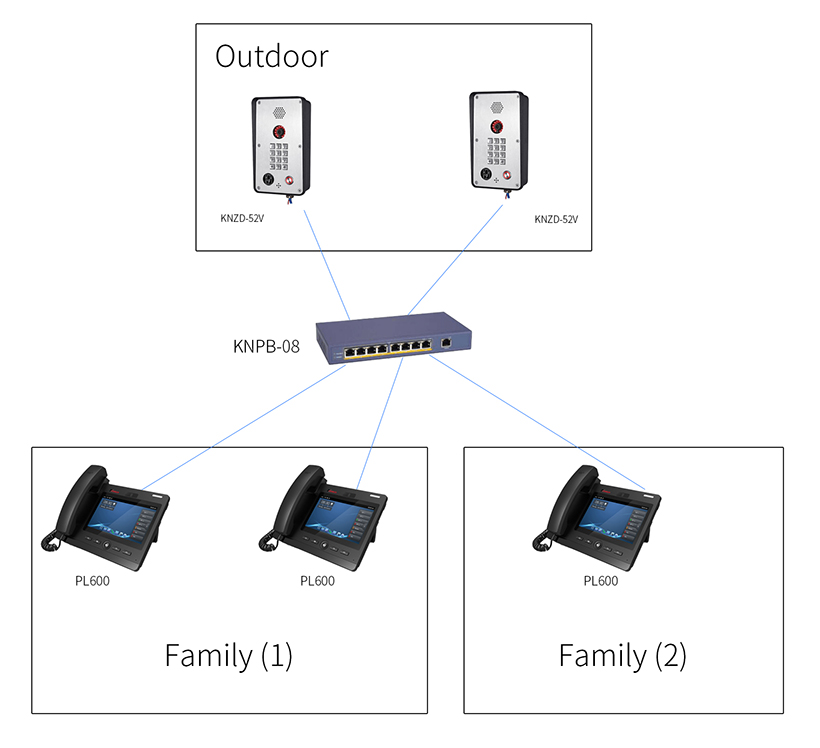

==>>>>Telephone System

access control system

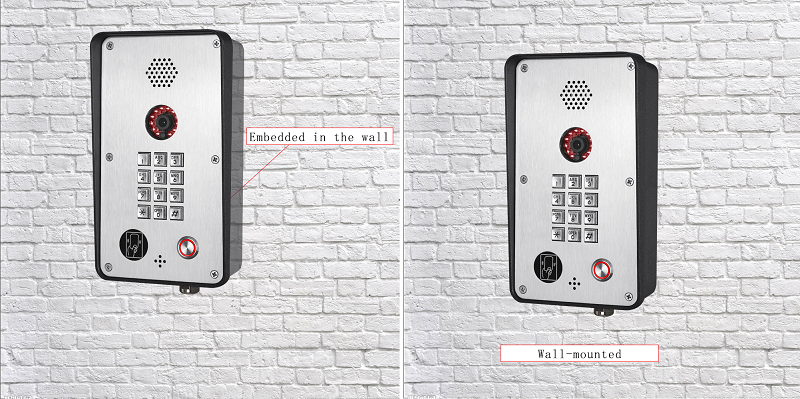

==>>>>Product Application

video RFID Doorphone

video RFID Doorphone

video RFID Doorphone

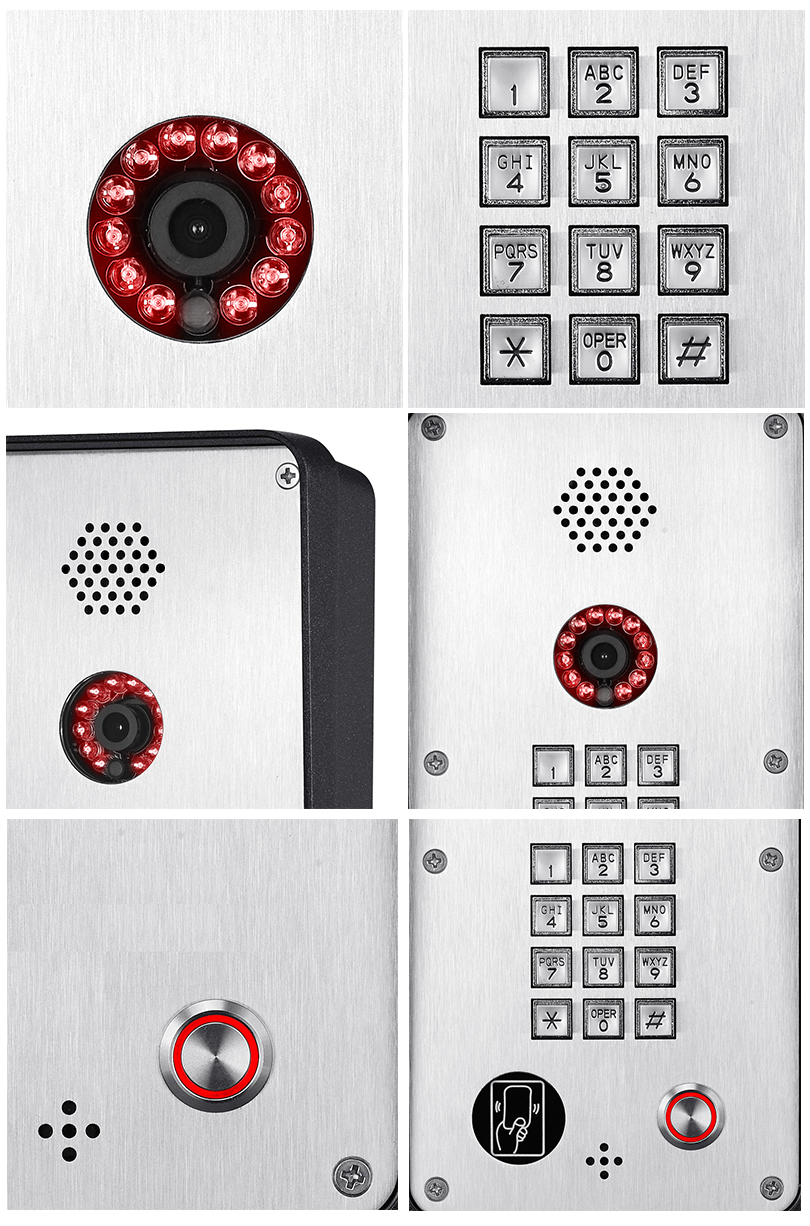

==>>>>Product Detailed Pictures

RFID video RFID Doorphone
video RFID Doorphone

video RFID Doorphone

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNZD-52V

*
*
*
