Emergency Intercom

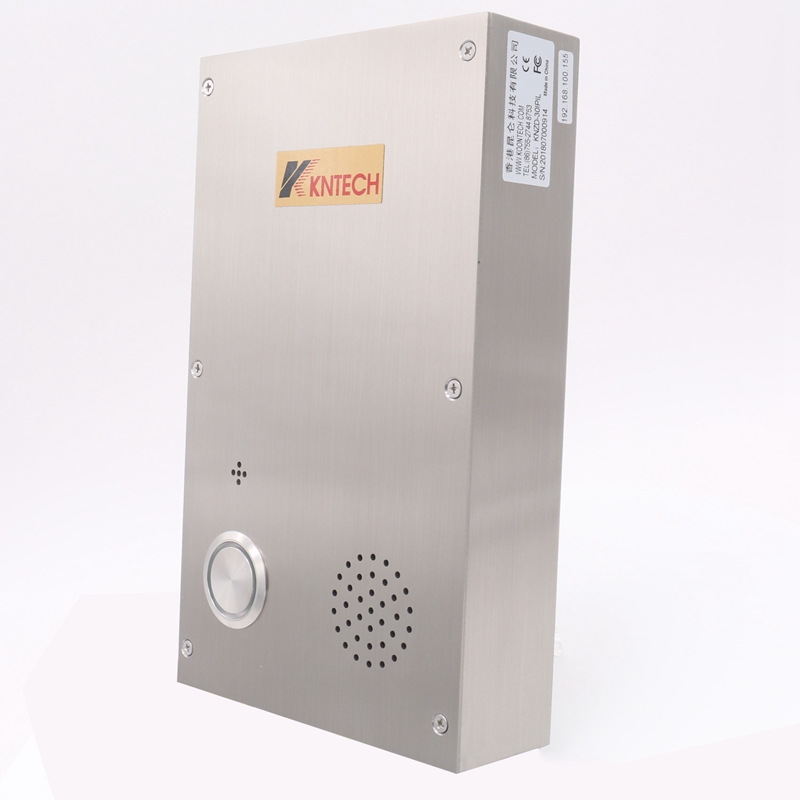

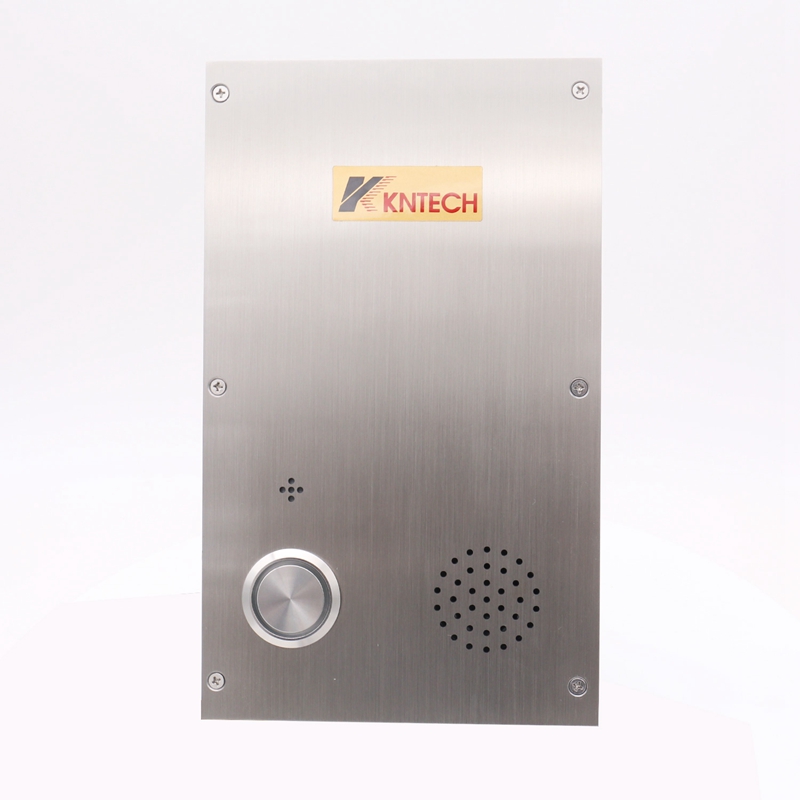

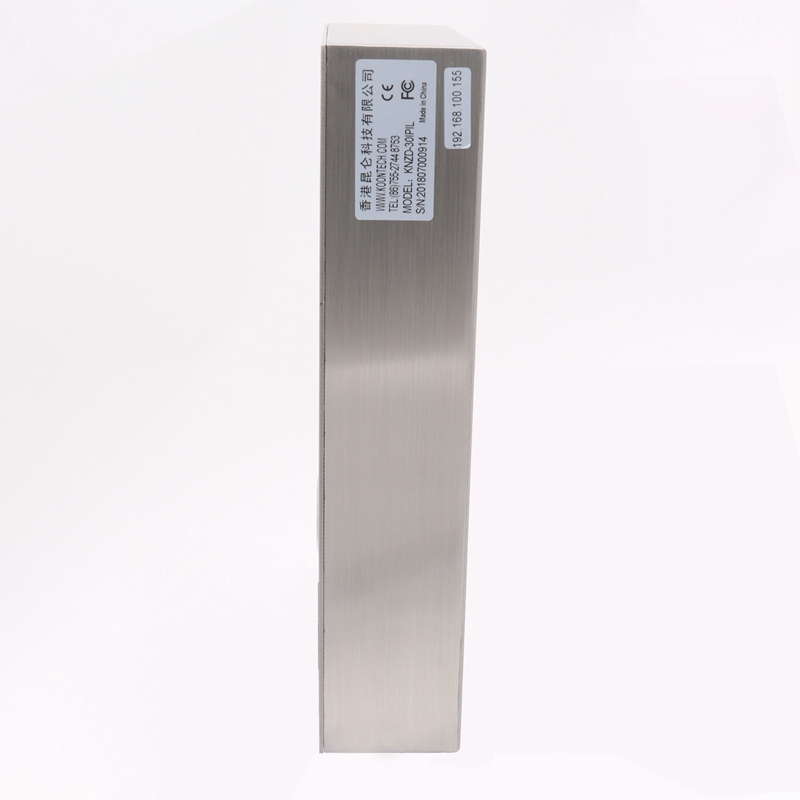

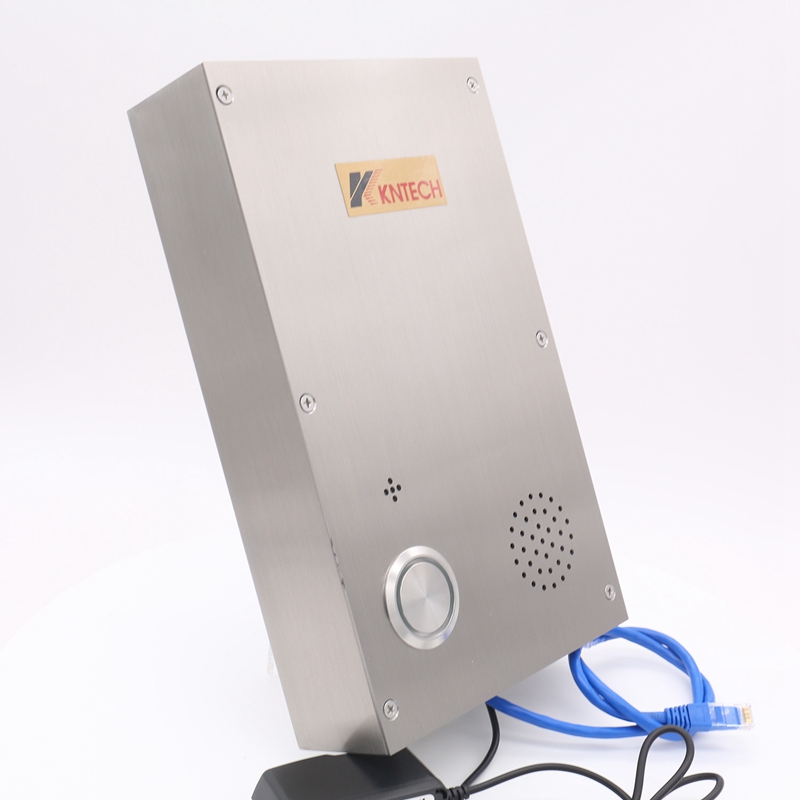

KNZD-30 Emergency Intercom

 DESCRIPTION ITEM

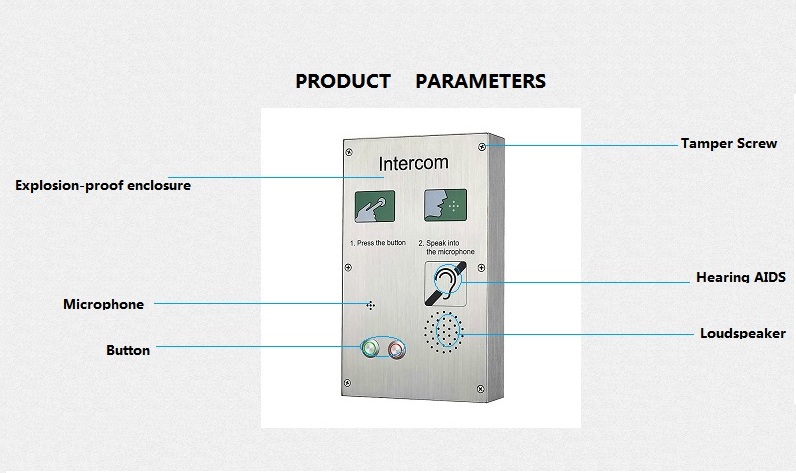

1. Stainless steel 304 body, vandal & tamper-resistant hardware, easy Installation.

2. Waterproof rating IP55 dust proof.

3. Support induction loop.(optional)

4. Hands-free button, double loudspeaker.

5. Lightening protection to ITU-T recommendation K.21.

6. POE power supply or DC12V.

7. Temperature range from -40 degree to +70 degree.

8. Support echo cancellation.

9. Remote software upgrade, configuration and monitoring.

10. Optional 7 minute time out to release the line if the handset is left off hook. This function

upon buyer??s requirement).

11. The housing covered with a layer of reflective label for easy identification at night.Optional

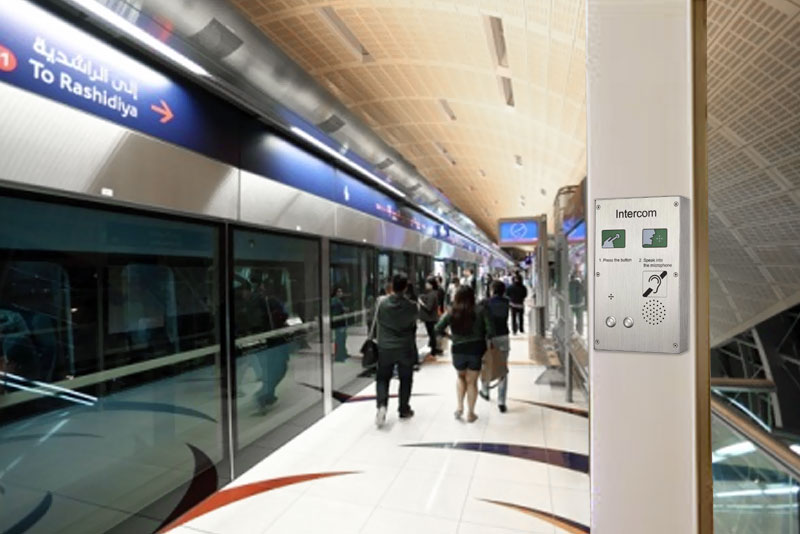

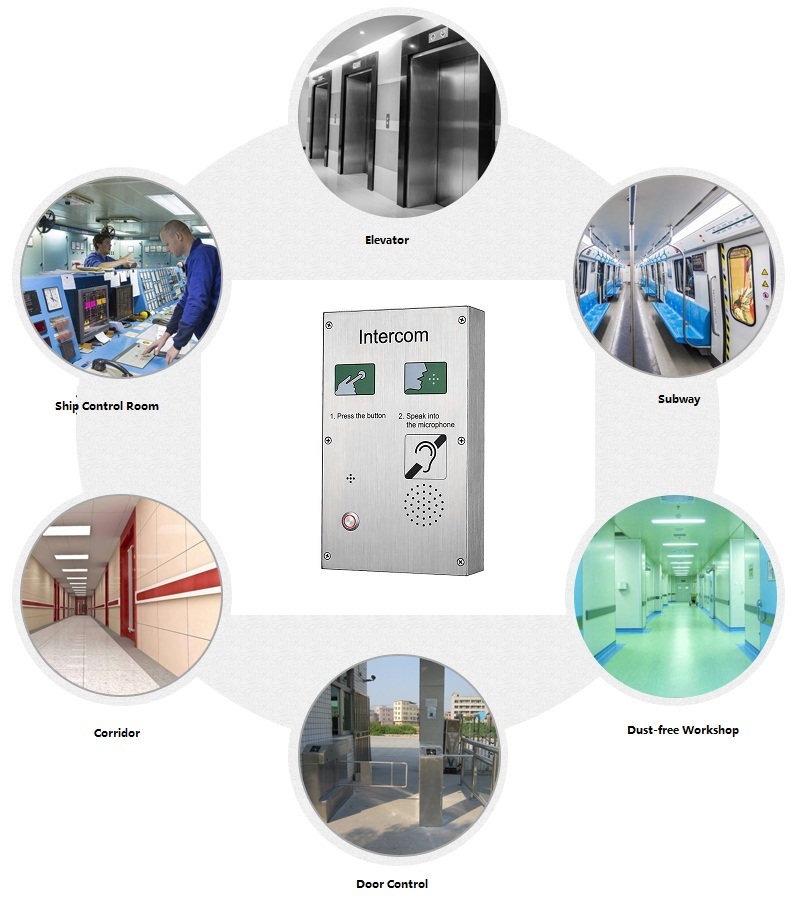

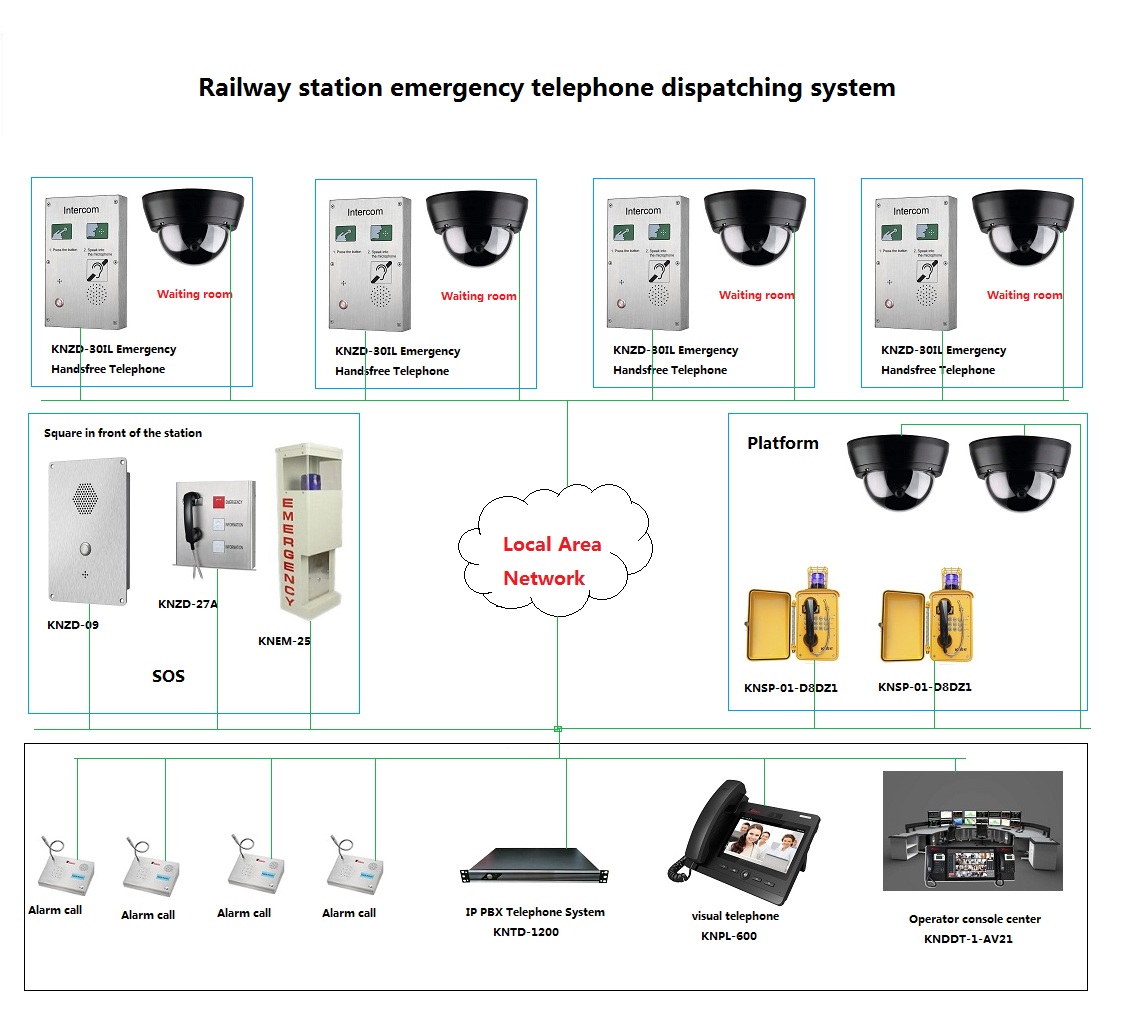

12. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant,

bridge etc.

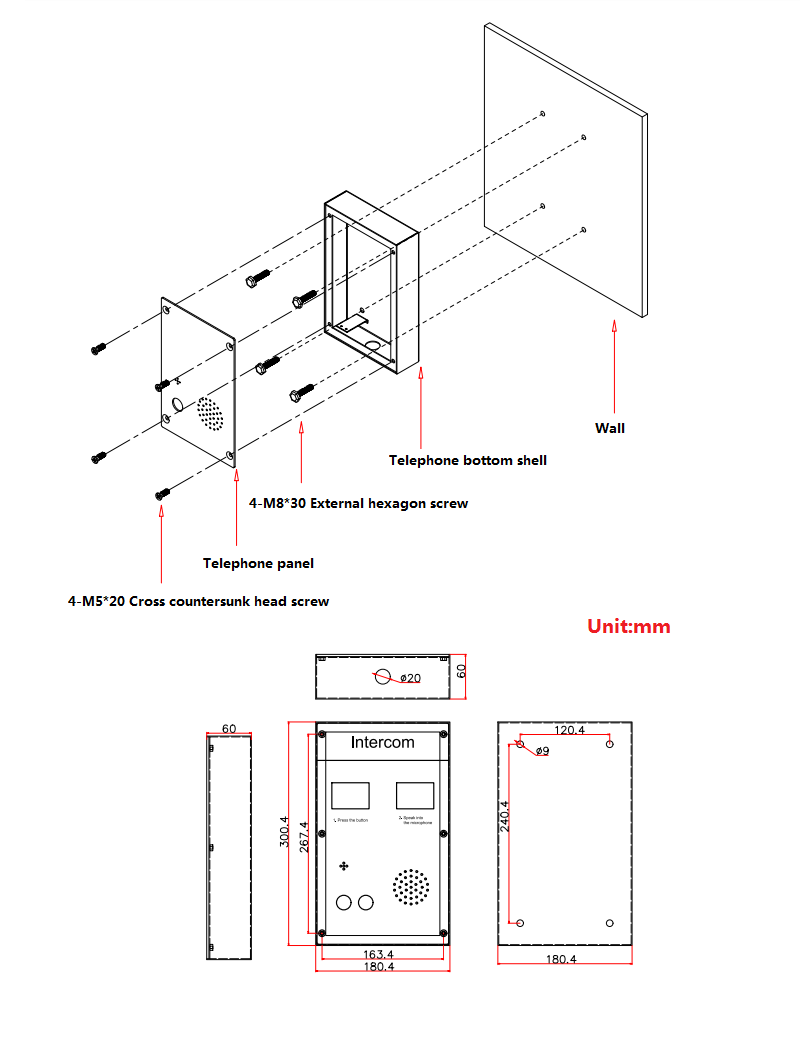

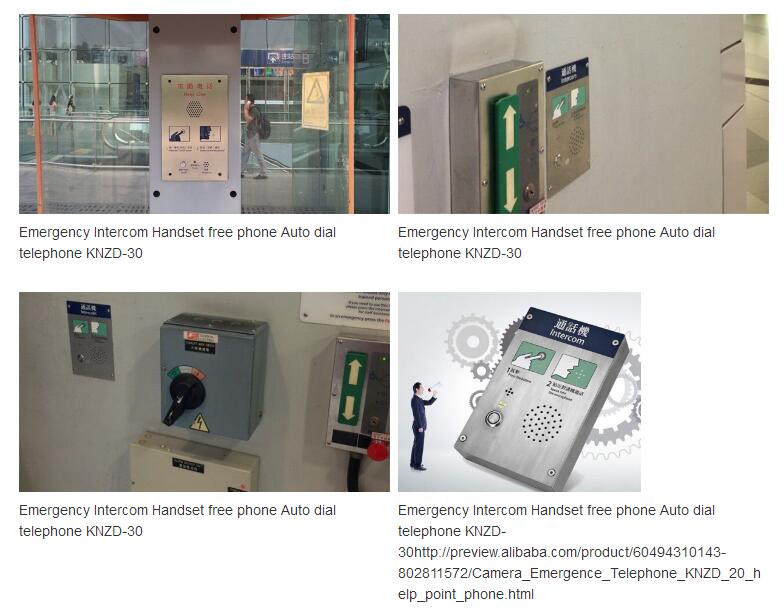

 INSTALLATION

 CERTIFICATION

EN55022: emissions   EN55024: immunity

Ingress Protection: GB4208-93 IP55 FCC

ITU-T Recommendations K21

EMC: EN50121(Railway application-Electromagnetic Compatibility)

<p segoe="" ui",="" "lucida="" grande",="" helvetica,="" arial,="" "microsoft="" yahei",="" freesans,="" arimo,="" "droid="" sans",="" "wenquanyi="" micro="" hei",="" "hiragino="" sans="" gb",="" gb="" w3",="" sans-serif;="" vertical-align:="" middle;"="" style="box-sizing: border-box; margin: 0px 0px 5px; padding-bottom: 14px; font-size: 14px; font-weight: 400; text-indent: 0em; color: rgb(51, 51, 51);">PACKAGING

Unit size:210*135*44mm     Unit: N.W:1.2kg

 SPECIFICATION
VoIP SIP2.0 telephone        DTMF dialing
MTBF:100000hours             MTTR: 2 hours
Hotline (maximum length of each number is 16 digits)
Communication: Full duplex 2-way hands-free communication
Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDC,Idle 2W, Max 10W
Auxiliary Contacts:1 Aux Output, dry contact
Contact Ratings. Load: Resistive load
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
Rated carry current:1A
Max.switching voltage:125 VAC,60VDC
Max.switching current:1A
Audio Codes:G.711, G.722, G.729
Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Programming:Non-volatile flash memory programming and configuration through Web GUI
Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code:G.167/G.168
