SIP Video PCB board

SIP Video PCB board

model:KN519A
size:7*10*2cm
material:

KN519A

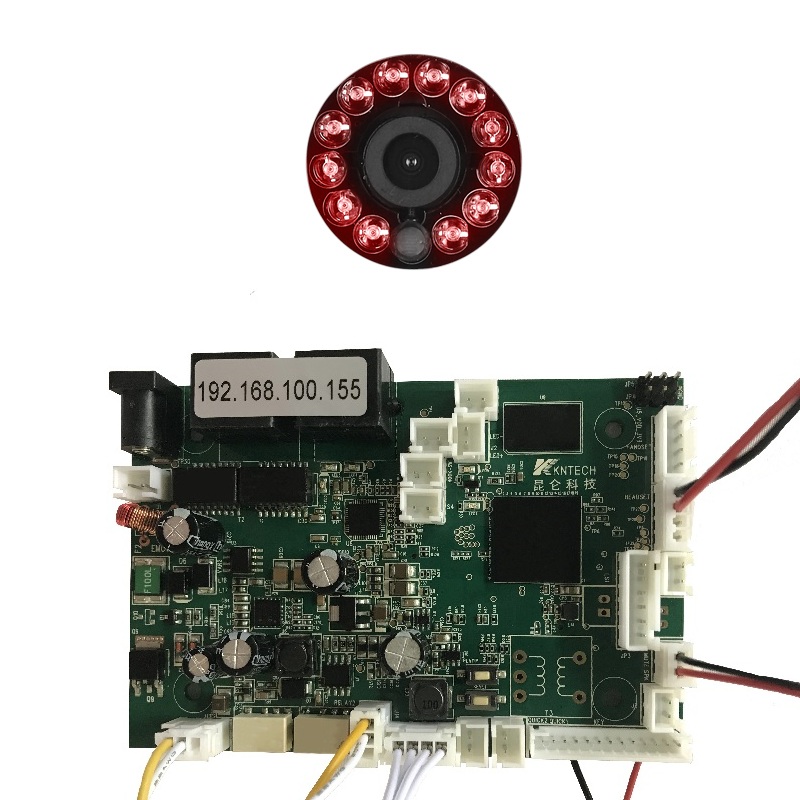

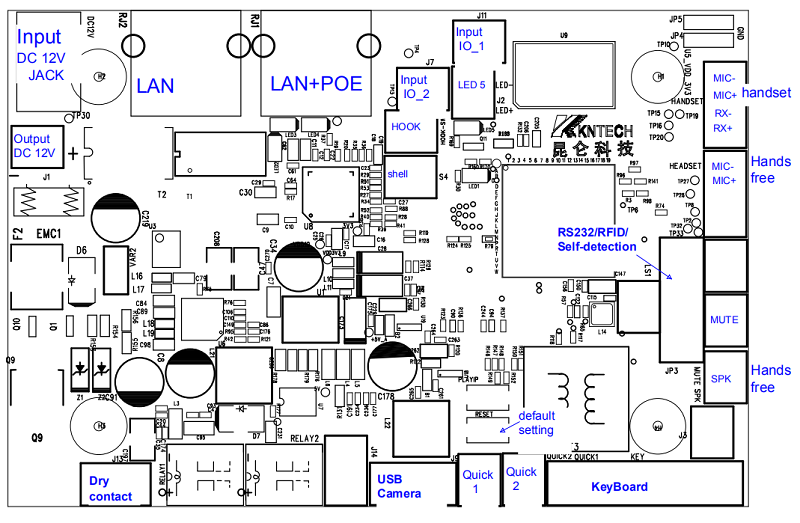

The SIP Video PCB board is the main board of the unidirectional Video call phone, which coordinates with the camera for image transmission. The motherboard is often used in the elevator emergency telephone and telephone access control system.


SIP Video PCB board

SIP Video PCB board KN519A

   Working at -40℃-+70℃ hazardous pure industrial environment

   4 ~100 I/O output and input for external control

   Support WAN/LAN, Duplex Intercom,Echo Cancellation,Upgrade Online

   With Camera optional

   Web page up to 50+ IP station group/direct call without IPPBX

   Adjustable sound volume

   IP address Sound reporting or LCD display

   Door phone RFID card reader available upon request

   Board cast amplifier for paging option

   CCTV trigger available

   SIP 2.0 and private protocol

   5 years warranty

Model KN519A-A KN519A-B
Construction Industrial Grade PCB board Industrial Grade PCB board
Dimensions(W*H*D) 106 * 67 * 15  mm 106 * 67 * 15  mm
Weight 0.43lbs  (0.2kg) 0.43lbs  (0.2kg)
Operating Temperature -40°F to +158°F/ -40℃ to +70℃ -40°F to +158°F/ -40℃ to +70℃
Relative Humidity Up to 95%   non-condensing Up to 95%   non-condensing
Protection Water-proof, Dust-proof, Oxidation-proof Water-proof, Dust-proof, Oxidation-proof
Communication Full duplex 2-way   hands-free communication Full duplex 2-way   hands-free communication
Call Control Signaling SIP(RFC compliant),   SIP Info(DTMF),   RFC 2833(DTMF) SIP(RFC compliant),   SIP Info(DTMF),   RFC 2833(DTMF)
Audio Codes G.711, G.722, G.729 G.711, G.722, G.729
Model KN519A-A KN519A-B
Camera Image Sensor OV9712 OV9712
Total Pixels 720P  (1280*720) 15fps 240P   5fps
Min.  illumination 0.1lux 0.1lux
Field of view 150° horizontal Opposite angles 170° 150° horizontal Opposite angles 170°
Lens 2.75mm 2.75mm
Framerate 15fps,  30fps  ,MJPEG,  H.264 5fps, MJPEG, H.264
Streamine Dual-stream at different  frame rate and bandwidth Dual-stream at different  frame rate and bandwidth
ONVIF compliant Yes Yes
Power Power over Ethernet,   IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W Power over Ethernet,   IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
Auxiliary Contacts 1 Aux Output, dry contact 1 Aux Outpu, , t, dry contact
Contact Ratings Contact Ratings
Load: Resistive load Load: Resistive load
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
Rated carry current:1A Rated carry current:1A
Max.switching voltage:125 VAC,60VDC Max.switching voltage:125 VAC,60VDC
Max.switching current:1A Max.switching current:1A
Network 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004) Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Programming Non-volatile flash memory programming and configuration through Web GUI Non-volatile flash memory programming and configuration through Web GUI
Management and Operation DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code G.167/G.168 G.167/G.168


WIFI SPECIFICATION
Memory 64MByte DDR2
Flash 4MByte
Connection 1 x Reset button(Reset & Factory Defaults)
2 x 10/100
1 x Power DC Jack
Data rate 11b:11M,5.5M,  2M,1Mbps
11g: 54M,48M,36M,24M,18M,12M,9M,6Mbps
11n: 6.5M,13M,13.5M,19.5M,26M,27M,39M,40.5M,52M,54M
58.5M,65M,81M,108M,121.5M,135M,150Mbps
Transmission mode DSSS
Standard IEEE802.11n,  IEEE802.11g  ,IEEE802.11b,  IEEE802.3U
Frequency domain 2412—2472MHz
Protocols CSMA/CA,  TCP/IP,  DHCP,HTTP,  TELNET, TFTP ,ICMP
power consumption 5W
Power supply 12V/1A

You May Like:

KNDDT-1-AV21

Operator console center

KNTD-1200

IP PBX Server

KNZD-60M

Video Intercom System

KNSP-01

Weatherproof telephone




==>>>> Product Specification

 SPECIFICATION

VoIP SIP2.0 telephone        DTMF dialing

MTBF:100000hours             MTTR: 2 hours

Hotline (maximum length of each number is 16 digits)

Communication: Full duplex 2-way hands-free communication

Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDC,Idle 2W, Max 10W

Auxiliary Contacts:1 Aux Output, dry contact

Contact Ratings. Load: Resistive load

Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

Rated carry current:1A

Max.switching voltage:125 VAC,60VDC

Max.switching current:1A

Audio Codes:G.711, G.722, G.729

Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

Programming:Non-volatile flash memory programming and configuration through Web GUI

Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

Echo cancellation code:G.167/G.168
