Ex Telephone

Ex Telephone

model:KNEx5 Analogue
size:349.5X279X161mm
material:

Ex telephone [KNEx5 Analogue]
ex telephone

KNEx5 ex telephone

      Ex telephone KNEx5 work as atex equipment basis on standard atex and iecex. The atex explosion proof telephone is  intrinsically safe and atex zone 1 and zone 2 also zone 21. KNTECH design and manufacture the telephone with IECEX tertification and explosion proof classification also export to 50 countries. Every explosion proof telephone have atex explosion protection ex d iib with exmark.

DESCRIPTION

1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware.
2. Waterproof rating IP66 dust proof.
3. Full keypad with memory, dialling 10 groups of numbers stored in the memory.
4. Magnetic reed hook-switch.
5. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
6. Handset with industrial strong curly cord .
7. Stainless Steel keypad keep waterproof and dusty proof.
8. Built-in 8ohm 0.5W.
9. Door cover: orient automatically and good self - closing, convenient for use.
10. Temperature range from -20 degree to +55 degree.
11. Powder coated in UV stabilized polyester finish.
12. Application: Hazardous dust and gas atmospheres, petrochemical industry,Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

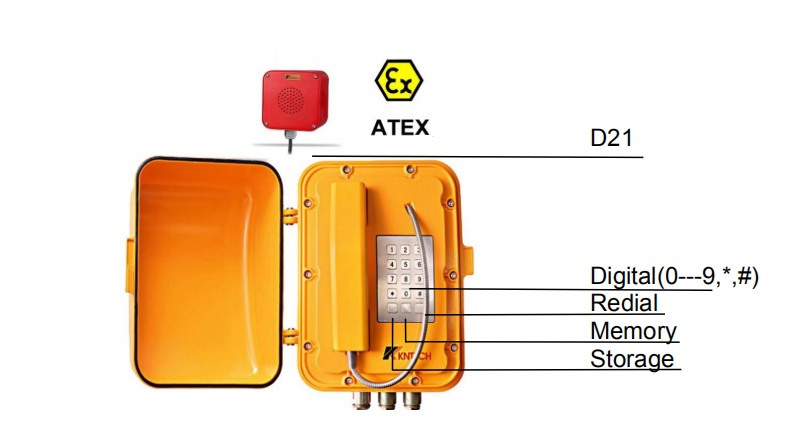

USER PROGRAMMING

pick up the Handset, press the keyboard storage key+address key(digital 0 --- 9)+phone number+storage key, and then hang up.

explosion proof telephone use manal

INSTALLATION

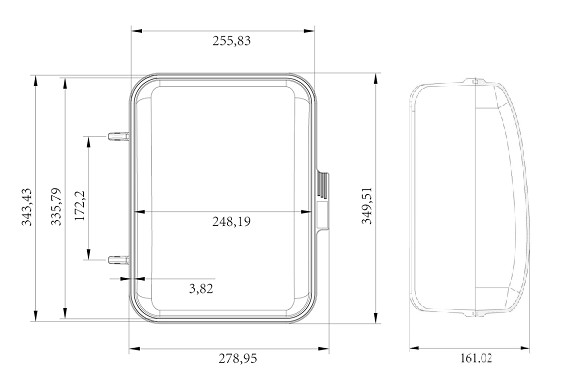

ex telephone size

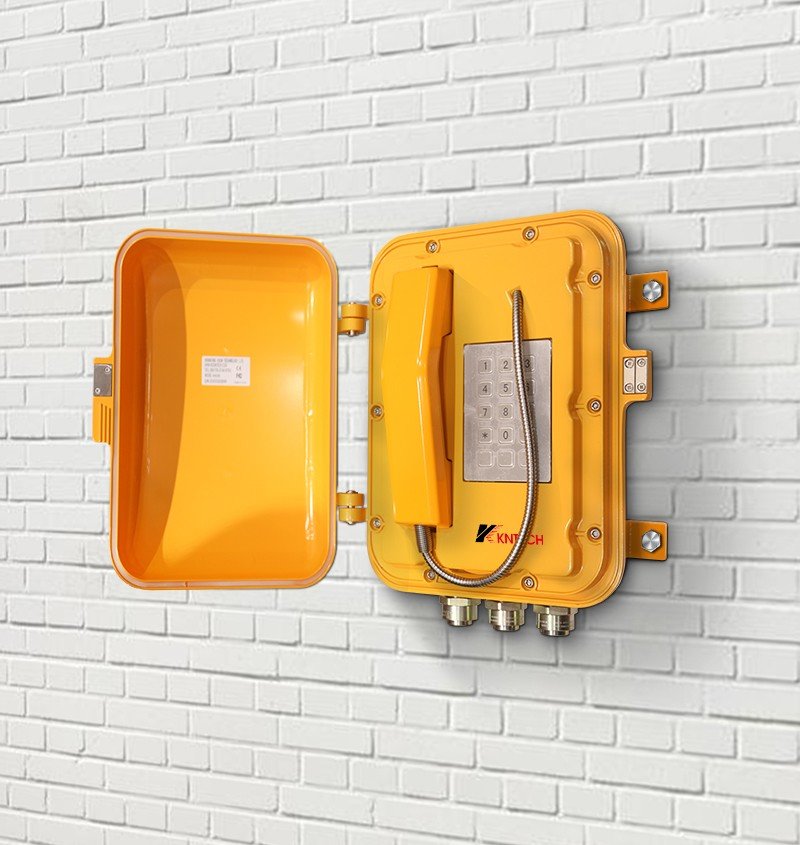

ex telephone wall mounted

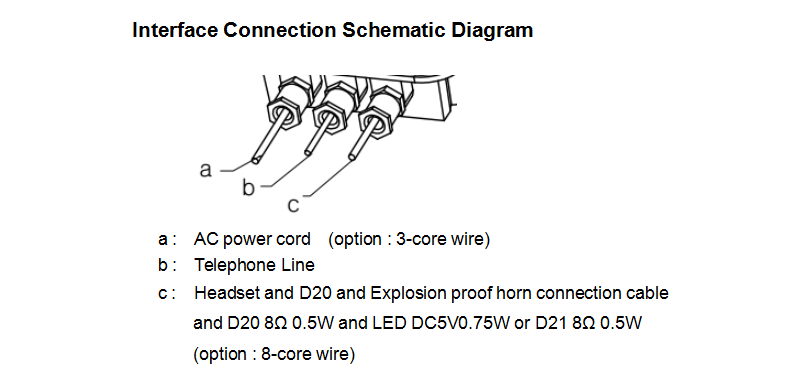

INTERFACE CONNECTION SCHEMATIC DIAGRAM

explosion proof telephone

You May Like:

KNZD-41

Fire alarm telephone

NMS-X1 SNMP

SNMP system

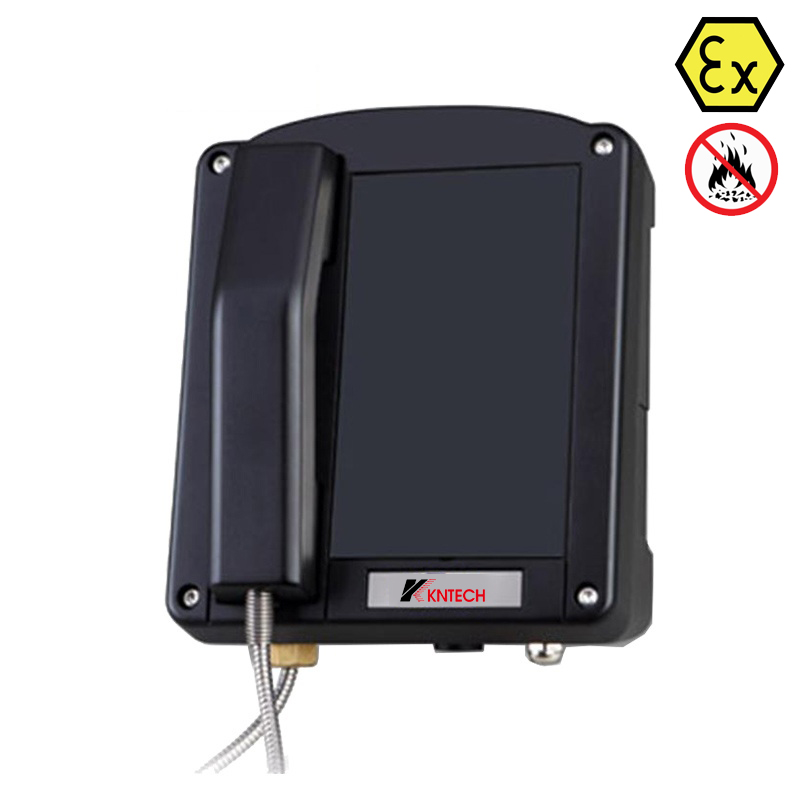

KNEX-2

Ex telephone

KNSP-01

Weatherproof phone




Product Specification

SPECIFICATION

Types of protection: II 2G Ex db ib IIB T5 Gb
-20℃ to 55℃
DTMF dialling
MTBF:100000hours
Built-in 8ohm 0.5W
Telephone line power supply DC 24V-48V
Sound level of ringing:over 70dB(A).At 50cm distance.
speed dialling keypad:Super strong function is available for dialling 10 groups of numbers stored in the memory
Housing: construction robust aluminium alley die-cast body
Unit size: 290*185*118mm
Weight: 10.65kg
Environment conditions:
Ambient temperature: -20℃ to 55℃.
Relative humidity:10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
Degree of protection: IP66

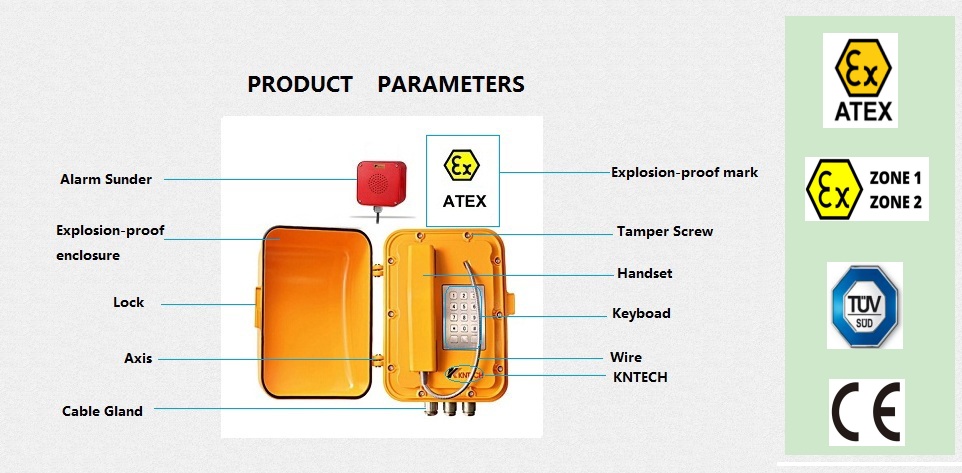

ex telephone introduct

Product Application

Ex telephone oil application
Ex telephone oil application
Ex telephone oil application

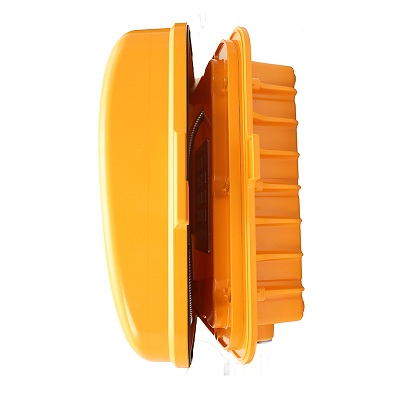

Product Detailed Pictures

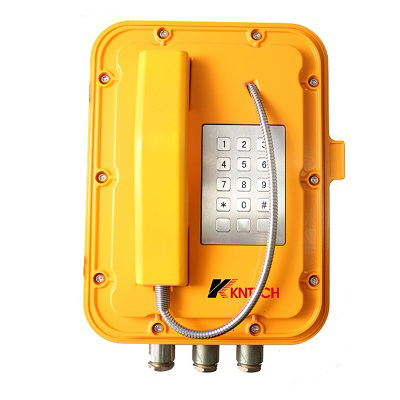

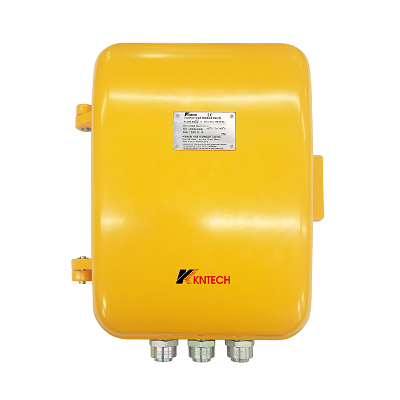

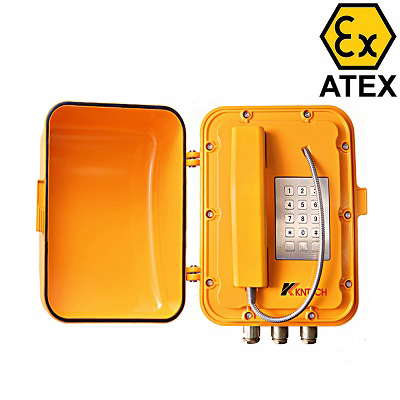

ex telephone front viewex telephone detail view

ex telephone front viewex telephone front view

ex telephone front viewex telephone detail view


Product Video


Please Email US
marketing@koontech.com

This product model:KNEx5 Analogue

*
*
*
*
