Blue Light Stations

Blue Light Stations

model: KNSP-03-IP-Y-D12-BL
size:320*205*120mm
material:Aluminum alloy

Blue-Light-Stations-voip
User Manual SP Series IP
Blue light station, waterproof phone for emergency calls in industrial communications.
Use a blue alarm light and a communication phone connection to achieve a broadcast alarm

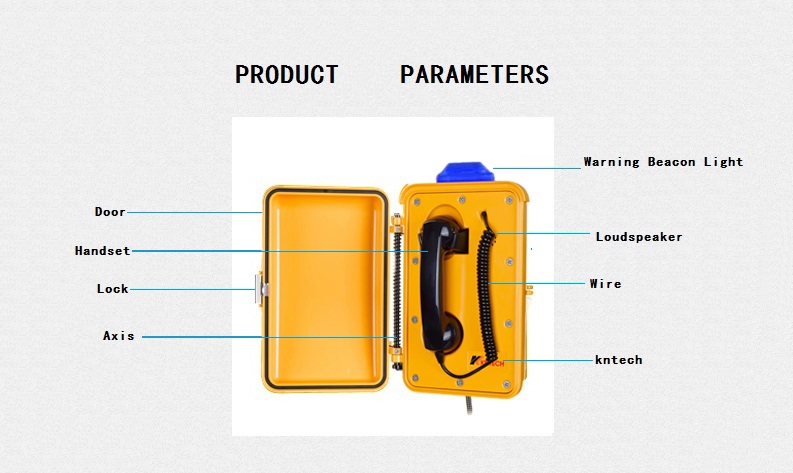

blue light station description

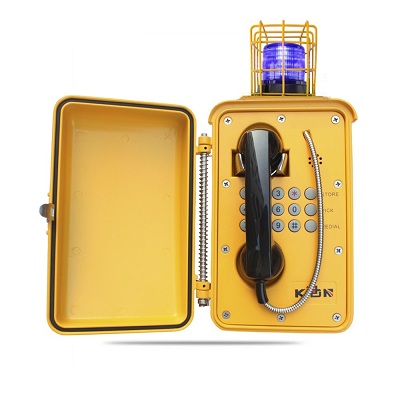

Blue Light Stations KNSP-03-IP-Y-D12-BL

Blue Light Station,industrial waterproof phone with blue alarm can be placed on the outdoor, industrial work area with columns.The industrial-grade blue light station can be placed in any industrial area or hazardous area. It is waterproof, moisture-proof, corrosion-resistant and violent.
 DESCRIPTION ITEM
1. Robust aluminium alloy die-cast body, Vandal & tamper-resistant hardware.
2. Waterproof rating IP66 dust proof.
3. With line powered blue indication lamp.
4. Noise canceling microphone. When the train or car comes, the phone automatically filters out the noise of the train, making the quality of the call clearer.Without keypad, support hotline setting. support scroll dialing.
5. Magnetic reed hook-switch.
6. DC input overvoltage overcurrent protection and RJ 45 surge protection.
7. Heavy Duty handset with hearing Aid compatible (HAC) receiver,
8. Handset with industrial strong curly cord .
9. Door cover: orient automatically and good self - closing, convenient for use.
10. Temperature range from -40 degree to +70 degree.
11. Support echo cancellation.
12. Support Remote software upgrade, configuration and monitoring.
13. Powder coated in UV stabilized polyester finish.
14. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.


Order information:
Model number Power Suppl Item Number
KNSP-03-IP-Y_AD DC12V 1A SP0030052
KNSP-03 -IP-Y_P POE SP0030022
KNSP-03 -IP-Y_ADP DC12V 1A +POE SP0030092
*AD---Adapter UL (Input : AC110~240V , Output : DC12V 1A)
*P---POE


CERTIFICATI
Australian communications:AS/CA S004
Australian Equipment-safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC:EN55032, EN55024,EN61000-3-2

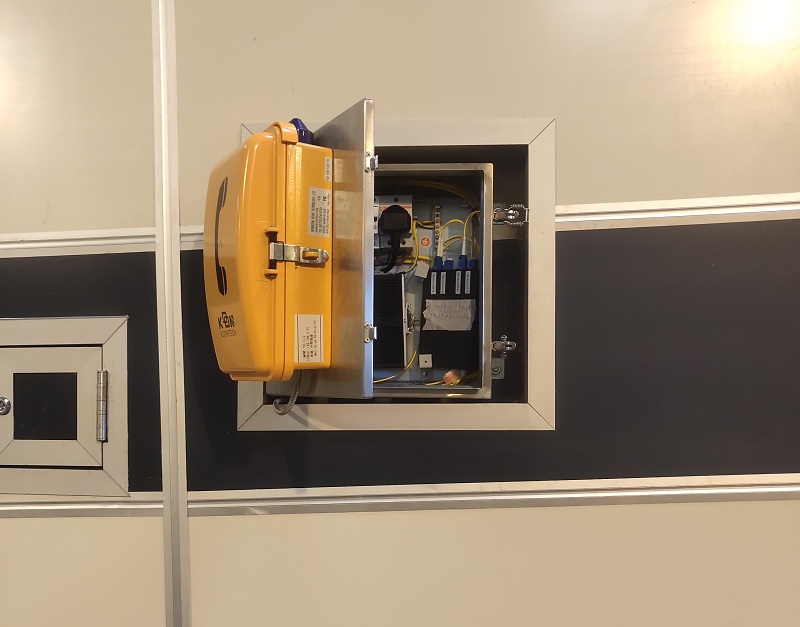

INSTALLATION



PACKAGING

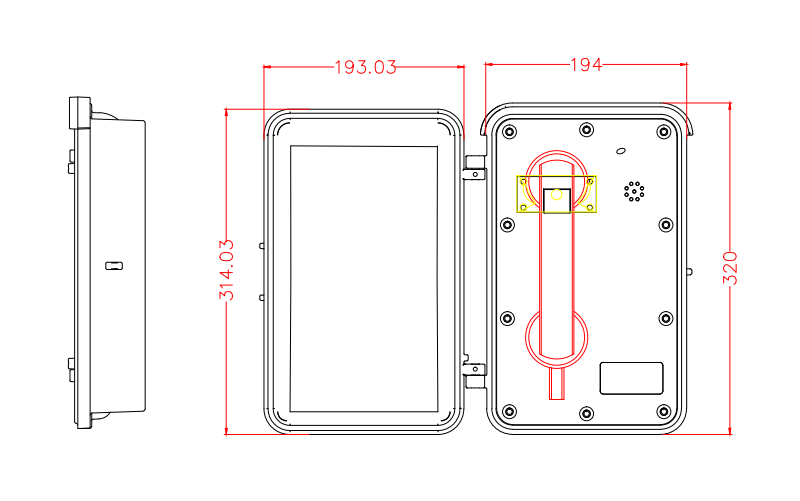

Unit size:320 *205*120mm   Unit: N.W:4.86KG
1pcs packing box size: 439 *277 *191mm   Unit N.W:5.8KG
6pcs in 1 outer Carton box: size: 730*390*340mm  N.W:36.5KG

blue light station packing


You May Like:

KNZD-20

Video intercom

KNSP-01-D8DZ1

Outdoor emergency phone

KNZD-60M

Video Intercom System

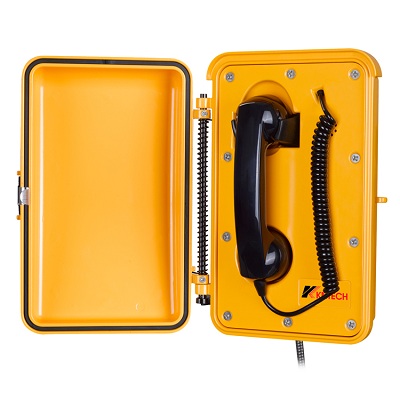

KNSP-03

Railway telephones




==>>>> Product Specification
SPECIFICATION

VoIP SIP2.0 telephone                   DTMF dialing                      Audio Codes:G.711, G.723,G.726, G.729

MTBF:100000hours                       MTTR: 2 hours                    Network:10/100 BaseTX Ethernet, RJ45+

Free dial (maximum length of each number is 32 digits)           connectors, Cat5e or better

Communication: Full duplex 2-way                                            IP Protocols:IPv4, TCP, UDP, RTP, DHCP, SIP

Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)               1 x LAN Power over Ethernet(PoE,802.3af)    1 x LAN(IEEE 802.1x), Network Access

Power:Power over Ethernet, IEEE802.3af, Class 0                                    Control(IEEE 802.1x),STP(IEEE 802.1d),

Local power, 12VDc,Idle 2W, Max 10W                                                      RSTP(IEEE 802.1d-2004)

Auxiliary Contacts: (option)                                                                         Programming:Non-volatile flash memory

1 Aux Output, dry contact                                                                            programming and configuration through Web GUI

Dry contact Load parameter                                                                        Management and Operation:DHCP and static IP,

Rated load:0.3 A at 125 VAC; 1 A at 30 VDC                                              remote automatic software upgrade, centralized

Rated carry current:1A                                                                                 monitoring

Max.switching voltage:125 VAC,30VDC                                                      Echo cancellation code: ITU-T G.167/G.168

Max.switching current:1A








==>>>>Telephone System

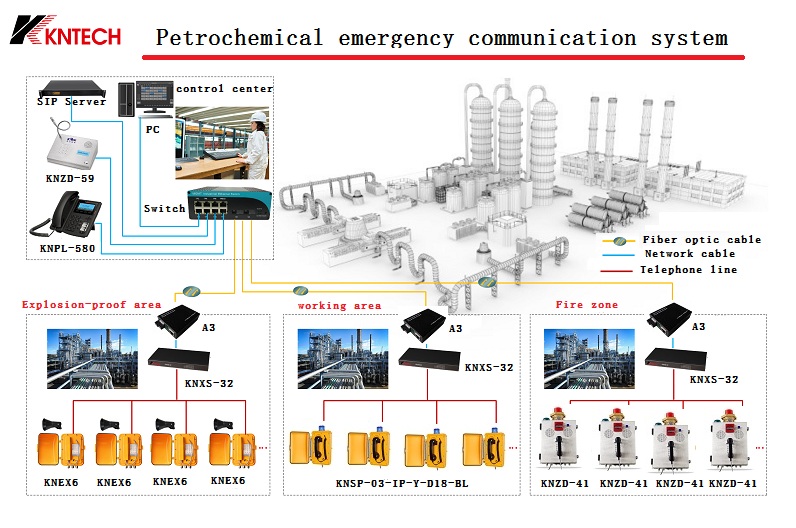

Bule light station in industrail telephone system

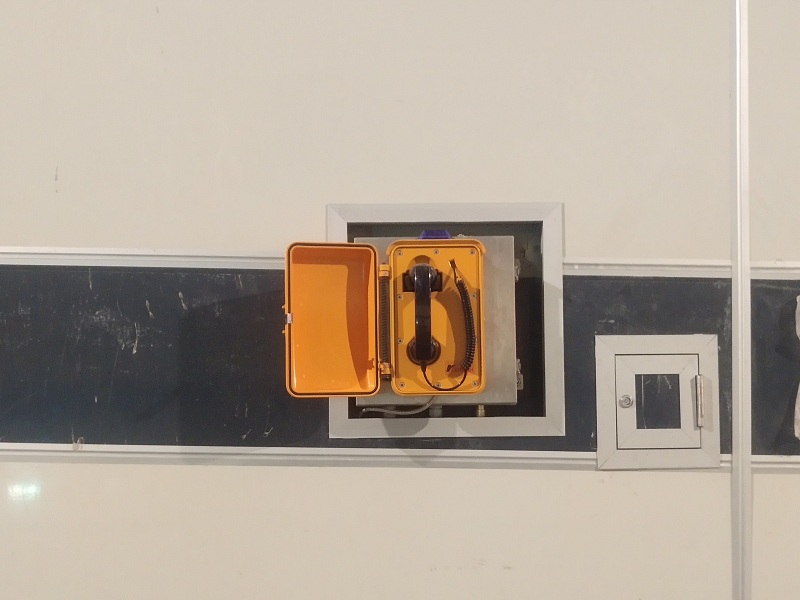

The blue light station is used in the chemical industry and is mainly used in nuclear power generation areas as an emergency alarm for help and alarm warning.blue light station in industrail telephone system

==>>>>Product Application

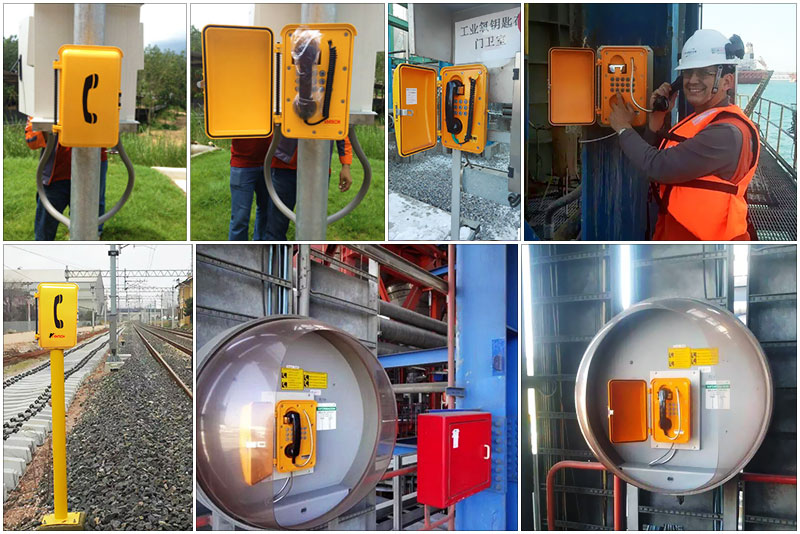

Blue light station use in outdoot or industrial

blue light station use in outdoor
blue light station use in industrial
blue light station use in railway

==>>>>Product Detailed Pictures

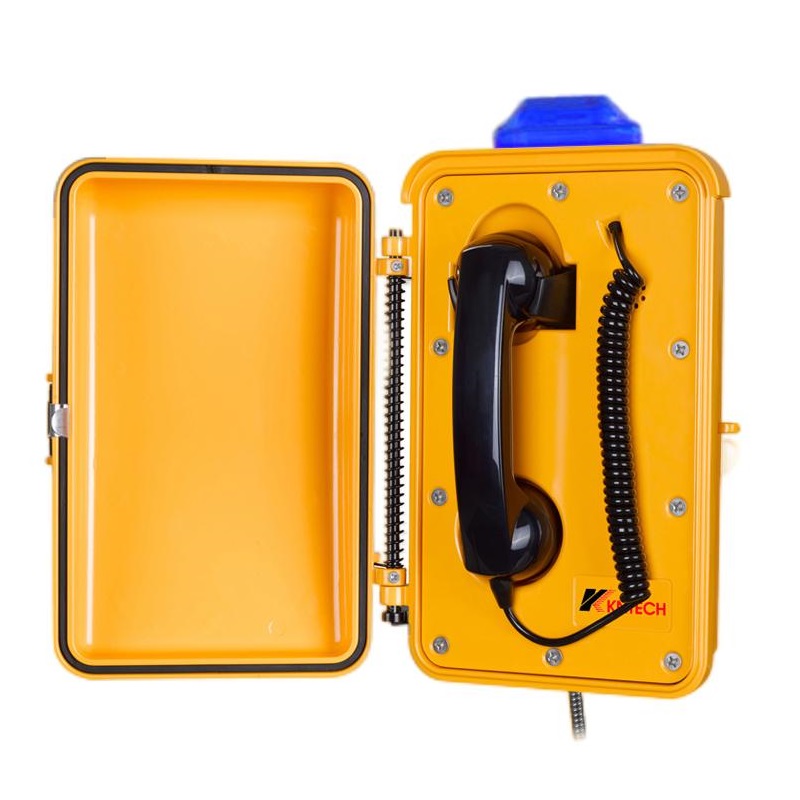

Blue light station more details

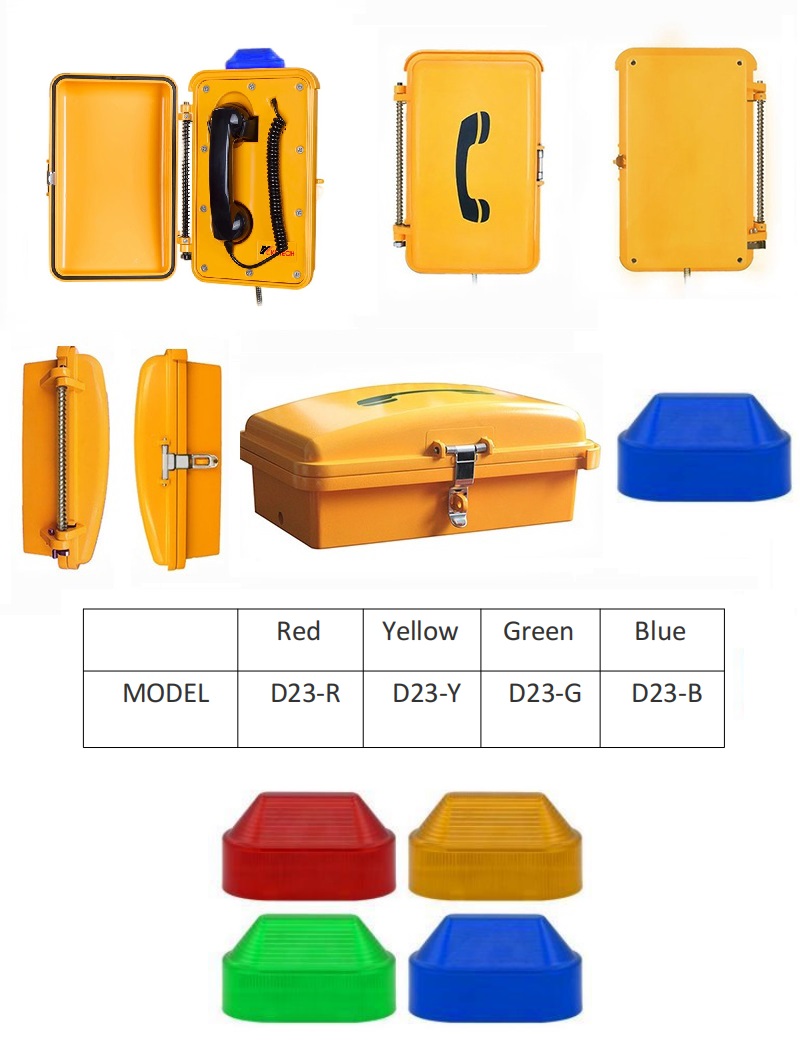

blue light station multi angle

Blue light and blue warning light


==>>>>Product Video

==>>>>Please Email US
*
*
*

Curry-December 21, 2018-India

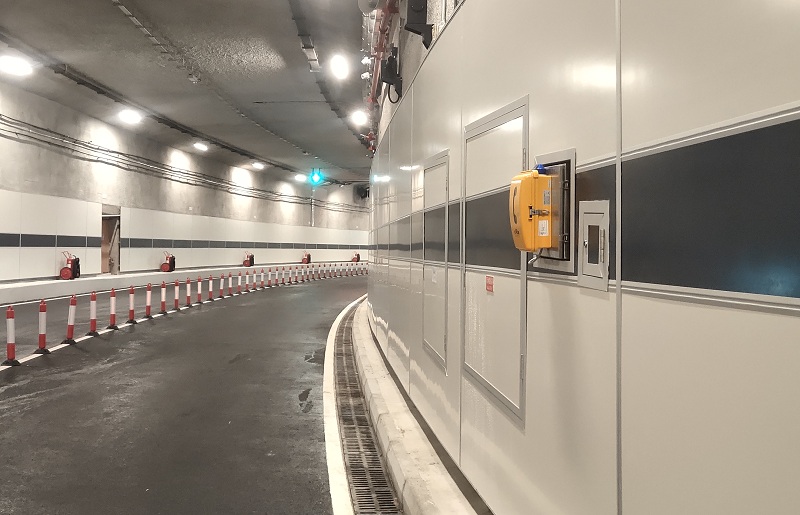

The industrial blue light station, bought and placed in the tunnel, is very practical and very suitable for our requirements.
