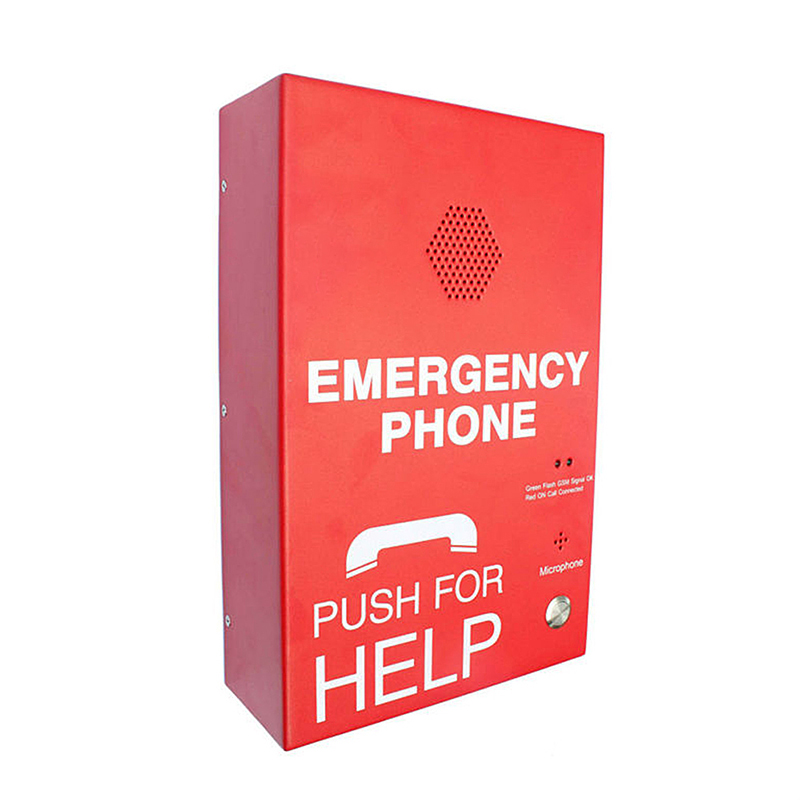

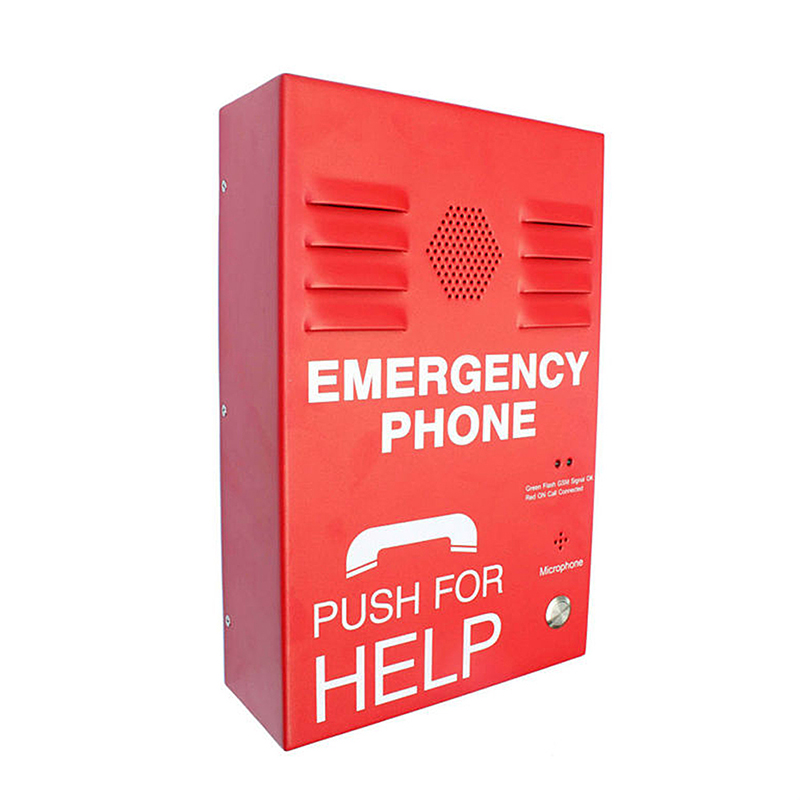

Emergency pool phone

Emergency pool phone

model:KNZD-38
size:340*220*90(mm)
material:Cold-roll steel sheets

Emergency-pool-phone
User-Manual-ZD-Series-IP
User-Manual-ZD-Series-Analogue
We can provide an outdoor swimming emergency pool phone with a weatherproof enclosure with a red appearance warning. KNZD-38, which provides reliable communication signals through the public network, adopts one-touch speed dialing emergency call mode to deal with sudden situations in the swimming pool.

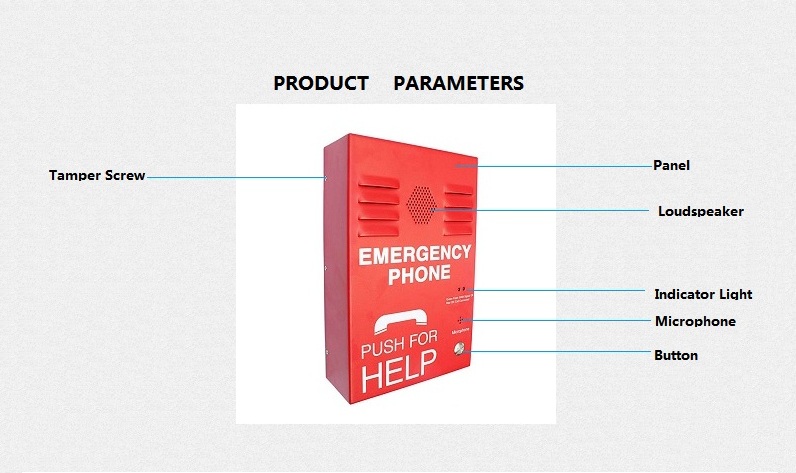

emergency pool phone description

Emergency pool phone weatherproof KNZD-38

    Emergency pool phone is a sip intercom based on the ip protocol. Often placed in the airport, subway station, as an emergency communication, one-touch dialing can be set up, for the alarm phone and duty room. Hands-free intercom, you can customize the sos telephone for various situations as needed.We are the manufacturer of One button for emergency intercom stainless weatherproof phone fire protection telephone  for oil field construction SMS for trouble report GSM version.it is have not the camera ,we can show the voip intercom.oh,we can also provide the emergency call box with solar panel.

The swimming pool emergency call

Swimming pool emergency call, only one speed dial button, you can only dial a programmable speed dial phone number, you can set the speed dial phone to control room phone or 911. Our ip version of the emergency pool phone can be used in conjunction with the surveillance system cctv device for easy observation of the pool.

Why do we need to install an emergency phone by the pool?

At present, some government offices require an emergency phone near the swimming pool to respond to emergencies. Emergency pool phone can effectively reduce accidents, not only for the pool drowning staff, but also for emergency rescue around the pool. An emergency call is installed next to the pool to effectively avoid the worst.

Where should the emergency pool phone be installed?

We should install the phone in a prominent place in the pool and a certain distance from the pool.

How should we choose an emergency pool phone?

When choosing an emergency pool phone , we need to study the area, size, and location of the emergency phone. Based on these efforts, you can help determine the number of emergency pool phone, the version of the emergency pool phone ip, analog, GSM; the way the phone is installed, wall-mounted or embedded, or the need to purchase a mounting post. If it is outdoors, we need to install an emergency phone to prevent bad weather. We need to buy high temperature and low temperature phones due to temperature. These jobs can provide us with a stable and reliable pool emergency pool phone.

Main Features:

1. Analogue/ IP SIP POE/ GSM Telephone

2. Metal body stainless steel 304 or 316 or CRS Cold-Roll Steel.

3. Identifying the push button can be customized in English or other language.

4. The phone affixed to the mount using 4 stainless steel tamper proof screws.

5. Push to talk, One button with memory for speed-dial call. Easy programmable. (we can also make the keypad built-in phone case for hidden).

6. LED indicators for incoming call optional

7. Wearable, waterproof, moisture proof, Vandal resistant and tamper-resistant hardware

8. Lightening protection to ITU-T K.21

9. Automatically release the line when the other far end hang up first.

10. Selectable 7 minute time out

11. Patch cable is industry standard CAT 3 telephone cable patch cable equipped with RJ11 connector.

12. Dry contact ready if customer need this for CCTV optional

13. Self healthy checking and trouble reporting automatically

14. Auto answer and auto stop

15. Induction loop ready for optional need 12V AC feeding.

 CERTIFICATION

the emergency pool phone certificate
          EMC: EN50121 (Railway application- Electromagnetic Compatibility)
                    EN55022: emissions
                    EN55024: immunity
          Ingress Protection: GB4208-93 IP67
          FCC
          ITU-T Recommendations K21
Packing detail:
the emergency pool phone packing
          1pcs in each inner CTN box,
          size: 43.3 x 27.6 x 19.1 G.W: 4kg
          4pcs in outer CTN box, size: 56.6 x 44.5 x42 G.W: 20.25kg
          20GP: 3000PCS, 40GP: 6000PCS, 40HQ: 7000PCS

You May Like:

voip emergency call related products

KNZD-09

Emergency Voice Intercom

voip emergency call related products

NMS-X1 SNMP

Unified network management system

voip emergency call related products

KNZD-16

Help Point Intercom

voip emergency call related products

KNZD-11

Emergency phone




==>>>> Product Specification

Specification:

Main technical indexes:
      1、 Applicable for various types of SPC exchange and dispatching exchange system with feeding voltage of 48-69V. or DC or Solar powered.
      2、 Operating temperature:-30℃~ +70℃ Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:≤ 60dB(A) The ERT assembly housing weather proof with an IP rating of IP55
      3、 Sound level of ringing:≥70dB(A).~90dB
      4、 Standard frequency:low frequency group:697、770、852、941Hz, high frequency group:1209、1336、1477Hz, frequency deviation:≤±1.5% If service line is a 3Km signal-level: Standard frequency:low frequency        group:-9dB±3dB,high frequency group:-7dB±3dB,level difference between low and high frequency of compound signal:2±1dB,the total distortion caused by intermodulation of harmonic wave is lower than the basic level by at least 20dB.        5、 Call transmission index:(5KM)SLR≤12,RLR≤-1,STMR≥10, output impedance is 600Ω. 6、 Super strong function is available for dialing 12 groups of numbers stored in the memory (maximum length of each number is16 digits)
Specification for GSM version
Main technical indexes:
1. Network Interface: 2G or 3G, GSM Frequency :850/900/1800/1900MHZ
2. Ringing: Through internal Speaker/ringer
3. Power Supply: ※Re-chargeable Battery powered: 9V/14Ah, Solar back-up: 12V/30W ※AC ADAPTOR: Input: 240V/110V output: 9V/14Ah
4. Time out: selectable 0-20 minutes
5. Temperature: -20℃~ +60℃emp
6. Relative Humidity: up to 90%
7. Built-in battery Standby: 21days
8. Built-in battery talking time: 21 hours

==>>>>Telephone System

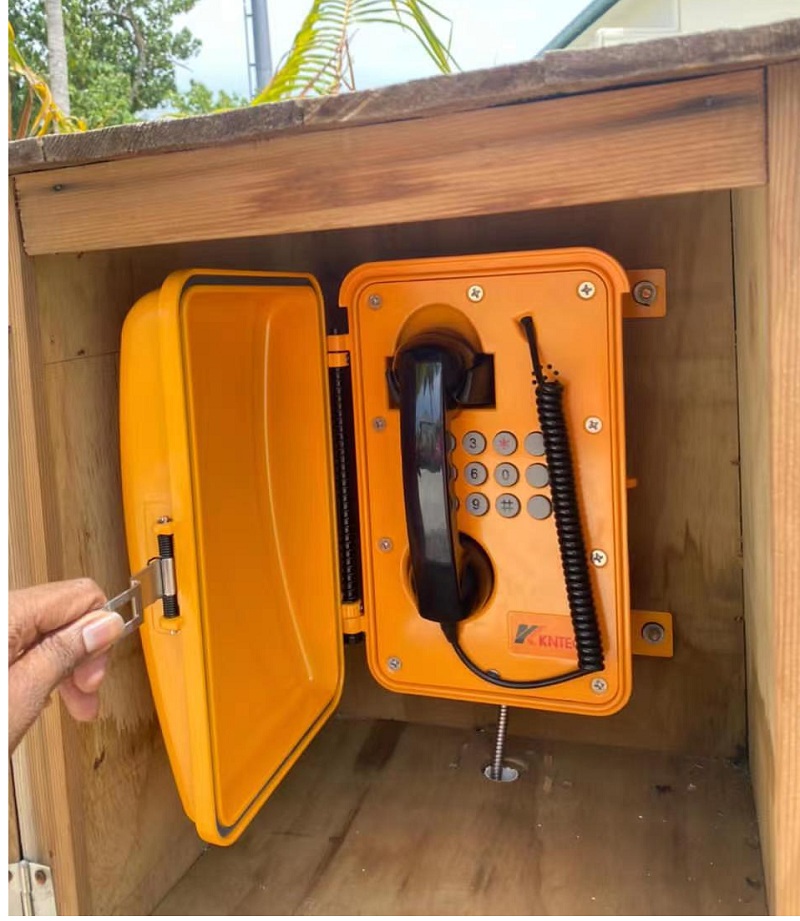

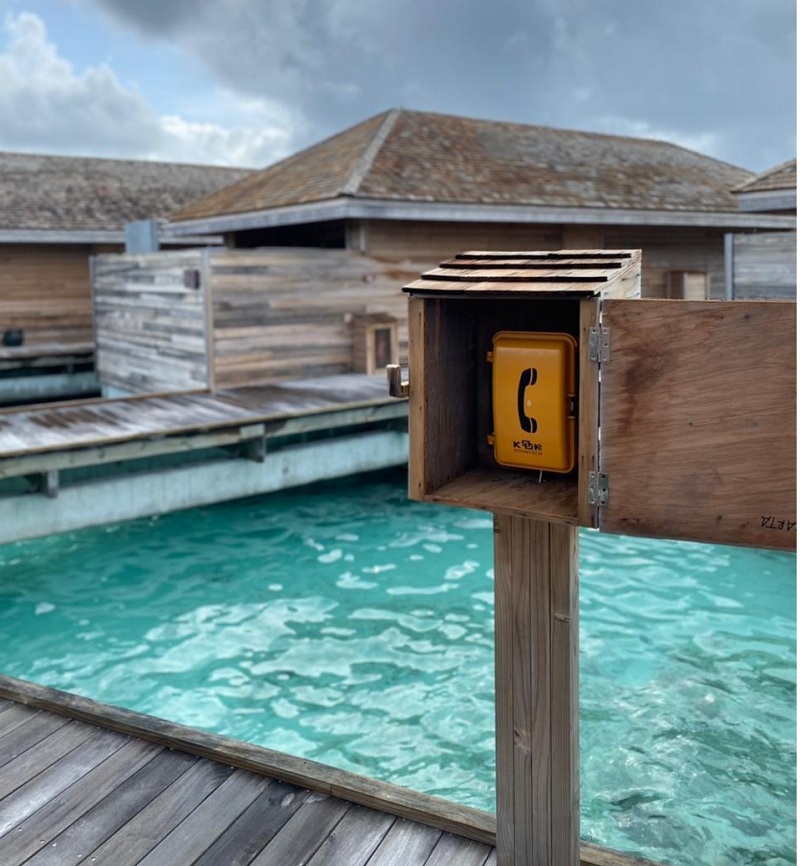

we use the emergency phone in the pool side for help

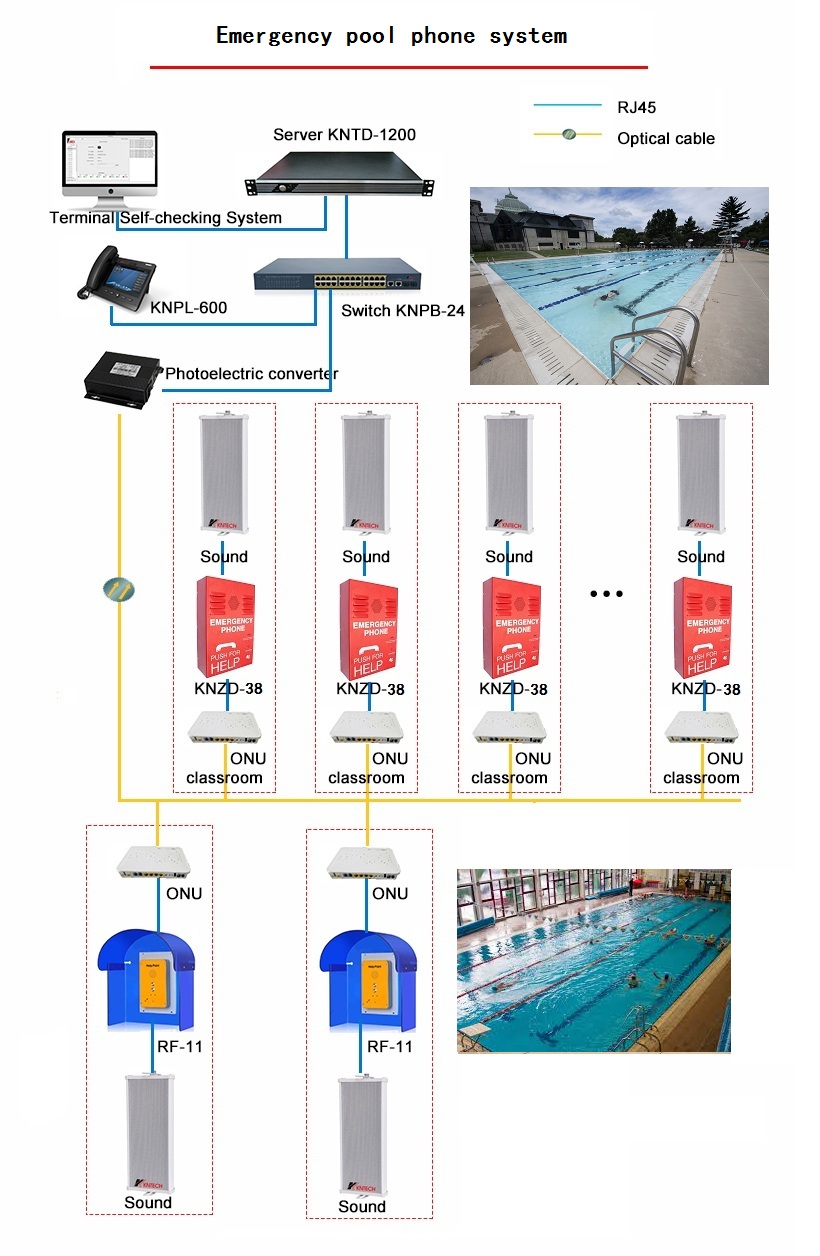

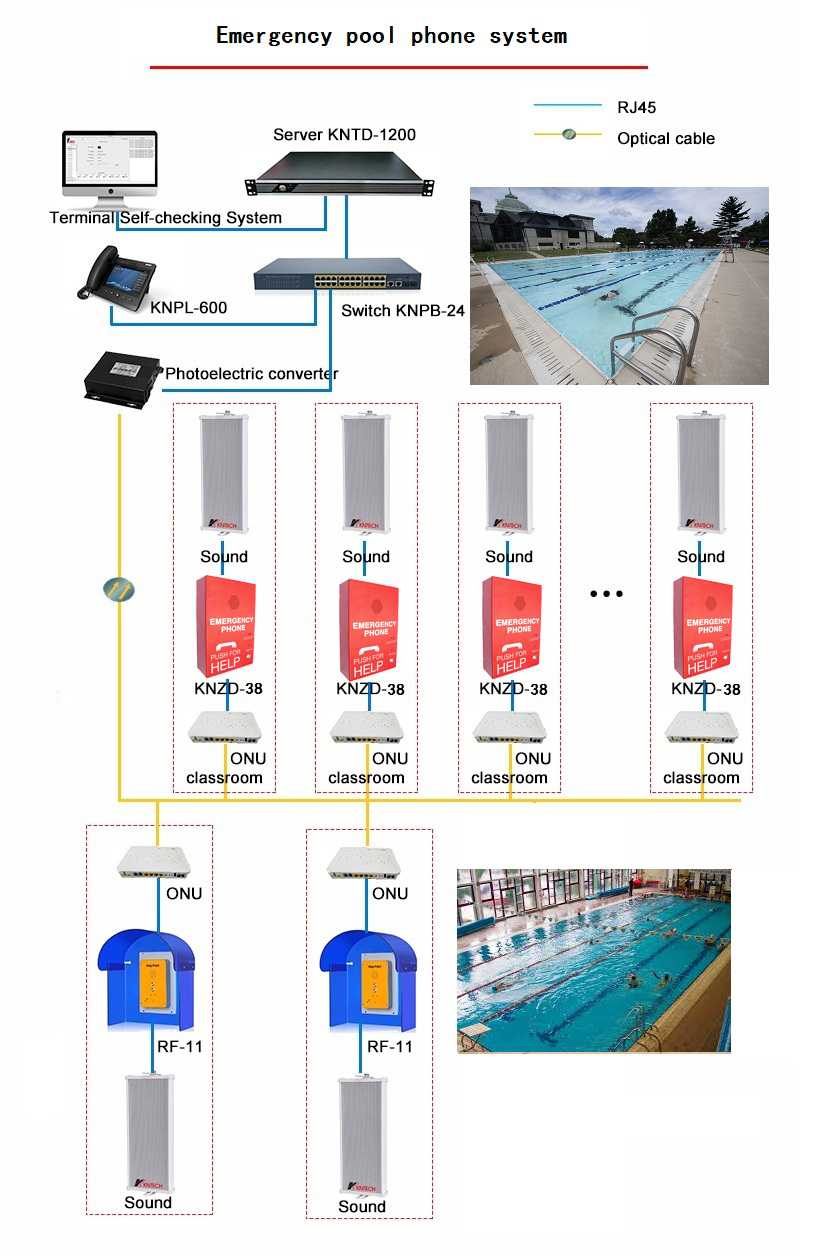

how to design the emergency pool phone system

==>>>>Product Application
the emergency pool phone can use place the emergency pool phone application place

==>>>>Product Detailed Pictures

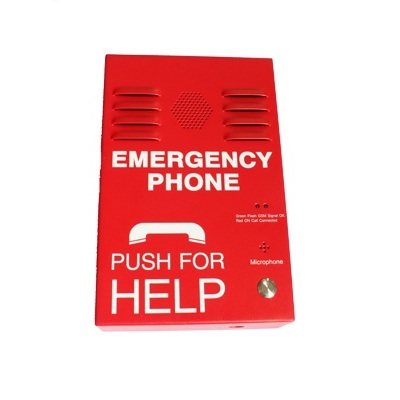

emergency pool phone front view emergency pool phone side view

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNZD-38

*
*
*
*
