Blue Light Station

Model: KNEM-25

Size: 266*205*800mm

Material: cold-roll steel sheets

Pdf Download

Blue-Light-Station

E-mail US

Click here

Features
Specification
System
Application
Detailed Pictures
Video
E-mail US

Features

Blue Light Station

Blue Light Station KNEM-25

The blue light station has built-in ip phone motherboard and external metal casing. The structure is firm and reliable, and the function is as scalable as VoIP. Blue light stations are often used in large public places such as subways, airports, and train stations.It is often use in the blue light system.

What is a blue light emergency tower?

Blue emergency tower is an emergency post-type intercom placed outdoors to improve public network security. It is often used in university campuses, with blue alarm lights, which can improve campus security.

DESCRIPTION

1. Metal body, solid and temperature bearable

2. Handset free

3. Heavy duty Vandal resistant button, One button emergency call, with auto hang-up function

4. With or without keypad optional

5. Lightning protection standard to ITU-T K21

6. Waterproof grade about IP66

7. Body with grounding connection protection

8. Support hotline call, self stop if the other side hang up

9. Built-in loud speaker, noise canceling microphone

10. AC 110v-220v powered or POE

11. The design is super thin and smart. Embed style and hanging style can be chosen

12. Time out function optional

13. Stainless steel , If the qty over 100pcs can be To customer specification

14. Incoming call and outgoing call lamp indicator

15. Small lamp is on at night and off during daytime

16. ETS Mushroom Button is integrated (with key protection to be activated)

Certification:

EMC: EN50121 (Railway application- Electromagnetic Compatibility)

EN55022: emissions

EN55024: immunity

Ingress Protection: GB4208-93 IP66

FCC

ITU-T Recommendations K21

Specification

THCHNICAL SPECIFICATION

VoIP SIP2.0 telephone DTMF dialing

MTBF:100000hours MTTR: 2 hours

Hotline(maximum length of each number is 16 digits)

Communication: Full duplex 2-way hands-free communication

Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDC,Idle 2W, Max 10W

Auxiliary Contacts:1 Aux Output, dry contact

Contact Ratings. Load: Resistive load

Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

Rated carry current:1A

Max.switching voltage:125 VAC, 30VDC

Max.switching current:1A

Audio Codes:G.711, G.722, G.729

Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access

Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

Programming: Non-volatile flash memory programming

and configuration through Web GUI

Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

Echo cancellation code:G.167/G.168

Environment conditions:

Ambient temperature: -40?? to 40??. Relative humidity:10%~95%

Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

Tags:solar panel,Emergency call box,SOS telephone

System

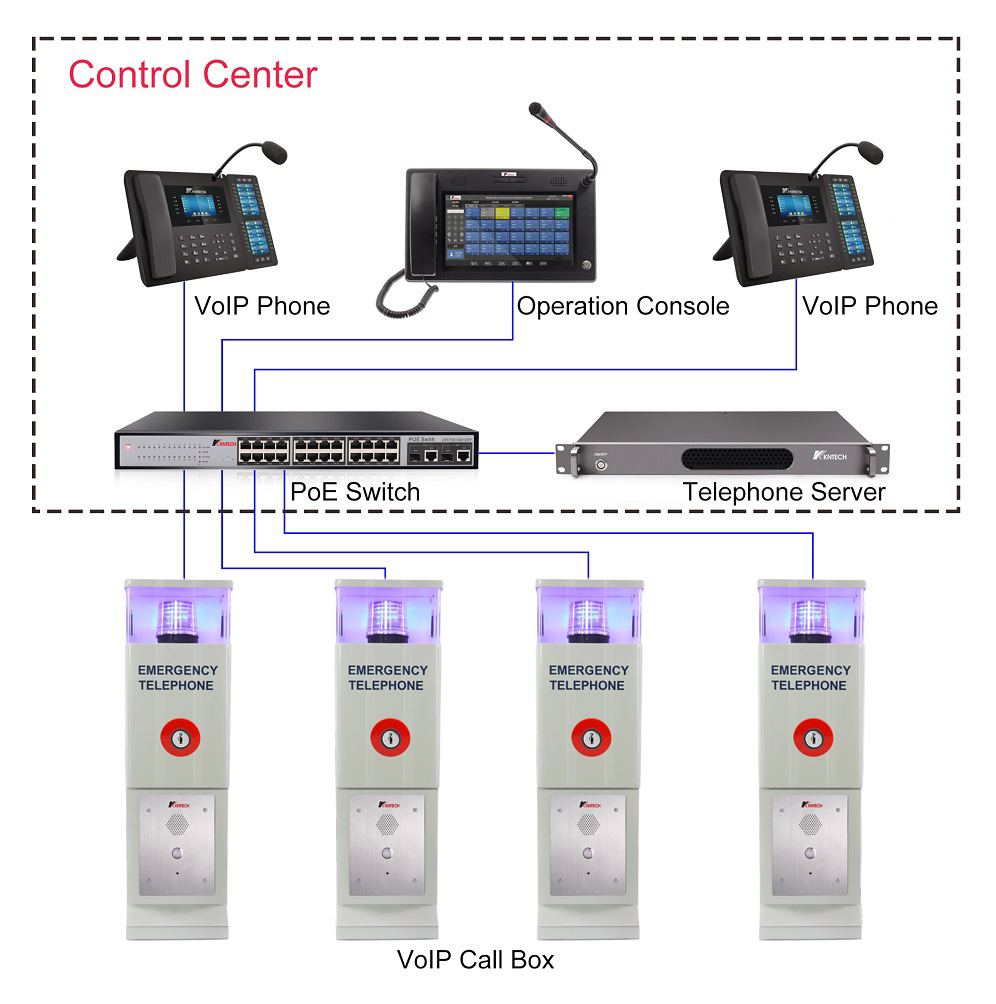

Blue Light Station System

The blue station is mainly an emergency help-seeking station that combines emergency help columns and blue lights. The blue light help system uses centralized management and regional management.

emergency call box system

Application

Blue Light Station application

The blue light station is used in the waiting room.

uploads/image/20250901/Blue-Light Station-application.jpg

Detailed Pictures

Blue Light Station detailed picture

Blue Light Station Front and side views

Blue Light Station
