Ip phone server

Ip phone server

model:KNTD-800
size:482.6*340*44.5mm
material:METAL BODY

ip phone server
The ip phone server is the main part of the ip pbx system. All ip phones can be registered to the ip phone server. The ip phone server is also called the ip pbx server.The ip phone server is the hosting server for all ip phones, and we can manage all the telephones through the ip server.

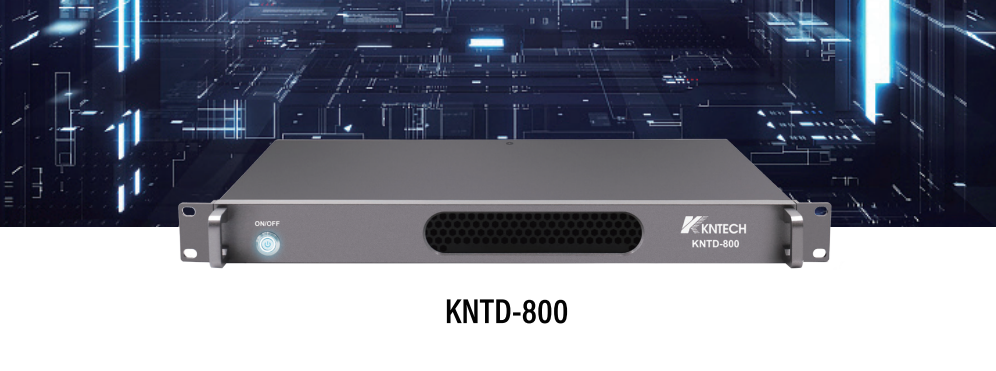

ip phone server front view

Ip phone server KNTD-800

The ip phone server manages all phones in the entire telephone system with ip pbx software on the computer or on the operator management console. With the ip phone server, you can schedule all calls, multi-party talks, monitors, demolitions, recordings and more. The ip phone server system is the best choice for internal communication, using network communication to save costs and improve efficiency.The ip phone server use in the ip pbx system.

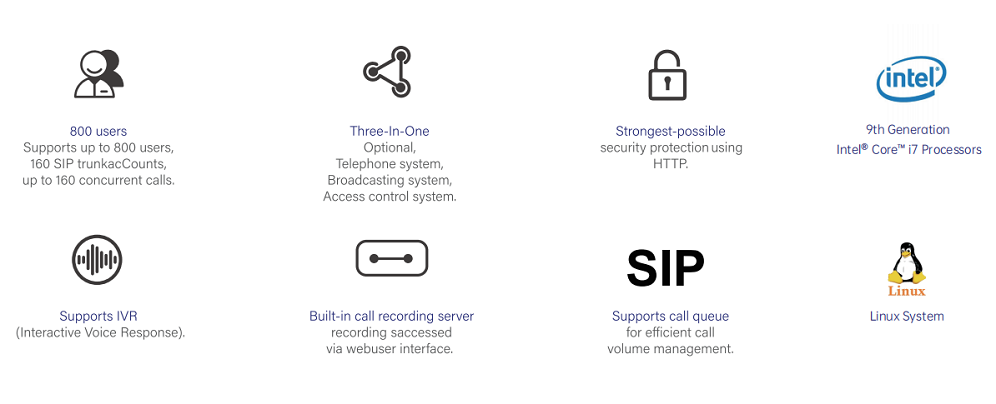

UC features for up to 800 users

Ip phone server

The KNTD-800 ip pbx server appliance is designed to bring leading edge voice, video, data, and  ability features to enterprises, small and medium businesses, retail and residential environments in an easy-to-manage fashion. This enterprise-grade on premise IP PBX supports E1, T1 and J1 networks and offers scalability by supporting up to 800 users.  This secure and reliable sip server delivers unifed communication features at an unprecedented price point it hout any licensing fees, costs-per-feature, or recurring fees.


KNTECH IP PABX Model Number  simultaneous calls




 Register user  Simultaneous Calls  Model Number
 50 line  15 line  KNTD-50
 100 line  30 line  KNTD-100
 300 line  90 line  KNTD-300
 500 line  150 line  KNTD-500
 800 line  400 line  KNTD-800
 1000 line  300 line  KNTD-01K
 3000 line  900 line  KNTD-03K
 5000 line  1500 line  KNTD-05K

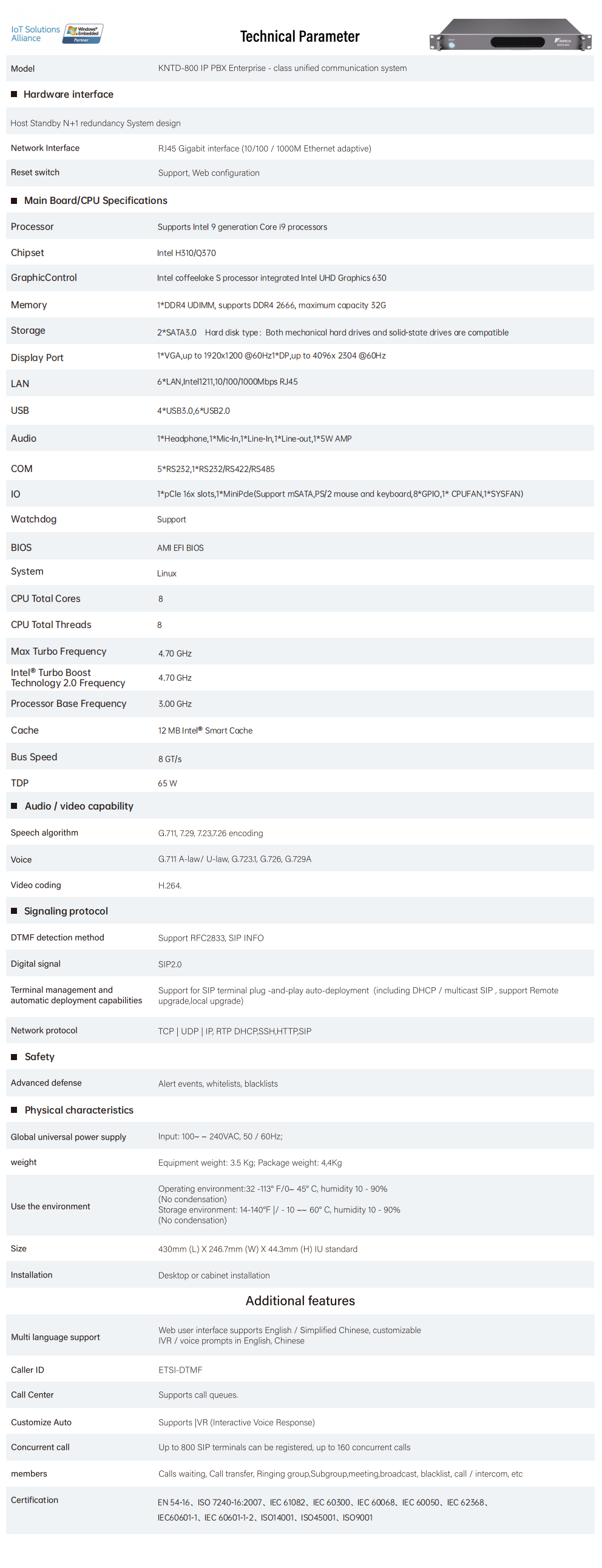

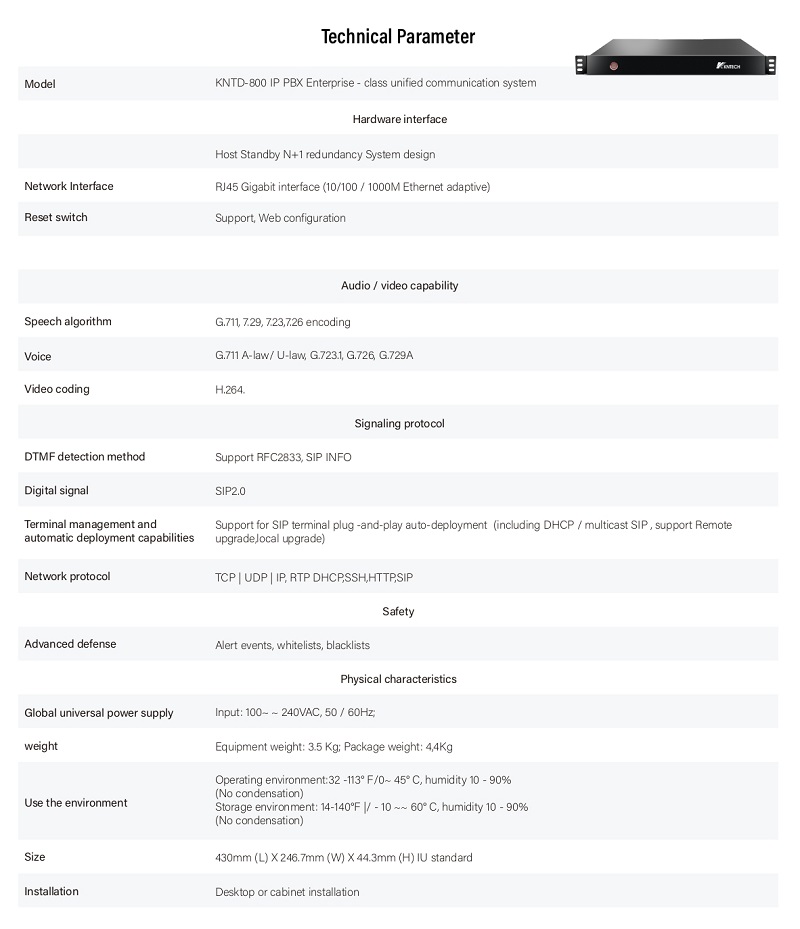

==>>>> Product Specification

Model

KNTD-800 IPPBX Enterprise - class unified communication system



Hardware interface

FXS port

2 x RJ11 (support power escape) Optional to add external configuration

FXO port

2 x RJ11 (support power escape) Optional to add external configuration

Network Interface

Using dual Gigabit interface (10/100 / 1000M Ethernet adaptive) and integrated POE (IEEE 802.3at-2009)

The third Gigabit port for the hot backup cluster

NAT router

Support (user configuration)

Reset switch

Support, Web configuration

Audio / video capability

Speech algorithm

Support fax tone detection and automatic switching G.711, 7.29, 7.23, 7.26 encoding

Voice

G.711 A-law / U-law, G.722, G.723.1, G.726, G.729A / B, AAL2-G.726-32

Video coding

H.264, H.263, H263 +

QoS

Layer 3 QoS, Layer 2 QoS

Signaling protocol

DTMF detection method

Support three, In Audio, RFC2833, SIP INFO

Digital signal

PRI, SS7, MFC / R2

Terminal management and automatic deployment capabilities

Support for SIP terminal plug-and-play auto-deployment (including DHCP Option 66 / multicast SIP SUBSCRIBE / MDNS Automatic detection and configuration), support TFTP / HTTP / HTTPS upgrade, local upgrade

Network protocol

TCP / UDP / IP, RTP / RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP / HTTPS, SIP (RFC3261), STUN, SRTP, TLS / SIP, LDAP

PSTN disconnection method

Support the PSTN line intelligent detection and automatic matching function, support five kinds of signaling detection methods (1, Busy Tone detection, 2, CPT detection, 3, polarity reversal detection, 4, Hook Flash Timing detection, 5, Loop Current Disconnect detection )

Safety

Media encryption

SRTP, TLS, HTTPS, SSH

Advanced defense

Fail2ban, Alert events, whitelists, blacklists, encrypted access controls

Physical characteristics

Global universal power supply

Input: 100 ~ ~ 240VAC, 50 / 60Hz;

weight

Equipment weight: 2.165 Kg; Package weight: 3.012 Kg

Use the environment

Operating environment: 32 - 113ºF / 0 ~ 45ºC, humidity 10 - 90% (No condensation)
Storage environment: 14 - 140ºF /  - 10 ~ ~ 60ºC, humidity 10 - 90% (No condensation)

size

440mm (L) x 185mm (W) x 44mm (H) IU standard

installation

Desktop or cabinet installation

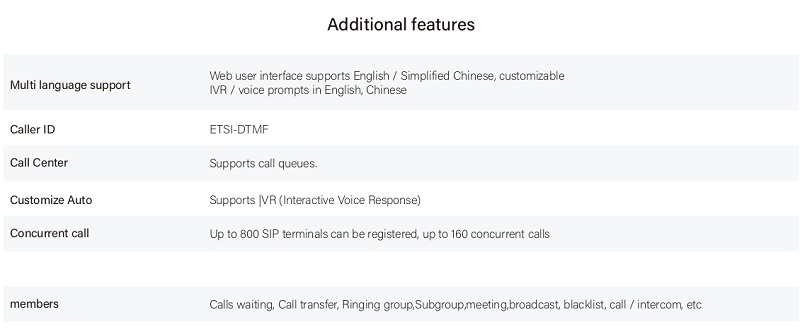

Additional features

Multi-language support

Web user interface supports English / Simplified Chinese, customizable IVR / voice prompts in English, Chinese, english English

Caller ID detection

ETSI-FSK, ETSI-DTMF

Polarity reversal / Wink

Support, option on / off control call setup and termination

Call Center

Supports multiple call queues and queue queuing sounds

Customize Auto Attendant

Supports Layer 3 IVR (Interactive Voice Response)

Concurrent call capability

Up to 5,000 SIP terminals can be registered, up to 500 concurrent calls

Meeting room capacity

Supports up to 10 voice conference rooms, up to 100 voice conference members

Call function

Call Park, Call Forward, Call Forward, Do Not Disturb, DISA, ring Group, Pickup Group, blacklist, call / intercom, etc.


==>>>>Telephone System

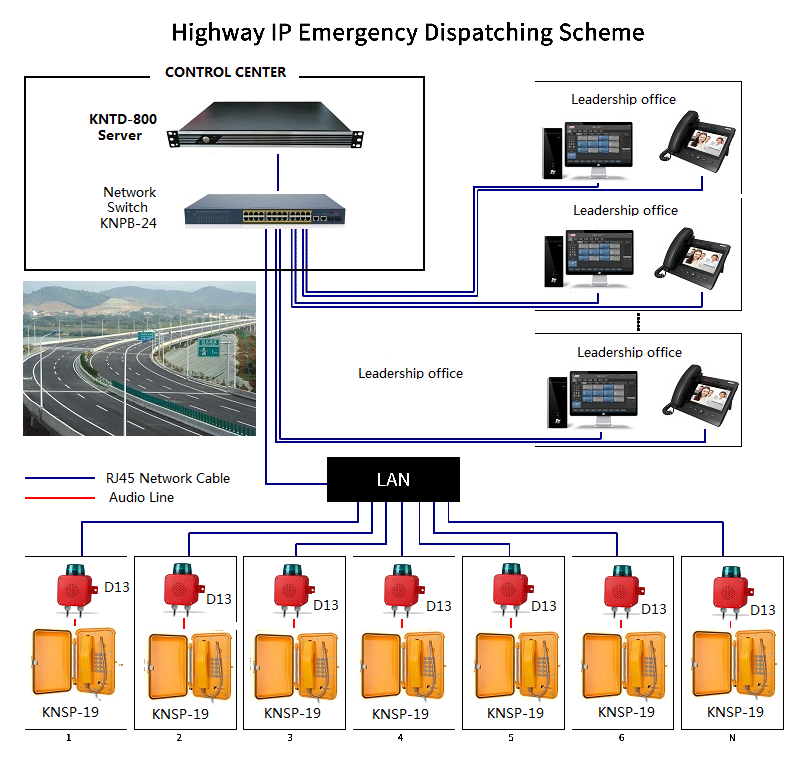

Ip phone server use in the highway telephone system

Ip phone server and ip pbx system application highway telephone system,can fast and accurate emergency communication

snmp unified network management system KNTECH ip phone server system

==>>>>Product Application

        The system built on IP phone server is widely used in industry, and its rich functional form is suitable for enterprise office, voice call center, voice intercom function and so on. The system built based on IP PBX is rich in functions and can be customized according to the attribute requirements of different industries to meet the needs of enterprises, and then to achieve the satisfaction of the end customers.

ip phone server and the ip pbx system

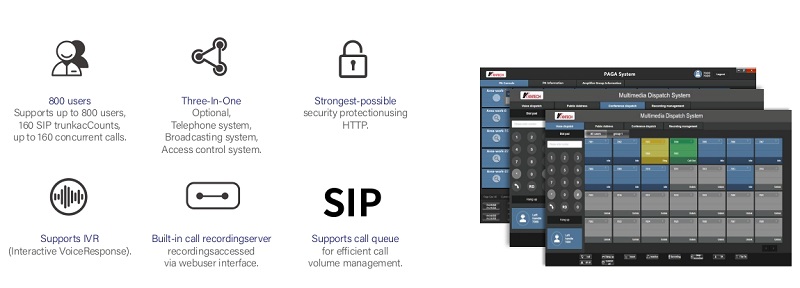

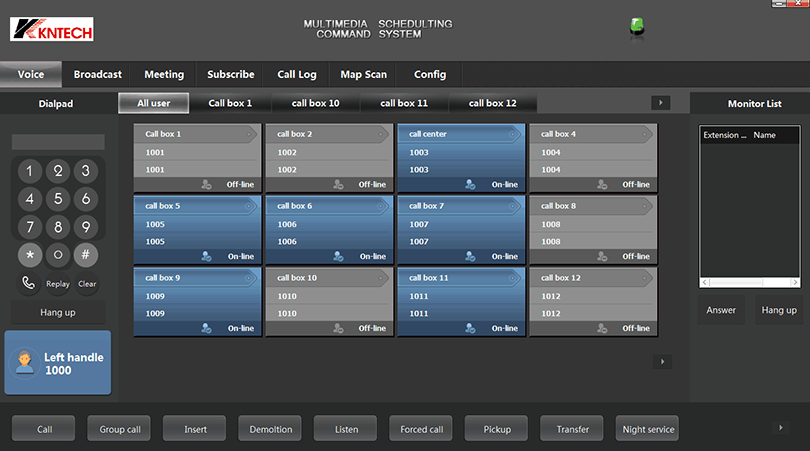

ip phone server web software
ip phone server in cabinet

==>>>>Product Detailed Pictures

IP phone sever

ip phone server more detail

==>>>>Product Video


Emergency call dispatching


==>>>>Please Email US
*
*
*

William-February 21, 2019-Germany

The purchase of two ip phone servers was placed in the company and the factory, which greatly saved communication costs.
