Emergency Telephone

Emergency Telephone

model:KNSP-18T
size:290x185x118mm
material:SMC(Sheet Molding Compound)

Emergency-telephone-Voip
Analogue KNSP-18T
The emergency telephone can set the emergency number for one-touch dialing or pick-up dialing, which is convenient for quick calls in emergency situations.The emergency telephone is a waterproof telephone that reaches ip66 and is used in the tunnel industry.

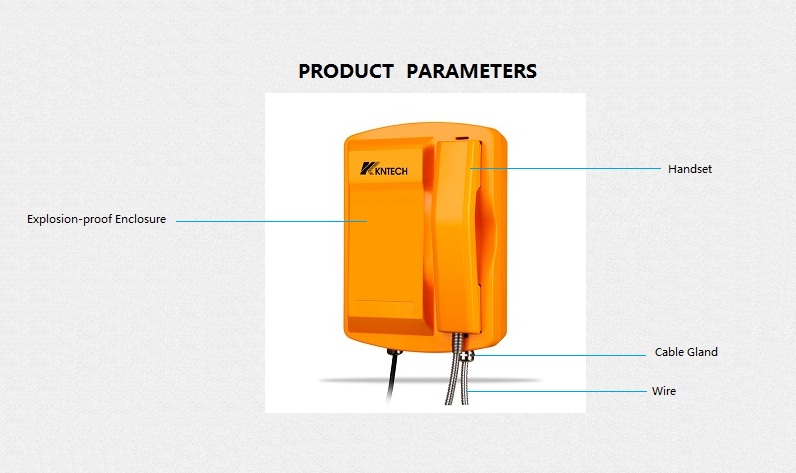

emergency telephone description

KNSP-18T Emergency Telephone
     Emergency telephone are widely used for tunnel and subway. the Emergency telephone is strickly tested by salt spray test for 4 days to 4 weeks. KNTECH provide complete communication system including Voip phone and analogue Emergency telephone. The the Emergency telephone are widely used on ship, cruises, drilling platform, dock. KNTECH provide Emergency telephone for over 15 years.

Does dialing 112 call police? Use our emergency telephone?


Yes, we can.112 is the most common emergency number. Now most of the landlines and mobile phones with buttons can be dialed 112 for free. The emergency telephone we designed is placed in an industrial tunnel. You can set the emergency number for the automatic dialing of the machine, which can be 112 or the duty room.

  Main features :
 1. Robust aluminium alloy die-cast SMC body. Vandal resistant and tamper-resistant hardware, simple installation.
   2. Auto-dial, as soon as you pick up the hand set the phone will put through. Or one button optional
   3. Weather resistant to IP66 standard, service temperature range from: -35 degree to +75 degree
   4. Magnetic reed hook-switch
   5. Telephone line powered. No external power or battery back up required.
   6. Lightening protection to ITU-T recommendation K.21
   7. Handset: made of special engineering plastic, high anti-knock resistance, Weatherproof, armoured cable optional,
   8. Hearing Aid compatible receiver, Noise canceling microphone.
   9. Handset integrity wiring to enable the telephone system to check if the telephone unit is still operational.
   10. Selectable 7 minute time out, to release the line if the handset is left off hook.
   11. Ingress Protection: GB4208-93 IP66 EMC: EN55022/EN55024/EN50121-3-2: 2006 FCC.

  DESCRIPTION ITEM NO.
   1. Robust SMC 2600 glass fibre reinforced polyester die-cast body, Vandal & tamper-resistant hardware, easy Installation.

   2. Full keypad with memory, support hotline setting. Lifting machine automatic dialing.

   3. Weather resistant to IP66 standard.

   4. Magnetic reed hook-switch.

   5. Lightening protection to ITU-T recommendation K.21.

   6.Heavy Duty handset with hearing Aid compatible(HAC) receiver, Noise canceling microphone.

   7.Handset with industrial strong armored cord .

   8. temperature range from -40 degree to +70 degree.

   9.Support echo cancellation.

   10.Remote software upgrade, configuration and monitoring.

   11. Optional 7 minute time-limited call.( This function upon buyer’s requirement).

   12. Powder coated in UV stabilized polyester finish.

   13. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.


   The size

emergency telephone voip size

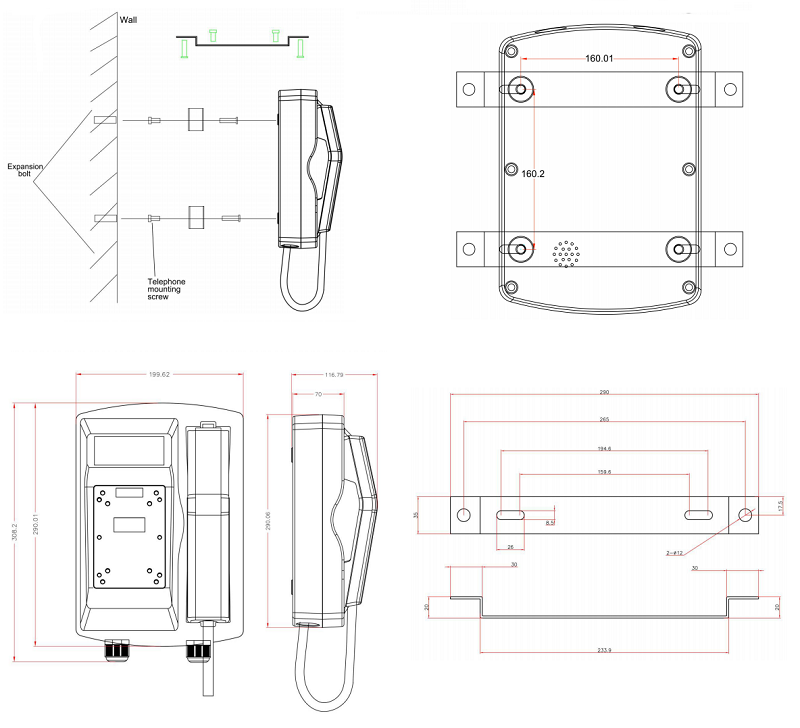

   INSTALLATION

emergency telephone design

   CERTIFICATION
        RCM: AS/NZS CISPR 32 Australian communications:AS/CA S004
        Australian Equipment-safety: AS/NZS 60950.1:2015
        EMC: EN50121(Railway application-Electromagnetic Compatibility)
   PACKNG

emergency telephones
   Unit size:290 *205*117mm N.W: 4KG
   1pcs packing box size: 332*210*125mm N.W: 4.79KG
   6pcs in 1 outer Carton box: size: 670*352*315mm N.W: 30.5KG



Product Specification

   SPECIFICATION


VoIP SIP2.0 telephone            DTMF dialing                         Audio Codes:G.711, G.723,G.726, G.729
MTBF:100000hours                MTTR: 2 hours                       Network:10/100 BaseTX Ethernet, RJ45
Hot-line (maximum length of each number is 16 digits)         connectors, Cat5e or better
Communication: Full duplex 2-way handset                          IP Protocols:IPv4, TCP, UDP, RTP , DHCP, SIP
communication                                                                      1 x LAN Protocols:Power over
Call Control Signaling:VOIP SIP Info(DTMF), RFC               Ethernet(PoE,802.3af)
2833(DTMF)                                                                          1 x LAN(IEEE 802.3af), Network Access
Power:Power over Ethernet, IEEE802.3af, Class 0              Control(IEEE 802.1x),STP(IEEE 802.1d),
Local power, 12VDc,Idle 2W, Max 10W                                RSTP(IEEE 802.1d-2004)
Auxiliary Contacts: (option)                                                   Programming:Non-volatile flash memory
1 Aux Output, dry contact                                                      programming and configuration through Web GUI
Contact Ratings. Load: Resistive load                                   Management and Operation:DHCP and static IP+
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC                        remote automatic software upgrade, centralized
Rated carry current:1A                                                           monitoring.
Max.switching voltage:125 VAC,60VDC                                Echo cancellation code:G.167/G.168
Max.switching current:1A

   Order information:

Model number Power Supply Item Number
KNSP-18T-IP-Y_AD DC12V 1A SP18T0052
KNSP-18T -IP-Y_P POE SP18T0022
KNSP-18T -IP-Y_ADP DC12V 1A +POE SP18T0092
*AD---Adapter UL (Input : AC110~240V , Output : DC12V 1A)
*P---POE

Telephone System

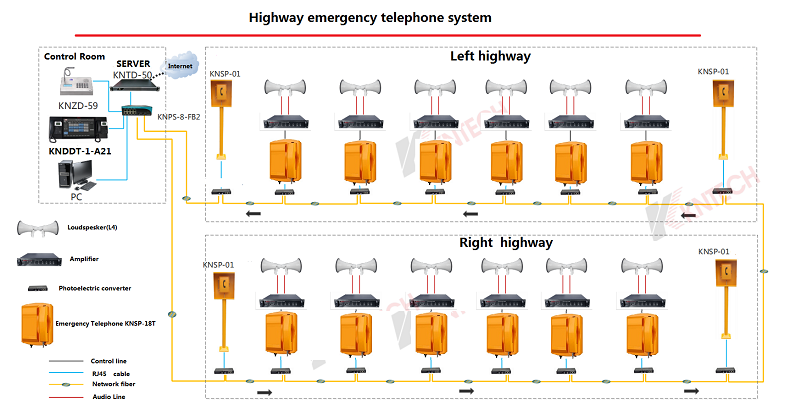

Emergency telephone use the tunnel ip pbx system

emergency telephone use the tunnel ip pbx system

Product Application

 Applications:
    As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box,Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities...A good ideal telephone for use in wet or corrosive atmospheres.
emergency telephone emergency telephone

Product Detailed Pictures

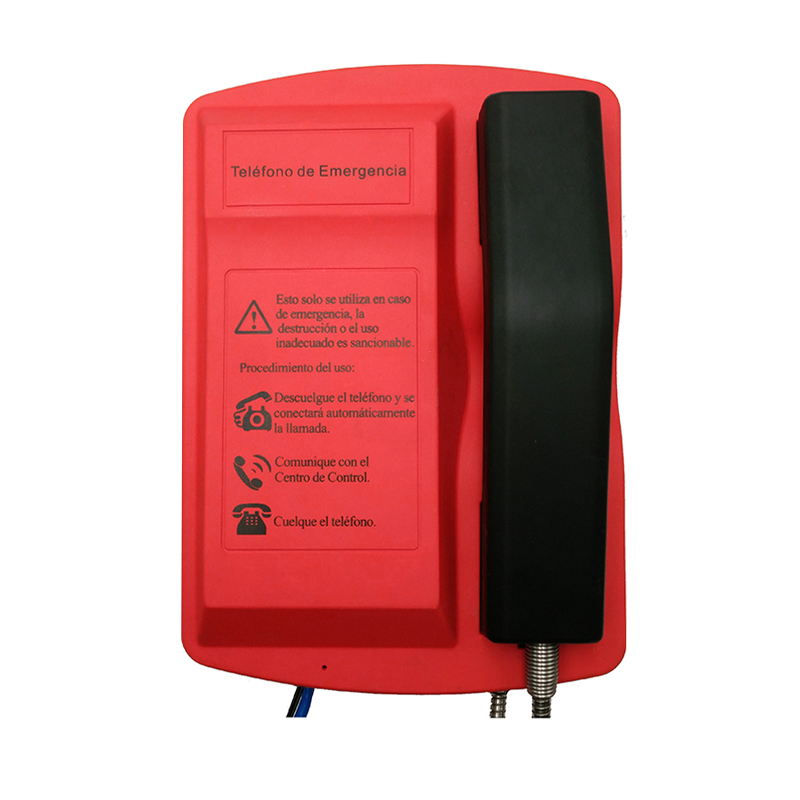

the red emergency telephone

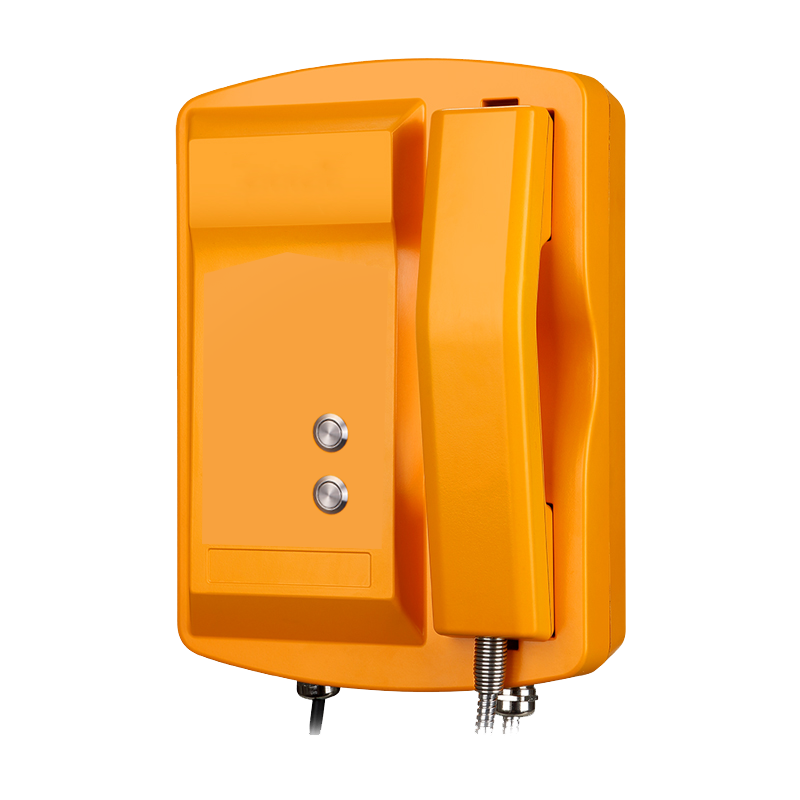

two button emergency telephone

Product Video


Please Email US
marketing@koontech.com

This product model:KNSP-18T

*
*
*
*
