Industrial Desktop telephone

Industrial Desktop telephone

model:KNZD-28
size:240*100*100mm
material:Cold-roll steel sheets

VoIP-Industrial-Desktop-telephone3
KNZD-28
User-Manual-ZD-Series-Analogue
User-Manual-ZD-Series-IP

Industrial Desktop telephone
Desktop telephone KNZD-28
         The Desktop telephone is an answering phone designed specifically for industrial complex situations. The industrial telephone uses cold-rolled steel as a metal casing, and the telephone has anti-corrosion and anti-destructive properties. Rugged, long-life, the best choice for industrial telephones.The desktop industrial  telephone will be designed to work on railway, metro, tunnel, etc. Housed in robust aluminium box with one CALL/ ANSWER button, it will offer protection against the outdoor environment and vandals.The unit will meet all the latest European/UK standards telephony, waterproofing IP65, and lightening protection together with offering the level of performance and reliability demanded in such an environment.We are the manufacturer of  Very easily operated Rugged Industrial desktop telephone  help point emergency calling telephone for hospital or other public place.

+DTMF(Dual Tone Multi Frequency)
+Matching with most PABX,PBX and PAX systems.
+Hotline call, As soon as you pick up handset the phone will put through.

Characteristics:
         + Robust Metal body very strong.
         +With or without keypad. Auto dial,
         +LED indicator to inform you there is a coming call
         +Robust and weather resistant, Wearable and moisture proof IP65
         +Dual purpose design for wall or desk mounting, simple installation
         +Industry standard robust handset with stainless armoured cord
         +Well treated metal hook switch.
         +Matching with most PABX, PBX and PAX systems. Standard RJ11 Connector

 TECHNICAL SPECIFICATION

 1.It is suitable for automatic instrution amplification telephone system when feed voltage reaches to 33-60v.
2.Environmental temperature:-30℃-60℃.
3.Relative humidity:10%-95%.
4.Atmospheric pressure:86-106kpa.
5.Environmental noise:<=80db
6.Double audio dialing.
7.Standard frequency:697,770,852,941Hz.
8.Low frequency group:697,770,852,941Hz.
9.High frequency group:1209,1336,1477Hz.
10.Frquency offset:≤±1.5%.
11.The signal level when the lenght of user's line is 3 km.
12.Standard frequency:Low frequency group:-9db.
13.Hight frenquency group:-7db±3db.
14.Level difference frequency high and low frequency of combined signal:2±1db.
15.The total intermodulation distortion caused by harmonic is 20db lower than wave level.
16.Call transmission index:(5KM)SLR≤12,RLR≤-1,and STML≥10,Input impedance:600Ω.

 INSTALLATION

industrial desktop telephone size

industrial desktop telephone

 CERTIFICATION

EMC : EN50121 (Railway application-
           Electromagnetic Compatibility)
           EN55022: emissions
           EN55024: immunity
Ingress Protection: GB4208-93 IP67
FCC
ITU-T Recommendations K21


Main PCB

1.Well treated PCB used inside the phone.

2.Robust screw terminals used for the connection of ringer,handset,line in,hookswitch.

3.Selectable 7 minute time out,to release the line if the handset is left off hook.

4.All connectors be greased in production.


Handset

1.Kirk electro dynamic transducer for both handset transmitter and receiver.

2.Spring cable or armoured cable to attach the handset to the telephone main unit.

3.Stainless steel cable to connect exchange.

4.Inductive coupler fitted for hearing aid compatibility.

5.Handset integrity wiring to enable exchange to check if the phone is still operational.


VOIP OVER IP-SIP(Version)

Connection type:Rj45 Socket inside sealed enclosure

Power supply:External 5V dc

Call set-up Protocol:Session Initiation Protocol(SIP)

Configuration:DHCP or STATIC IP address provisioning


Packing details:
box

Telephone unit size: 230 x 150 x70 mm
1pcs in each inner CTN box,
size: 43.3 x 27.6 x 19.1   G.W: 4.5kg
4pcs in outer CTN box, size: 56.6 x 44.5 x42  G.W: 20.25kg
20GP: 2000PCS,  40GP: 4000PCS,  40HQ: 5200PCS

You May Like:

KNREC-SV8

Multimedia storage server

NMS-X1 SNMP

Unified network management system

KNSP-08L2

Industrial Loud speaking telephone

KNZD-29

Vandalproof public phone




==>>>> Product Specification
Technical specification:

1. Perform condition:
temperature:-10℃~+50℃
relative humidity:45%~95%
atmospheric pressure:86~106Kpa,
environmental noise:≤60dB
2. Main technical index:
work frequency:300HZ~3400HZ
sound level of ringing: 80db
3. Dial number
A : Pulse dial :the break ratio of pulse dial : 1.6±0.2︰1.0
 speed of pulse dial:10±1 times/s
B. DTMF dial:
Low frequency:697.770.852.941HZ ;
High frequency:1209.1336.1477HZ
Frequency deflection:≤1.5%;
low frequency electricity plane:-9±3dB;
high frequency electricity plane:-7±3dB
gap of low and high frequency electricity plane in frequency group:2±1dB;
4.Feature of electrical sound

  0Km 5K
Transmit echo assess ≥+2dB ≤+12dB
Receive echo assess ≥-8dB ≤-1dB
Side voice conceal assess ≥+3dB ≥+10dB










==>>>>Telephone System



==>>>>Product Application

Applications:
As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box
Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities….
A good ideal telephone for use in wet or corrosive atmospheres
Desktop telephone
Desktop telephone
industrial desktop telephone industrial desktop telephone industrial desktop telephone

==>>>>Product Detailed Pictures

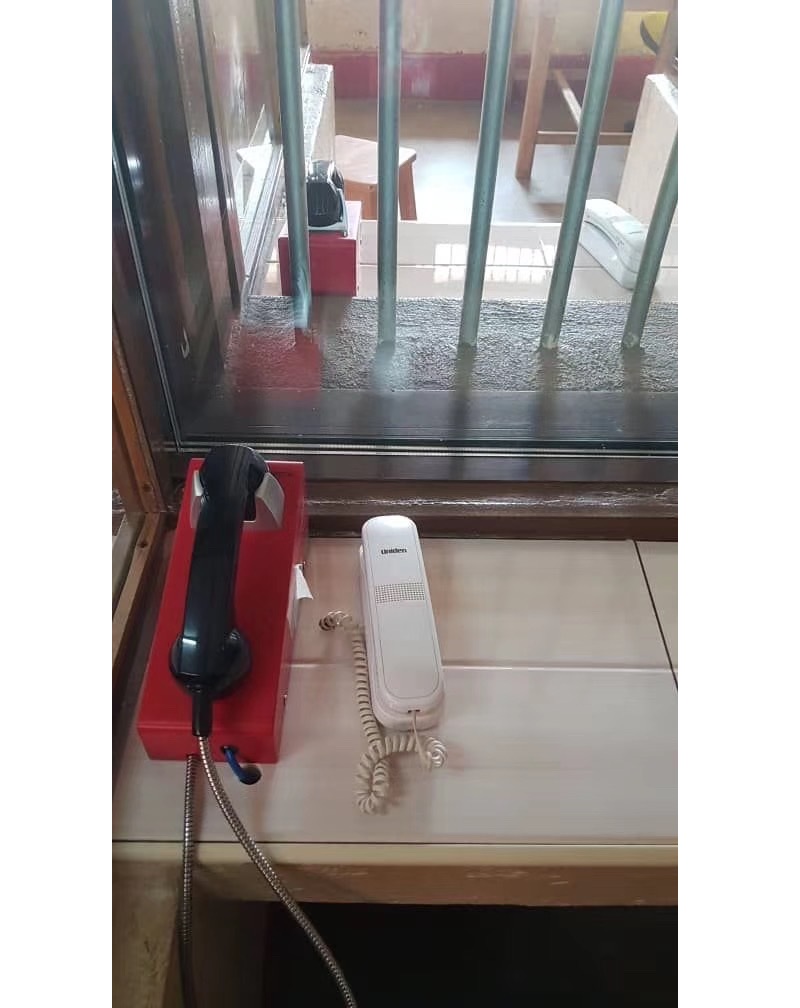

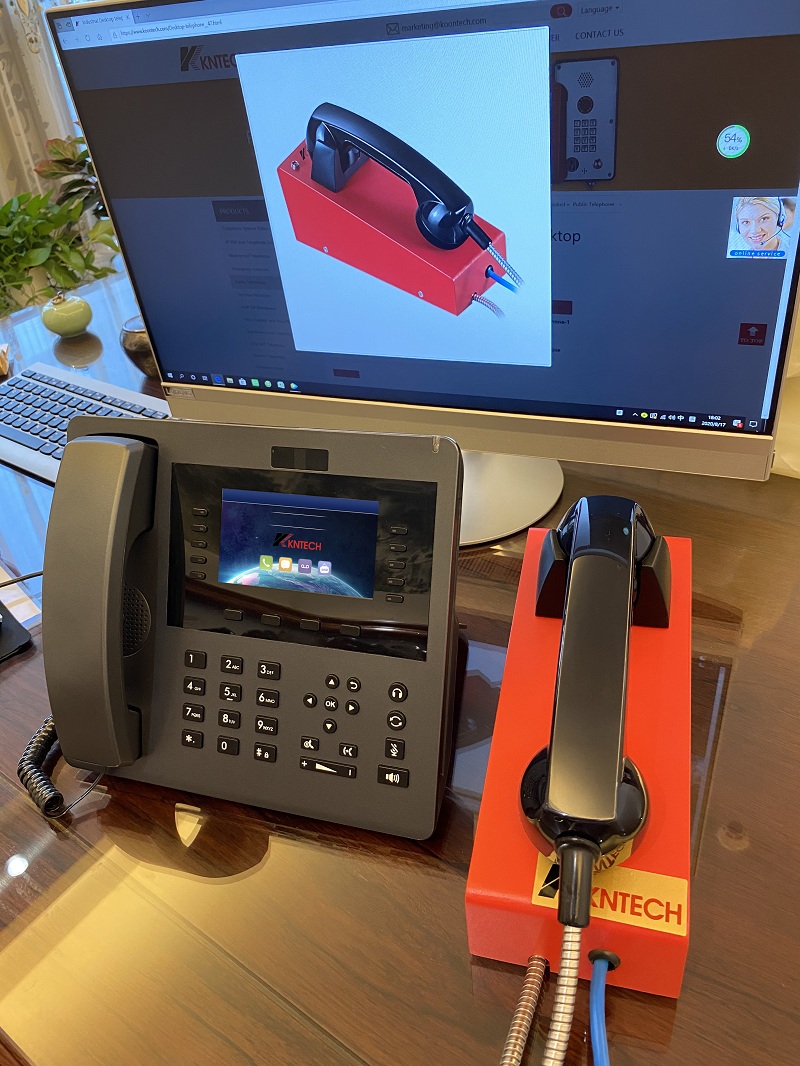

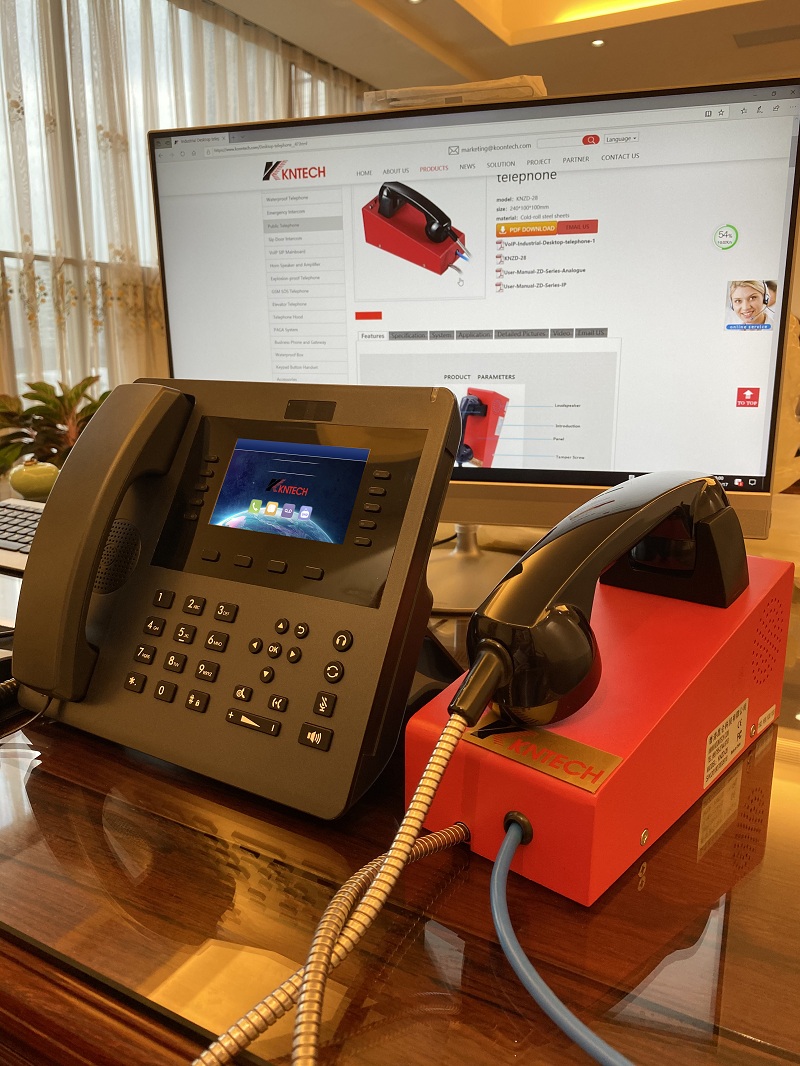

Industrial Desktop telephoneRugged Industrial desktop telephone

vandal resistant Industrial desktop telephone

Industrial Desktop telephone

Rugged Industrial desktop telephone

Industrial Desktop telephone
