Stainless Steel Telephone

Model: KNZD-07K-LCD

Size: 344.6X222X60mm

Material: SUS304

Pdf Download

Analogue-[KNZD-07K-LCD]

VoIP-[KNZD-07K-LCD]

User-Manual-ZD-Series-Analogue

User-Manual-ZD-Series-IP

E-mail US

Click here

Features
Specification
System
Application
Detailed Pictures
Video
E-mail US

Features

stainless steel telephone description

Stainless steel telephone rugged

The stainless steel telephone is made of 304 stainless steel as a raw material. The appearance is square and the whole metal is cast.Often used in public places as a vandal-proof phone

Stainless steel telephones are made of stainless steel and are wall mounted telephone or recessed. The public telephone is made of SUS304 stainless steel, which makes the telephone strong and lustrous. The Stainless steel public telephone has the resistance to fall, the wear-resisting, the solid, the service life is long, is the bank, the hospital, the railway station, and so on public occasion service telephone best choice.

Why choose our stainless steel telephones?

We are the largest industrial phone manufacturer in Asia. We can independently develop and produce various stainless steel phones. According to customer requirements, mass production can be carried out. Our endless steel telephone adopts wall-mounted installation or embedded installation, which is easy to install and firm. The appearance is made of stainless steel, which is vandal-resistant, not easy to wear, has a long service life, and we can provide you with two versions of Voip and formwork.

Specification

1. PSTN analogue telephone 2. DTMF dialing

5. Connection: RJ11 screw terminal pair cable 6. Sound level of ringing:over 70dB(A).

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

SPECIFICATION-VoIP(NO.ZD07BL0022)

3. MTBF100000hours 4. MTTR: 2 hours

7. Contact Ratings. Load: Resistive load 8. Echo cancellation code:G.167/G.168

11. Max.switching voltage:125 VAC,60VDC 12. Audio Codes:G.711, G.722, G.729

14. Free dial (maximum length of each number is 16 digits)

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

System

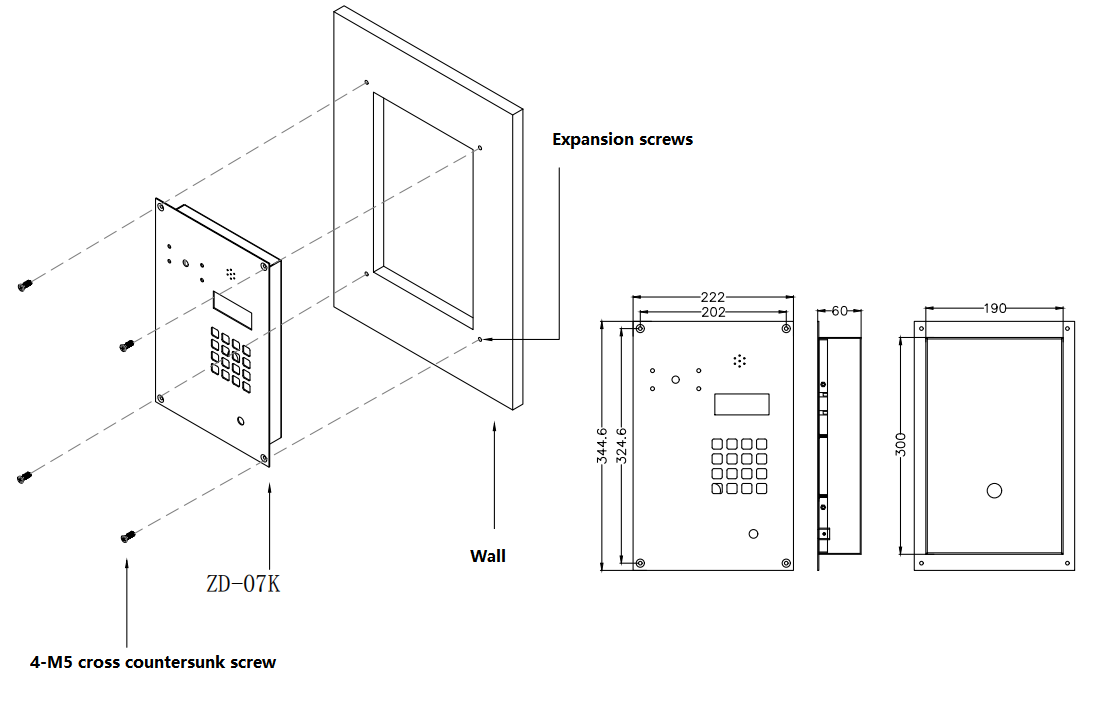

The stainless steel telephone embedded installation

stainless steel telephone mounted wall

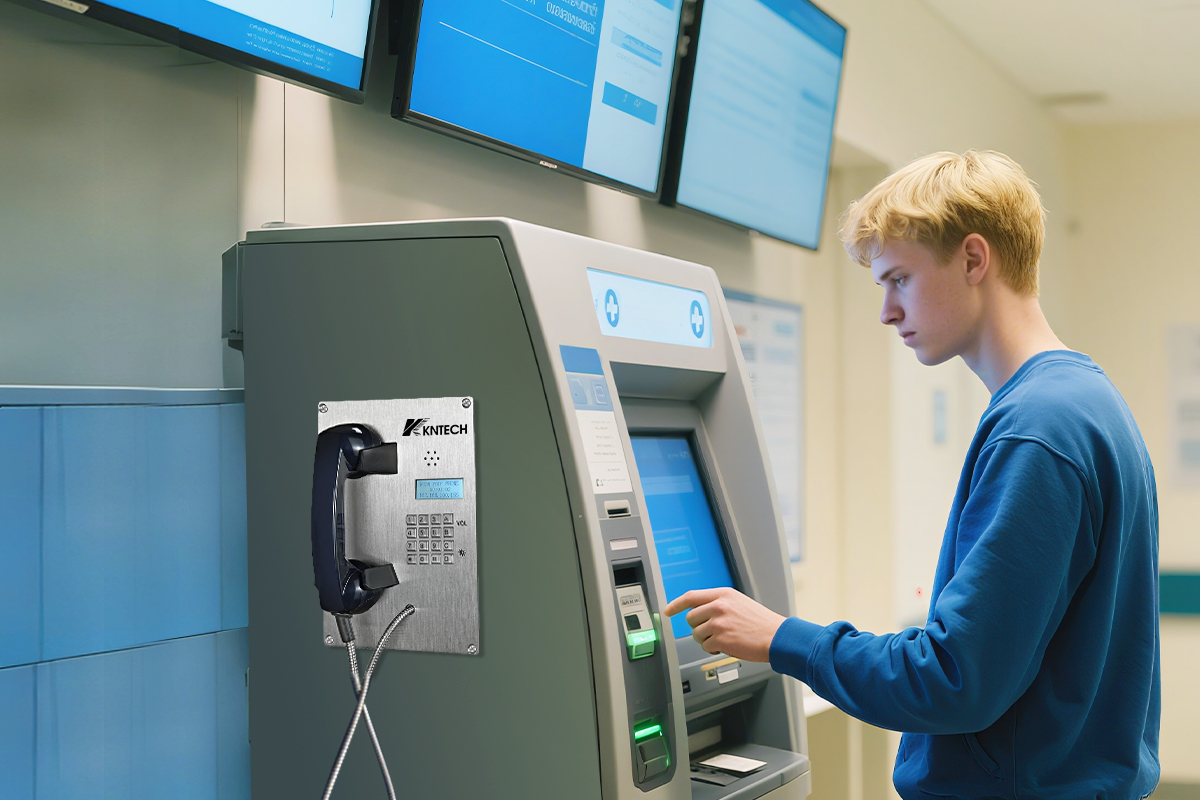

Stainless steel telephone use in bank telephone system

The entire banking system uses the ip communication system, and the ip stainless steel phone is used to build the entire bank communication system.

stainless steel telephone use in bank telephone system

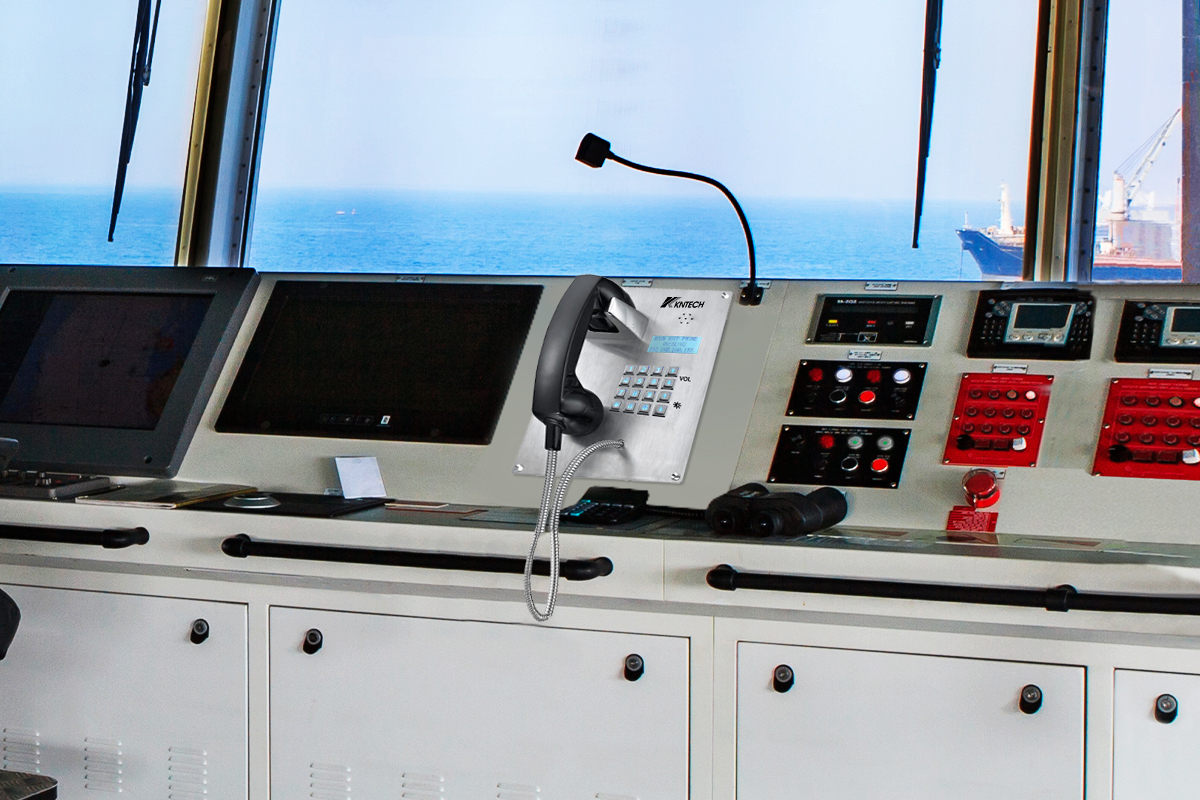

Application

uploads/image/20250901/Stainless-Steel-Telephone-application.jpg

uploads/image/20250804/Stainless-Steel-Telephone-application.jpg

Detailed Pictures

Red and no display stainless steel telephone

stainless steel telephone red stainless steel telephone stainless steel telephone no display

Video
