Kuwait Oil ProjectKuwait Oil Project – 2022 Performance Case Study

Hongkong KOON Technology Limited (KNTECH) | EPC Contractor

Project Overview

Kuwait Oil Company (KOC) expanded the field in 2022, mandating a fully digital Public-Address & General Alarm (PA/GA) system that would remain operational in a 55 °C desert environment, satisfy EN 54-16 / ISO 7240-16, and integrate seamlessly with DCS and fire-alarm subsystems. KNTECH was appointed the single-source EPC contractor Joint Venture JV, responsible for engineering, procurement, construction, commissioning, and a 36-month O&M program. The contract is listed in KNTECH’s 2022 overseas references as “Kuwait Oil Project – Design / Supply / T&C / Maintenance.”

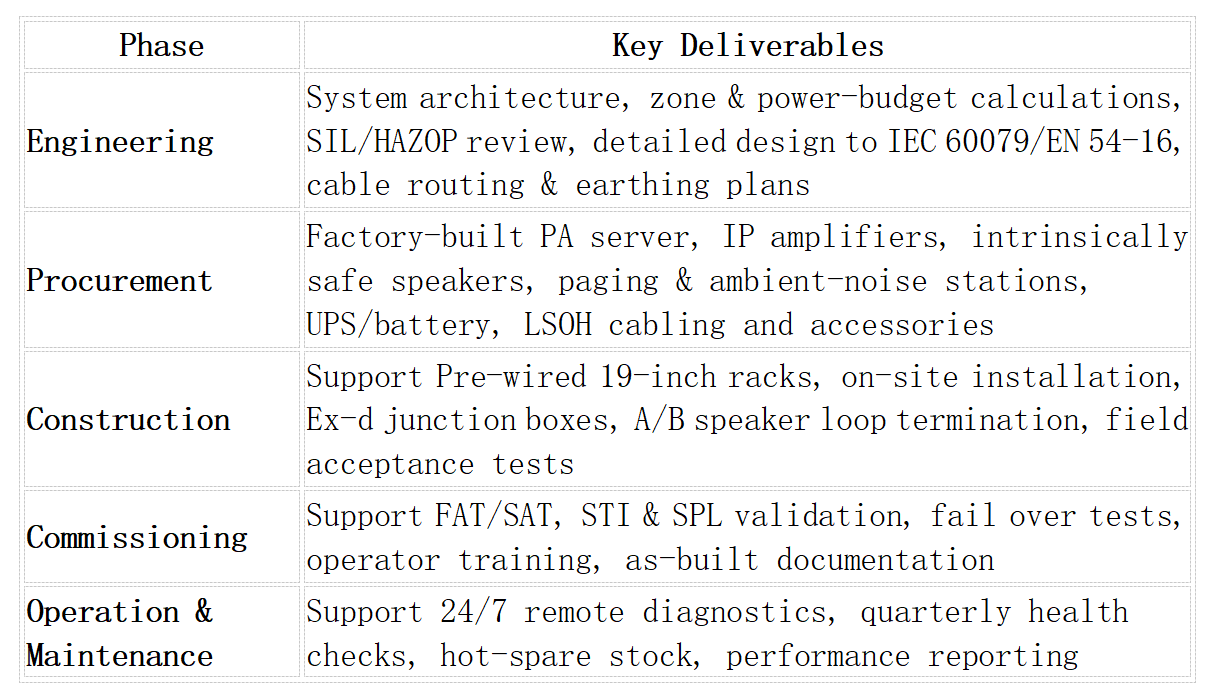

KOON EPC Scope of Work

Engineering :System architecture, zone & power budget calculations，SIL/HAZ0P review, detailed design to IEC 60079/EN 54-16,cable routing & earthing plans.

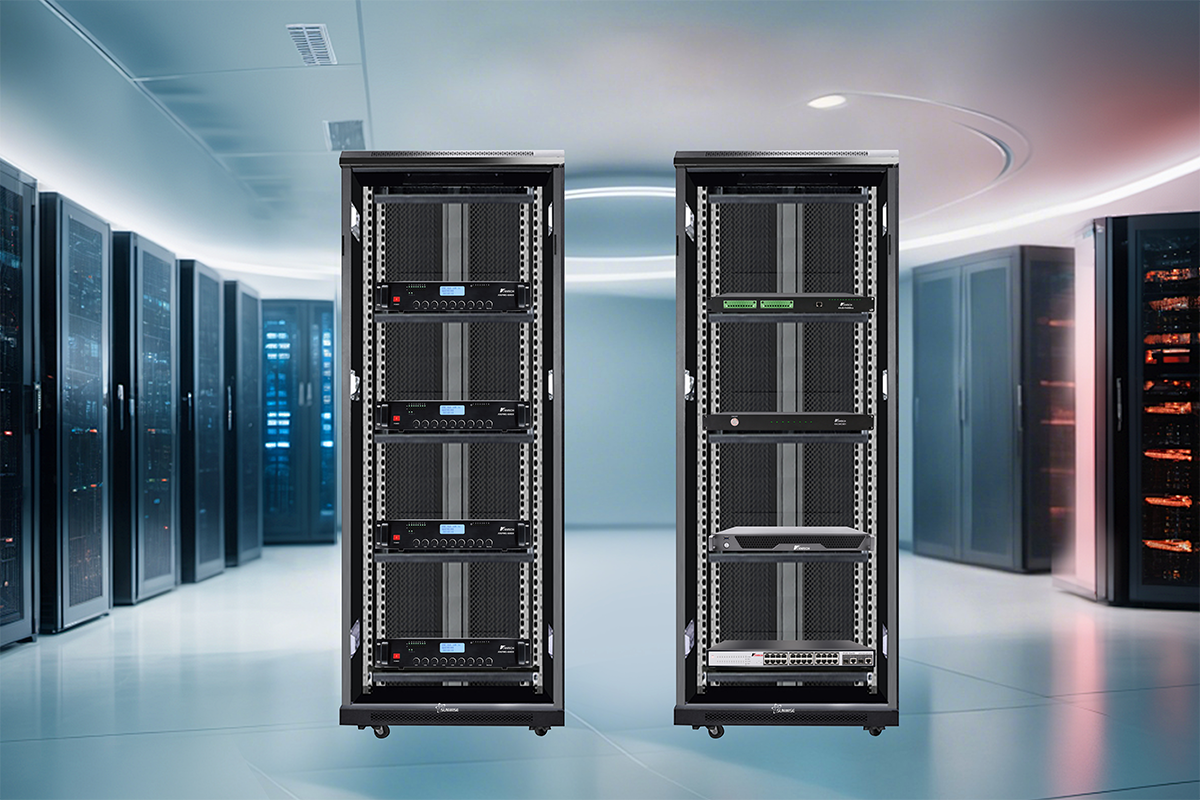

Procurement:Factory-built PA server, IP amplifiers, intrinsicallysafe speakers, paging &ambient noise stations,UPS/battery,LSOH cabling and accessories.

Construction:Support Pre wired 19-inch racks, on site installation,Ex-d junction boxes, A/B speaker loop termination, fieldacceptance tests.

Operation &Maintenance:Support 24/7 remote diagnostics, quarterly healthchecks, hot-spare stock, performance reporting

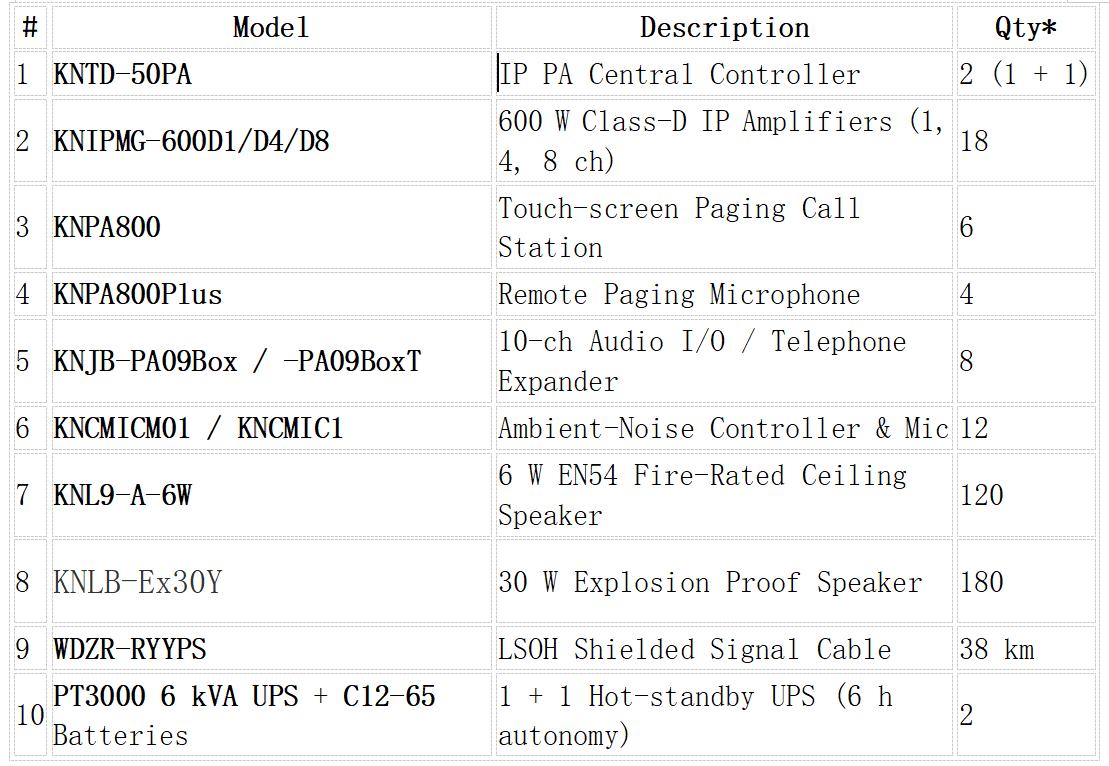

Supplied Equipment (Core List)

IP PA Central Controller (KNTD-50PA) , 2(1+1)

600 W Class-D IP Amplifiers（1,4,8 ch）(KNIPMG-600D1/D4/D8)，18

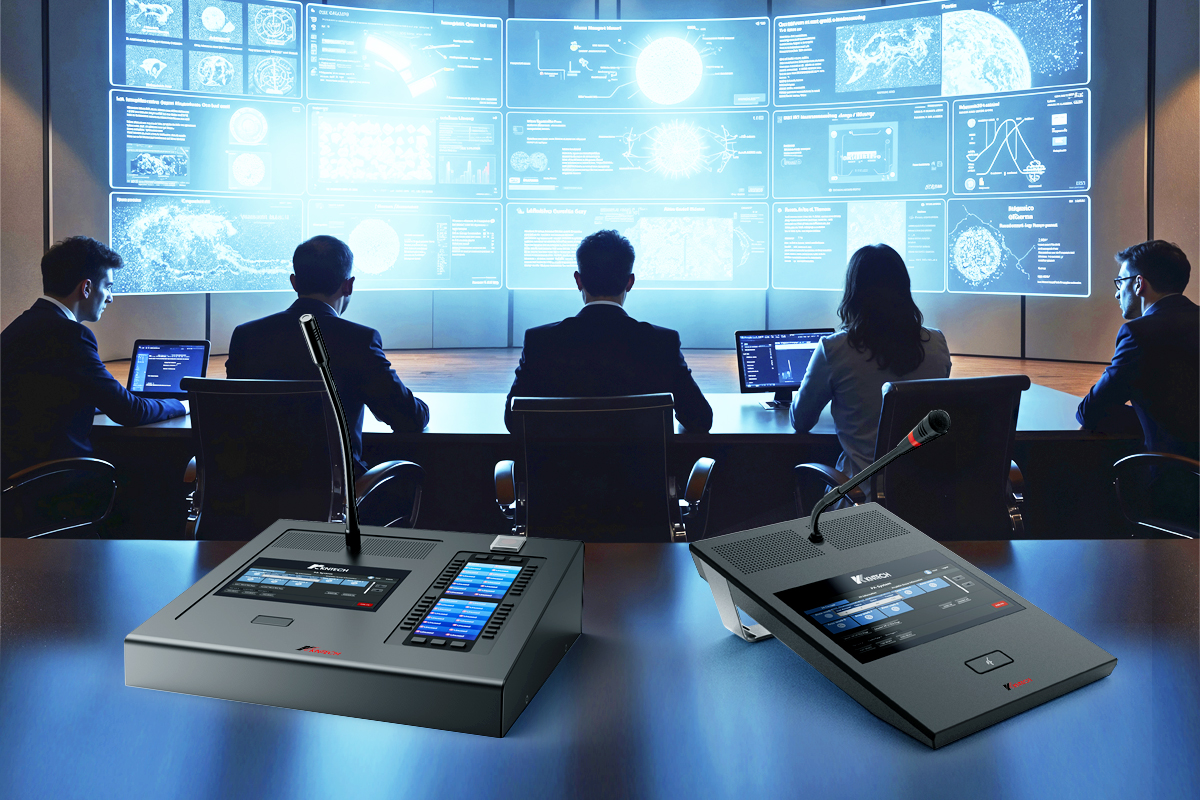

Touch-screen Paging Call Station（KNPA800），6

Remote Paging Microphone（KNPA800P1us），4

10-ch Audio I/O /Telephone Expander（KNJB-PAO9Box/-PA09BoxT），8

Ambient-Noise Controller & Mic（KNCMICMO1/KNCMIC1），12

6W EN54 Fire-Rated Ceiling Speaker（KNL9-A-6W），120

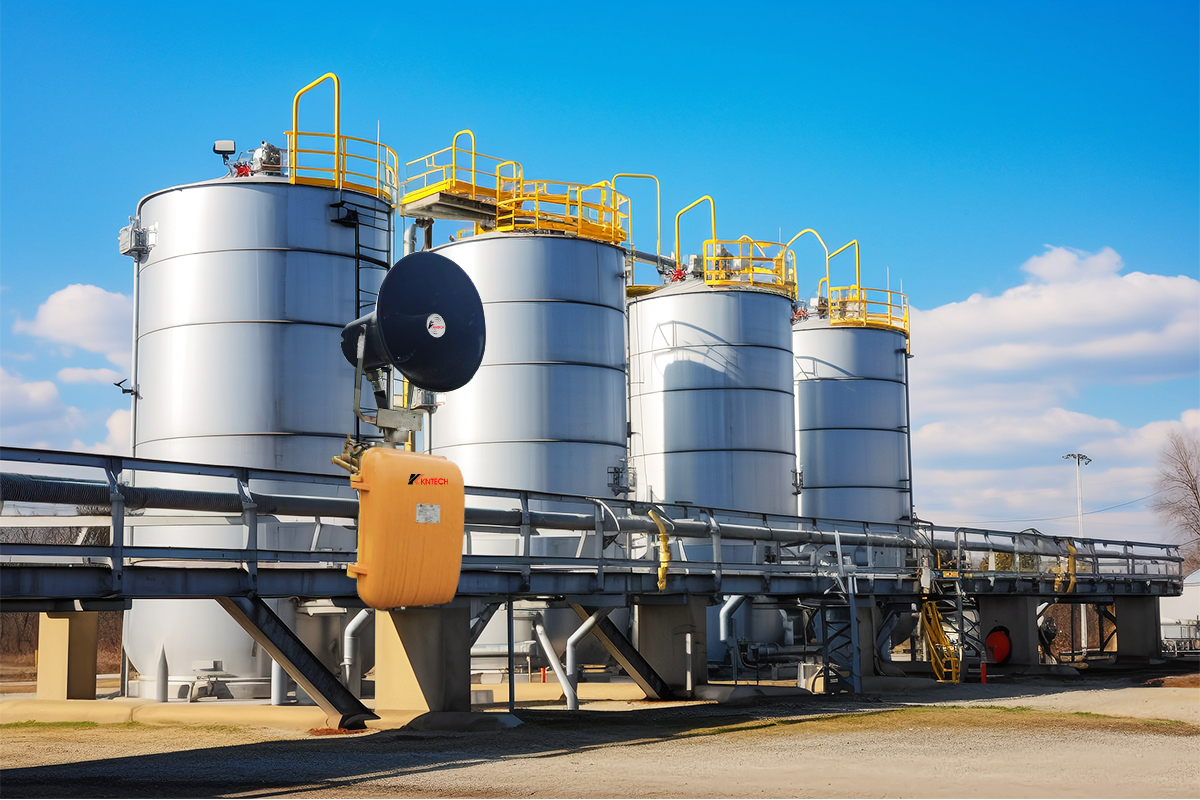

30W Explosion Proof Speaker（KNLB-Ex30Y），180

LSOH Shielded Signal Cable（WDZR-RYYPS），38km

1 + 1 Hot-standby UPS (6 hautonomy)（PT3000 6 kVA UPS + C12-65Batteries），2

Key Technical Highlights

Fully Redundant Core: Each KNTD-50PA controller features dual network ports (RSTP) and automatic failover, managing up to 100 IP devices across unlimited zones.

8 + 1 Amplifier Redundancy: KNIPMG-600D amplifiers carry a spare output channel, provide A/B speaker-line switching, and support AES67 audio with AES70 control and encryption.

High-Definition Audio: 24-bit / 48 kHz backbone ensures STI ≥ 0.65 across process areas; built-in chime generators and 100 min WAV/MP3 library.

Extreme Environment Design: All electronics rated -25 °C – 75 °C; speakers use metal rear covers and 115 °C thermal fuses (KNL9-A-6W) for fire integrity.

Resilient Power: Twin PT3000 UPSs in 1 + 1 configuration supply six-hour ride-through; automatic bypass and alarm annunciation.

Low-Smoke Cabling: WDZR-RYYPS LSOH shielded pairs meet IEC 60332-3 and IEC 61034 for flame, smoke, and halogen requirements.

Performance Results

Zero Unplanned Downtime: > 99.98 % system availability since cut-over (Aug 2022 – Aug 2024).

Ahead-of-Schedule Delivery: Modular rack build shaved 12 % off planned construction schedule.

Regulatory Compliance: Independent SAT confirmed full conformity to EN 54-16 / ISO 7240-16 and KOC HSSE specifications.

Operator Empowerment: Dual-language (Arabic/English) GUI and on-site training enabled KOC staff to execute routine maintenance without OEM intervention.

Conclusion

KNTECH’s turnkey execution on the Kuwait Oil Project demonstrates its capability to deliver high-reliability, IP-based PA/GA systems in critical oil-and-gas environments. The project’s success validates KNTECH’s EPC methodology—combining resilient hardware, open IP protocols, and disciplined project controls—to safeguard personnel and production assets in some of the world’s harshest operating conditions.
