Industrial Phone

Industrial Phone

model:KNSP-15MT
size:320*205*120mm
material:Robust aluminium allay die-cast body

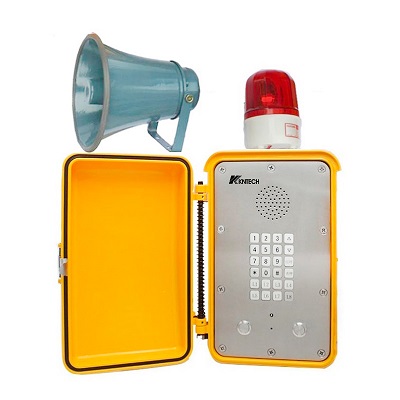

industrial-phone-voip-1
As a Industrial phone KNSP-15 is rugged telephone are widely used for tunnel and subway. The industrial phone is wall mounted.

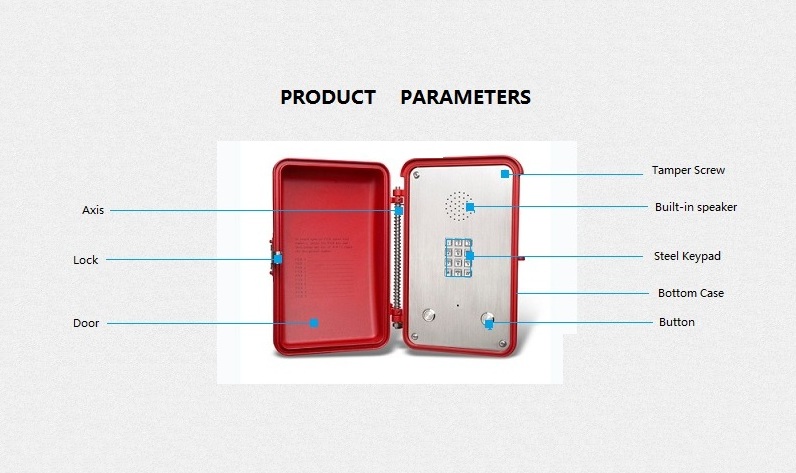

industrial phone description

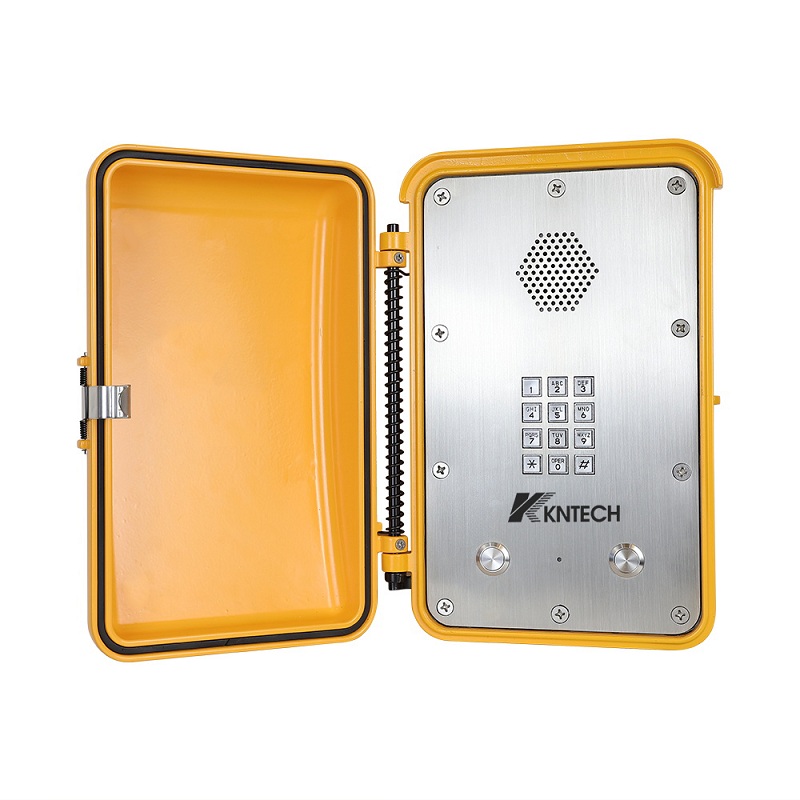

Industrial Phone KNSP-15MT

        The industrial phone uses the ip signal as the signal source, and the outer casing uses metal as the raw material. The industrial telephone has the characteristics of explosion-proof and waterproof.Industrial phones are often used outdoors as emergency phones.

        As a Industrial communication equipment KNSP-15MT is  rugged industrial telephone  are widely used  for tunnel and subway. the rugged phone  is strickly tested by salt spray test  for 4 days to 4 weeks.  KNTECH provide complete  communication system including Voip phone and analogue phone.  The the rugged phone are  widely used on ship, cruises, drilling platform, dock.  KNTECH provide rugged telephone and rugged waterproof phones for over 15 years.  It is specially designed to use in high wet environment of all kinds of electric power tunnel, with the characteristics of high protection, and low power consumption. A line can support 10 sets of telephones, and the standard of DTMF code sending exceeds 10 kilometers. With 1W speakers built-in, voice is clear and loud. The transmission distance could reach to 10 kilometers without additional power supply.

   Product features

      Automatically dial with one button
      Call time limited
      Send address code of this machine, and code sending time can be adjustable
      High waterproof, dustproof performance, full aluminum phone cover, IP66 protection grade.
      Sprayed with imported reflective lacquer on the surface, bright color, 5-10 years not fading, completely conform to the standards of GB/T5237.2-2000.
   Scope of application
      It is applied to highway for emergency call, railway or subway for interval telephone call, and tunnels, electric tunnels for maintenance call.
   Technical Parameters
      Ambient temperature:-30 ~ +60 degreeRelative humidity:10%~95%
      Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
      Sound level of ringing:over 70dB(A).
      Standard frequency:low frequency group:697. 770. 852. 941Hz,
      High frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%
      If service line is a 3Km signal - level:
      Standard frequency:low frequency group:-12dB~-6dB, high frequency group:-10dB~-4dB, level difference between low and high frequency of compound signal:0dB~3dB, the total distortion caused by intermodulation of harmonic wave is lower than the basic level by at least 20dB.
      Call transmission index:(5KM)SLR<12,RLR<-1,STMR>10, output impedance is 600 Ohm
      Parameters is kept in EEPROM, no losing with power-fail.
   DESCRIPTION ITEM NO.
      1. Robust aluminium alloy die-cast body, Vandal resistant and tamper-resistant hardware, simple installation.
      2. Full keypad with memory, 1 button programmable, support free dial.
      3. With Internal 3W loud speaker. Impeddance:8Ω.Freq.Resp:300-7000HZ.
      4. Lightening protection to ITU-Trecommendation K.21.
      5. Heavy Duty handset with hearingAid compatible(HAC) receiver,Noise canceling microphone.
      6. Door cover: orient automatically and good self - closing, convenient for use.
      7.Temperature range from -40 degree to +70 degree.
      8.Support echo cancellation.
      9.Remote software upgrade, configuration and monitoring.
      10. Optional 7 minute time-limited call.( This functionupon buyer’s requirement).
      11. Powder coated in UV stabilized polyester finish.
      12. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.
   Function introduction:

      Automatic dial-up function: press dial-up keys, 3 ~ 5 seconds for you will be designated to dial the number.
      Call time limited: Automatically start seven minutes timing when connecting a telephone. When time is up, phone automatically hangs up in order to prevent lines occupied because of long conversation.
      Send address code: Press the answering button when there is a phone call. Then send address code within 2s after answering. When call out, press the call button, send out this phone address code within 1-63s.Achieve the function of delay time through the internal dial-the-code switch.

   Telephone installation

Installation dimensions: 320*230mm
Using four M8-6H*15mm machine screws to install

industrial phone size

   INSTALLATION
industrial phone
   CERTIFICATION
    RCM: AS/NZS CISPR 32 Australian communications:AS/CA S004
    Australian Equipment-safety: AS/NZS 60950.1:2015
    EMC: EN50121(Railway application-Electromagnetic Compatibility)

   PACKAGING
industrial phone packing
     Unit size: 320 *205 *120mm N.W:4.86KG
     1pcs packing box size: 439 *277 *191mm Unit N.W:5.8KG
     6pcs in 1 outer Carton box: size: 730*390*340mm N.W:36.5KG

You May Like:

industrial phone Related products

KNDDT-2-A15

Telephone Operator Console

industrial phone Related products

NMS-X1 SNMP

Unified network management system

industrial phone Related products

KNZD-20W

Video Intercom System

industrial phone Related products

KNSP-01

Weatherproof telephone




Product Specification

    SPECIFICATION

VoIP SIP2.0 telephone                      DTMF dialing                      Audio Codes:G.711, G.723,G.726, G.729
MTBF:100000hours                          MTTR: 2 hours                    Network:10/100 BaseTX Ethernet, RJ45
Free dial (maximum length of each number is 16 digits)              connectors, Cat5e or better
Communication: Full duplex 2-way hands-free                             IP Protocols:IPv4, TCP, UDP,, RTP , DHCP, SIP
communication                                                                             1 x LAN Protocols:Power over
Call Control Signaling:VOIP SIP Info(DTMF), RFC                      Ethernet(PoE,802.3af)
2833(DTMF)                                                                                 1 x WLAN(IEEE 802.3af), Network Access
Power:Power over Ethernet, IEEE802.3af, Class 0                      Control(IEEE 802.1x),STP(IEEE 802.1d),
Local power, 12VDc,Idle 2W, Max 10W                                        RSTP(IEEE 802.1d-2004)
Auxiliary Contacts: (option)                                                           Programming:Non-volatile flash memory
1 Aux Output, dry contac                                                              programming and configuration through Web GUI
Contact Ratings. Load: Resistive load                                         Management and Operation:DHCP and static IP,
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC                               remote automatic software upgrade, centralized
Rated carry current:1A                                                                  monitoring.
Max.switching voltage:125 VAC,60VDC                                       Echo cancellation code:G.167/G.168
Max.switching current:1A

   Order information:

Model number Power Supply Item Number
KNSP-15MT-IP-R_AD DC12V 1A SP0150052
KNSP-15MT-IP-R_P POE SP0150012
KNSP-15MT-IP-R_ADP DC12V 1A +POE SP0150092
*AD---Adapter UL (Input : AC110~240V , Output : DC12V 1A)
*P---POE

Telephone System

Industrial phone is used in tunnel emergency communication system

In the tunnel excavation, often choose the industrial telephone as emergency communication equipment, the industrial telephone has waterproof, dustproof, anti-violence characteristics.

industrial telephone use tunnel telephone system

Product Application

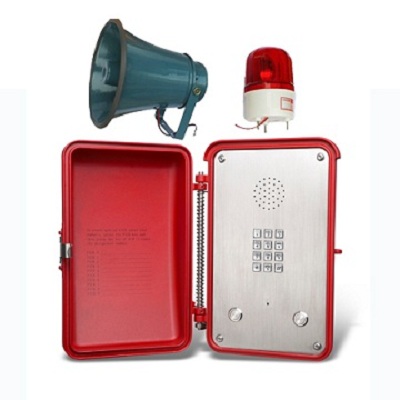

Red and yellow industrial phone with loudspeaker and alarm beacon


rugged industrial telephone

Product Detailed Pictures

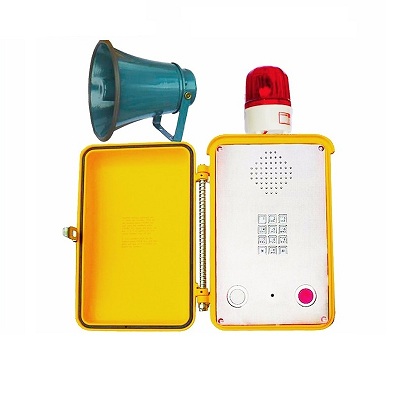

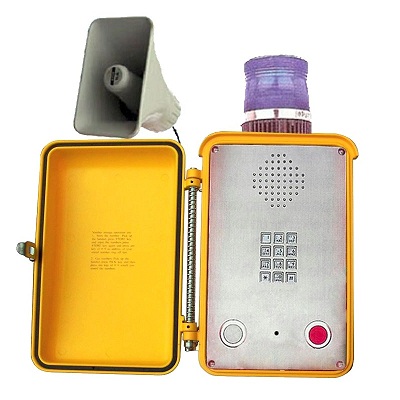

yellow industrial phone with loudspeaker and beacon

Product Video


Please Email US
marketing@koontech.com

This product model:KNSP-15MT

*
*
*
*
