PA horn speaker

PA horn speaker

model:KNLB-EX50Y
size:
material:

PA-horn-speaker
The pa horn speaker is a kind of transducing device that converts electrical signals into acoustic signals. The performance of the speaker has a great influence on the sound quality. The pa horn speaker is one of the weakest devices in the audio equipment, and for the sound effect, it is also the most important component.

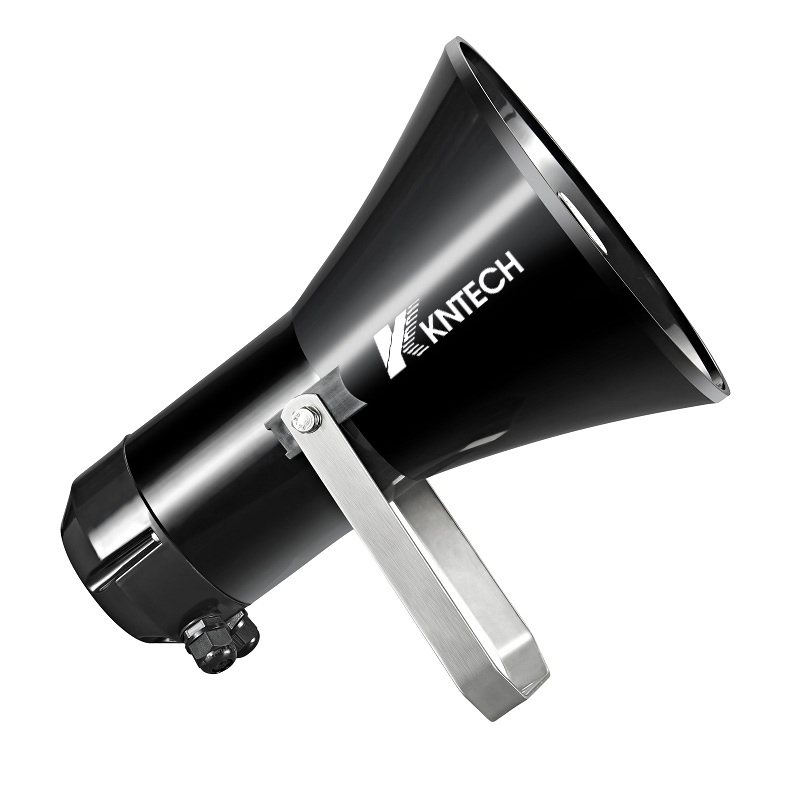

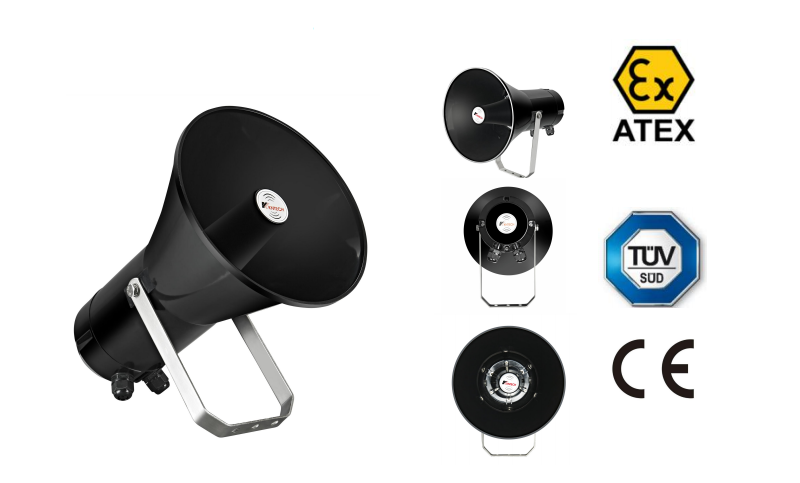

pa horn speaker view

PA horn speaker outdoor waterproof 8w-50w adjust

There is only an pa horn speaker power indicator to talk about the distance of sound propagation. The sound pressure intensity of the horn at different distances is not only related to the feed power, but also to its structure, sensitivity, pointing characteristics and frequency of the input signal, etc.,

The horn feature


1.Explosion proof speaker design and certified by TUK ATEX standard.

2. Robust aluminium alloy die-cast body, Vandal & tamper-resistant easy Installation.
3. Waterproof rating IP66 dust proof.
4. service temperature range from -50 degree to +60 degree.

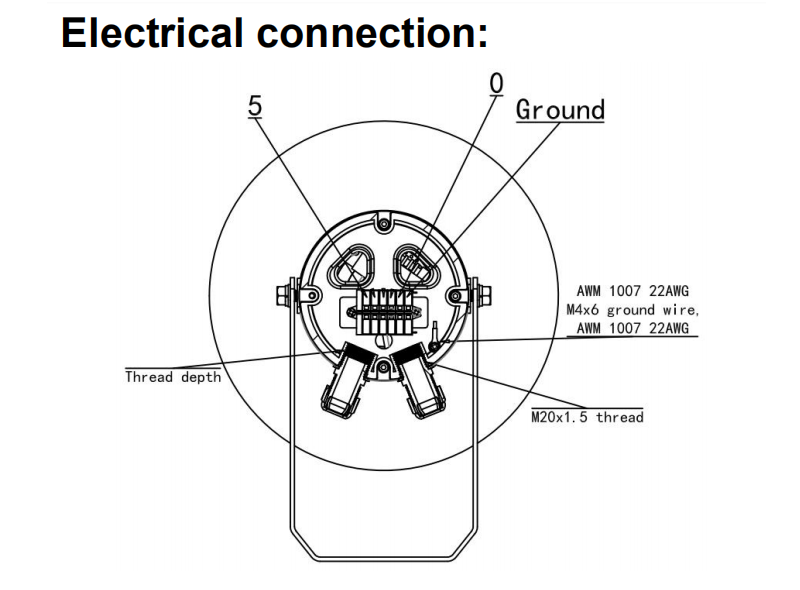

5. The speaker wiring connections are enclosed in a dust-moisture-proof design.
6. 360° lossless broadcast
7. Transformer coupled
8. For use public address and paging application
9. Powder coated in UV stabilized polyester finish.
10. Application: marine, ship,offshore, mine, Tunnel, metro, speedway, , power plant, bridge etc.

The explosion proof speaker atex type and marking

the atex for pa horn speaker

Frequency Response @ /1W/1m

the freq for pa horn speaker

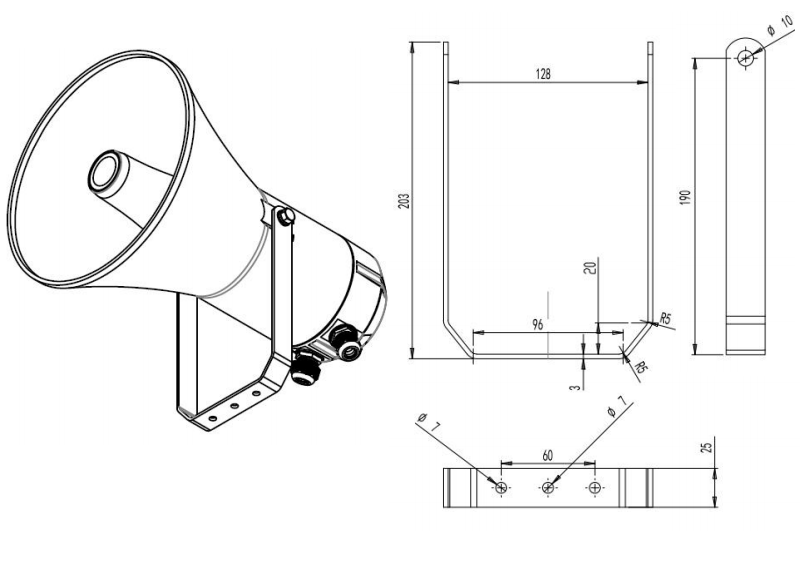

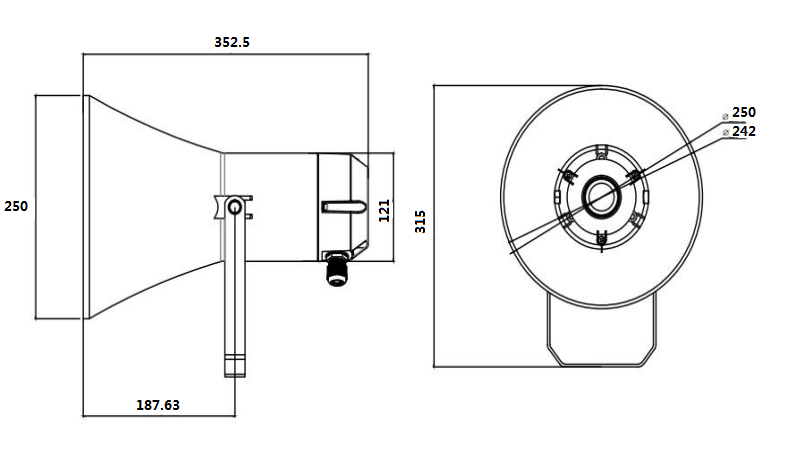

The size ahout it

pa horn speaker size

Packing

Unit size: 260(Ø)*412(L)mm
Unit G W: 5.7kg
1 pcs in a inside box. Box size: 470x310x310 cm G.W: 9KG
4 pcs in a CTN box. CTN box size: 480x 630x630 cm G.W:38.1KG




==>>>> Product Specification

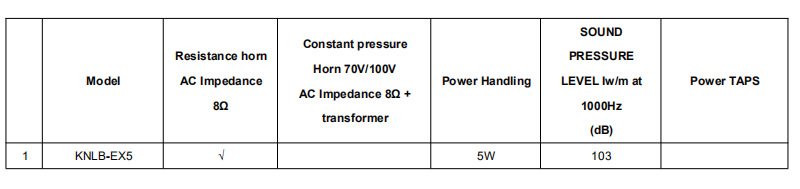

Type Description

The appearance of the speakers mold is the same, the difference built-in transformer or not


Model Resistance horn AC Impedance 8Ω Constant pressure Horn 70V/100V AC Impedance 8Ω + transformer Power Handling SOUND PRESSURE LEVEL Iw/m at 1000Hz (dB) Power TAPS
1 KNLB-EX8 YES

8W
105

2
KNLB-EX15 YES

15W
105

3
KNLB-EX30 YES

30W
108

4
KNLB-EX50 YES

50W
110

5
KNLB-EX50Y YES
YES
8-50W adjustable
110
8w/15w/30w/50w

Specification for all the speakers

1 DIMENSION 260(Ø)*412(L)mm
2 Material Aluminum
3 RATED FREQUENCY RANGE 300Hz ~ 8000Hz
4 TOTAL HARMONIC DISTORTION 5% Max at lKHz 1W
5 AC IMPEDANCEB
IMPEDANCEB
8 ±15% ohm
6.4 ±7% ohm
6 SPEAKER WEIGHT 4.9kg ± 10%
7 MATERIAL&FINISH Hom: ivory, others dark brown ;Bracket: Zinc plated steel t3.0
8 WORKING ENVIRONMENT Temp -50°C~ +60°C, Humidity 45% 〜85%,
pa horn speaker atex

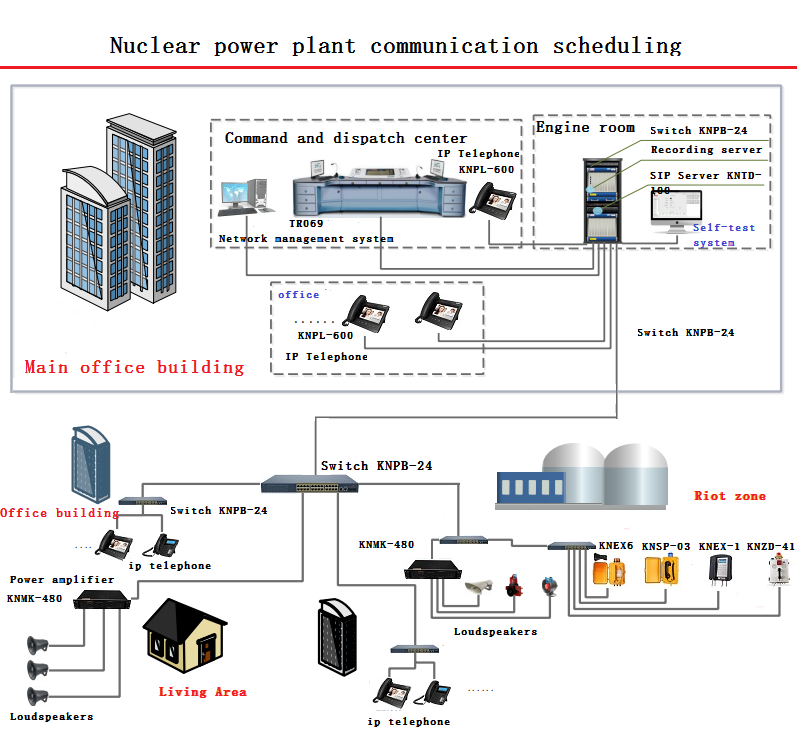

==>>>>Telephone System
pa horn speaker telephone system

==>>>>Product Application

pa horn speaker outdoor pa horn speaker side oil


==>>>>Product Detailed Pictures

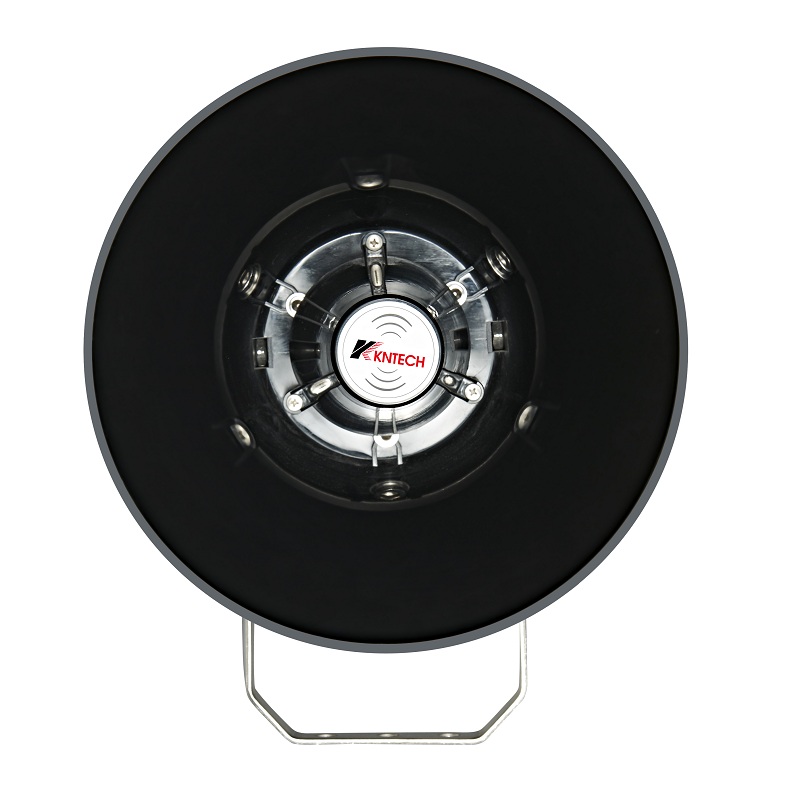

pa horn speaker

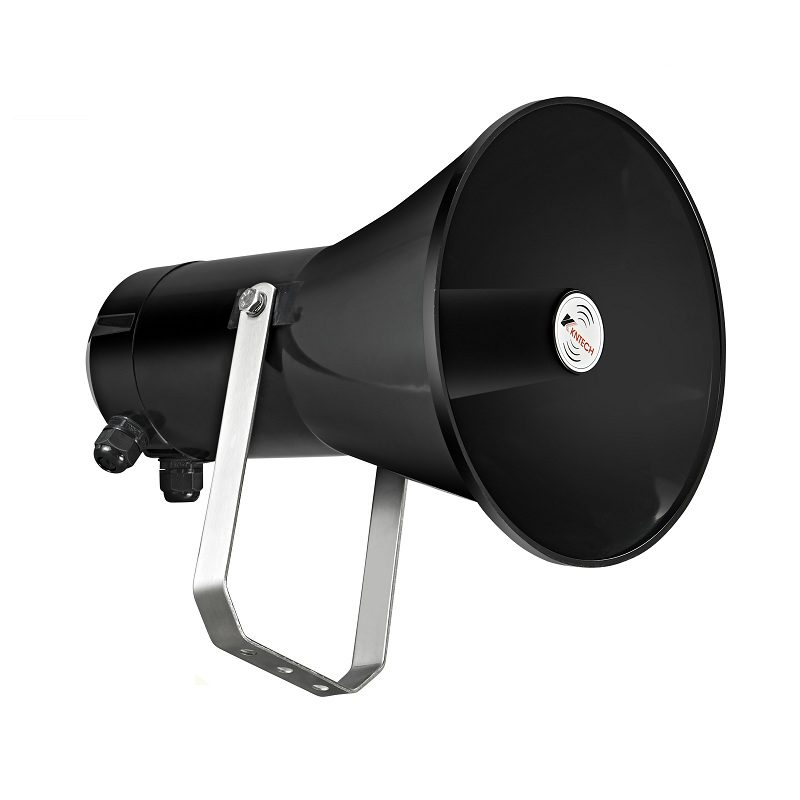

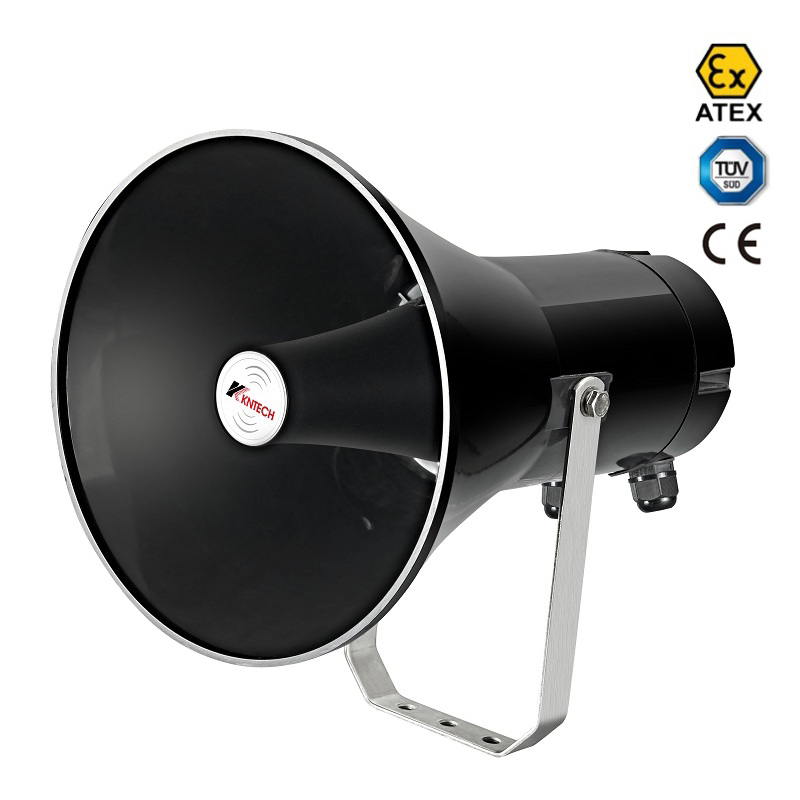

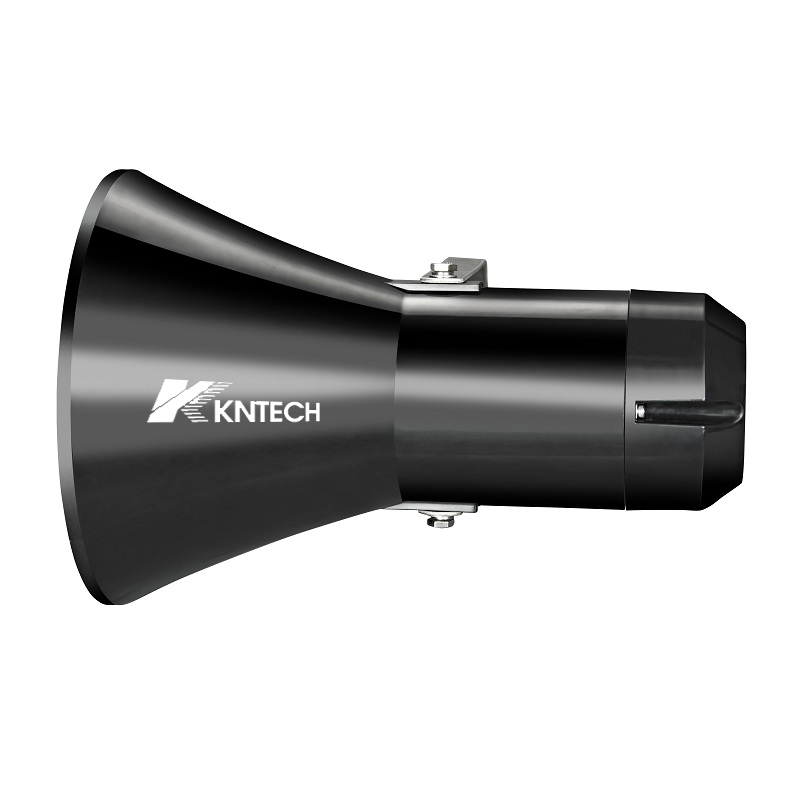

pa horn speaker side view pa horn speaker front view
