PA Call Station

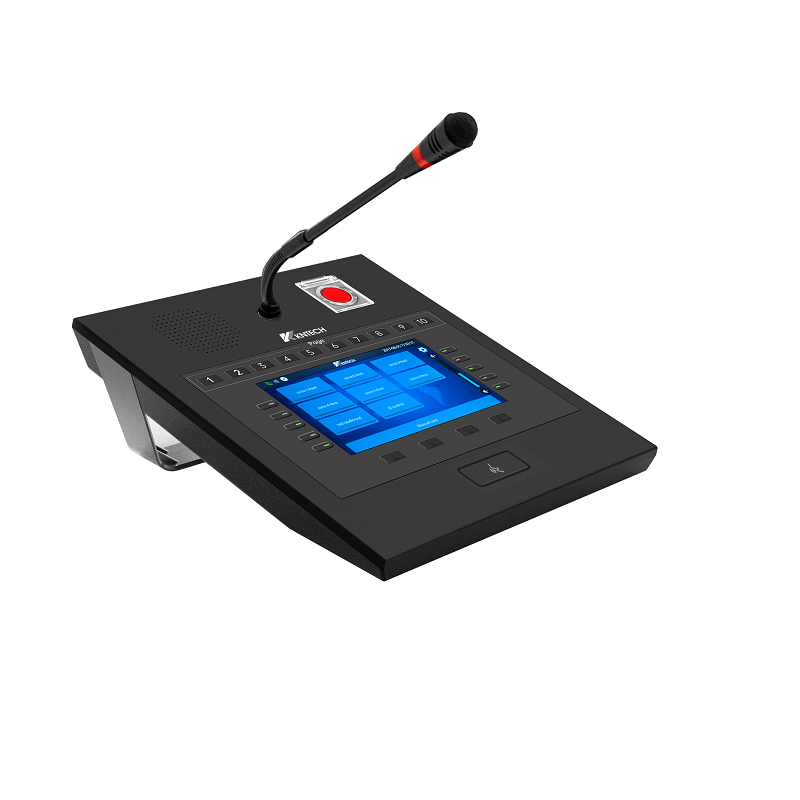

PA CALL STATION / PAGING MICROPHONE

Model: KNPA800miniR

100-zone one-touch paging with a covered red emergency key

With Gooseneck microphone

Key Functional Features & Benefits: Engineered for Mission-Critical Assurance

Purpose-Built Design: Uncompromising Reliability Certified for Safety

Engineered for Professional Excellence: Designed exclusively for professional PA applications, ensuring every component is optimized for performance and longevity in demanding environments.

Certified for Absolute Safety: With EN 54-16 and ISO 7240-16 certifications, the KNPA800 meets the most stringent international standards for life safety and voice evacuation systems, giving you verifiable peace of mind.

24/7 Operational Readiness: Built for continuous, round-the-clock operation with intelligent, energy-saving features in standby mode, supporting both your security objectives and your sustainability goals.

User-Centric Interface: Sophistication Made Effortless

Intuitive Command:A vibrant 4.3-inch TFT provides a clear, responsive, and intuitive interface.

This allows operators to manage complex functions with minimal training, reducing human error during high pressure situations.

Effortless Zone & Group Selection: Effortlessly configure and select individual zones, pre-defined groups, or initiate an all-call broadcast with just a few taps. The expandable display allows for a clear overview of your entire facility.

At-a-Glance Status Confirmation: Clear, unambiguous visual indicators for power, communication status, and push-to-talk activation provide immediate confirmation that your message is being broadcast as intended.

Superior Audio Management: Your Voice, Delivered with Pristine Clarity

Crystal-Clear Vocal Transmission: The professional-grade gooseneck unidirectional microphone is engineered to capture the human voice with exceptional clarity, cutting through ambient noise to ensure every word is intelligible.

Total Audio Control: With adjustable microphone sensitivity, volume control, and software-configurable parametric equalization, you can fine-tune every broadcast to perfectly match the acoustic environment of each zone.

Seamless Integration of Audio Sources: A 3.5mm jack for wireless microphone input provides added flexibility for mobile presenters or special events, seamlessly integrating external audio into your system.

Flexible Broadcasting Capabilities: The Right Message, to the Right People, at the Right Time

Dynamic and Targeted Communication: Empower your team with selective zone, group-zone, and all-call paging options. This allows you to tailor your announcements with surgical precision, ensuring relevance and preventing unnecessary disruption.

Automated and Scheduled Announcements: Leverage advanced scheduling for routine daily, weekly, or monthly broadcasts. Pre-recorded messages can be distributed with precise zone targeting, freeing up operator time and ensuring consistency.

Unyielding Priority for Emergency Alerts: In a critical situation, every second counts. The system’s priority based audio routing ensures that emergency announcements and alerts will instantly and automatically override any lower-priority audio, guaranteeing that life-safety messages are always delivered without fail.

Enterprise-Grade Reliability & Integration: A Future-Proof Foundation

Simplified, Cost-Effective Installation: Power over Ethernet (PoE) operation eliminates the need for a separate power supply, simplifying installation and reducing overall deployment costs.

Built-in Network Redundancy: Dual Ethernet ports provide a fail-safe connection, ensuring your call station remains fully operational even in the event of a network hardware failure.

100-key paging console with guarded emergency key: 10 pages × 10 physical paging buttons, 4 function keys, one main paging key and a red emergency key under safety cover to prevent accidental triggering.

Secure and Encrypted Communication: Utilizing AES67 for audio and AES70 for control, all communications are encrypted and authenticated, protecting the integrity of your network and preventing unauthorized access.

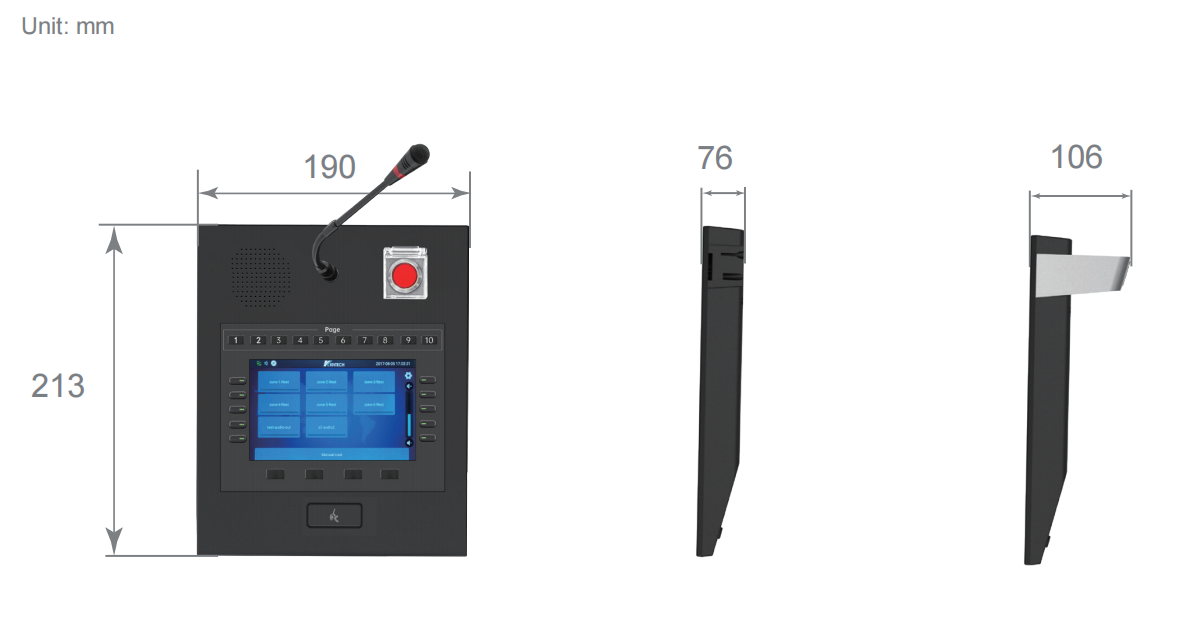

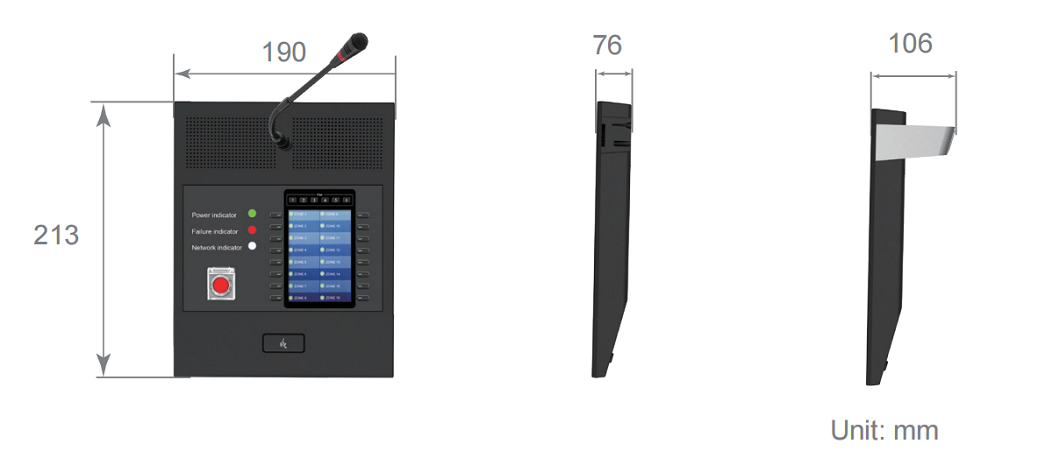

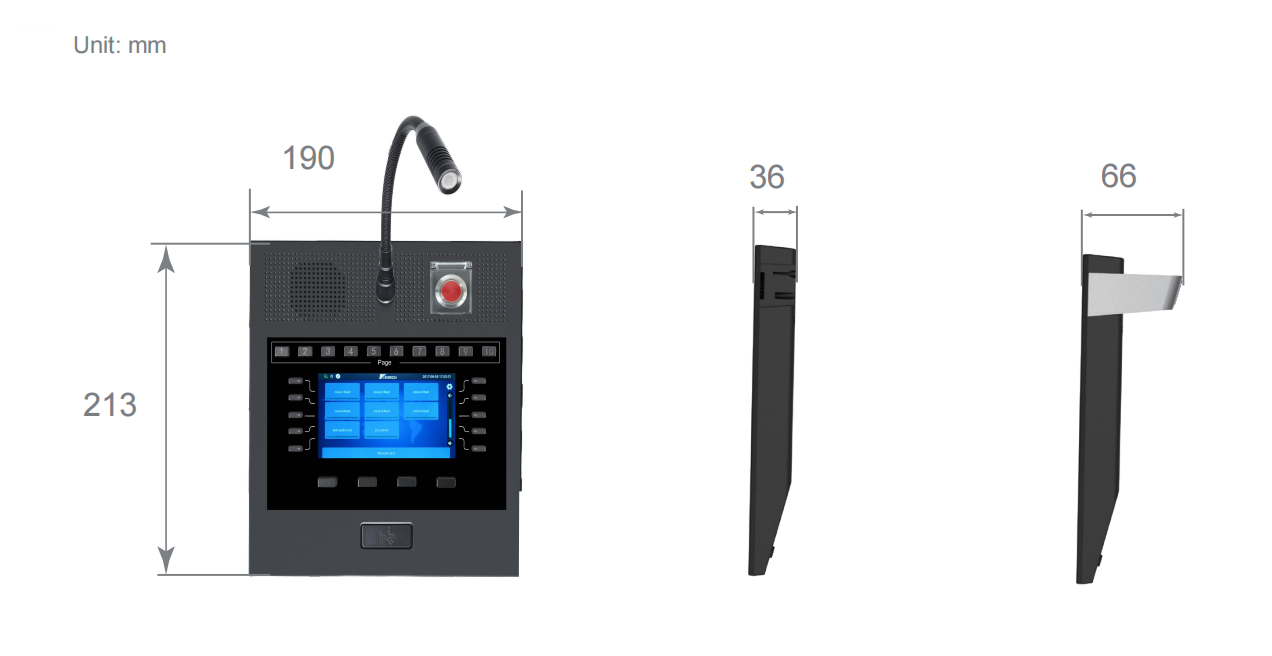

The Size:
