Explosion proof horn loudspeaker

Explosion proof horn loudspeaker

model:KNLB-Ex5(5W)
size:413*254*277MM
material:

Explosion-proof-horn-loudspeaker-5w
Explosion-proof-speaker-user-manual
The explosion-proof horn loudspeaker meets the requirements of the atex standard, and has been certified by a designated testing agency and obtained an explosion-proof certificate.Explosion-proof horn has the characteristics of reasonable structure, beautiful shape, sound volume, high fidelity, reliable performance and easy installation.

Explosion proof horn loudspeaker 5w

Explosion-proof speakers are explosion-proof tweeters. This explosion-proof speaker has the advantages of beautiful appearance, high sound level strength, low noise, long transmission distance, durability and good explosion-proof performance. It is very suitable for the presence of explosive gases or explosive dust Used in places.

1. Explosion proof Speaker design and certified by TUV ATEX standard.
2. Material/Colour: Anti-static Polyamide/Black
3. Waterproof rating IP66 dust proof IP66.
4. Service temperature range from -40 ℃ to +55℃.
5. For 360° lossless broadcast
6. fixed resistance KNLB-Ex5 without transformer.
7. For use public address and paging application
8. Application: Products are widely used in petroleum, metallurgy, chemical industry, sea oil, nuclear power, shipbuilding, tunnels and other projects requiring explosion-proof grade Speaker.

The explosion proof speaker atex paging type and marking

atex horn speaker

Frequency Response @ /1W/1m

the freq for explosion proof speakers paging

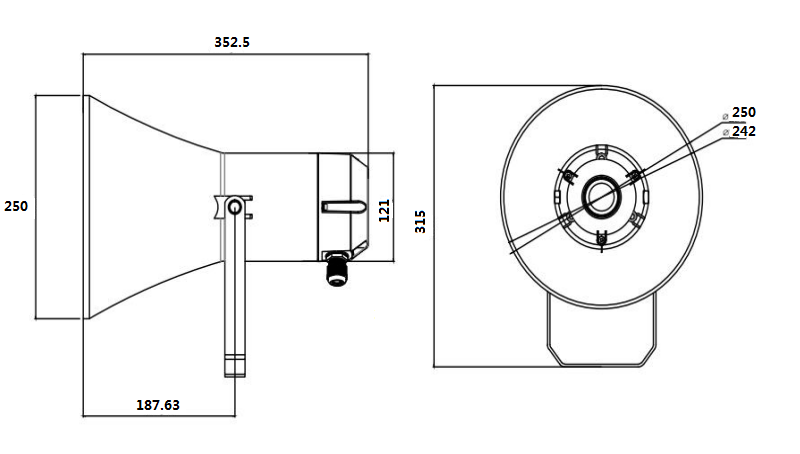

The size ahout it

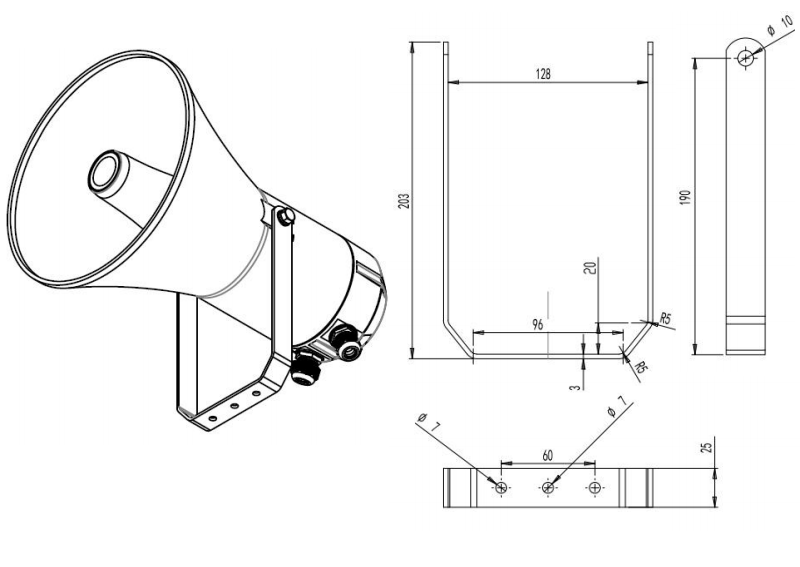

The explosion proof speaker installation dimension drawing


Packing

Unit size: 250(Ø)*352(L)mm
Unit G W: 3.7kg
1 pcs in a inside box. Box size: 270x270x390 cm G.W: 3.7KG
2pcs in a CTN box. CTN box size: 570x 290x420 cm G.W:7.8KG




==>>>> Product Specification

Type Description

The appearance of the speakers mold is the same, the difference built-in transformer or not.

explosion proof horn

Specification for all the speakers

explosion proof horn
explosion proof horn  explosion proof horn 5w

More models of explosion-proof speakers are available for customers to purchase

explosion proof horn

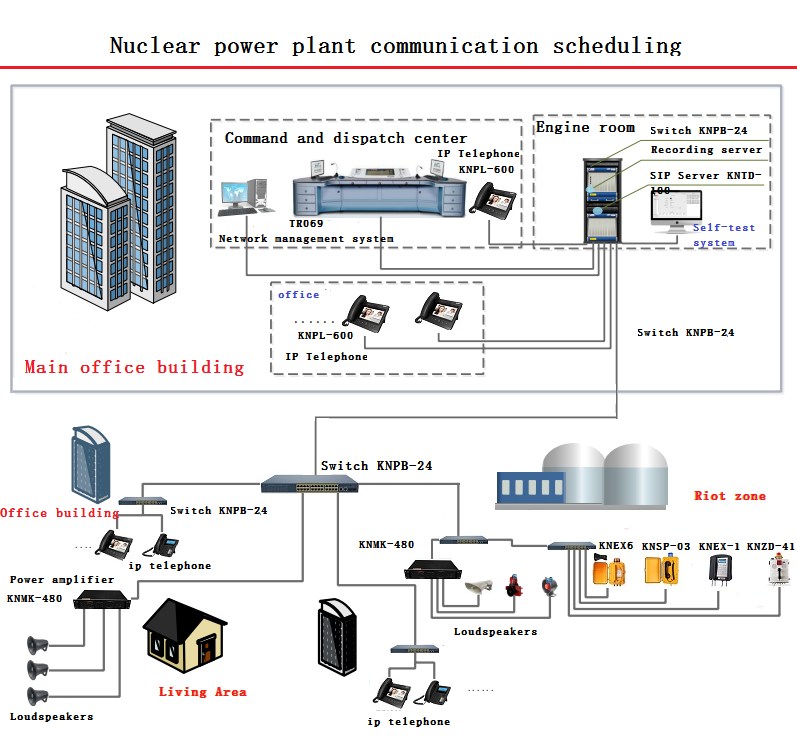

==>>>>Telephone System
explosion proof horn loudspeaker telephone system

==>>>>Product Application

explosion proof speaker outdoor application explosion proof speaker outdoor application explosion proof speaker outdoor application explosion proof speaker outdoor application

atex speakerand alarm sounder
atex speakerand alarm sounder

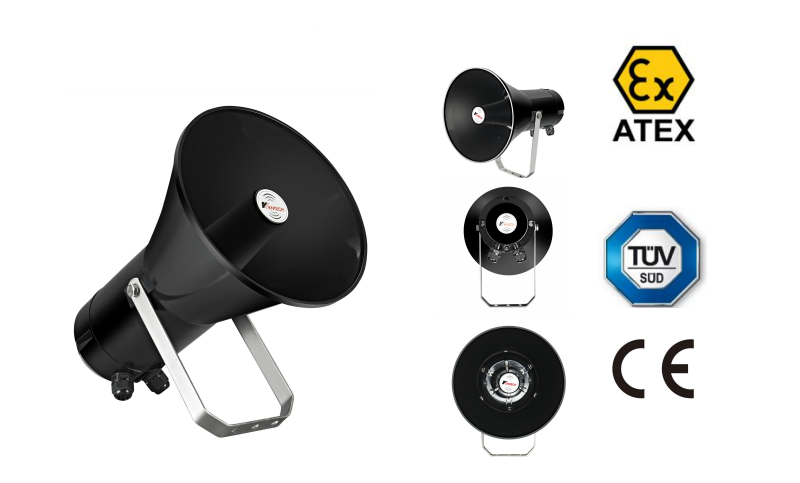

==>>>>Product Detailed Pictures

Explosion proof horn loudspeaker detail Explosion proof horn loudspeaker detail Explosion proof horn loudspeaker detail Explosion proof horn loudspeaker detail Explosion proof horn loudspeaker detail Explosion proof horn loudspeaker detail


==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNLB-Ex5(5W)

*
*
*
*
