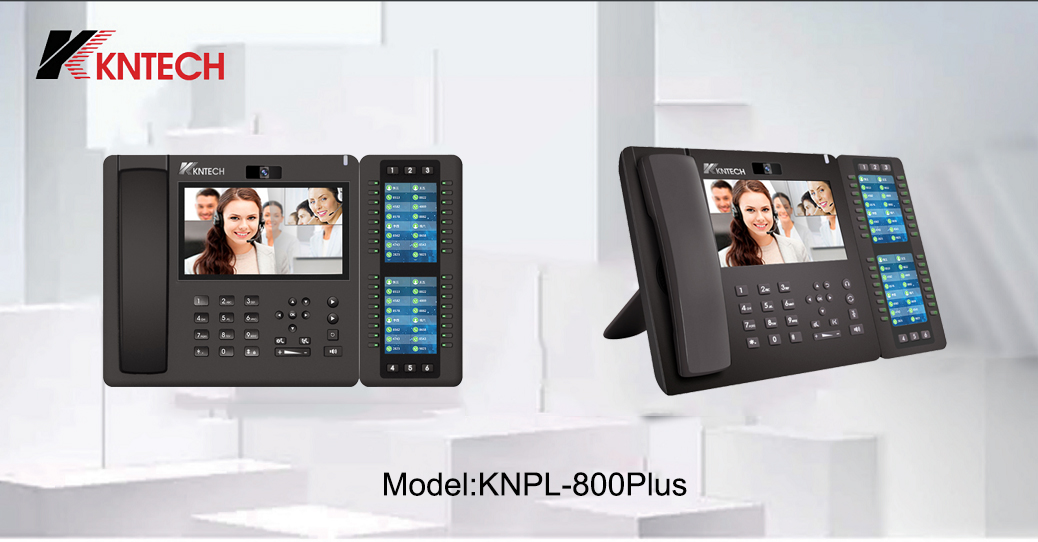

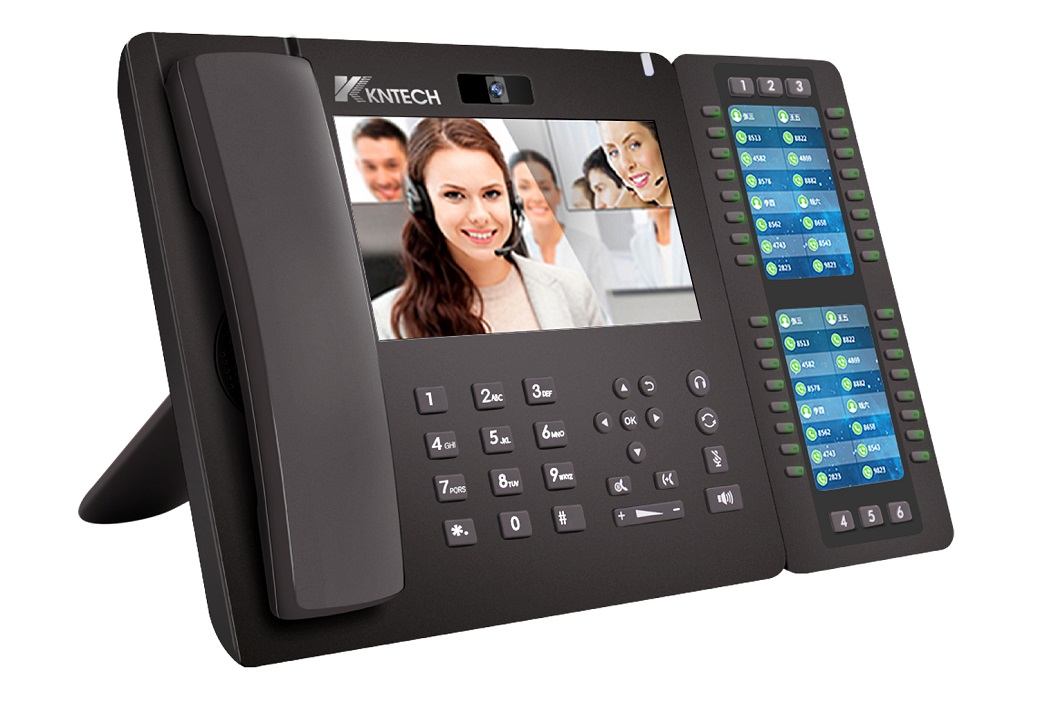

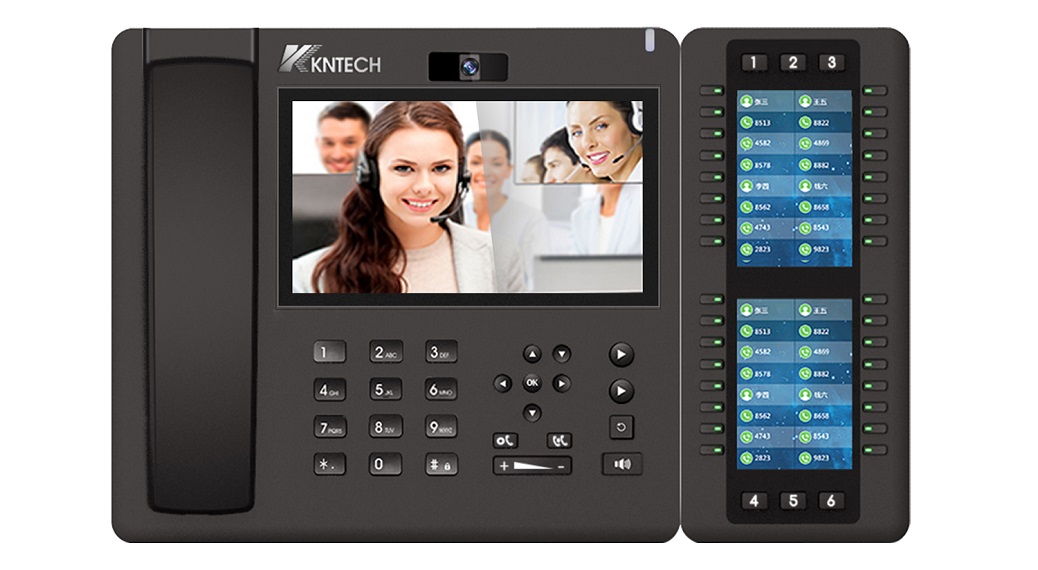

The KNPL-800Plus is a high-end business IP phone. It is suitable for users who need flexibility and advanced functions, so that they can easily cope with the busy and complex work needs in their works. KNPL-800Plus has 10 DSS keys on it's 7.2-inch main color display screen and up to 192 DSS keys (38 physical keys) on its two 3.5-inch side color display screen. Therefore, KNPL-800Plus can configure up to106 DSS keys for setting BLF/fast number and multicast functions. KNPL-800Plus is also equipped with high-definition voice, built-in Bluetooth, WiFi links, EHS support, Gigabit dual-port POE, can be photo graphed with IP.
High-ranking phone function more efficient
The surface design is very elegant ,with touch screen and high resolution screen.
With the intelligent user interface it could be breakthrough surface and experiment.

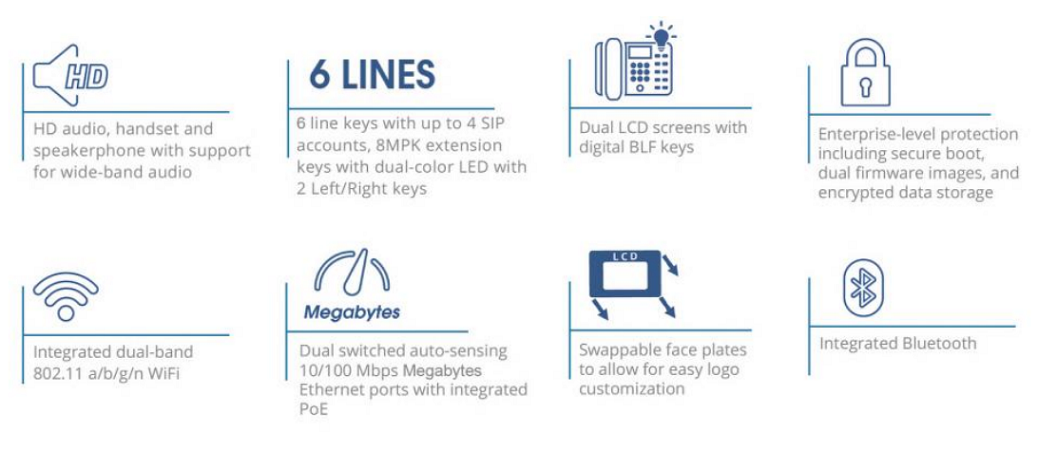

*6 SIP Lines tripartite conference.
*HD sound quality. (handset and speaker)
*7.2-inches colourful screen.
*Two 3.5-inchs DSS colourful LCD.
*Megabytes Double Network Port,POE is optional function.
*Inner Bluetooth function
*Can connect to WiFi. (Wi-Fi Dongle)
*Support EHS earphone
*H.264 Video Decoding for Video Telephone. *Support mainstream IP PBX/soft switch/IMS Platform3CX, Asterisk, Broadsoft,Elastix,Avaya.

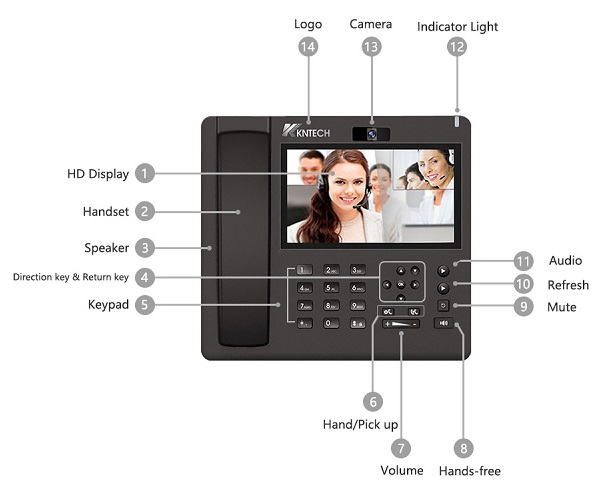

1.HD Display: HD display. Clear images and support multi-window multi-person video conferencing.
2.Handset: Magnetic handle, hang up and the phone hangs up.
3.Speaker: Speaker, power up to 8w.
4.Direction key and return key: functional button
5.Keypad: available for dialing and text input 6.Hand/Pick up
7.Volume: used for volume adjustment
8.Hands-free 9.Mute: Main menu
10.Refresh: Used for data refresh. 11.Audio
12.Indicator light 13.Camera
14.KNTECH: HONGKONG KOON TECHNOLOGY LTD logo, using laser engraving technology, engraved on the phone panel, not easy to fade and destroy.
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record,SRV,NAPTR), DHCP,PPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, IPV4. |
| Network Interfaces | Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE. |
| Graphic Display | 7.2 inch. |
| HD Audio | Yes,HD handset and speakerphone with support for wideband audio. |
| DSS Key | 192 DSS key on 4.3 inch screen. |
| Voice Codecs and Capabilities | Support forG7.29A/B,G.711μ/a-law，G.726，G723,in-bandand out-of-band DTMF(inaudio，RFC2833)SIP INFO). |
| Feature Keys | 6 line keys with up to 6SlP accounts,, 8MPK extension keys with dual-color LED with 2Left/Rightkeys, 4XML programmable context sensitive softkeys, 5navigation/menu keys , 11dedicated, for:MESSAGE (with LED indication), phonebook,transfer,conference,hold,handset,mute,send/redial,speakerphone,vol+,vol- |
| Base stand | Base support |
| Telephone Feature | Hold, transfer, forward, call park, call pickup, downloadable phonebook(XML,LDAP, up to 2000 items), call waiting, call log(up to 2000 records), off-hook auto dial, auto answer, flexible dial plan,hot-desking, personalized music ringtones and music.on hold, server redundancy and fa l-over |
| QoS | Layer 2 QoS (802.10, 802. 1P) and Layer 3 (ToS, Dferv, MPLS) QoS |
| Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,Korean, Japanese etc. |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, TLS, 802.1x media access control, secure boot |
| Upgrade/Provisioning | Firmware upgrade via FTP/TFTP / HTTP / HTTPS/TR-069, mass provisioning. |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C; Humidity: 10% to 90% Non-condensing |
| Power & Green Energy Efficiency | Universal power adapter included - Input:100-240V ; Output: +12V, 1.5A ; IntegratedPower-over- Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE) |
| Package Content | Unit weight: 950g ; Package weight: 1460g Dimension: 234mm x 213mm x 82.2mm |
| 800plus characteristic | 96 DSS keys two colorful screen |
| Compliance | CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN 301489-17;EN 300328; EN 301893; EN 62311RCM AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 4268; AS/NZS 60950.1; AS/CA S004;12V power adapter |
