Solar telephone

Solar telephone

model:G3000
size:
material:

solar-telephone
Solar telephones use solar panels as their power source. The telephone is mainly used in outdoor can not use the cable phone, as an emergency call.
solar telephone description

Both Handset type and hand-free type available Solar telephone

        Solar G3000 SOS telephone is applicable to the field or inconvenient cloth the power cord and signal lines in public places, such as the national forest park, national nature reserves, scenic areas, each big scenic spots, country parks, highways, urban construction, people square, railway station square, etc., the characteristics of solar power supply, signal by wireless transmission, such as wireless phone network WIFI network! Equipment integration design, anti - storm, lightning, anti - freezing, high temperature resistance.

 Features:
    1.  Matell body, solid and temperature bearable
    2.  Handset free, loudspeaker,
    3.  Heavy duty Vandal resistant buttons.
    4.  With or without keypad optional
    5.  Lightning protection standard to ITU-T K21
    6.  Waterproof grade about IP66
    7.  Body with grounding connection protection
    8.  Support hotline call, self stop if the other side hang up.
    9.  Built-in loud speaker, noise canceling microphone
    10. Lighting will flash when there is a incoming call
    11. AC 110v/220v powered or built-in rechargeable battery with solar powered panel optional
    12. The design is super thin and smart. Embed style and hanging style can be chosen.
    13. Time out function optional
    14. Colours: RED + Stainless steel , If the qty over 100pcs can be To customer specification
Applications:
     As Public telephone for outdoor, Taxi or bus stands or station, Highway call box. Railway, Port, Dock, Generation facilities….A good ideal telephone for use in wet or corrosive atmospheres

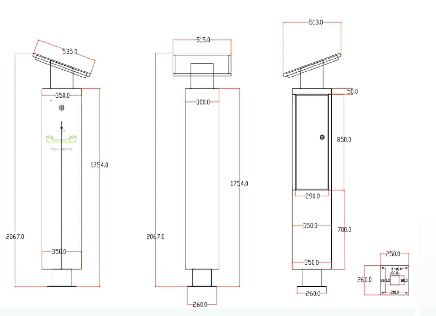

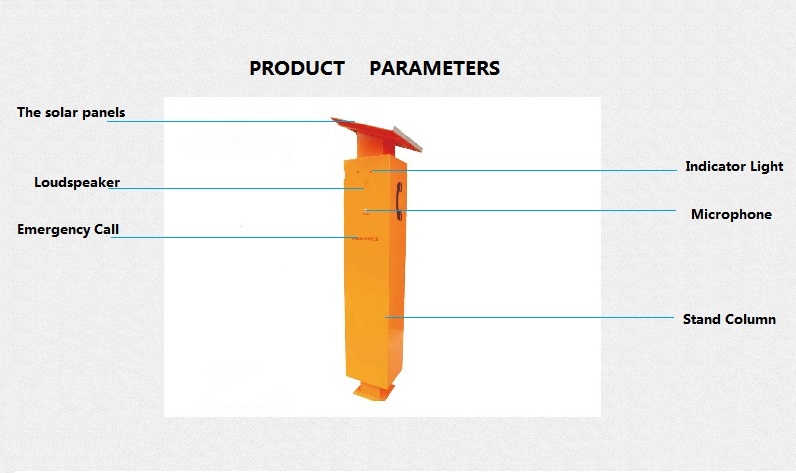

Telephone layout
Solar telephone
Solar panel over 600mm high
Certification:
 Solar telephone
EMC: EN50121 (Railway application- Electromagnetic Compatibility)
      EN55022: emissions
      EN55024: immunity
Ingress Protection: GB4208-93 IP66
FCC
ITU-T Recommendations K21


PACKAGING


Telephone Unit size: 2200*310*255mm Unit Net weight: 90kg
2pcs in a wooden box CTN box, size: 35X80X255   G.W: 186kg
20GP: 88PCS  40GP: 176PCS  40HQ: 205PCS



You May Like:

KNDDT-1-AV21

Operator console center

NMS-X1 SNMP

Unified network management system

KNZD-60M

Video Intercom System

KNSP-01

Weatherproof telephone




==>>>> Product Specification
Specification:
      1. Network Interface: GSM Frequency :850/900/1800/1900MHZ
      2. Ringing: Through internal Speaker/ringer
      3. Power Supply: Re-chargeable Battery powered: 9V/14Ah,  Solar back-up: 12V/30W
      4. Time out: selectable 0-20 minutes
      5. Temperature: -20℃~ +60℃emp
      6. Relative Humidity: up to 90%
      7. Built-in battery Standby: 21days
      8. Built-in battery talking time: 21 hours

==>>>>Telephone System

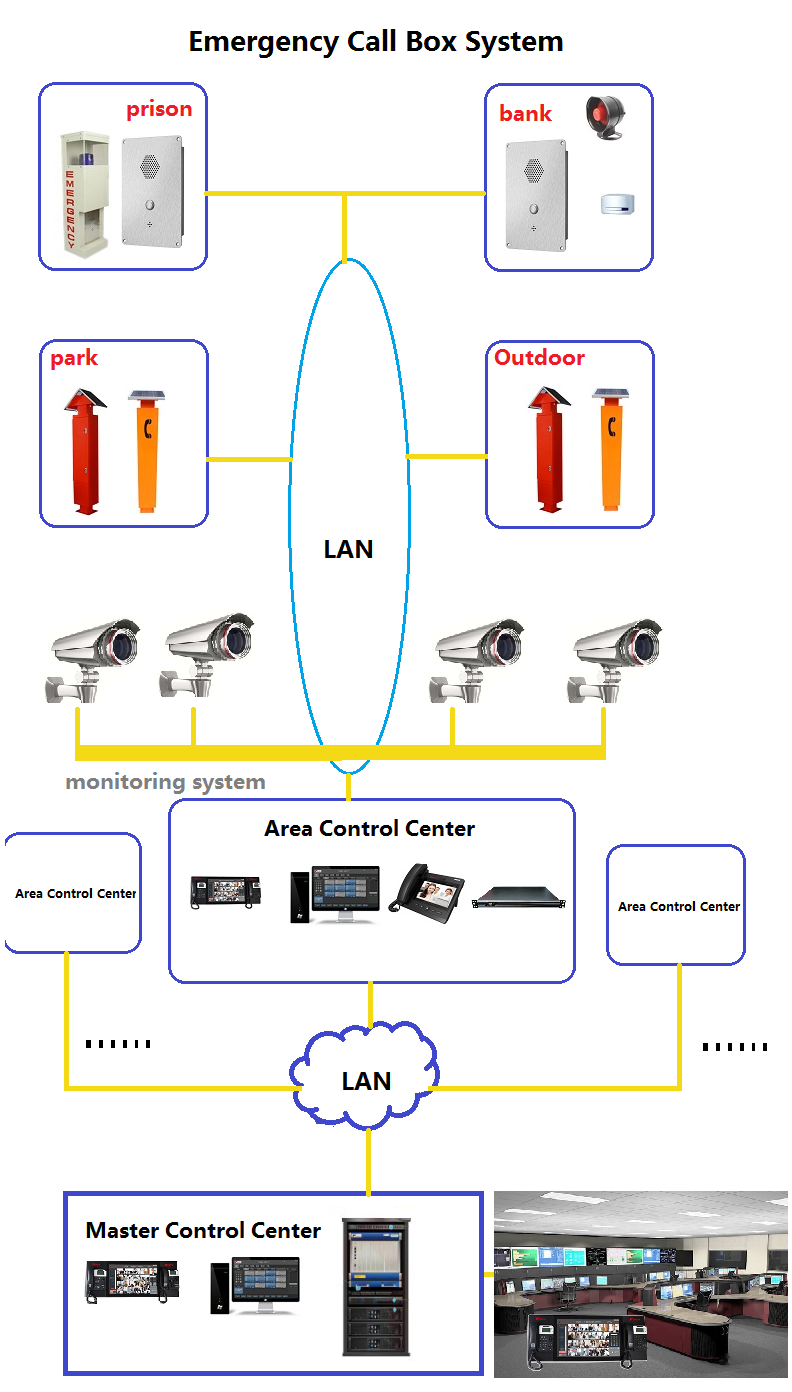

Solar telephone in the outdoor telephone system

The solar telephone uses emergency telephone dispatch in the outdoor, uses solar telephone, energy saving, environmental protection, and timely communication.



==>>>>Product Application

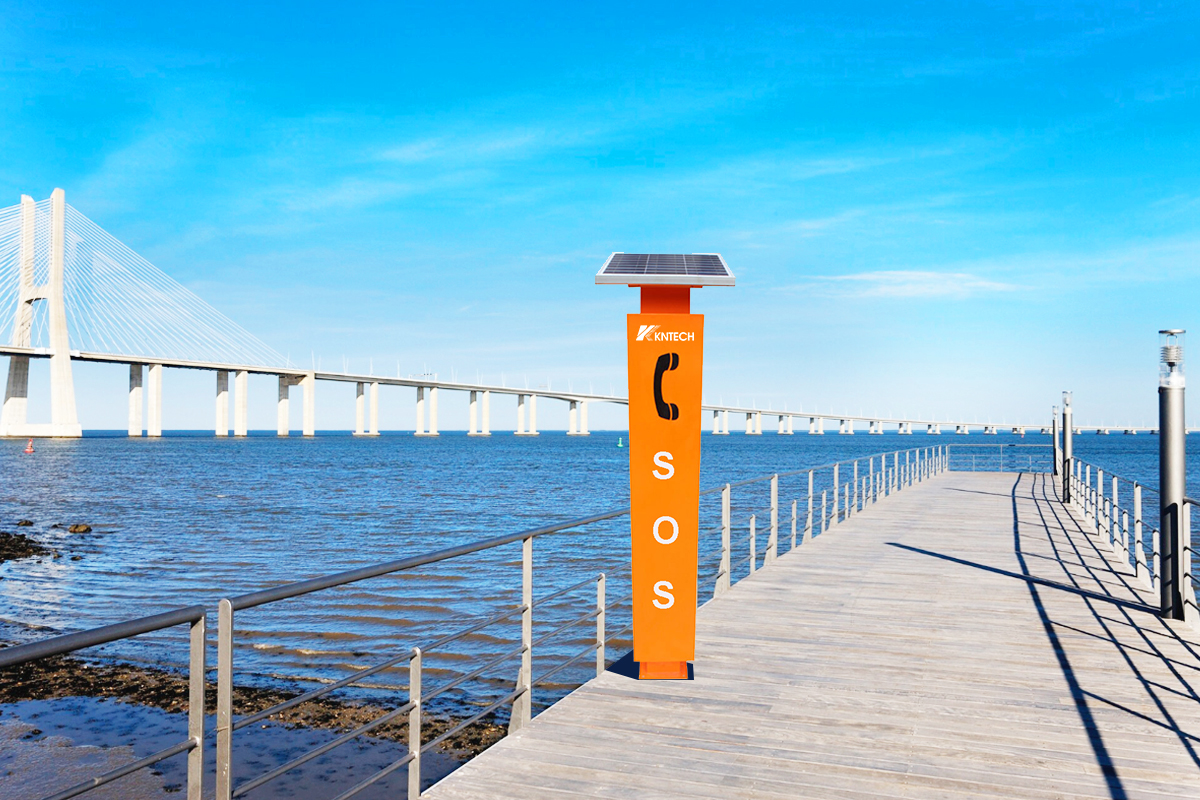

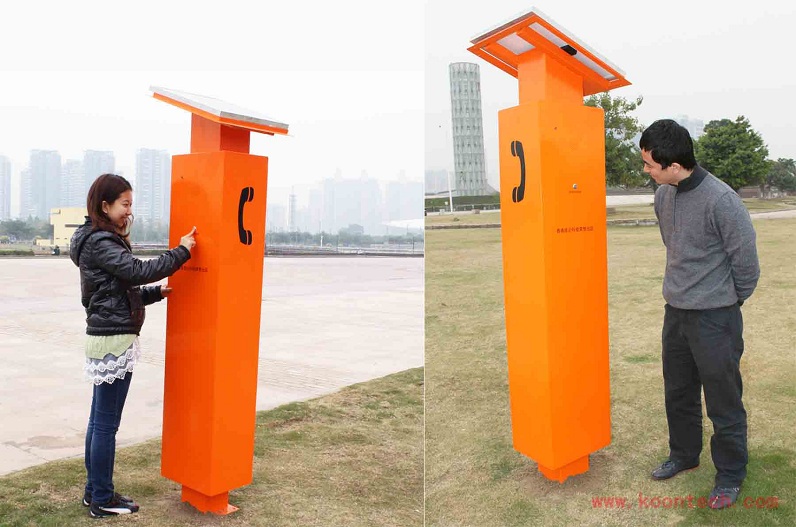

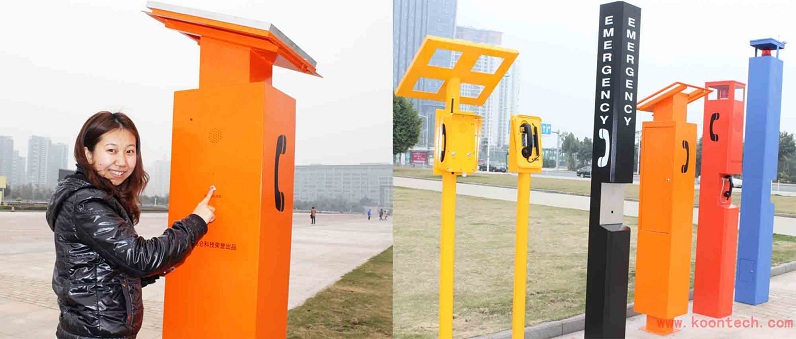

Solar telephone in outdoor



==>>>>Product Detailed Pictures

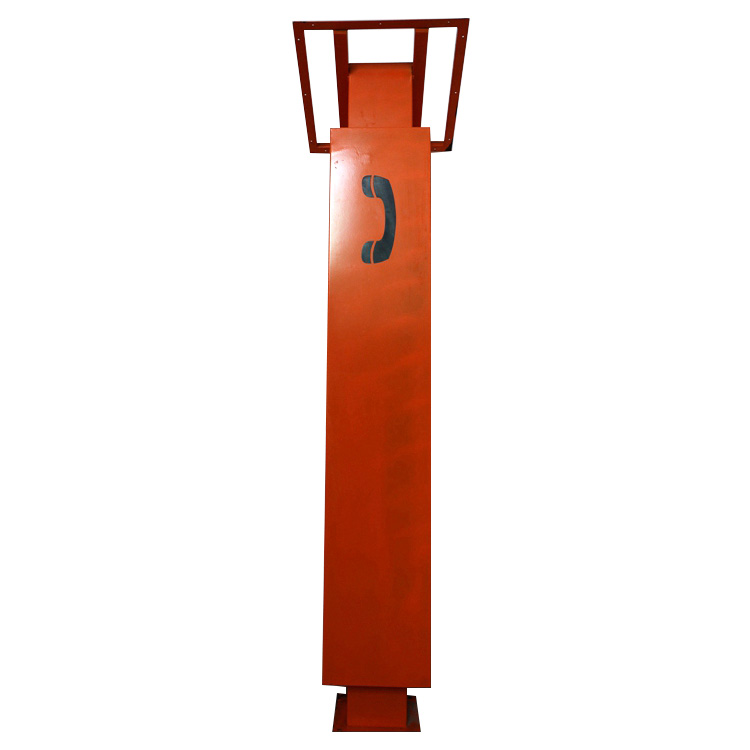

Solar Telephone Different Angle

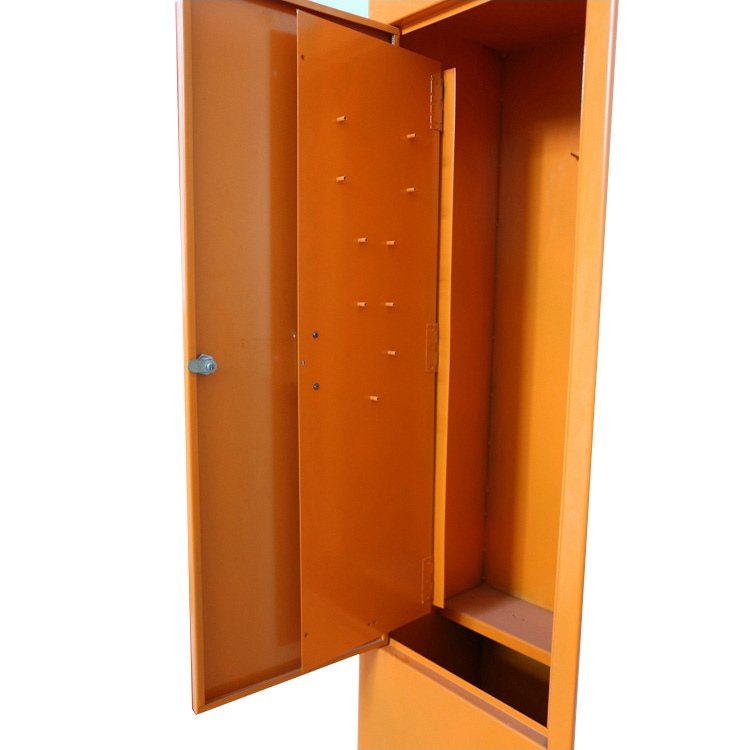

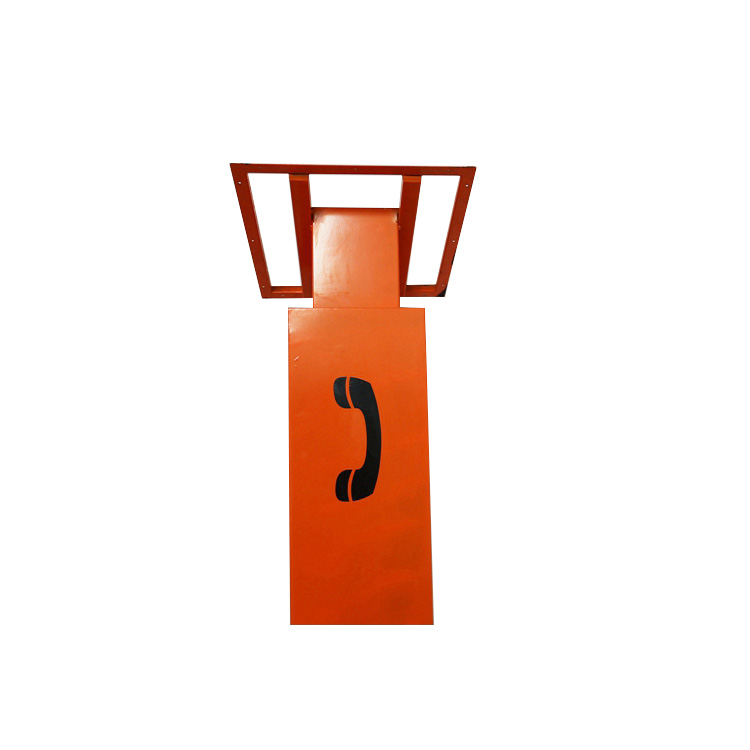

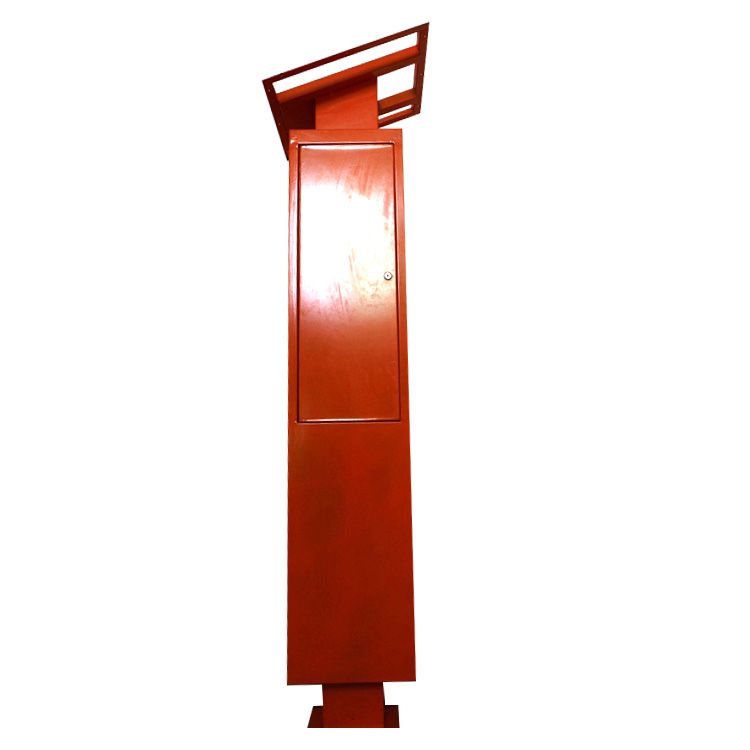

solar telephone side solar telephone solar telephone head solar telephone open the door

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:G3000

*
*
*
*
