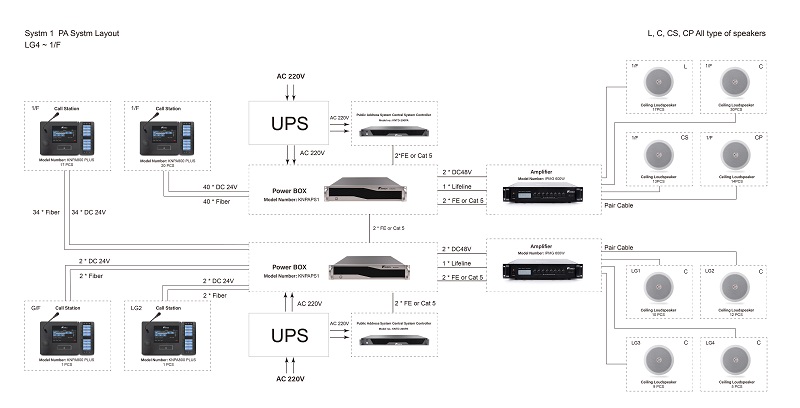

The system controller manages all system related functions of public address and Voice Alarm system. It routes all audio connections between network-connected audio sources and destinations. It supervises and plays back messages and tones, stored on its flash memory, either scheduled or manually started from a call station or PC. It manages the routing of background music streams, along with business calls and emergency calls, all based on priority level and zone occupancy. It collects all status information of connected system devices, manages the event logs and reports faults. The system controller is network- connected via CAT6 Cable and AC- powered from a power supply. UPS backup power supply recommended. The built- in web server allows for system configuration using a browser.

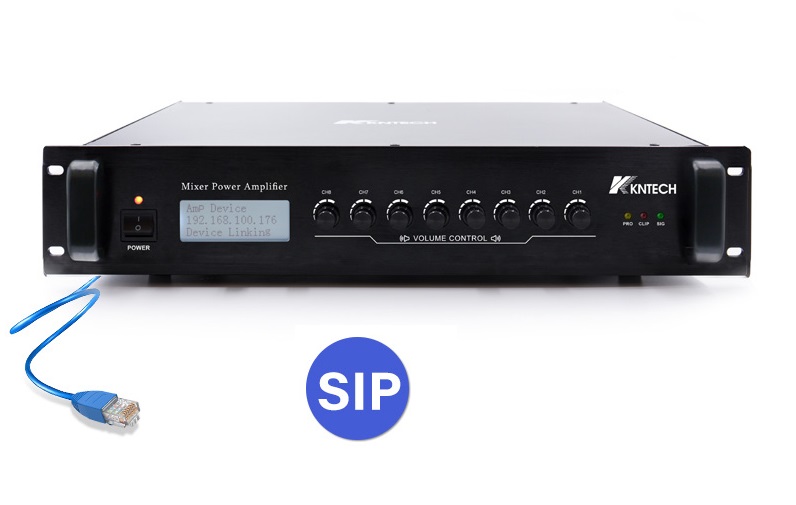

This power amplifier unit is an 8-channel IP power amplifier. The output power of each amplifier channel is adjusted according to the connected speaker load, limited only by the overall power budget of the whole amplifier. The units are connected to the central exchange unit via Ethernet CAT5 or CAT6 or fiber cable. The amplifier is a Class D power amplifier due to its especially high efficiency, low power consumption and long life.
The end-of-line detector is a device used to monitor the integrity of a loudspeaker circuit. It is attached to the end of the loudspeaker circuit after the last speaker in a series of cascaded connections, can communicate with the drive power amplifier channel to ensure line integrity via an inaudible frequency.
The call station can make group announcements according to the user pre-set zones or multi-zones. It can enable schedule or ad hoc announcements to pre-set zones. For schedule announcement, it can be based on time/date/yearly. For ad hoc announcements, there are push-to-talk button and microphone.
The call station can allow for pre-play of pre-recorded messages before it is announced to the selected zone.
When the call station selects a zone, he/she will have preset time to make announcements otherwise the zone is released for another call station unless the user has a higher user authority. The other call station who wishes to broadcast from the same zone, the call station screen on the zone will indicate “busy”.
If a schedule announcement message is being broadcasted, the user can select to interrupt the broadcast or wait until the announcement message is finished. This will depend on the level of user authority. The User with higher authority can break-in anytime.
The user can also pre-record his/her message, then pre-play and then set schedule announcement.

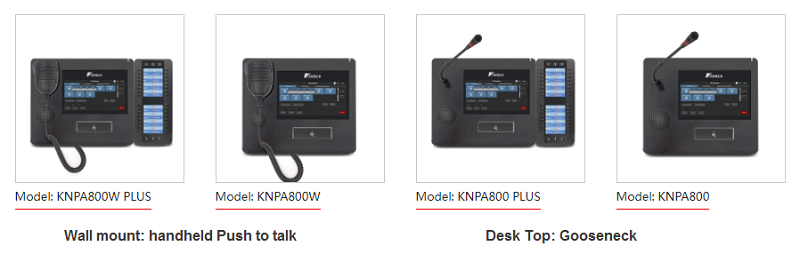

LCD call station ( desktop and wall mount)
The IP-networked desktop/Wall mount call station will be designed exclusively for use with the PA system. The desktop/Wall mount call station will provide an interface for control data and multi-channel digital audio over TCP/IP using dual Ethernet ports for redundant network connection, supporting RSTP and loop-through cabling.
It will receive Power over Ethernet (PoE) via either one or both network connections. The desktop/wall mount call station will provide a backlit full-color capacitive touch panel LCD as user interface for business and evacuation purposes.
The desktop/Wall mount call station will accept up to four optional extensions, each offering 12 configurable buttons for zone selection and other purposes. It will provide control and routing of live speech calls, stored messages and music with volume control per zone. The volume control will be easily accessible and adjustable. The desktop call station will have a gooseneck cardioid microphone for live calls and a 3.5 mm jack line level input for background music, and provide software-configurable signal processing including sensitivity control, parametric equalization and limiting. The desktop/wall mount call station will be certified for EN 54- 16 and ISO 7240- 16, marked for CE and be compliant with the RoHS directive or equivalent. It will have at least three-year warranty.
Call station extension
The call station extension will be designed exclusively for use with the PA system.
The call station extension will offer electrical and mechanical connection facilities for use with a desktop or wallmount call station.
It will provide 12 configurable buttons for zone selection and other purposes. Each button has tactile feedback and a light activation indicator, complemented with a set of multi-colour LEDs for function related status indications. The call station extension will have a removable front cover to put language independent button labels behind behind the front cover. The call station extension will be certified for EN 54- 16 and ISO 7240- 16, marked for CE and be
compliant with the RoHS directive or equivalent. It will have at least three-year warranty.

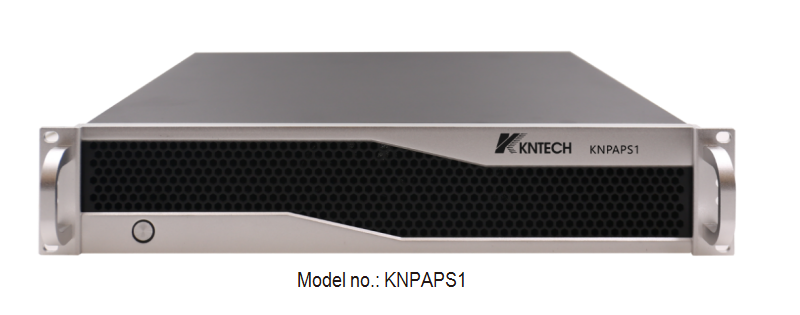

The Power box is an integrated unit with 48Vdc and 24Vdc power supply, LAN switch and Control relays. The Power box outputs dual 48Vdc to provide power to each amplifier and dual 24Vdc power to the call station. The System Controller, Call Station and Amplifier will be connected to the Power Boxes’ LAN switch. The power box also has relays for controlled interruption to the call station in case there is a need.
The Power box’s LAN switch also has capability to add SFP module to it, making it an ability to connect to the call station over long distances up to 10km.

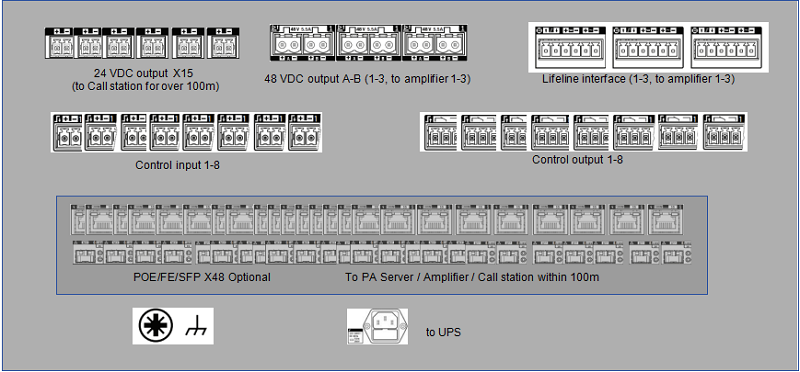

Multi-Function Power Supply Large
The IP-networked multifunction power supply will be designed exclusively for use with the PA system. The multifunction power supply will contain four independent mains power supplies with power factor correction and dual output connection facilities to power up to three 600 W amplifiers and to power a system controller and two call stations.
The multifunction power supply will have an integrated battery charger for a connected battery, and independent converters to use the battery as a backup power source for all connected loads in case of mains failures. Failover to the backup battery will be without interruption of output power.
It will use a single 12 V VRLA backup battery to eliminate the need for battery balancing, while
maximizing battery lifetime and power density. The multifunction power supply will have eight
general purpose control inputs with connection supervision and eight voltage free control outputs. The multifunction power supply will provide an interface for control data and to receive a backup audio channel over TCP/IP using an integrated 48-port PoE Ethernet switch for redundant network connections, supporting RSTP and loop-through cabling.
Two ports will have PoE to provide redundant power to a call station.
The backup audio channel will be available as analog lifeline to connected amplifiers.
The multifunction power supply will provide front-panel LED indications for status of the power
supply sections, mains and battery, network link and fault presence, and provide additional software monitoring and fault reporting features.
The multifunction power supply will be rack mountable (2U).
The multifunction power supply will be certified for EN 54-4 and ISO 7240-4, marked for CE and be compliant with the RoHS directive or equivalent. It will have at least three-year warranty.

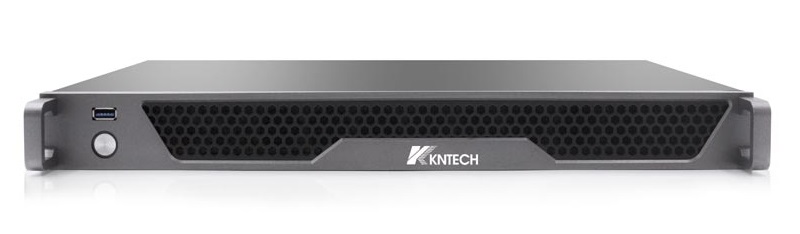

System Controller:
The IP networked system controller will be designed exclusively for use with the PA system.
The system controller will dynamically assign network audio channels for audio routing between system devices across multiple subnets.
It will support >100 simultaneous High-Definition audio channels (24 bit, 48 kHz) for music routing and making calls, with encryption and authentication to protect against eavesdropping and hacking. It will be capable of receiving Dante and AES67 audiostreams.
The system controller will provide an interface for control data and multi-channel digital audio over TCP/IP using an integrated 5-port Ethernet switch for redundant network connections, supporting RSTP and loop-through cabling.
The system controller will have dual power supply inputs and power supplies.
The system controller will manage all devices in the system to provide the configured system functions. It will incorporate a supervised storage for message and tone files with networked playback of up to eight streams simultaneously. It will keep an internal log of fault events and call events.
The system controller will provide a secure TCP/IP open interface for remote control and diagnostics. The system controller will provide front-panel Light.
Emitting Diode (LED) indications for the status of power supplies and the presence of faults in the system and provide additional software monitoring and fault reporting features.
The system controller will be rack mountable (1U). It will be possible to connect a backup system controller for dual redundancy with automatic fail-over. The system controller will be certified for EN 54-16 and ISO 7240-16, marked for CE and be compliant with the RoHS directive or equivalent. It will have minimum three-year warranty.
Amplifiers 4 Channel/8 Channel
We offer the 8 channel as it can be freely assign to a 4 Channel System. The IP-networked 8-channel amplifier will be designed exclusively for use with the PA system. The amplifier adapt the maximum output power of each amplifier channel to its connected loudspeaker load, with free assignable output power per channel for a total maximum of 600 watt per amplifier, supporting 70 V or 100 V operation with direct drive capability and outputs that are galvanically insulated from ground.
The amplifier will have a built-in independent spare amplifier channel for automatic failover.
The amplifier will provide an interface for control data and multi-channel digital audio over TCP/IP using dual Ethernet ports for redundant network connection, supporting RSTP and loop-through cabling, with automatic failover to an analog lifeline input.
The amplifier will have dual power supply inputs and power suppliers.
All amplifier channels will have independent A/B zone outputs with support for class-A loudspeaker loops. All amplifier channels will supervise the integrity of connected loudspeaker lines without interruption of audio distribution. The amplifier will provide front-panel LED status indications for the network link, ground fault, power supplies and audio channels, and provide additional software monitoring and fault reporting features.
The amplifier will be rack mountable (2U) and feature software-configurable signal processing including level control, parametric equalization, limiting and delay for each channel. The amplifier will be certified for EN 54- 16 and ISO7240- 16, marked for CE and be compliant with the RoHS directive or equivalent. It will have minimum three-year warranty.

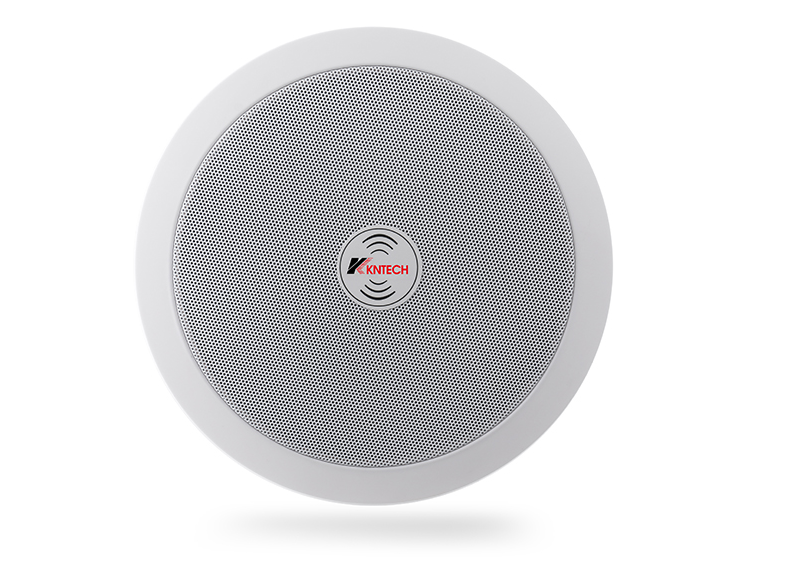

Ceiling Mount Speaker
The speakerwill be either suitable for flush mounting to a false ceiling of any configuration, or for surface mounting if there is not false ceiling. It will be equipped with a multiple tapping matching transformer to provided easy control of speaker sound volume. A dust proof bag or metal box will be provided to protect the speaker. Supporting brackets to mount the speaker onto false ceilings of different configurations will be provided.
It will satisfy the following performance characteristics:-
On-axis frequency response not to vary by more than – 10 dB over the frequency range from 90 Hz to 20 000 Hz, Sensitivity not to be less than 90 dB/W. The speaker will be fit into the mounting cut-out of 196mm at the false ceiling sheets.
