Audible and visual alarm

Model: D7

Size:

Material:

Pdf Download

D7-Alarm-Beacon

E-mail US

Click here

Features
Specification
System
Application
Detailed Pictures
Video
E-mail US

Features

Aluminum die-cast shell, surface electrostatic spray.

Glass shade, with a strong impact resistance.

High corrosion resistance of stainless steel exposed fasteners;

LED light source, high brightness, long service life.

Pipe or cable wiring.

power rating?? 15W
sound intensity ????120DB
Type of Lamp-house??LED light resource
Protection grade:IP65
guide number??150 times/min
Product Weight:2.56KG
Installation way: wall type
voltage rating:AC220V 50HZ

Specification

Technical Specification

Model: Beacon-7

Rated voltage: AC220V 50Hz (if any special requirements please specify)

Protection class: IP66

Corrosion grade: WF1 * WF2

Flash Views: 150 times / min

Sound intensity: ?? 120dB

Intakes specifications: G3 / 4 ", suitable for ??10mm ~ ??14mm cable

Terminals: ?? 2.5mm 2

Installation: pedestal (z),

Product Weight: 2.56kg

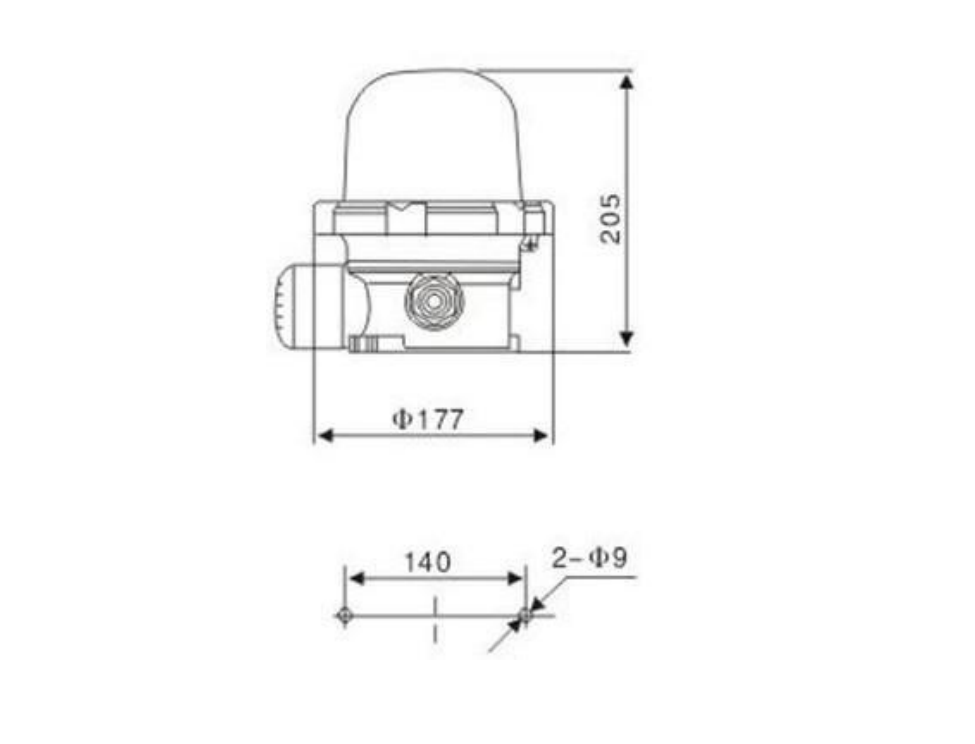

Dimension (mm)

System

Application

Widely used in oil exploration, refining, chemical, military, and other hazardous environments and offshore oil platforms, oil tankers and other places for general lighting and task lighting purposes; Suitable for energy-saving projects and repair and replacement places; Suitable for higher protection requirements, moist places; Suitable for explosive gas atmospheres of Zone 1, Zone 2 locations; Applicable ?? A, ?? B, ?? Class C explosive gas atmospheres; Suitable for temperature class T1-T6 group

Detailed Pictures

Video
