Jail Telephone

Jail Telephone

model:KNZD-10
size:(280X150X60)mm
material:SUS 304

Jail-Telephone-voip2
jail-telephone-analogue2
We are Asia's largest manufacturer of industrial telephones and jail public telephones. We can provide you with wall-mounted jail analog telephones and voip telephones. The casing is made of metal for easy use in prisons and banks.
black jail telephone mian view

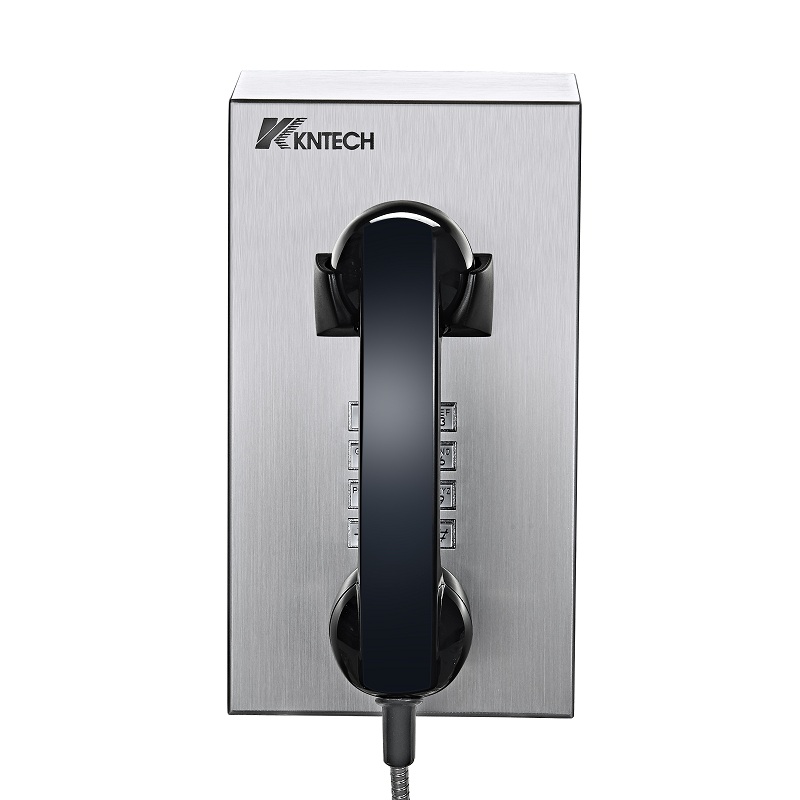

Jail Telephone-wall mounted-KNZD-10

The Jail Telephone has a sturdy exterior to prevent damage and has a long service life. The wall-mounted installation method is adopted, and the phone is installed on the wall, which is convenient for prison personnel to use, save space and facilitate management.We not only provide telephone equipment, but also can provide you with telephone communication solutions, our independently developed ip solution inmates calling.

      Jail telephone adopts 304 stainless steel material, it looks solid, wind resistance and corrosion resistance. The embedded installation method, using a tamper screw, stable and reliable after installation. Is the best choice of the prison system of communication calls..

Why choose KNZD-10 as the jail telephone.

We are a stainless steel telephone manufacturer, we have our own R & D team, we can customize the jail telephone according to your needs. We can provide you with VoIP and analog versions of the phone. KNZD-10 uses stainless steel as the shell material, the shell is strong, durable, and vandal-proof. The wall-mounted installation method is used, which is easy to install, does not occupy space, and is very convenient.

What kind of phone can be used as a jail telephone?

Jail telephone are mainly installed in prisons as a tool for prisoners to communicate with the outside world. The phone used in prisons is best to use. The wall-mounted phone has a strong exterior, anti-vandalism, and simple operation. It is usually a stainless steel public telephone, or a wall-mounted telephone with a cold-rolled steel casing, which can be used as a prison telephone.

 DESCRIPTION ITEM

1. Stainless steel 304 body for easy Installation.

2. Waterproof rating IP55 dust proof.

3. Full keypad with memory, 10 button programmable telephone.

4. Weather resistant to IP55 standard, service temperature range from -30 degree to +75 degree.

5Lightening protection to ITU-T recommendation K.21.

6. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.

7. Handset with industrial strong armored cord .

8. Metal keypad keep waterproof and dusty proof.

9.Phone integrity wiring to enable the telephone system to check if the telephone unit is still

Operational.(If PABX have this available we can provide this function).

10. Optional 7 minute time out to release the line if the handset is left off hook. This function upon buyer’s requirement).

11. The housing covered with a layer of reflective label for easy identification at night.Optional

12. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

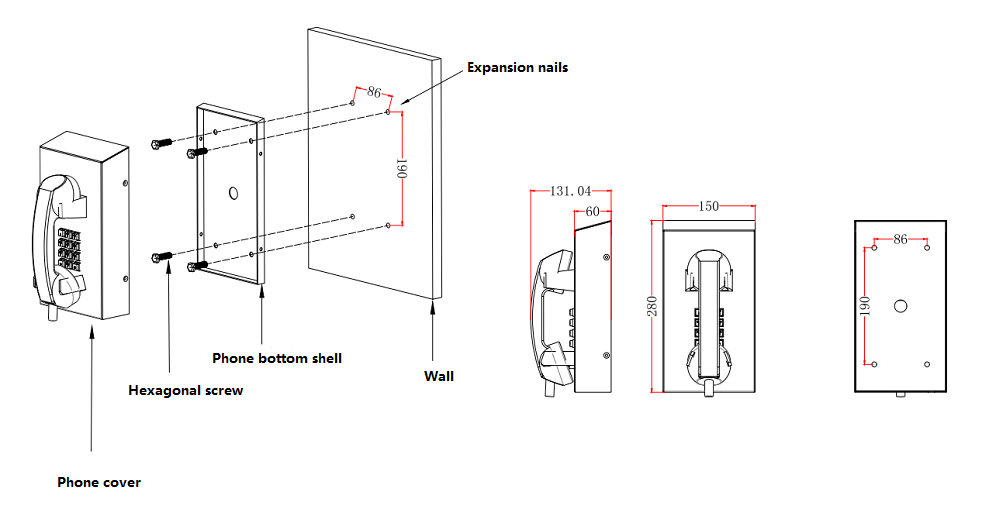

INSTALLATION

jail telephone size

 CERTIFICATION

EN55022: emissions                                         EN55024immunity

Ingress Protection: GB4208-93 IP66 FCC        ITU-T Recommendations K21

EMCEN50121(Railway application-Electromagnetic Compatibility)


PACKAGING


Unit size:260*150*130mm   Unit: N.W:2.14KG

1pcs packing box size: 340*235*165mm   Unit N.W:2.14KG    Unit G.W:3KG




You May Like:

KNDDT-1-AV21

Operator console center

KNZD-03 LCD

Handsfree Telephone

KNZD-60M

Video Intercom System

KNZD-59

Telephone console




Product Specification

 SPECIFICATION - Analogue(Model NO.ZD0100012)

1. PSTN analogue telephone                                          2. DTMF dialing

3. MTBF:100000hours                                                    4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable               6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

 SPECIFICATION - VoIP(Model NO.ZD0100022)

1. VoIP SIP2.0 telephone                                              2. DTMF dialing

3. MTBF100000hours                                                   4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact            6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load                      8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A                                             10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC                 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)


Telephone System

jail telephone dispatching

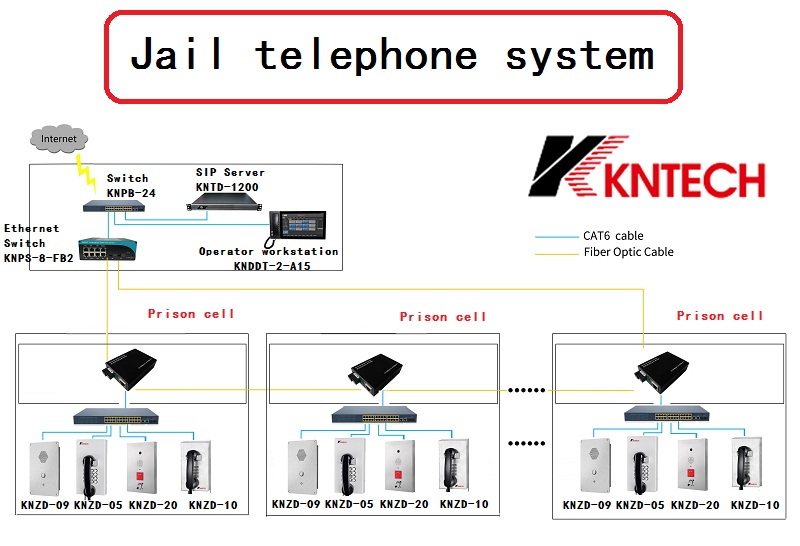

jail telephone system

Product Application

jail telephone

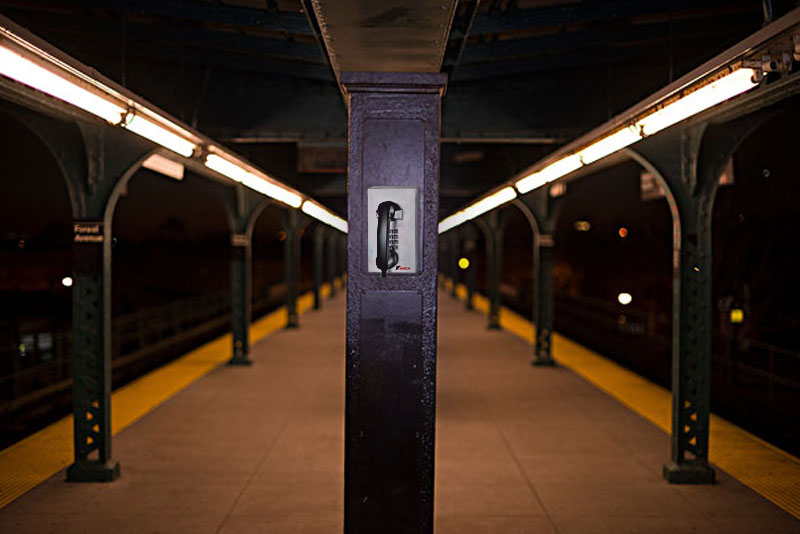

jail telephone on the jail road

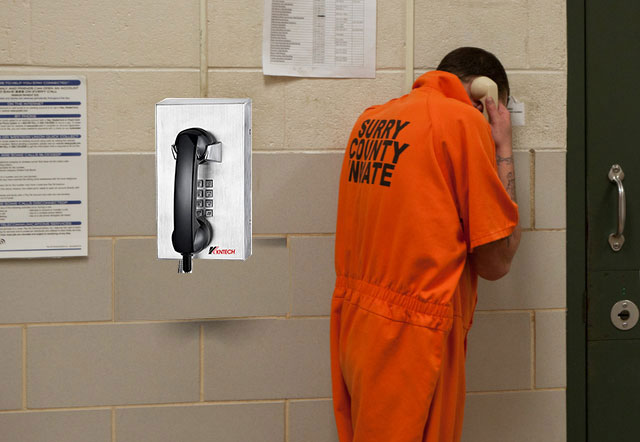

jail telephone on the wall

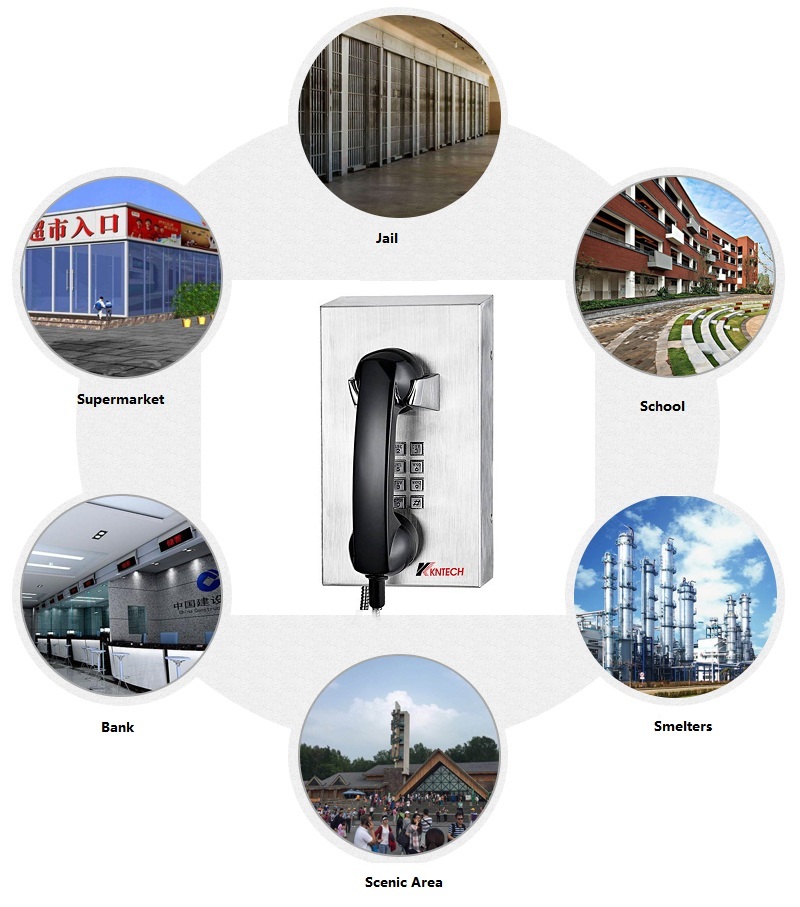

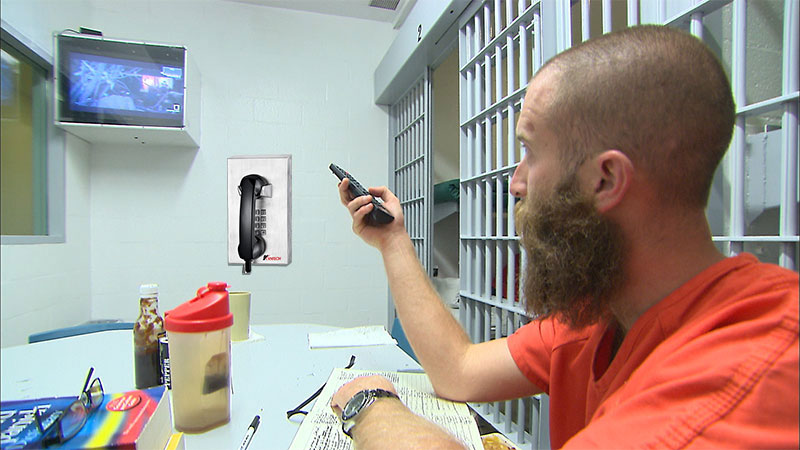

jail telephone application place

Product Detailed Pictures

Jail Telephone Detail Picture

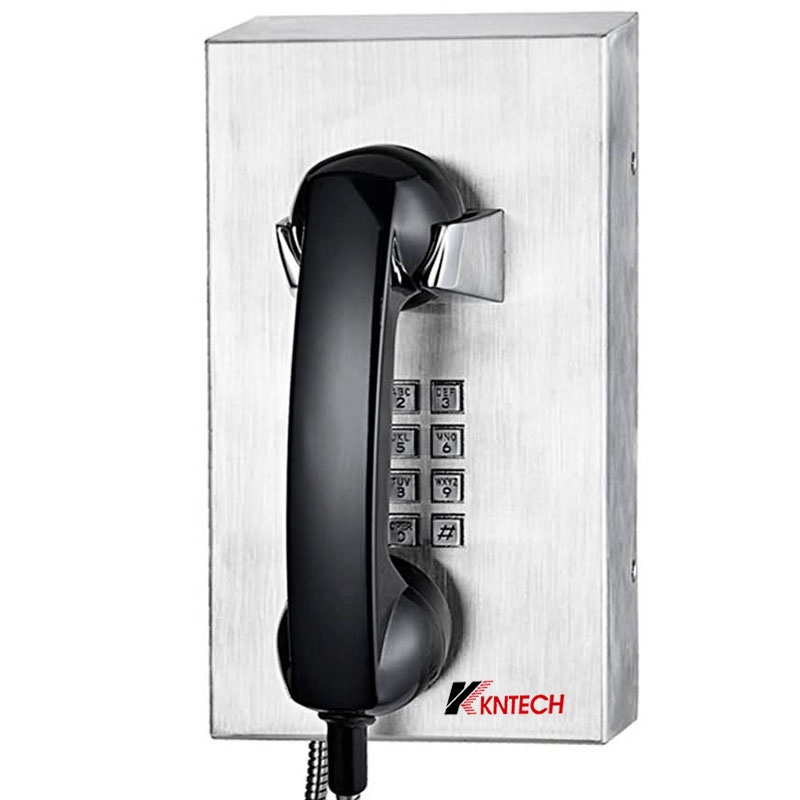

jail telephone main view

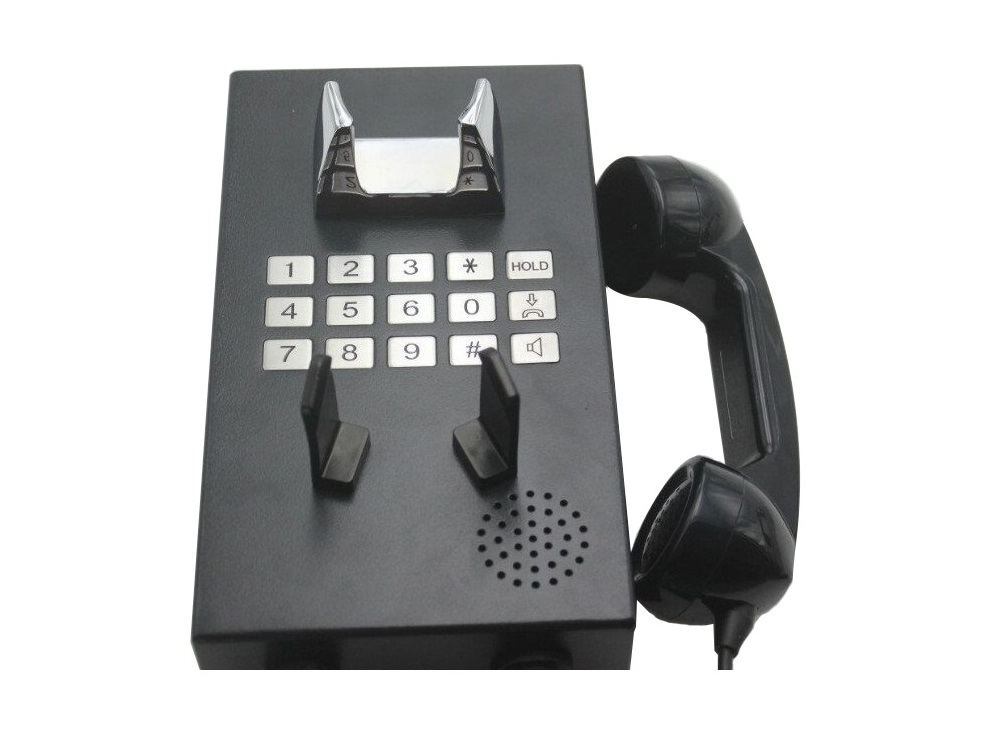

black jail telephone
black jail telephone
