Emergency Help Point

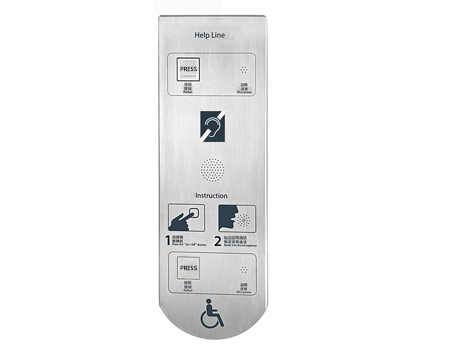

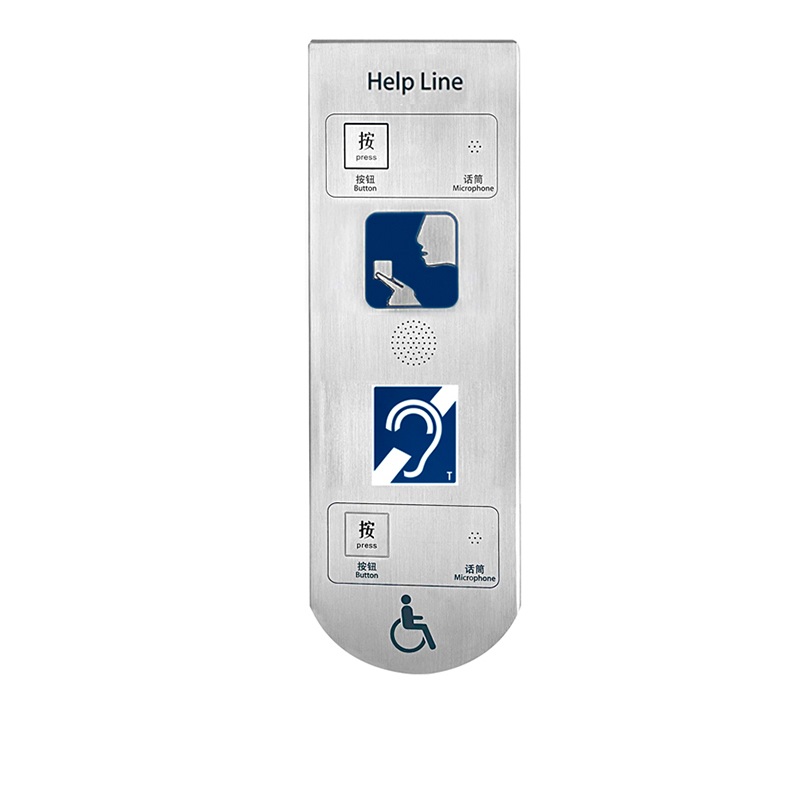

Emergency Help Point KNZD-17

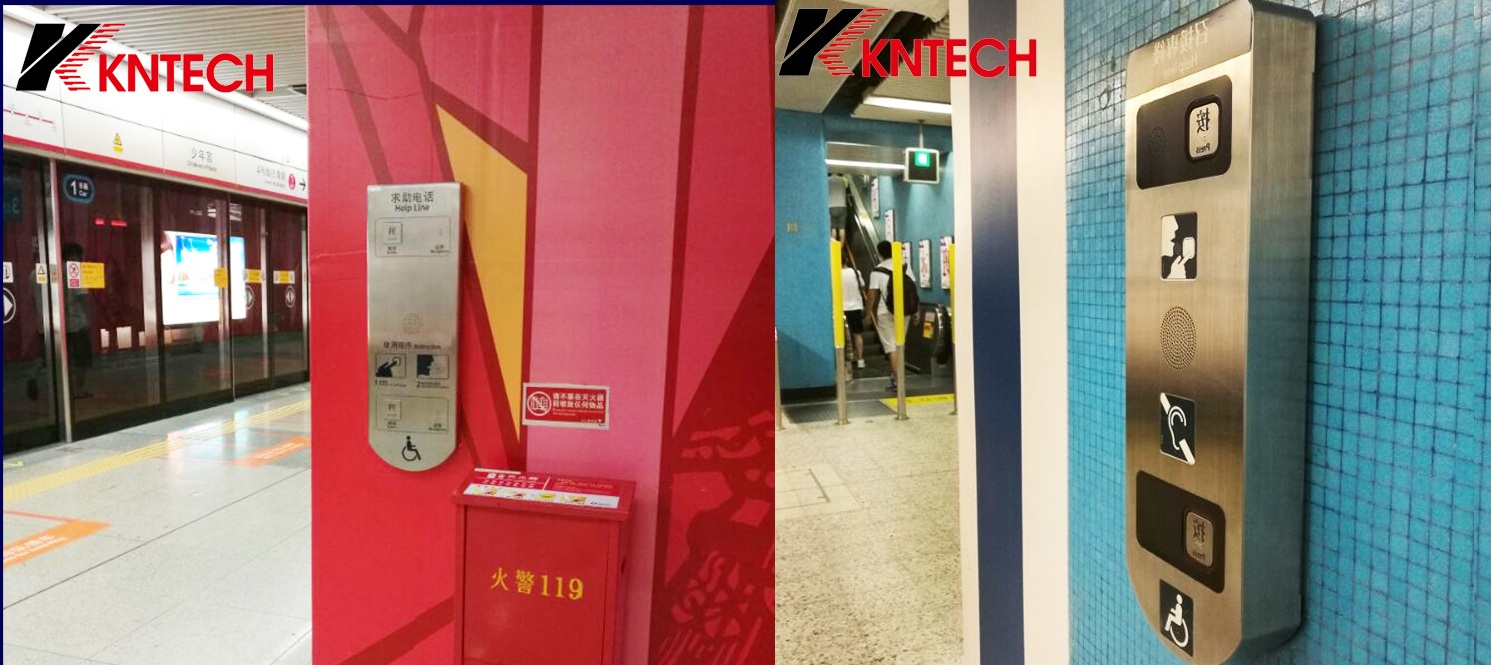

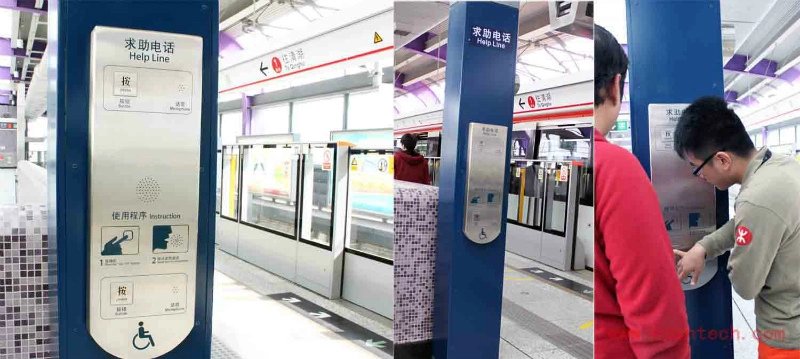

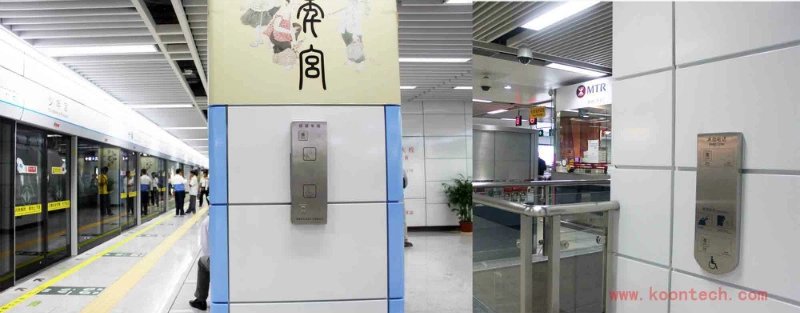

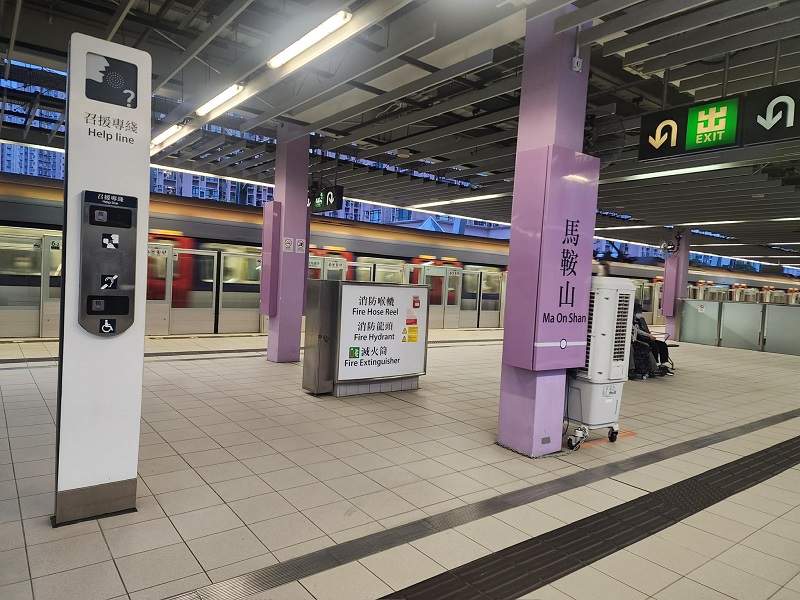

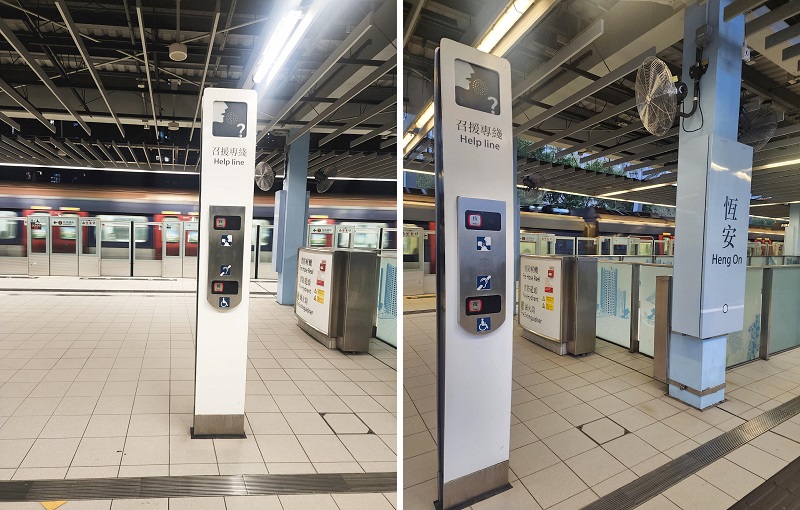

KNZD-17 Emergency help point telephone is our company's ATM help point Intercom specially provided for Banks. Often used as an Emergency call point, it helps people seek help in public places in case of an Emergency. In the subway, the bank installed, for the disabled people to seek help brought great convenience. Emergency help point is a rescue point set up by a government agency or organization in a public place. If there is an accident in the public place, you can seek help through the emergency help point. Emergency help point are essential public facilities in cities and public places.

DESCRIPTION ITEM    NO.ZD0170012

1. Stainless steel 304 body for easy Installation.

2. Waterproof rating IP55 dust proof.

3. Full keypad with memory, 10 button programmable telephone.

4. Weather resistant to IP55 standard, service temperature range from -30 degree to +75 degree.

5. Lightening protection to ITU-T recommendation K.21.

6. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.

7. Handset with industrial strong armored cord .

8. Metal keypad keep waterproof and dusty proof.

9.Phone integrity wiring to enable the telephone system to check if the telephone unit is still Operational.(If PABX have this available we can provide this function).

10. Optional 7 minute time out to release the line if the handset is left off hook. This function upon buyer`s requirement).

11. The housing covered with a layer of reflective label for easy identification at night.Optional

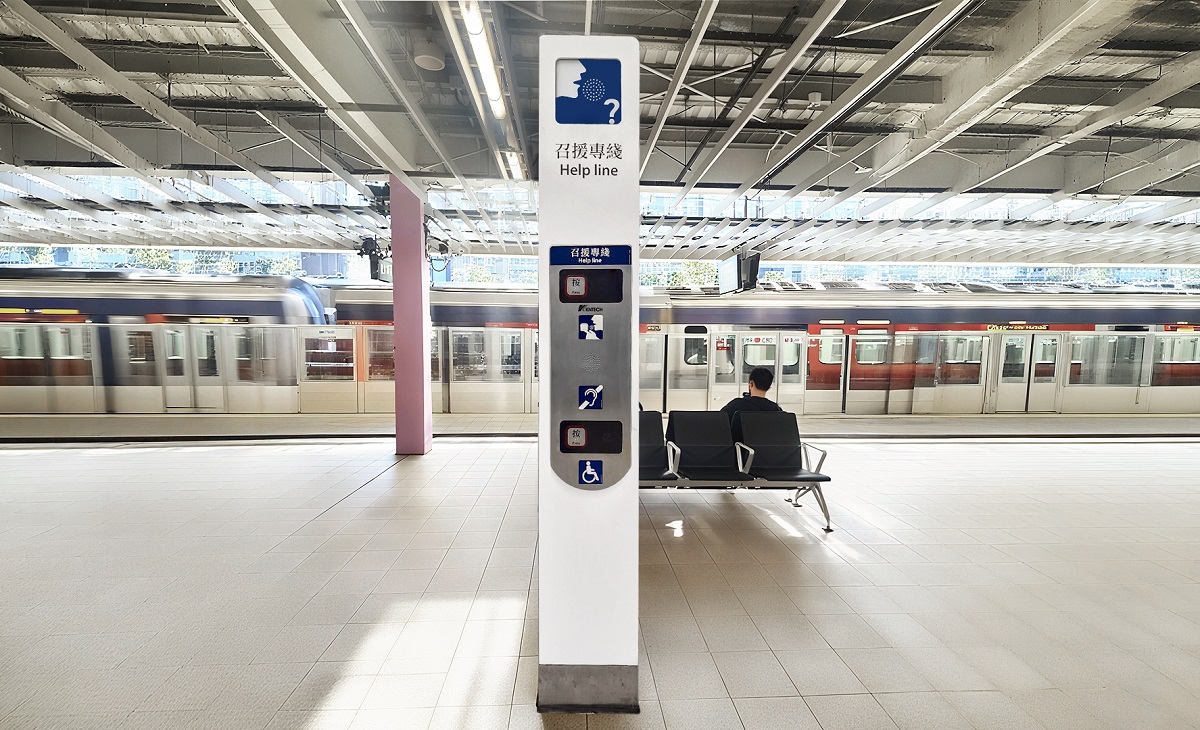

12. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

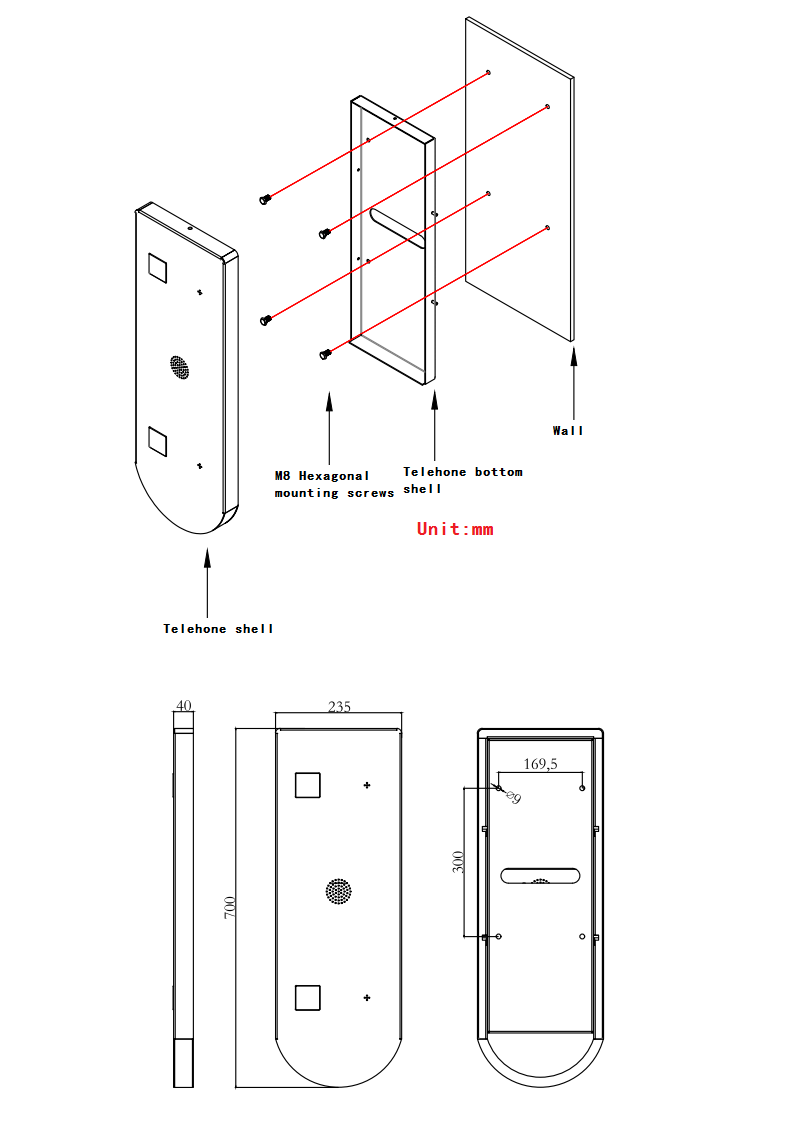

INSTALLATION

CERTIFICATION

EN55022: emissions                                         EN55024: immunity

Ingress Protection: GB4208-93 IP66 FCC        ITU-T Recommendations K21

EMC: EN50121(Railway application-Electromagnetic Compatibility)

PACKAGING

Unit size:700*235*45mm   Unit: N.W:5.5KG

1pcs packing box size: 785*305*190mm Unit: N.W:5.5KG    Unit G.W:7.5KG

2pcs in 1 outer Carton box: size: 780*190*330mm  N.W:11KG  G.W:17.5KG

1. PSTN analogue telephone           2. DTMF dialing

3. MTBF:100000hours                           4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable

6. Applicable for various types of SPC exchange PABX and dispatching exchange system with

feeding voltage of 33-60V.

7. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95%

Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

8. Sound level of ringing:over 70dB(A).

9. Standard frequency:low frequency group:697. 770. 852. 941Hz,

high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

10. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm. maximum distance: 7KM

11. Hotline setting (maximum length of each number is 16 digits)

12. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request) with stainless steel cable protected
