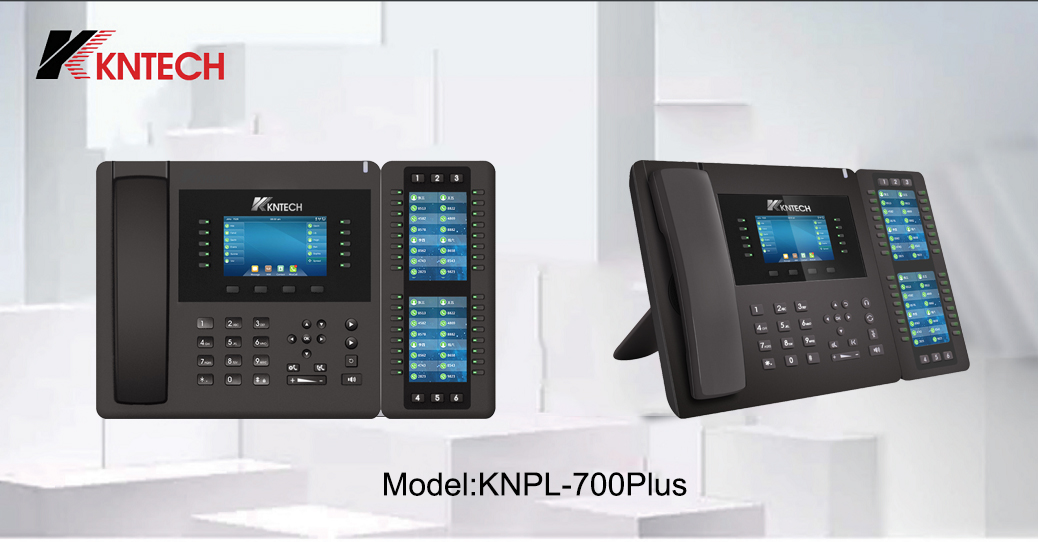

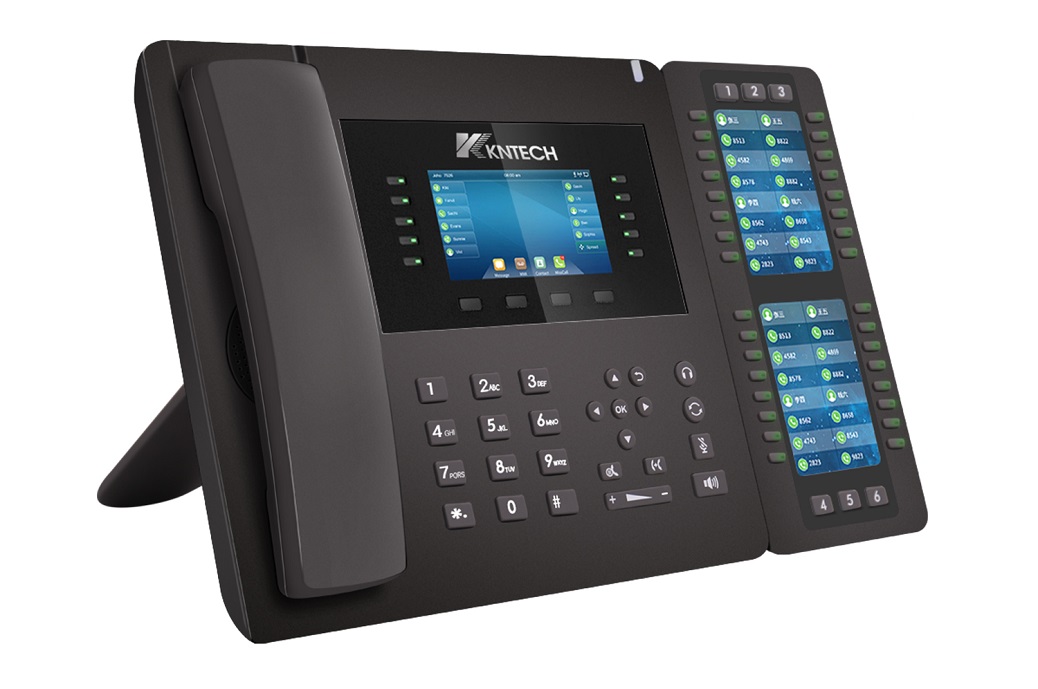

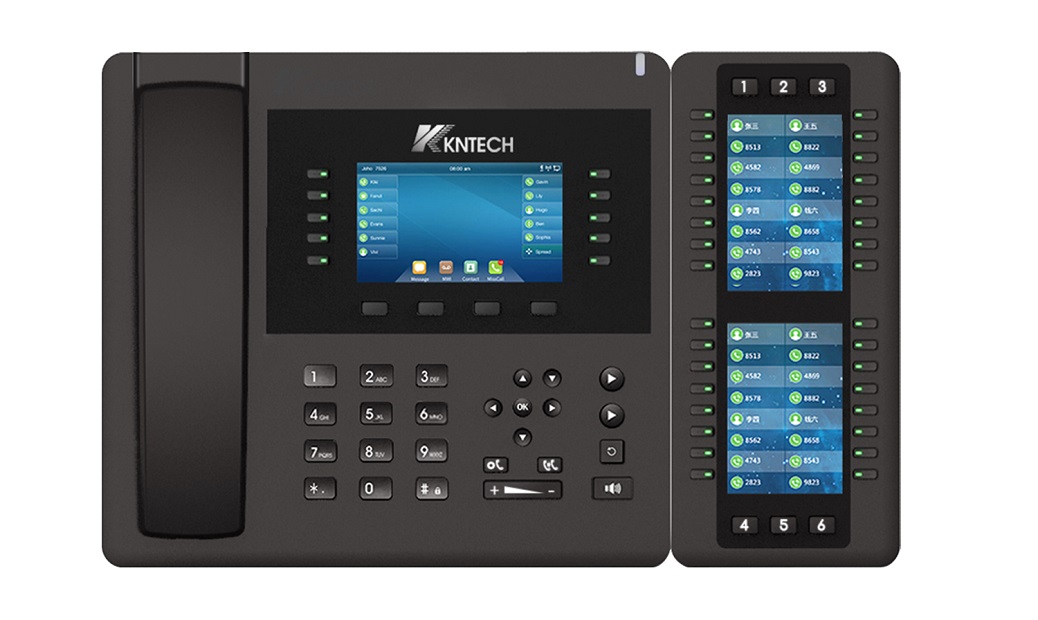

The KNPL-700plus is a high-end business IP phone for users who need flexibility and advanced features to easily handle busy work.Complex work needs. The KNPL-700plus's upgraded color display has 10 DSS buttons, the two most on the 3.5-inch side color display.More than 192 DSS buttons (38 physical buttons)can be configured, so the KNPL-700plus can be configured with up to 202 DSS buttons for setting Set BLF/speed dialing, multicast function, etc. KNPL-700plus is also equipped with HD voice, built-in Bluetooth.support WiFi link, support EHS, 100M dual network port POE, can be connected with IP camera / video access control.KNPL-700plus with high-end features can greatly enhance the company Industry communication efficiency.
High-ranking phone function more efficient
The surface design is very elegant ,with touch screen and high resolution screen.
With the intelligent user interface it could be breakthrough surface and experiment.
*6 SIP Lines tripartite conference.
*HD sound quality. (handset and speaker)
*4.3-inches colourful screen.
*Two 3.5-inchs DSS colourful LCD.
*Equipment 192 DSS key
*Megabytes Double Network Port,POE is optional function.
*Inner Bluetooth function
*Support EHS earphone
*Support mainstream IP PBX/soft switch/IMS Platform3CX, Asterisk, Broadsoft,Elastix,Avaya.
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record,SRV,NAPTR), DHCP,PPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, IPV4. |
| Network Interfaces | Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE. |
| Graphic Display | 4.3 inch. |
| HD Audio | Yes,HD handset and speakerphone with support for wideband audio. |
| DSS Key | 192 DSS key on 4.3 inch screen. |
| Voice Codecs and Capabilities | Support forG7.29A/B,G.711μ/a-law，G.726，G723,in-bandand out-of-band DTMF(inaudio，RFC2833)SIP INFO). |
| Feature Keys | 6line keys with up to 6SlP accounts,, 8MPK extension keys with dual-color LED with 2Left/Rightkeys, 4XML programmable context sensitive softkeys, 5navigation/menu keys , 11dedicated, for:MESSAGE (with LED indication), phonebook,transfer,conference,hold,handset,mute,send/redial,speakerphone,vol+,vol- |
| Base stand | Base support |
| Telephone Feature | Hold, transfer, forward, call park, call pickup, downloadable phonebook(XML,LDAP, up to 2000 items), call waiting, call log(up to 2000 records), off-hook auto dial, auto answer, flexible dial plan,hot-desking, personalized music ringtones and music.on hold, server redundancy and fa l-over |
| QoS | Layer 2 QoS (802.10, 802. 1P) and Layer 3 (ToS, Dferv, MPLS) QoS |
| Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,Korean, Japanese etc. |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, TLS, 802.1x media access control, secure boot |
| Upgrade/Provisioning | Firmware upgrade via FTP/TFTP / HTTP / HTTPS/TR-069, mass provisioning. |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C; Humidity: 10% to 90% Non-condensing |
| Power & Green Energy Efficiency | Universal power adapter included - Input:100-240V ; Output: +12V, 1.5A ; IntegratedPower-over- Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE) |

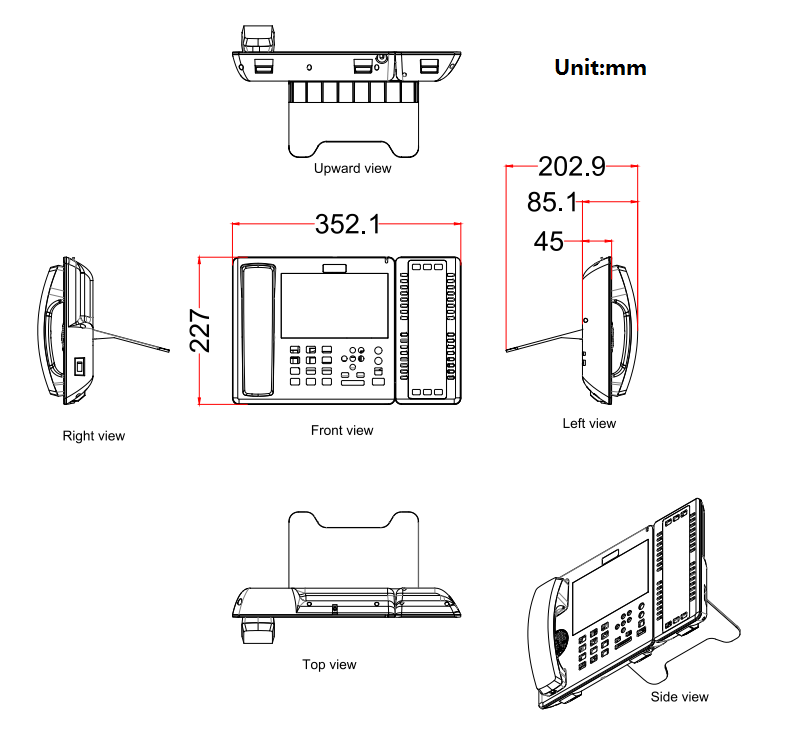

| Package Content | Unit weight: 950g ; Package weight: 1460g Dimension: 234mm x 213mm x 82.2mm |
| Characteristic | 96 DSS keys two colorful screen |
| Compliance | CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN 301489-17;EN 300328; EN 301893; EN 62311RCM AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 4268; AS/NZS 60950.1; AS/CA S004;12V power adapter |
