Desktop IP Microphone

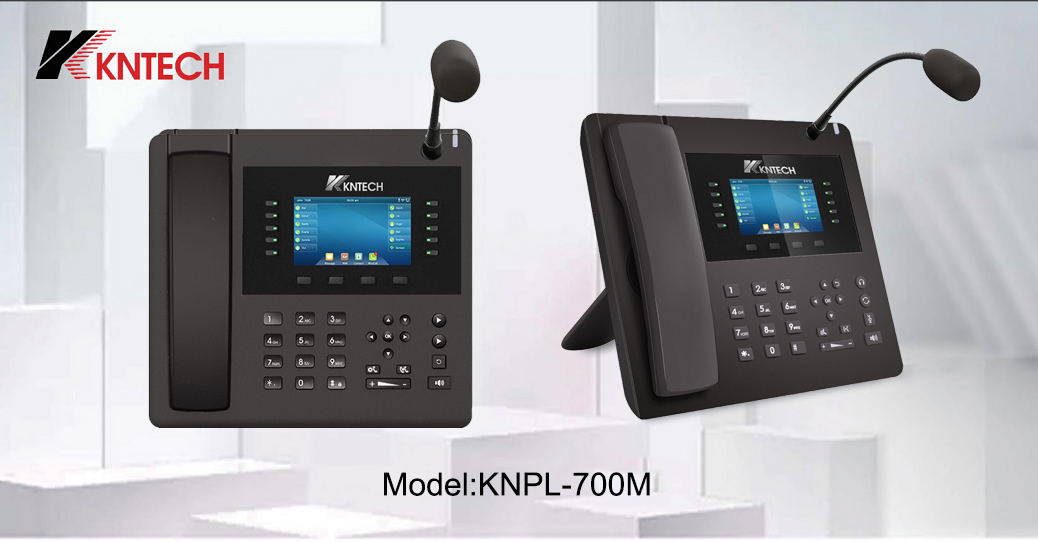

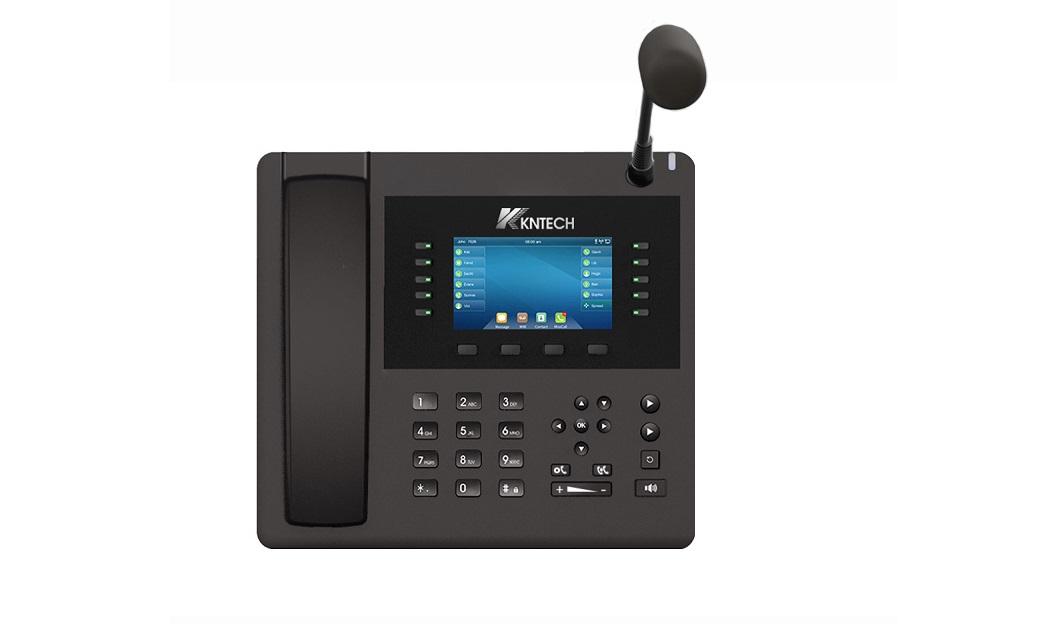

KNPL-700M Desktop IP Microphone

KNPL-700M is a desktop office phone for industry customer. It is equipped with a handset and supports HD hands-free calling. With intelligent programmable DSS buttons, you can set up a one-click call function to improve communication efficiency, ten speed dial numbers available. It is compatible with the standard SIP2.0 protocol and can be used as a monitoring center or host for office manager with functions such as make calls for external & internal phones, two-way intercom, monitoring, and broadcasting. The KNPL-700M improves the management efficiency and emergency response capabilities.

Highlights

6 SIP lines, 3-way conference

HD audio on speakerphone and handset

Movable type Directional External Gooseneck Microphone

4.3” main color display, 2x3.5” side color displays for DSS keys

Up to 106 DSS keys(42 tri-colored physical keys)

Dual Gigabit ports, integrated PoE

Stand with 2 adjustable angles of 40 and 50 degrees

With gooseneck microphone

Compatible with major platforms: KNTECH, Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

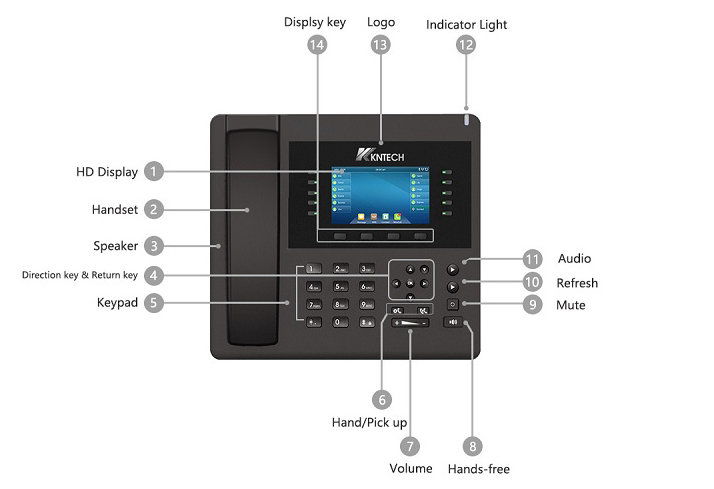

Key Function

1.HD Display: HD display. Clear images and support multi-window multi-person video conferencing.

2.Handset: Magnetic handle, hang up and the phone hangs up.

3.Speaker: Speaker, power up to 8w.

4.Direction key and return key: functional button

5.Keypad: available for dialing and text input 6.Hand/Pick up

7.Volume: used for volume adjustment

8.Hands-free 9.Mute: Main menu

10.Refresh: Used for data refresh. 11.Audio

12.Indicator light 13.KNTECH Logo

14.KNTECH: HONGKONG KOON TECHNOLOGY LTD logo, using laser engraving technology, engraved on the phone panel, not easy to fade and destroy.

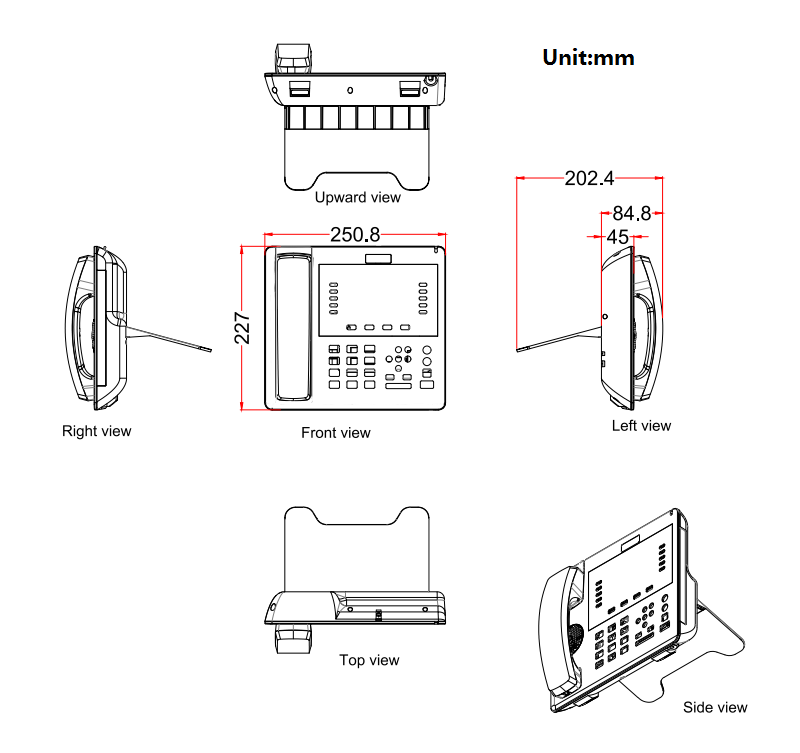

Telephone Dimension
