Robust Telephone

Robust Telephone

model:KNSP-26A
size:274*255*163mm
material:PP alloy steel

Robust-Telephone-voip
Robust-Telephone-analogue
Robust telephone

Robust Telephone KNSP-26

Robust Telephone for tunnel purpose made of GRP material by die casting. The Robust Telephone is rugged and durable. Special sealing design can ensure complete waterproof grade up to IP66. weatherproof , dustproof and moisture-resistant. The weatherproof  telephone widely used in tunnel and outdoor. Most and power plant need Robust Telephone. marine need moisture-resistant robust telephones.

Robust Telephone for tunnel purpose made of GRP material by die casting. The Robust Telephone is rugged and durable. Special sealing design can ensure complete waterproof grade up to IP66. weatherproof , dustproof and moisture-resistant. The weatherproof  telephone widely used in tunnel and outdoor. Most and power plant need Robust Telephone. marine need moisture-resistant robust telephones


 DESCRIPTION ITEM

    The portable telephone use along the track (Direct telephone line).

    The telephone like a portable mobile will be provided without keypad.

    It is hot line phone. It come with a button to switch on and switch off the line.

    It is weather protected IP66.

    The call start when handset receiver is connected and after t

    he operator press on the button of call.

    The call stop when one or the other of the speaker hangs up again.

    Easy operation:

    open the door-->plug the connect plug into a proper telephone socket--> pick

    the handset and press the call button--> speaking--> hang up--> close the door.

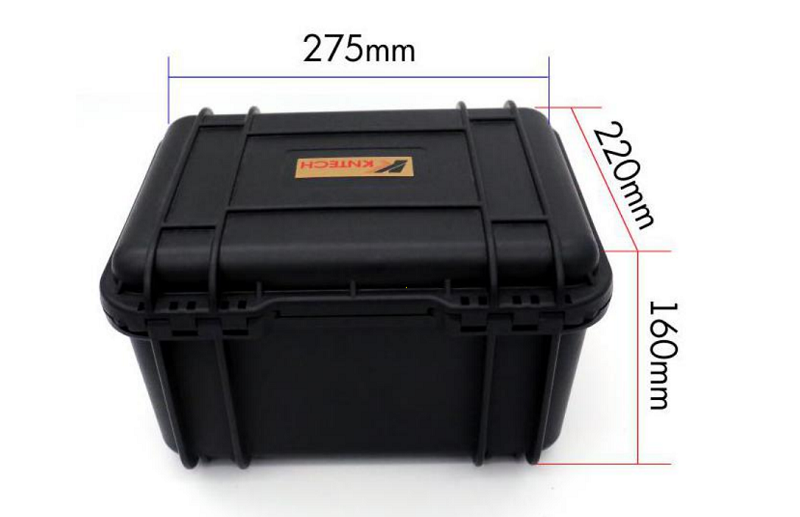

 Product size

Robust telephone

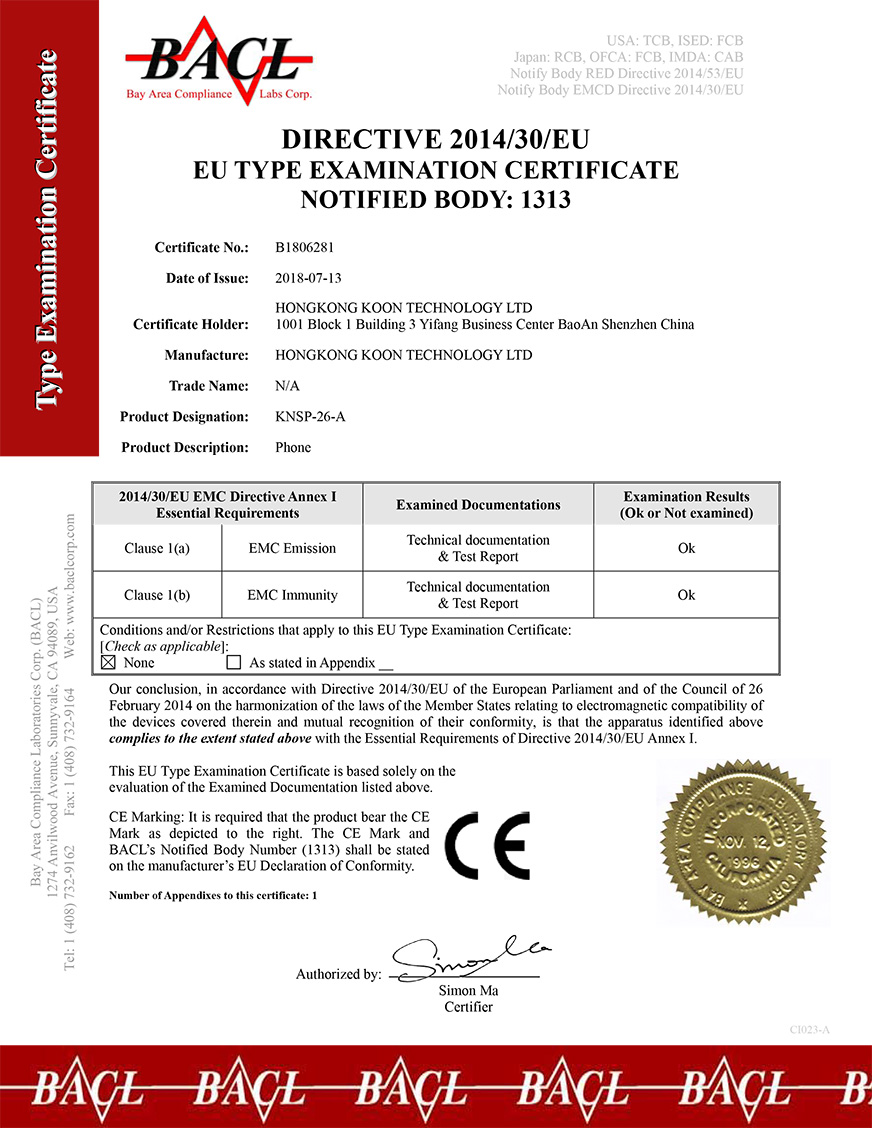

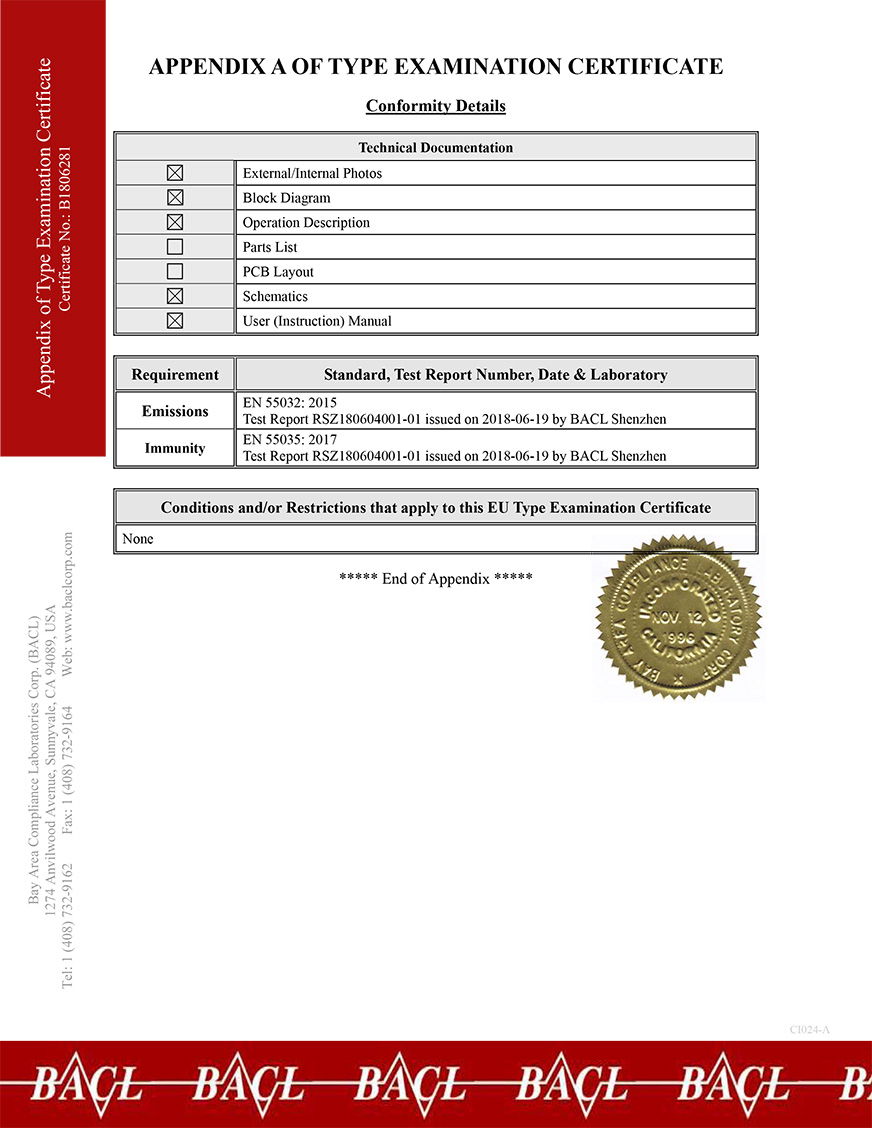

 CERTIFICATION

RCM: AS/NZS CISPR 32       Australian communications:AS/CA S004

Australian Equipment-safety: AS/NZS 60950.1:2015

EMC: EN50121(Railway application-Electromagnetic Compatibility)






 PACKAGING

Unit size:274*255*163mm             Unit: N.W:4KG

You May Like:

KNDDT-1-AV21

Operator console center

NMS-X1 SNMP

Unified network management system

KNEX-2

Industrial explosion-proof telephone

KNSP-01

Weatherproof telephone




==>>>> Product Specification

 SPECIFICATION - Analogue

1. PSTN analogue telephone                                          2. DTMF dialing

3. MTBF:100000hours                                                    4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable               6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

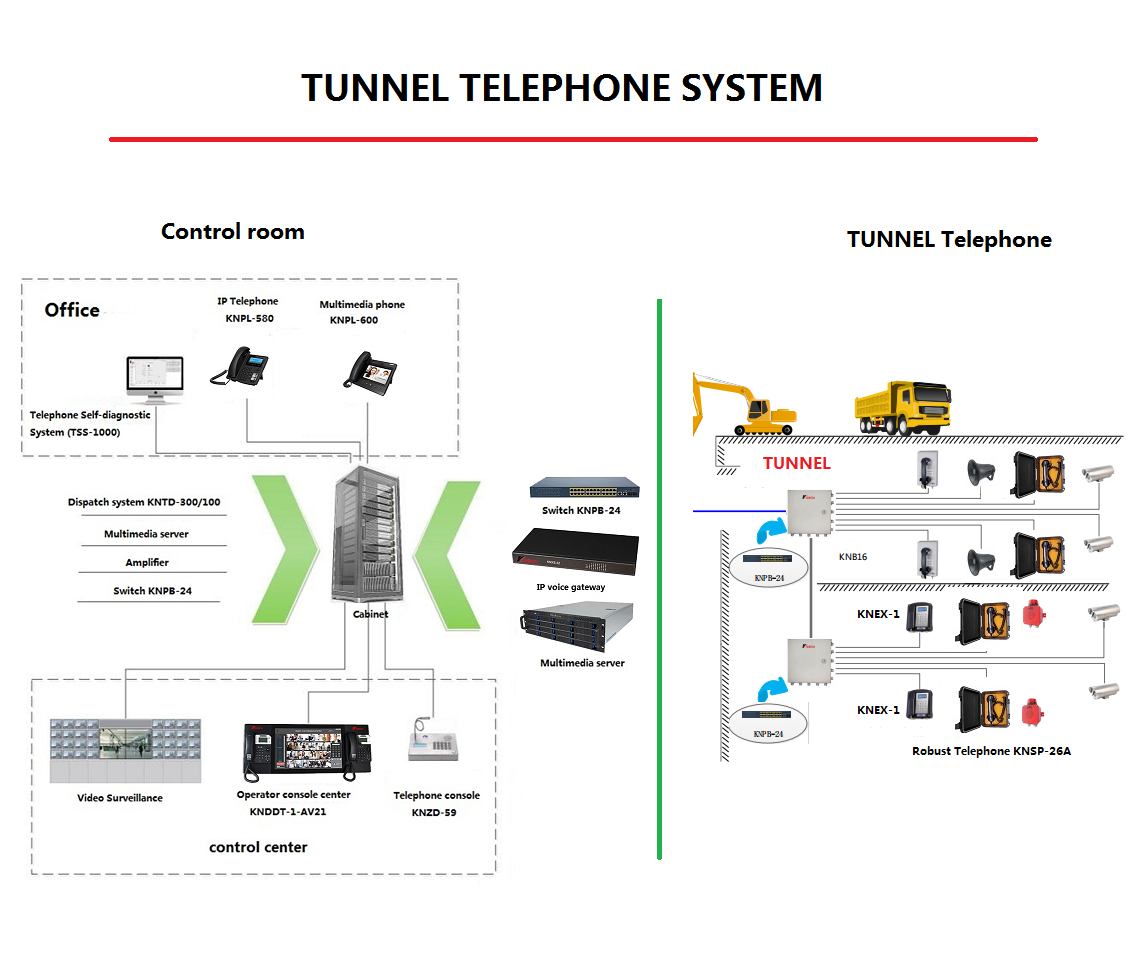

==>>>>Telephone System

robust telephone

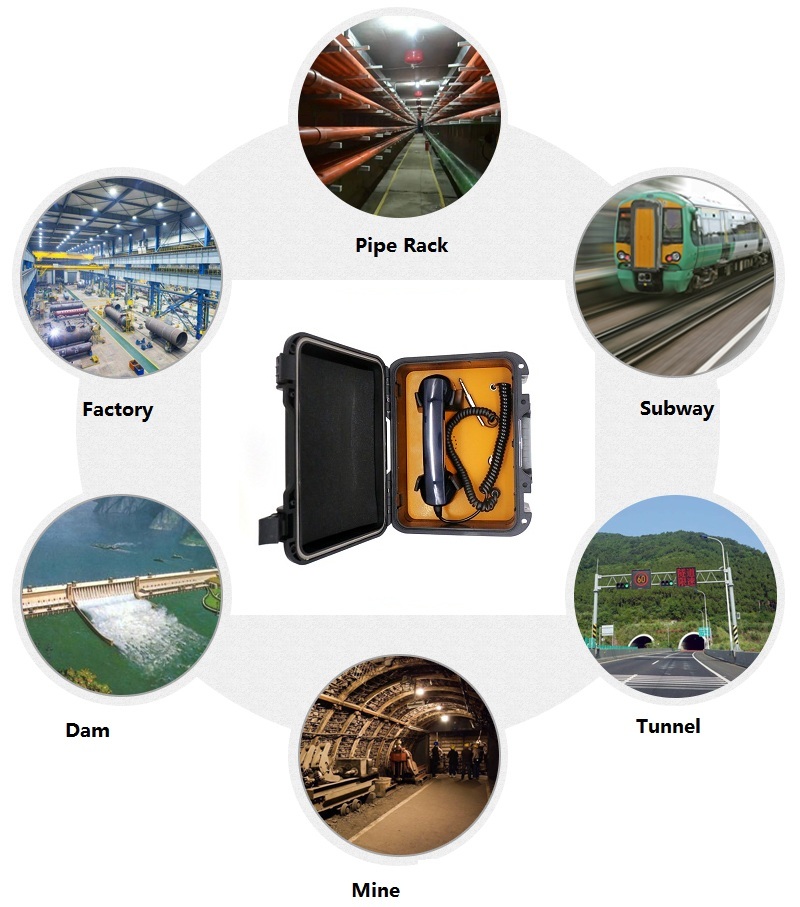

==>>>>Product Application

robust Telephone

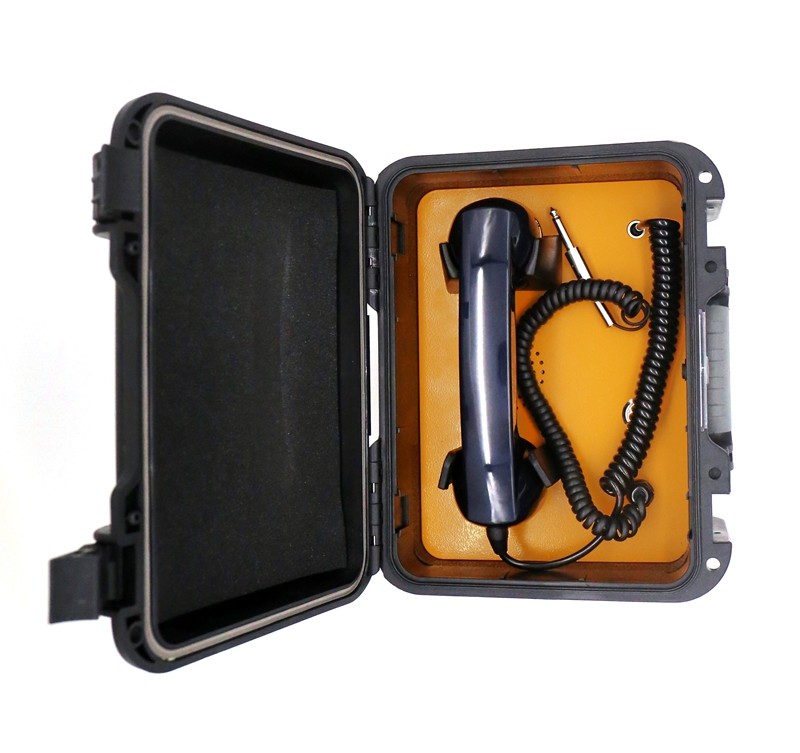

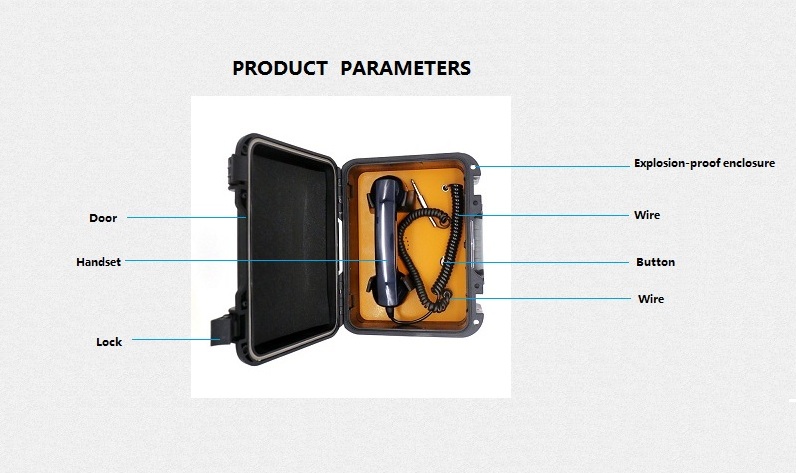

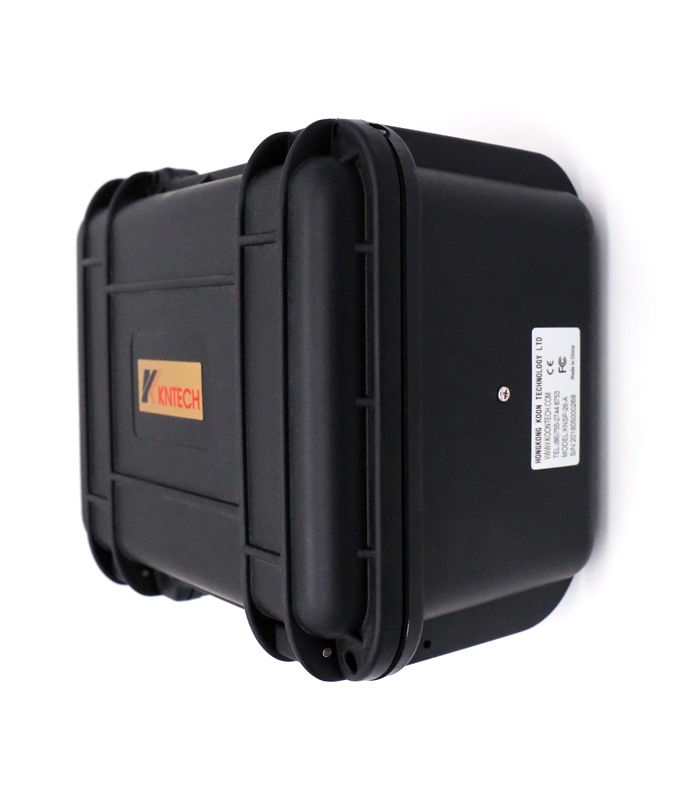

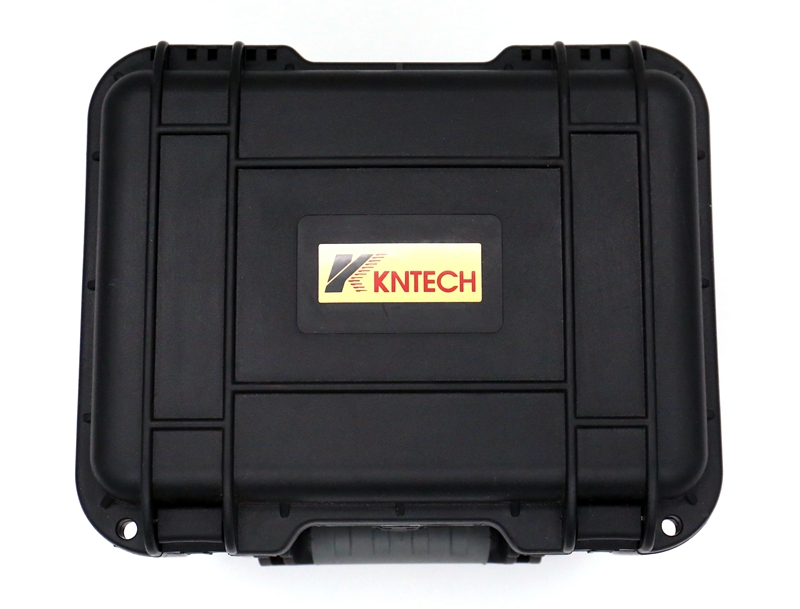

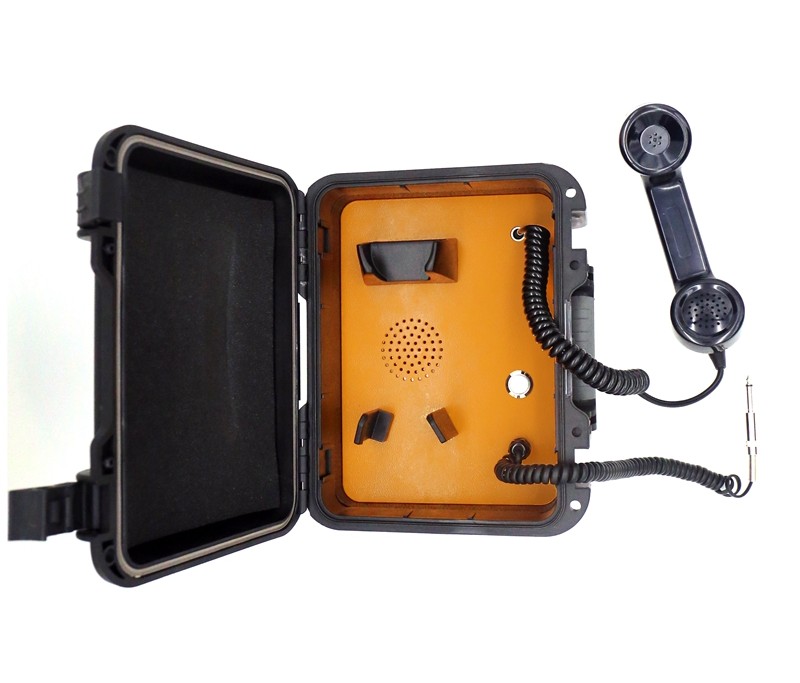

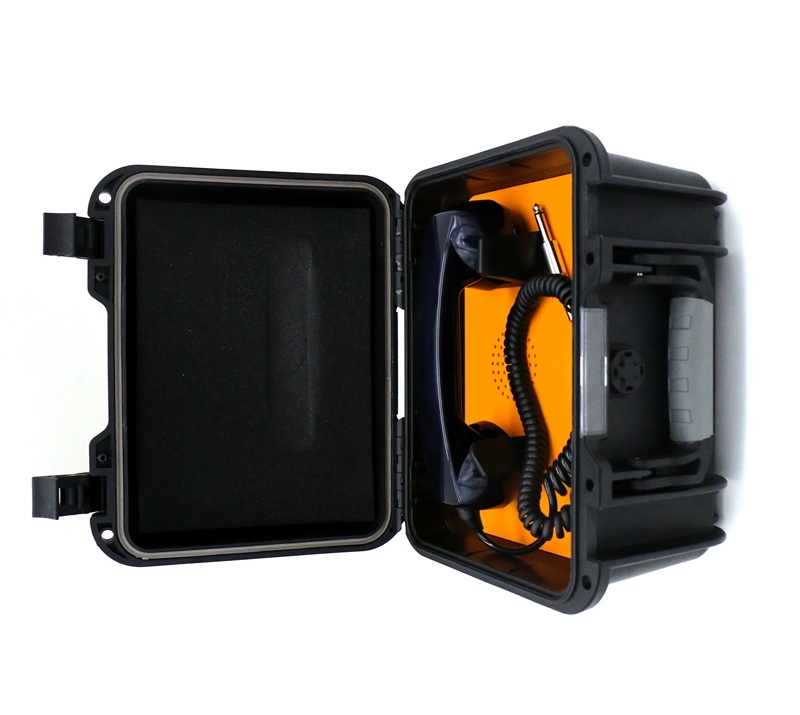

==>>>>Product Detailed Pictures
robust telephone robust telephone robust telephone robust telephone robust telephone

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNSP-26A

*
*
*
*
