Weatherproof Phones

Weatherproof Phones

Our weatherproof phones is the best chiose in the industry. The weatherproof phones can be used in a tunnel, open air and rainy days. The phones are in the factory and has been tested for flushing, which can fully adapt to the outdoor waterproofing situation.
weatherproof phones description

Weatherproof phones waterproof and rugged use outdoor

Weatherproof phones are phone designed by KNTECHz for outdoor communication and industrial communication. The waterproof level can reach ip66, if there is a special need, it can reach ip67, and the airtightness is good. The shell is made of metal and has a solid appearance, which can be used normally in harsh construction sites, with guaranteed quality and free maintenance.

Why is our phone weatherproof?

Our phones are manufactured with industry standards, good avoidance, and completely protect the inside of the phone. Avoid the intrusion of powder; strong jet water like waves can not invade the phone. In addition, it will not cause harm (water washing);


1. Robust aluminium alloy die-cast body, Vandal resistant and tamper-resistant hardware, simple installation.

2. Full keypad with memory, 10 button programmable speed-dial telephone.

3. Store button, Pick button, Redial button.

4. Door cover: orient automatically and good self - closing, convenient for use.

5. Weather resistant to IP66 standard, service temperature range from -30 degree to +75 degree

6. Magnetic reed hook-switch.

7. Robust AC cord, AC power supply from 110V~240V. Built in battery(optional).

8. Lightening protection to ITU-T recommendation K.21

9. Hearing Aid compatible receiver, Noise canceling microphone.

10.Phone integrity wiring to enable the telephone system to check if the telephone unit is still operational.

11. Optional 7 minute time out, to release the line if the handset is left off hook.

12. All of the components including keypad, buzzer, circuit board and cabinet are designed to be

multiplayer waterproof and dust - proof which is up to Class III grade.

13. With external 30W loud speaker.Material:metal. Impeddance:8Ω. Freq.Resp:300-7000HZ. S.P.L:(1M/W):108dB. Megenet:ALum

14. With external Lamp indicator. Red Flash Light.Work voltage: 12V DC/10W or powered by telephone.

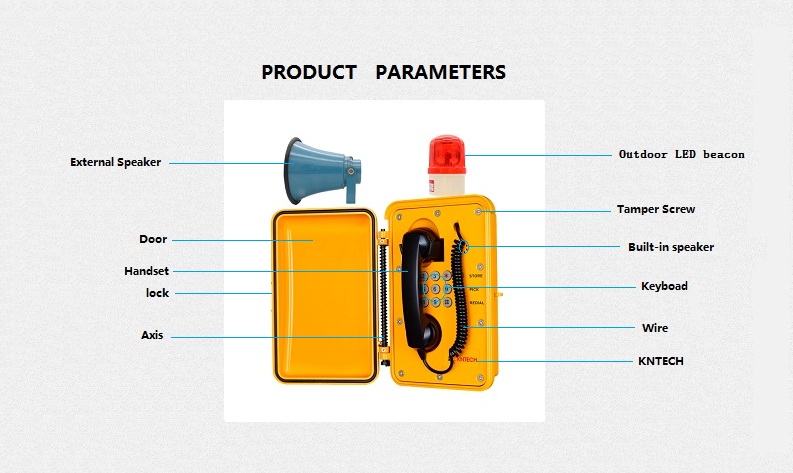

weatherproof phones description


EN55022: emissions EN55024: immunity

Ingress Protection: GB4208-93 IP66 FCC ITU-T Recommendations K21

EMC: EN50121(Railway application-Electromagnetic Compatibility)

weatherproof phones certificate

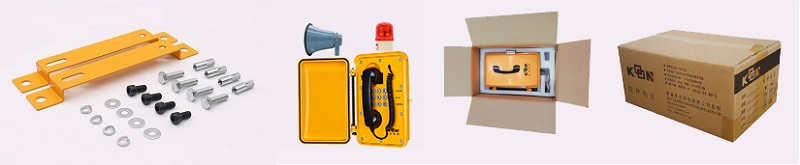

the packing about weatherproof phones

Unit size: 320 *205 *120mm N.W: 5.8KG only telephone speaker 1.5KG +Alarm Lamp 0.33KG

1pcs packing box size: 59*48*25cm Unit N.W: 9.5KG Unit G.W: 10.2KG include speaker+lamp

6pcs in 1 outer Carton box: size: 730*390*340mm N.W: 57KG G.W: 61.2KG include speaker+lamp

You May Like:

related weatherproof phones product

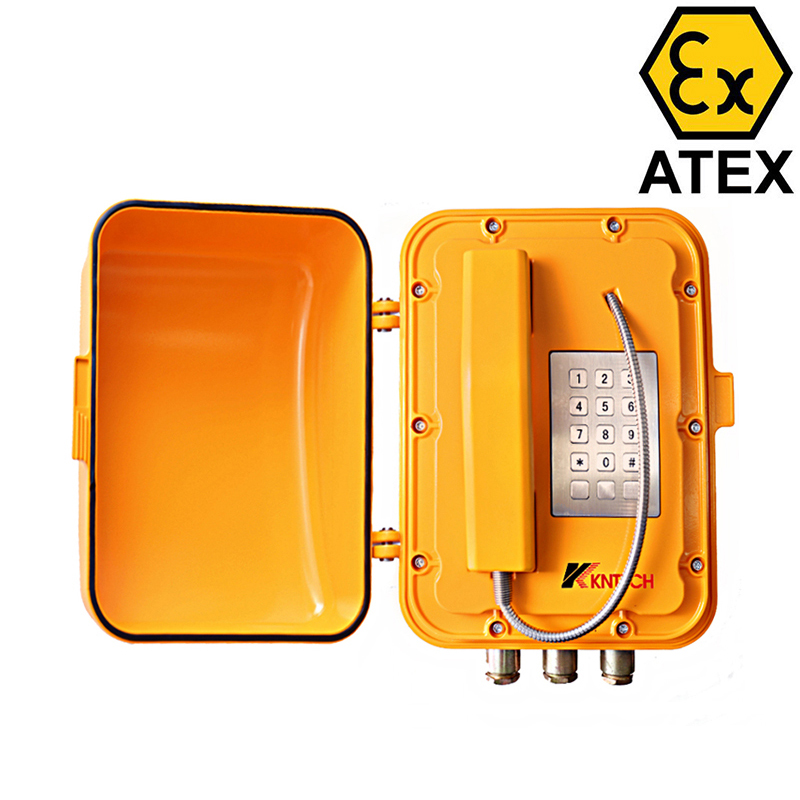

Mining explosion-proof telephone

related weatherproof phones product


Unified network management system

related weatherproof phones product


VoIP SIP Telephone PCB Board

related weatherproof phones product


Weatherproof telephone

==>>>> Product Specification

 SPECIFICATION - Analogue(Model NO.SP08L2D6

1. PSTN analogue telephone                                          2. DTMF dialing

3. MTBF:100000hours                                                    4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable               6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)


1. VoIP SIP2.0 telephone                                              2. DTMF dialing

3. MTBF100000hours                                                   4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact            6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load                      8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A                                             10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC                 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

==>>>>Telephone System

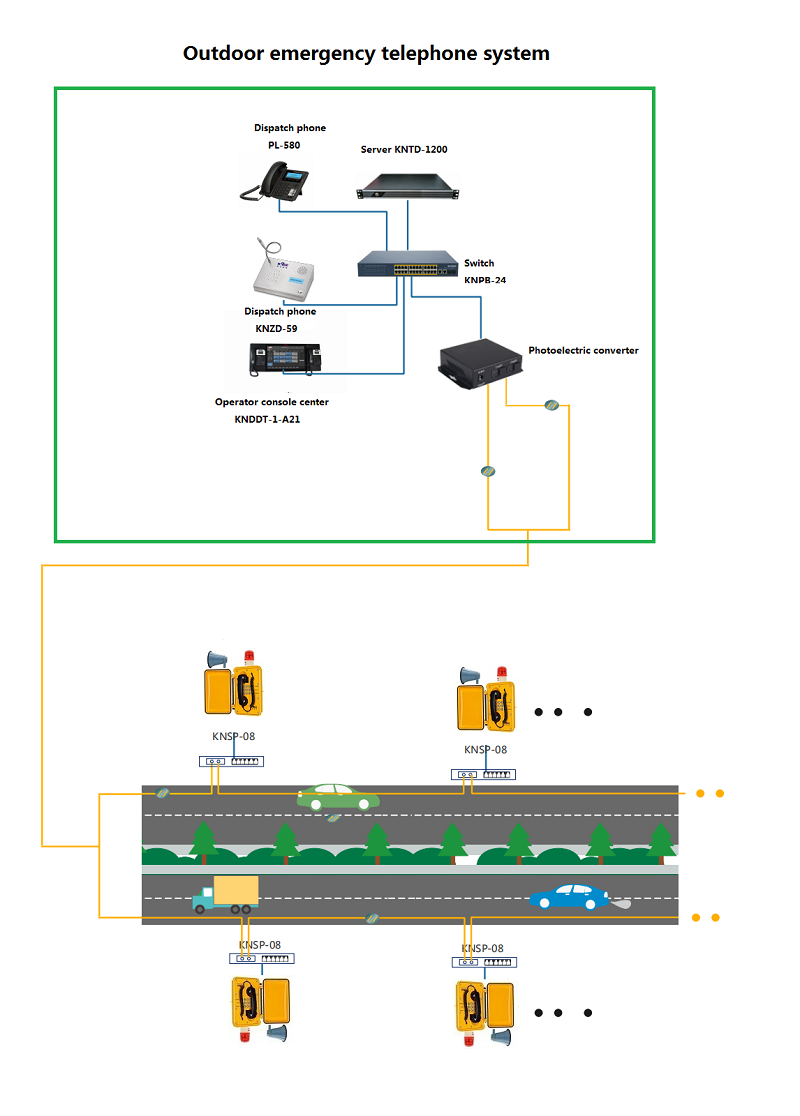

weatherproof phones outdoor telephones system

==>>>>Product Application

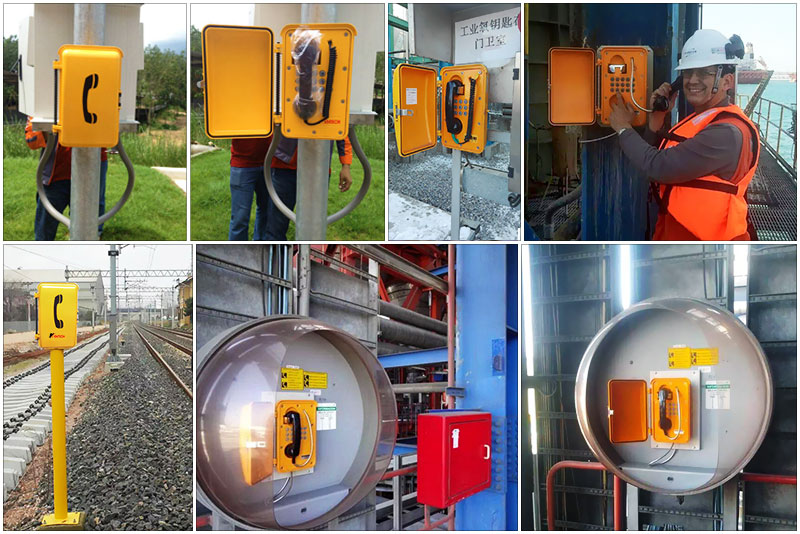

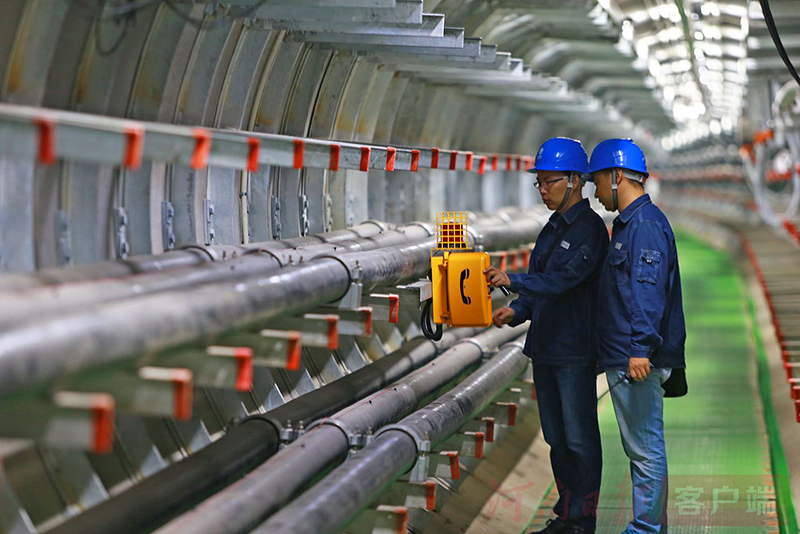

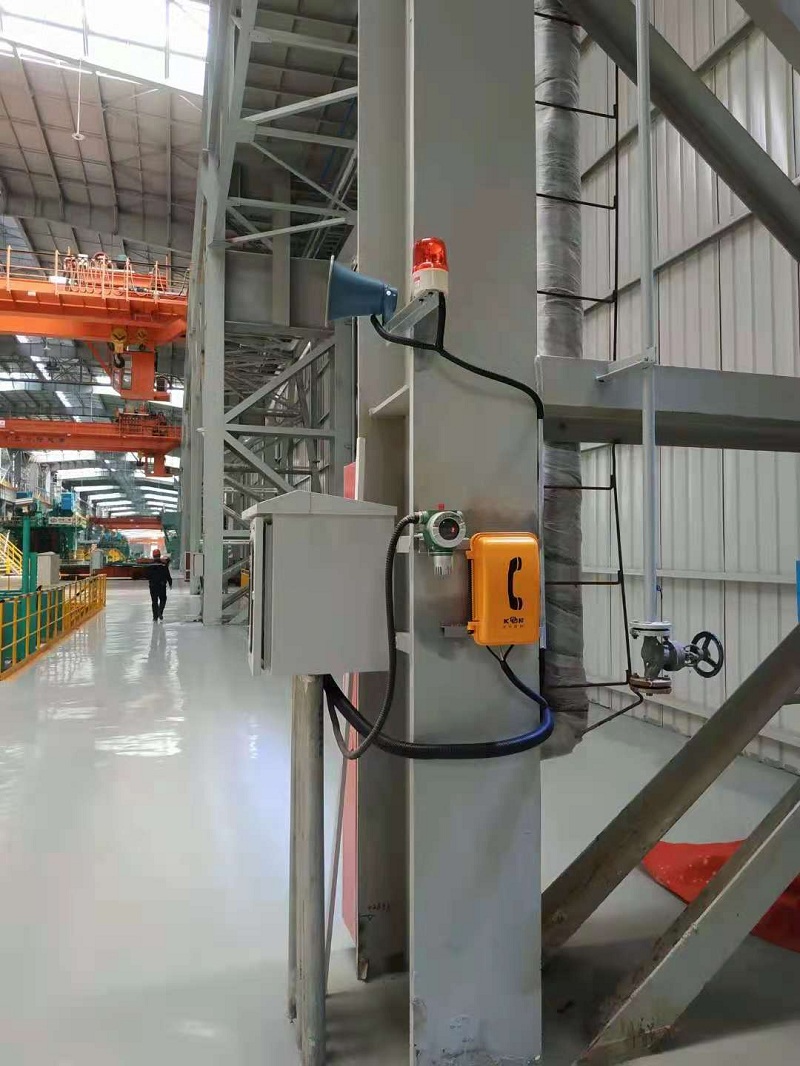

weatherproof phones in outdoor weatherproof phones application

water resistant telephone water resistant telephone

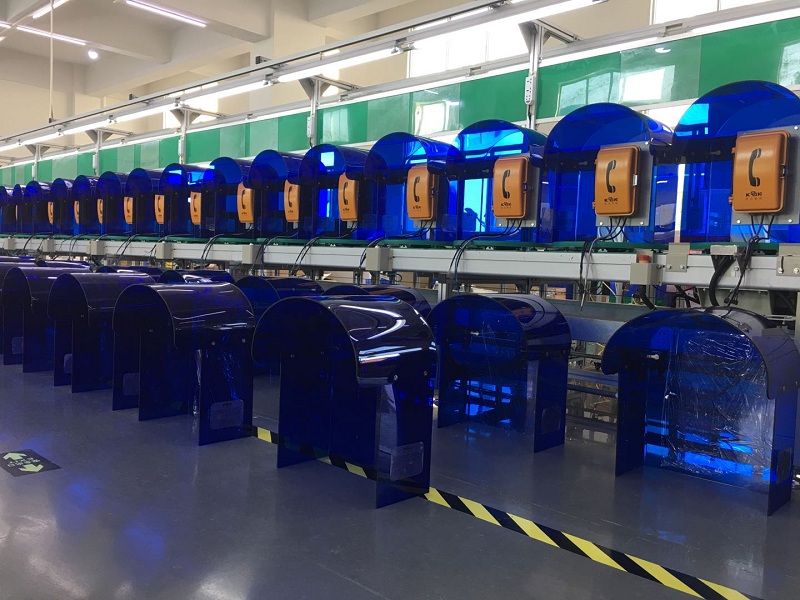

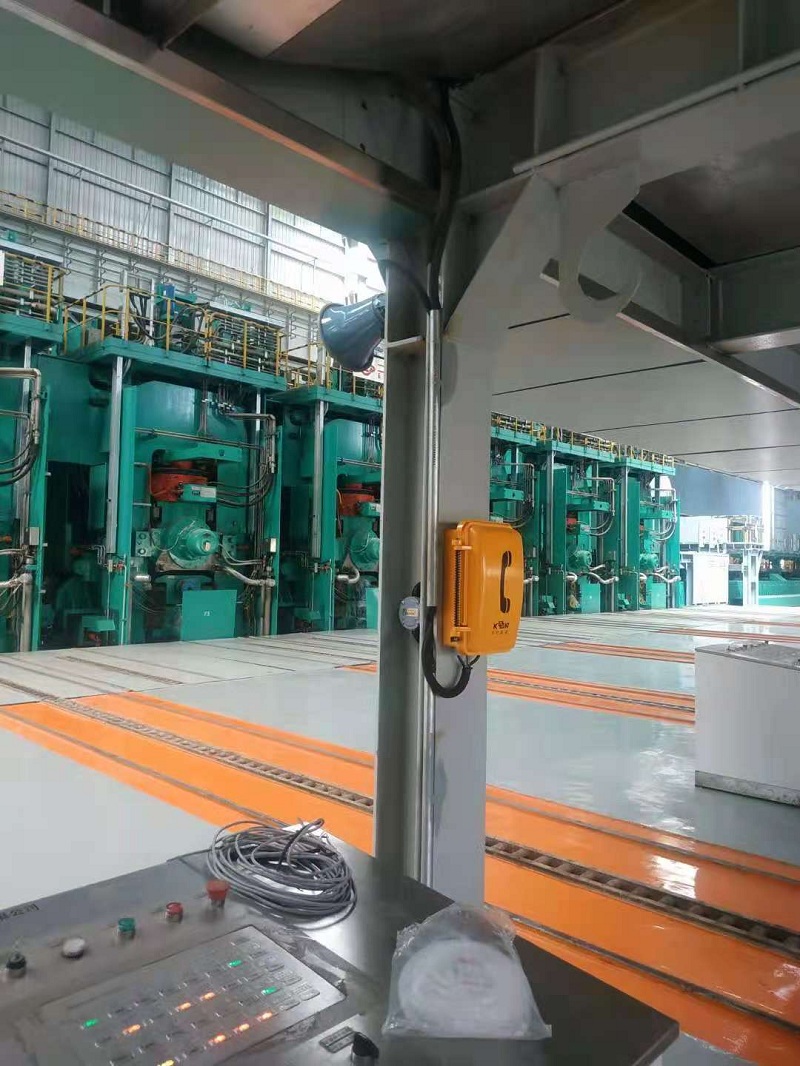

weatherproof phones in factory

==>>>>Product Detailed Pictures

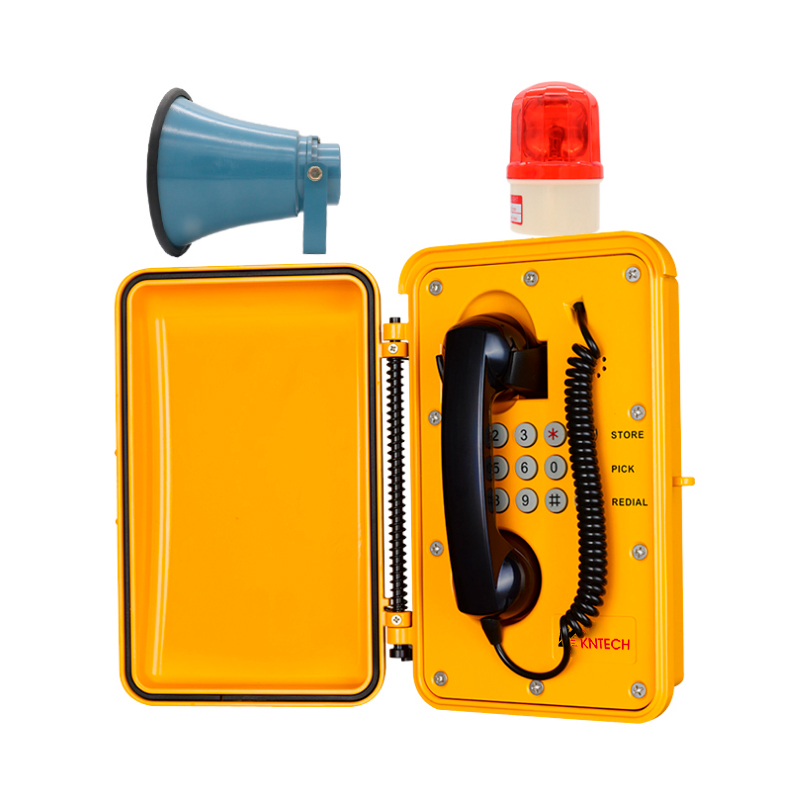

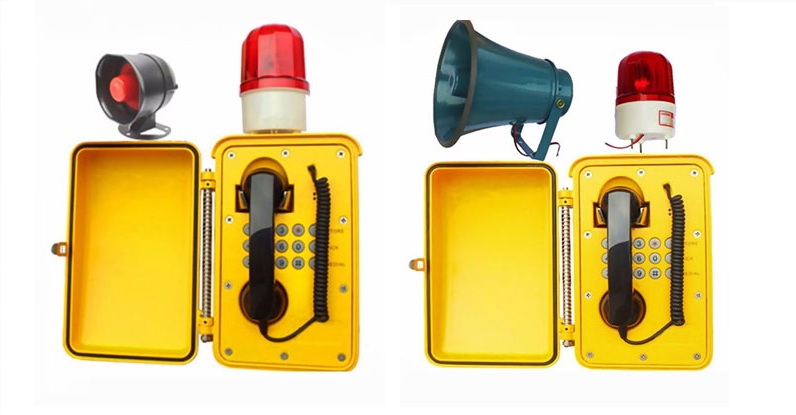

weatherproof phones front view detail about the weatherproof phones

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNSP-08L2D6
