24-ports Unmanaged POE Switch

24-ports Unmanaged POE Switch


The 24 port 10/100Mbps unmanaged PoE switch(with 2 gigabit Combo port ) with 400W internal power, provides a easier installation way for your PoE devices (IP cameras,VoIP,wireless AP,etc.).And it can detect your PoE devices according to PoE standard. So the users do not need to worry about the PoE switch will damage their PoE devices.

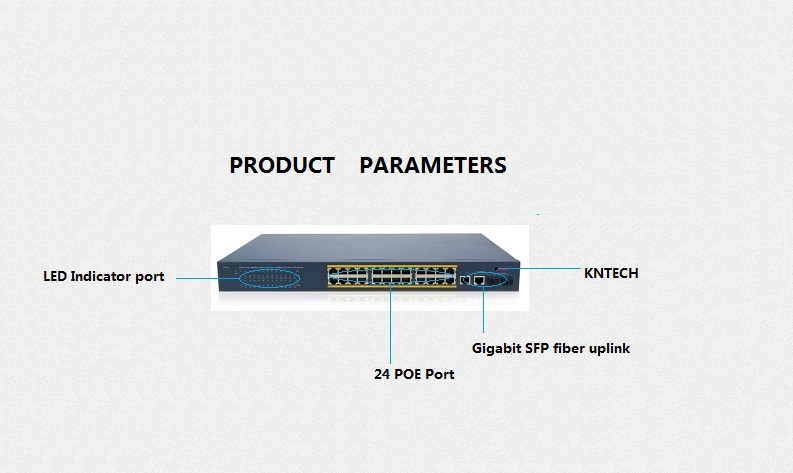

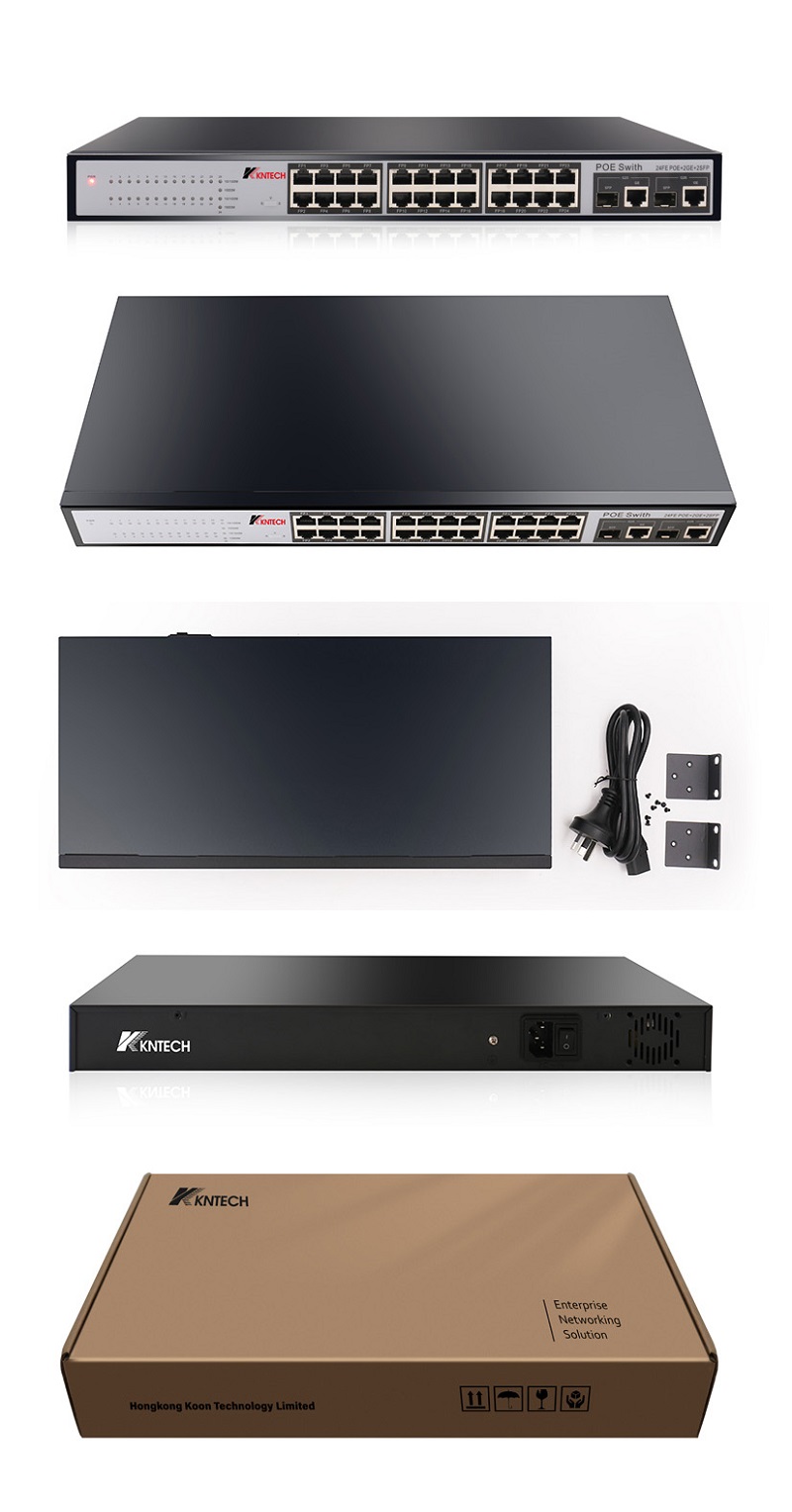

24 ports network detail view

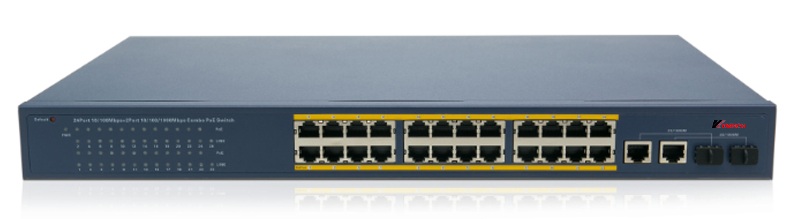

24-ports unmanaged POE switch


Acorid 24 ports PoE Switches fill the gap between unmanaged and fully mananaged switches. It is designed for growing bussinesses that want control over their network without the cost and complexity of a full Layer2 management implementation.This PoE-capable Switch,provides power and dada using built-in IEEE 802.3af PoE on all 24ports,In addition,LS5126P offers an intutitive Web based management tool fol quick and easy deployment and configuration making t ideal for deploying access points,VoIP phones and IP-based surveillance camera.The max transmission distance is 100 meters with Cat5 cables.Ideally,shorter cable would reduce the power degradation over the cables; with high quality cables also can reduce power loss.Plug & play design make the installation quite easy,users do not need any configuration,which make this PoE switch a very good choice for IP cameras,wireless AP,VoIP users.

Key Features
• 24-Port 10/100Mbps + 2 Gigabit Combo port
• Complies with the IEEE 802.3f/at standard
• Each switch port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet).
• Support MAC address auto-learning and auto-aging
• Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex)
• High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
•Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
•8.8 Gbps Switching Capacity
•On/Off power switch

Ordering information

KNPB-24 24 ports 10/100M PoE switch with 2 10/100/1000 SFP Fiber ports,250/450W Power budget optional.

KNPB-24 24 ports 10/100M Web-smartPoE switch with 2 10/100/1000SFP Fiber ports,250/450W Power budget optional.

You May Like:


Weather resistant Telephone


Jail phone


Elevator intercom


Cleanroom Intercom

==>>>> Product Specification

Technical specifications:

 Product name  24-ports unmanaged POE switch
 Order No.  KNPB-24
 Standards & Protocol  IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
 Power Specifications Input: 100 - 240 VAC, 50 -60 Hz
400W internal power
48V DC
 Network interface  24 10/100Mbps PoE port (MDI / MDIX adaptive)
2 10/100/1000Mbps Gigabit copper RJ45 ports (MDI / MDIX adaptive)
2 SFP GBIC fiber module slots
 Physical Specifications  Dimensions: 440 x 350x 44 mm
Weight:6.0 kg
 Electromagnetic radiation CE mark, commercial
FCC Part 15 Class A
VCCI Class A
 Environmental norms Operating Temperature: 0°C~40°C
Storage Temperature: -10°C~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
 LEDs - Each device: power light
- Per port (10/100 and Gigabit): connection speed indicator
- Per PoE port: PoE power-on LED
 Radiation / electromagnetic immunity,  - EN 55024
 Certification  CE, FCC, RoHS
 Performance Specifications  •Forwarding modes: Store and forward
•Bandwidth: 8.8 Gbps (non-blocking)
•Buffer memory: 3Mb per system
•Addressing: 48-bit MAC address
•the address database size: 8,000 per system MAC address
 Warranty  1 year

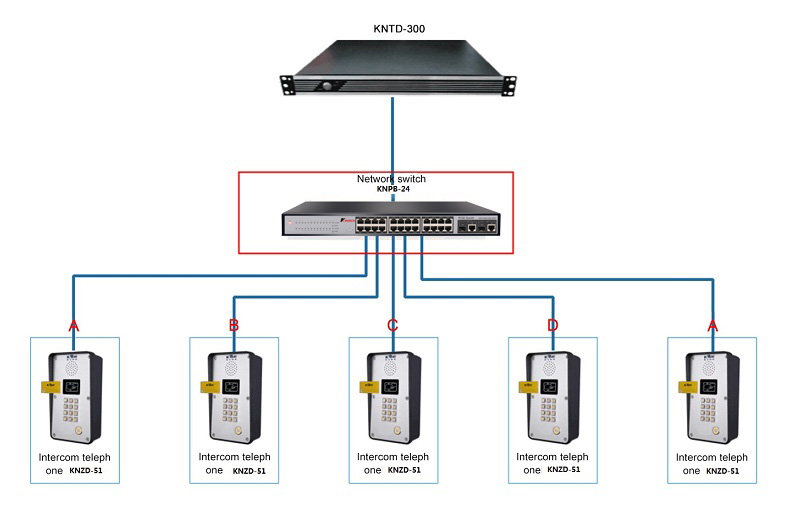

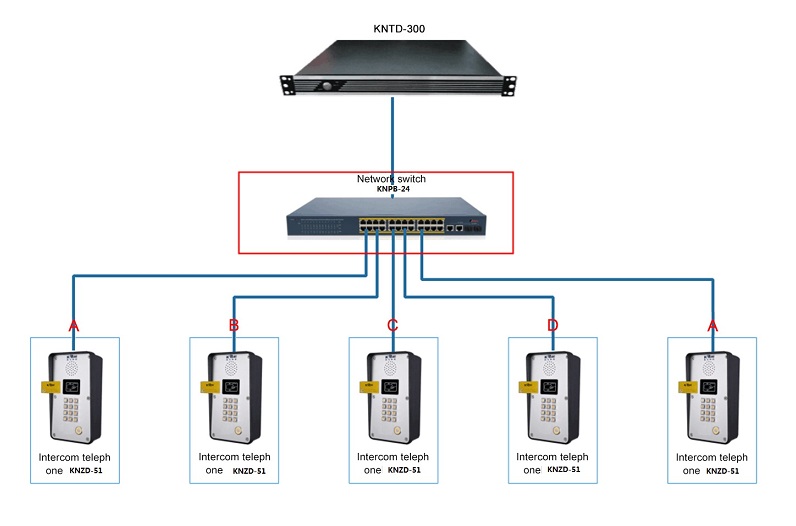

==>>>>Telephone System
24 ports network detail view

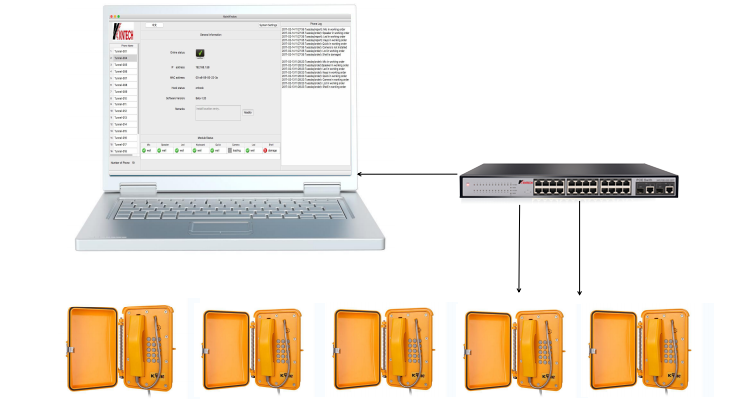

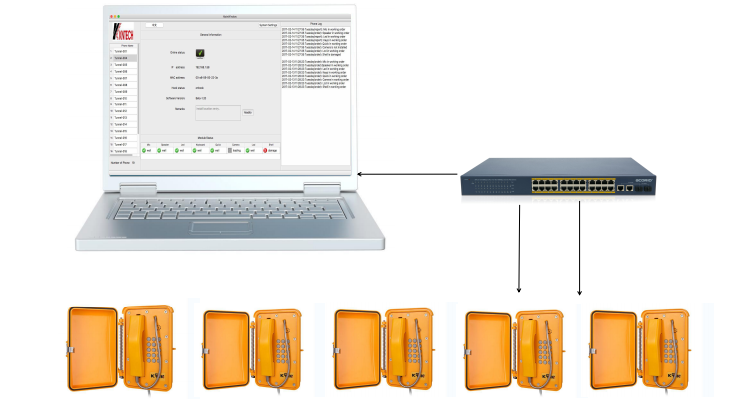

==>>>>Product Application

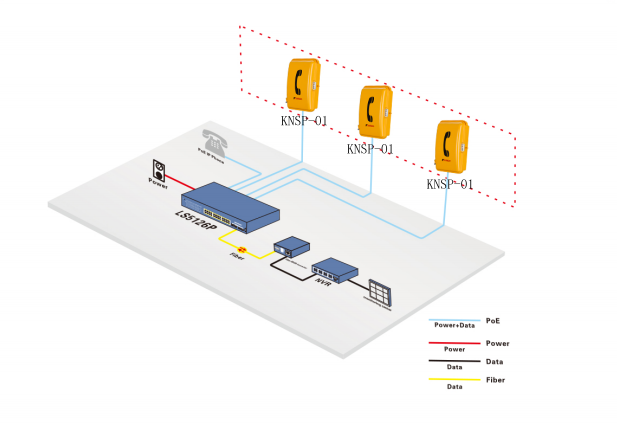

Application Diagrame

24 ports POE switch

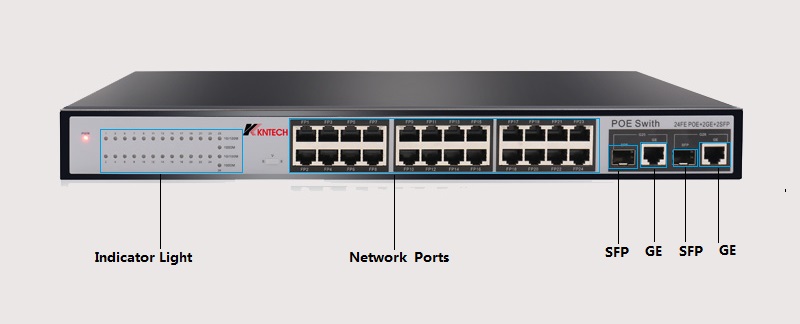

24 ports network detail view

==>>>>Product Detailed Pictures

24 ports network detail view

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNPB-24
