Home > Product >  IP PBX and Telephone Server  >  Operator Console
VoIP Telephone

VoIP Telephone

model:KNPL-800Plus
size:234*213*82.2(mm)
material:


Voip-telephone-KNPL-800plus
The voip telephone is an ip phone that uses the Internet for communication and is often used in small and medium business offices. The voip telephone has 96 sets of speed dial buttons that can be used in the control room as an operator console.

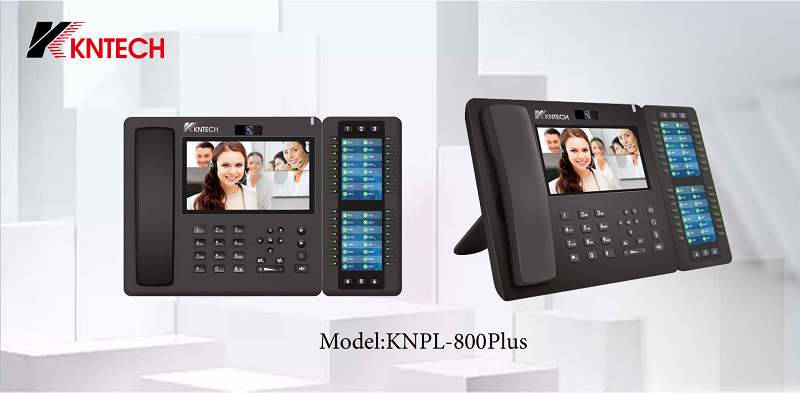

KNTECH design the voip telephone

Voip telephone KNPL-800Plus

What is a voip telephone

The voip is a VoIP-based VoIP phone that is different from traditional analog phones. The full name of voip is the Internet voice protocol. We have developed VoIP telephony devices that use VoIP voice technology to send and receive phone calls over the Internet. We all use voip technology not only for hardware but also for software.
VoIP telephones, also known as IP phones,ip telephone include features and functions not found in traditional analog phones. They also have additional performance requirements because the phone is conducted over the Internet instead of the traditional Public Switched Telephone Network (PSTN). VoIP phones for business and home, with rich media features, including video, Bluetooth, SMS, and more.
The voip telephones we developed all comply with international standard communication protocols.we also can tell you how to setup a voip phone.you can view it.https://www.koontech.com/ShowSolution72.html

What is a VoIP Phone System?

An VOIP telephone system uses packet-switched VOICE over IP(VoIP), or web telephone, to transmit phonephone calls over the net as against the circuit-switched telephone utilized by the standard Public Switched phonephone Network (PSTN). conjointly referred to as VoIP phone systems, scientific discipline phonephone systems generally comprise a VoIP non-public branch exchange (an scientific discipline PBX) and desktop VoIP phones (IP Phones) that connect with a VoIP service supplier via an area space Network (LAN).

Standard VoIP Phone system features

The voip phone system is distinguished from the traditional analog phone system, has rich system functions, and is highly expandable.
1. Based on GUI functional web interface, operability and easy to use
2. Management software can be installed on the mobile side
3. System automatic detection
4. Video conference
5. Call transfer
6. Queue
7. Text transmission
8. Audio file playback
9. Virtual phone number

What is voip ?

VOIP is an acronym for Voice Over Internet Protocol, a communication protocol based on ip network.

6Line Enterprice-class IP Phone

KNPL-800plus is a high-end business IP phone. It is suitable for users who need flexibility and advanced functions, so that they can easily cope with the busy and complex work needs in their works. KNPL-800plus has 10 DSS keys on its 7.2-inch main color display screen and up to 96 DSS keys (32 physical keys) on its two 3.5-inch side color display screen. Therefore, KNPL-800plus can configure up to 106 DSS keys for setting BLF/fast number and multicast functions. KNPL-800plus is also equipped with high-definition voice, built-in Bluetooth, WIFI links, EHS support, Gigabit dual-port PoE, can be photographed with IP.

The Voip Telephone Special Function

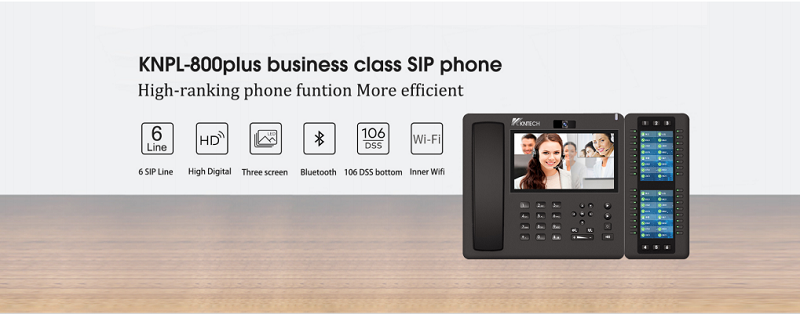

voip telephone function list
1.HD audio,handset and speakerphone with support for wide band audio.
2.6 Line keys with up to 4 SIP accounts,8MPK extension keys with dual-color LED with 2 Left/Right keys.
3.Dual LCD screens with digital BLF keys.
4.Enterprise-level protection including secure boot,dual firmware images, and  encrypted data storage.
5.Integrated dual-band 802.11 a/b/g/n WiFi
6.Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE.
7.Swappable face plates to allow for easy logo customization
8.Integrated Bluetooth

The size about the voip telephone

the size about the voip telephone

7.2-Inchs Colorful screen Two 3.5-Inchs DSS screen

The surface design is very elegant,with touhch screen and high resolution screen.
With the intelligent user interface it could be breakthrough surface and experiment.

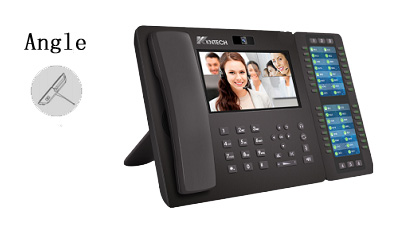

the surface design about the voip telephone

Funtion schedule

*6 SIP Lines tripartite conference.
*HD sound quality.(handset and speaker)
*7.2-inches colorful screen
*Two 3.5-inchs DSS colorful LCD.
*Equipment 106 DSS key.
*Megabytes Double Network Port,POE is optional function.
*Inner Bluetooth function.
*Connectible Wifi.(Wi-fi Dongle)
*Surport EHS earphone.
*H.264 Video Decoding for Video telephone.
*Surport Mainstream IP PBX/softswitch/IMS Platform
*3cx,Asterisk,Broadsoft,Elastix,Avaya.

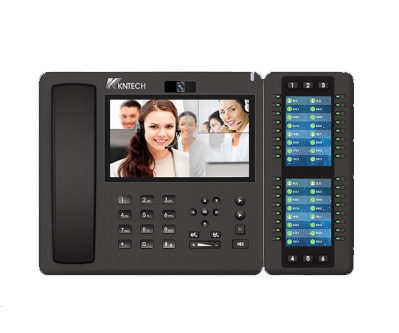

the voip telephone function schedule

The key function about the voip telephone

the key function about voip telephone
1.HD Display: HD display. Clear images and support multi-window multi-person video conferencing.
2.Handset: Magnetic handle, hang up and the phone hangs up.
3.Speaker: Speaker, power up to 8w.
4.Direction key and return key: functional button
5.Keypad: available for dialing and text input
6.Hand/Pick up
7.Volume: used for volume adjustment
8.Hands-free
9.Mute: Main menu
10.Refresh: Used for data refresh.
11.Audio
12.6 page of DSS key.
13.
32*6page total 192 DSS key.
14.Indicator light
15.Camera:
16.KNTECH: HONGKONG KOON TECHNOLOGY LTD logo, using laser engraving technology, engraved on the phone panel, not easy to fade and destroy.




==>>>> Product Specification
Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record,SRV,NAPTR), DHCP,PPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, IPV4.
Network Interfaces Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE.
Graphic Display 7.2 inch.
HD Audio Yes,HD handset and speakerphone with support for wideband audio.
DSS Key 192 DSS (32X6) on 4.3 inch screen.
Voice Codecs and Capabilities Support for G7.29A/B, G.711μ/ a-law, G.726, G723, i n-band and out-of-band DTMF (i n audio, RFC2833), SIP INFO).
Feature Keys 6line keys with up to 6SIP accounts,,8MPK extension keys with dual-color LED with 2Left/Right keys, 4XML programmable context sensitive softkeys,5navigation/menu keys,11dedicated, for: MESSAGE (with LED indication), phonebook,transfer,conference,hold,handset,mute,send/redial,speakerphone,vol+,vol-
Base stand Base support
Telephone Feature Hold, transfer, forward, call park, call pickup, downloadable phonebook(XML,LDAP, up to 2000 items), call waiting, call log(up to 2000 records), off-hook auto dial, auto answer, flexible dial plan,hot-desking, personalized music ringtones and music.on hold, server redundancy and fa l-over
QoS Layer 2 QoS (802.10, 802. 1P) and Layer 3 (ToS, Dferv, MPLS) QoS
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,Korean, Japanese etc.
Security User and administrator level passwords, MD5 and MD5-sess based authentication, TLS, 802.1x media access control, secure boot
Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS/TR-069, mass provisioning.
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10Cto 60°C Humidity: 10% to 90% Non-condensing
Power & Green Energy Efficiency Universal power adapter included - Input:100-240V ; Output: +12V, 1.5A ; IntegratedPower-over- Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE)
Package Content Unit weight: 950g ; Package weight: 1460g Dimension: 234mm x 213mm x 82.2mm
800plus characteristic 96 DSS keys two colorful screen
Compliance CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN 301489-17;EN 300328; EN 301893; EN 62311RCM AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 4268; AS/NZS 60950.1; AS/CA S004;12V power adapter

==>>>>Telephone System

Our voip telephone use in the snmp unified nerwork management system

you can view the business phone system
snmp unified network management system KNTECH and voip telephone

==>>>>Product Application

The voip telephone application in the office

the video telephone in the office the video telephone in the office desk

office ip telephone voip telephone view side view office telephone the ip phone side view

==>>>>Product Detailed Pictures

The detailed view about the voip telephone

voip telephone main view voip telephone front view voip telephone front view voip telephone front view


==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNPL-800Plus

*
*
*
*
