Sip intercom

Sip intercom

model:KNZD-70E
size:417*26*65mm
material:

Sip-intercom-voip
The SIP protocol intercom terminal, also called sip intercom, sip broadcast intercom gateway (Sip paging gateway) is now more diversified with the market demand. This is a sip intercom with a video-capable steel case.

sip intercom schematic diagram

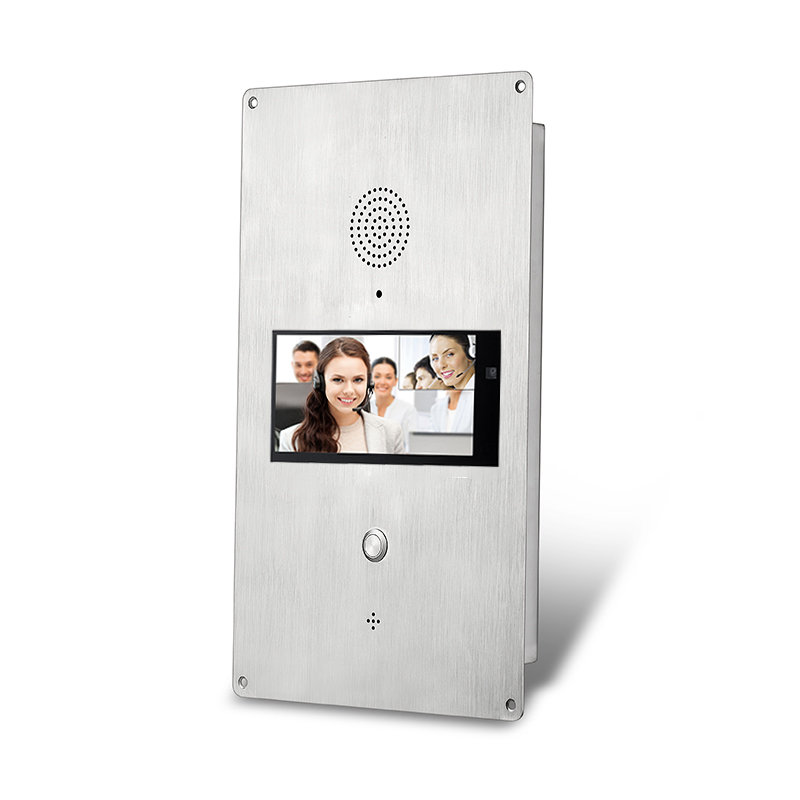

Sip intercom KNZD-70W

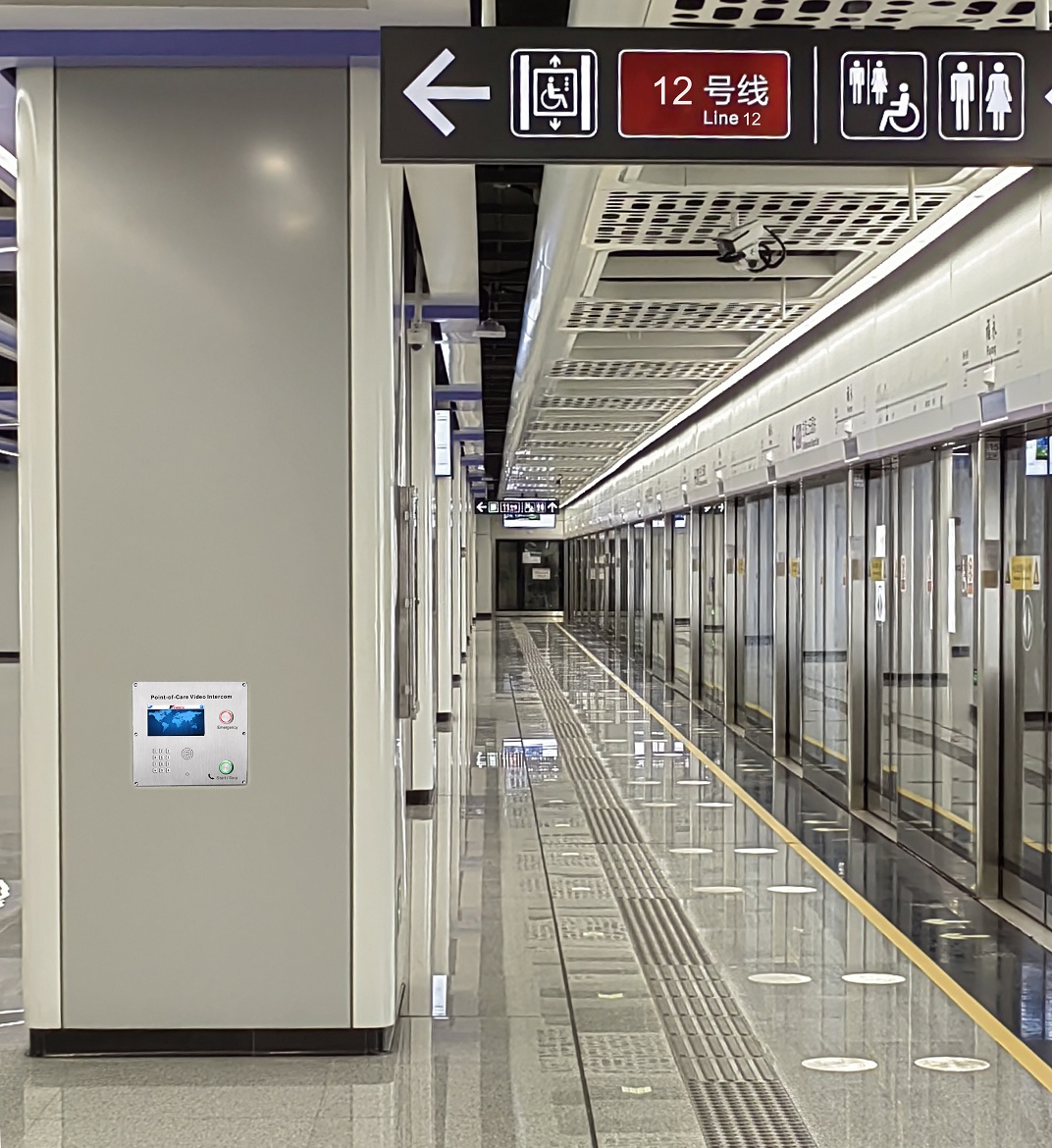

       The sip intercom is often used in the subway to help. The intercom uses a high-definition camera with video intercom.

What are the advantages of using sip intercom over non-sip intercom?

The sip intercom with camera is a intercom that communicates based on the session initiation protocol. Sip intercom is based on network signals Make a call, the call is free, and the signal is stable. And the intercom can access the sip server to form a complete set of powerful emergency intercom system. After accessing the sip server, the intercom has automatic backup, broadcast, and queue functions.

Something about sip Intercoms

When it involves home security or geographical point safety, the sip intercom system may be a must-use. KNTECH SIP intercom communication system stations ar strong, versatile, and supply exceptional audio quality.SIP Intercom With its noise reduction feature, it provides crystal clear conversations in wheezy environments.Sip intercom is a voice intercom with PoE SIP standard. It is atmospheric and compact, and can be used for hands-free intercom.Sip intercom is often used as an emergency intercom in schools, airports, and subways.

The sip intercom often as an alternate to the popular SIP Doorphone. and therefore the appearance offer a good initial impression of you once used as a door entry resolution.Connecting your sip door intercom to a VoIP telecommunication system then your guests will be greeted from any phonephone and be allowed entry by simply a press of a key!

Compatible with SIP PBX Server

Installation and configuration ar via an easy intuitive internet interface. Centralized provisioning is supported. till registered with a SIP server, a press of the decision button "speaks" the informatics address sanctioning access to the net interface of the device victimisation any application program.

Integration with most hosted / cloud or premise VoIP phonephone systems ensures that the sip intercommunication system will be organized to speak with any device.

The code intercommunication system Server supports SIP stations likewise as 3rd-party SIP phones.

The intercommunication system station is usually used as a UA in registered mode towards a Session Initiated (SIP) Server. The intercommunication system station has all basic practicality like Registration, Authentication, UA-to-UA decision, and DTMF.

Pure Serverless Communication

SIP stations associate degreed SIP capable telephones interface seamlessly into an intelligent communication network while not the necessity for a server.

PoE broadband informatics intercommunication system For Door Entry Applications / workplace Communication - outside.

Wideband G.722 codec support provides optimum speech clarity and comprehensibility for essential safety, security or emergency applications wherever reliable spoken language may be a primary thought.The sip intercommunication system for schoolroom workplace and Entrance Communication

SIP intercom options

Vandal and water-resistant

Designed in chrome steel (A304) to resist corrosion

SIP support for integration to several iPBX systems

Support integration with third party management tools via open protocols

Integrated knowledge switch with advanced networking and security functions

Relay output for device, e.g. doors, signal lamps and gates

Powered from the informatics network cable victimisation Power over LAN (PoE)

Superb audio quality – high information measure codec, active noise cancellation, acoustic echo cancellation and high output power electronic equipment

Powerful 1080p video resolution

SIP terminus with auto-provisioning capability

Initiates or accepts calls

SIP stations by KNTECH ar designed to continually connect you to the proper contact person – whether or not at the lot gate or entrance door, at the stop or information/emergency decision terminal.

Reliably and in excellent speech quality.

Network managed and supervised SIP terminus

Eliminates FXS port or ATA

PoE (802.3af) for plug and play network property

One piece resolution different for the popular 8028 SIP Doorphone

Wideband G.722 audio for clarity and comprehensibility

Network managed and supervised SIP terminus

Attractive style in twin gang type issue for applications inside and out

SIP compatibility with all leading UC vendors such as: Avaya, Broadsoft, Cisco, Digium/Asterisk, Mitel, Metaswitc

What is sip intercom

Sip intercom, the internal communication station is usually used as a UA in the mode of session start (sip) server, which is used for all basic functions, such as registration, authentication, UA to UA phone, DTMF.sip protocol intercom terminal With the market demand, some sip intercom support video, the protection level reaches ip65 or ip66. Depending on the usage environment, sip intercom can be installed on the column, or can be embedded in the wall, or can be used as a help guide station. In public.

What is a sip call

SIP (session initiation protocol) stands for Session Initiation Protocol, a signaling protocol used to initiate, manage, and terminate voice and video sessions in a network, specifically to generate, modify, and terminate one or more participants. Session between users, it can be used with the VoIP (Internet Protocol Voice) telephone system. SIP's business model is a peer-to-peer protocol, which has two elements - SIP user agent and SIP network server. The user agent is the terminal system element of the call, and the SIP server is the network device that handles signaling associated with multiple calls. The user agent itself has a client element (user agent client UAC) and a server element (user agent server UAS). The client element initiates the call and the server element answers the call. This allows point-to-point calls to be done through a client-server protocol.

Is the Sip call free?

Yes, it's completely free. Using sip calls anywhere is completely free.

 DESCRIPTION ITEM
Unit main features
1.VOIP Telephone BI-Directional Video telephone Scratch resistant, HD Screen
2.SIP supports 5 SIP servers SIP 2.0 Support TR069
3.7" digital TFT-LCD of 1024 x 600 pixels with Visual angle adjustable display screen
4.sensor camera with 5Mega pixels 2xLAN, PoE, USB
5.TWO group of speed dial for emergency call. Protection: About IP65
6.Speaker: 8 ohm 1.5W, loudness 85dB(A) to 65dB(A) MIC’s working distance 80cm
7.Ring: >95dB. Coverage 1.5m radius
8.The call button is flash when ring, lighting during a call, off when standby.
9.With induction loop coverage 1M radius. Metal body
10Braille words for disable.
11.HD voice with high quality headset/HD voice in speakerphone mode
Camera Specification
1.Array size::2592 x 1944                                2.Lens size: 1/4”
3.Lens chief ray angle: 24                               4.Input clock frequency: 6~27 MHz
5.Maximum Image transfer rate:                     6.QSXGA (2592 X 1944): 15fps
7.720P                                                             8.Sensitivity: 600 mV/lux-sec
9.Shutter: rolling shutter/frame exposure       10.Maximum exposure interval: 1964 xTROW
11.Pixel size: 1.4 um X 1.4 um                       12.Dark Current: 8 mV/s @ 60℃ junction temperature
13.Image area:3673.6 um X 2738.4 um         14.viewing angle: 187°
 INSTALLATION

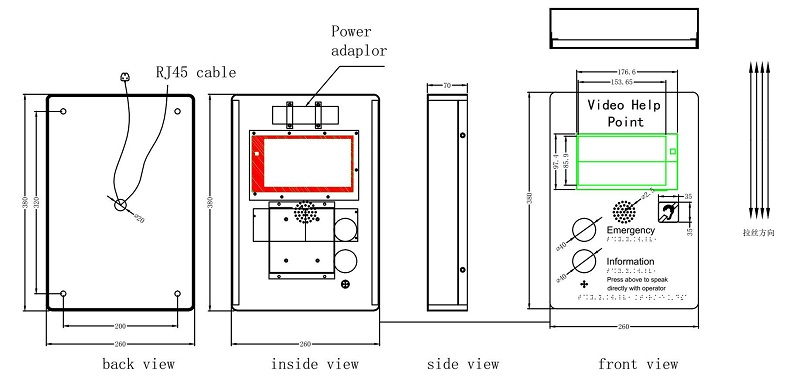

sip intercom design
 CERTIFICATION
EN55022: emissions   EN55024: immunity
Ingress Protection: GB4208-93 IP66 FCC
ITU-T Recommendations K21
EMC: EN50121(Railway application-Electromagnetic Compatibility)
sip intercom certification

 PACKAGING


Unit size:430*260*70mm     Unit: N.W:4.25kg

You May Like:

sip intercom related products

KNZD-30-2IPIL

Emergency Intercom

sip intercom related products

NMS-X1 SNMP

Unified network management system

sip intercom related products

KNZD-16

Help Point Intercom

sip intercom related products

KNZD-17

Emergency help point




==>>>> Product Specification

 SPECIFICATION
VoIP SIP2.0 telephone        DTMF dialing
MTBF:100000hours             MTTR: 2 hours
Hotline (maximum length of each number is 16 digits)
Communication: Full duplex 2-way hands-free communication
Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDC,Idle 2W, Max 10W
Auxiliary Contacts:1 Aux Output, dry contact
Contact Ratings. Load: Resistive load
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
Rated carry current:1A
Max.switching voltage:125 VAC,60VDC
Max.switching current:1A
Audio Codes:G.711, G.722, G.729
Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Programming:Non-volatile flash memory programming and configuration through Web GUI
Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code:G.167/G.168


You May Like:

KNZD-60

Video Help Point

KNZD-70

Passenger Assistance Intercom

KNZD-60M

Video Intercom System

KNZD-20

Video intercom


==>>>>Telephone System

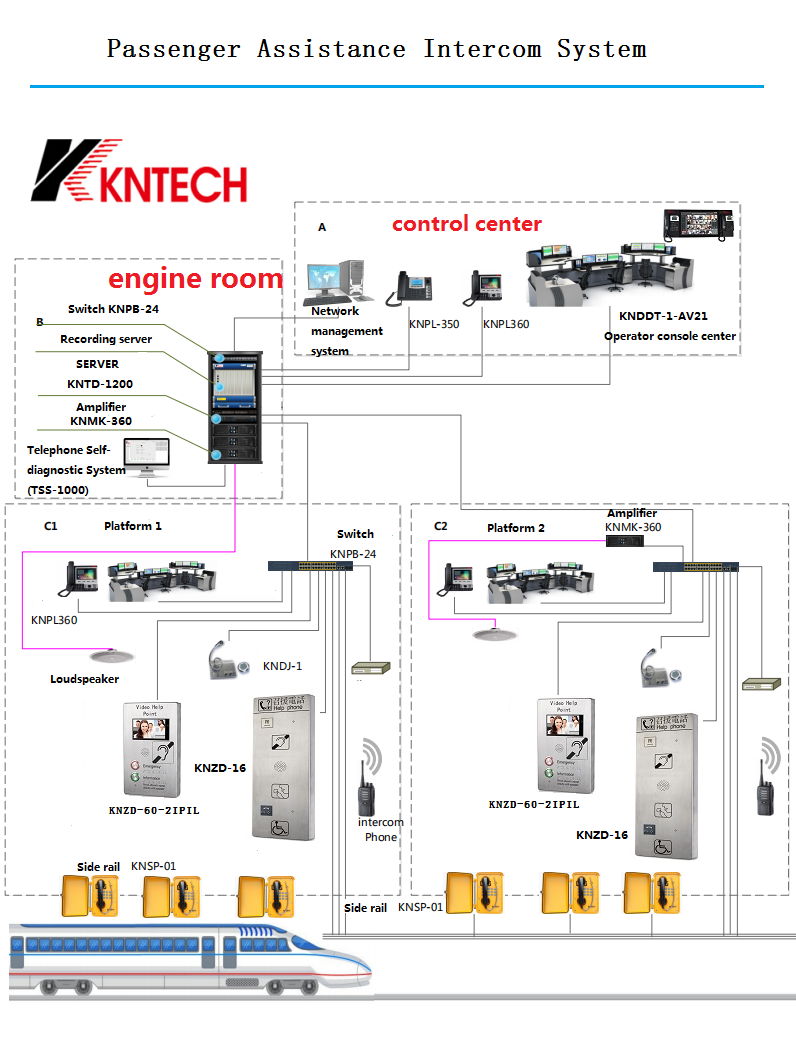

SIP Intercom use in passemger assistance intercom system

Now, passengers help intercom system, require unified management, rich multimedia functions, sip intercom using sip protocol, the appearance of the atmosphere, clear video calls, very suitable for modern subway, train station, waiting room and other passengers for help intercom.
sip intercom use in passenger assistance intercom system

==>>>>Product Application

SIP intercom application place

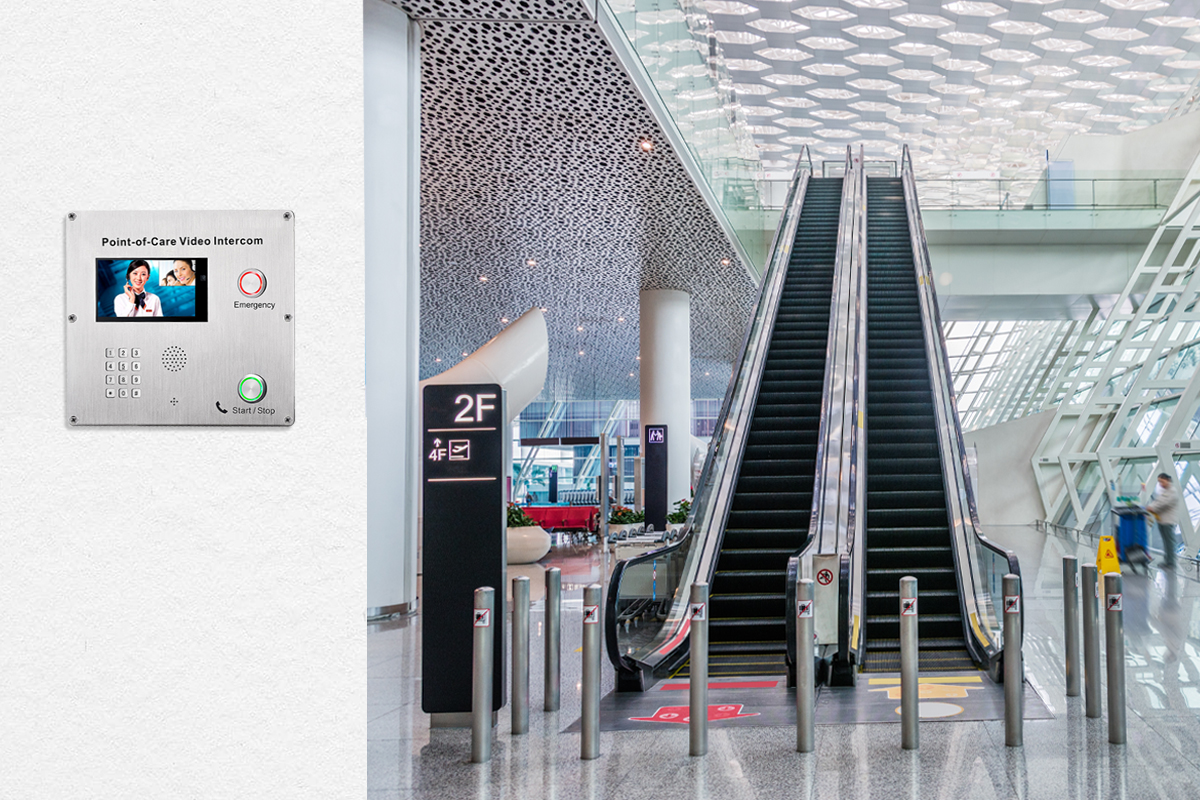

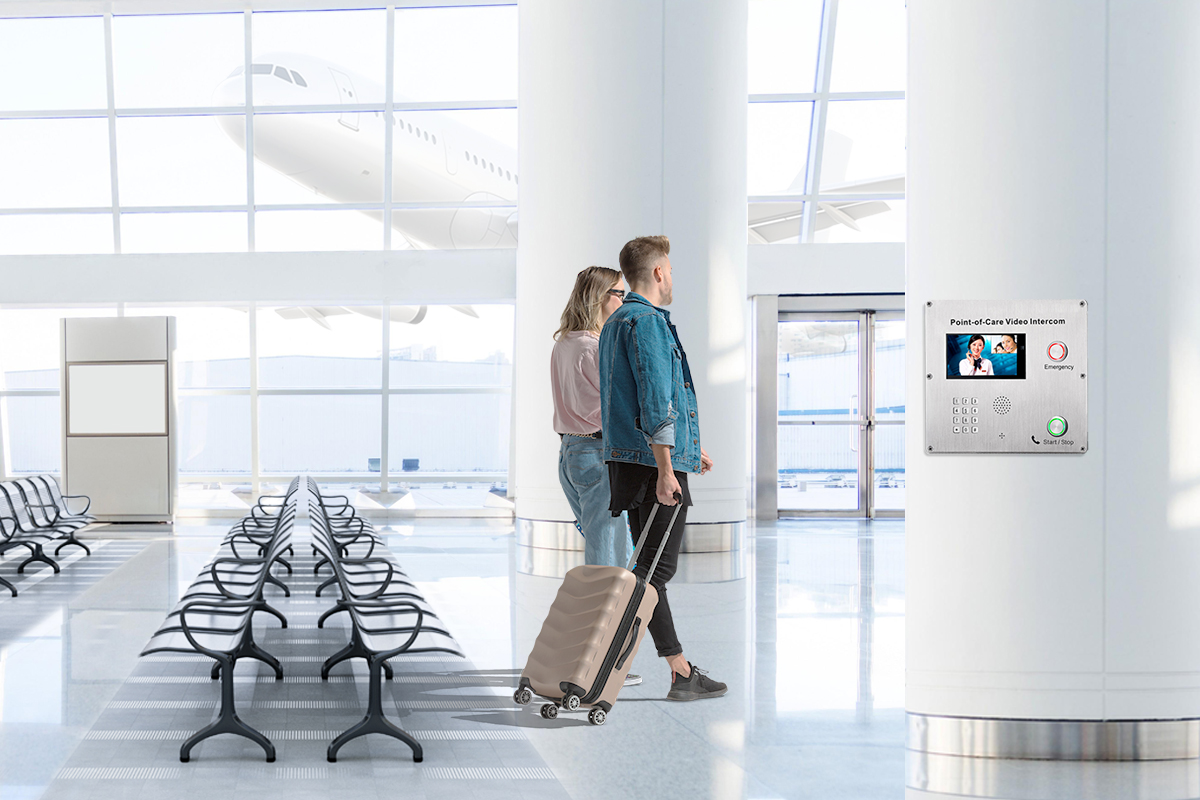

Sip intercom, high-definition video call, use in airport waiting room, bank lobby to help guide and other public places.
passenger assistance intercom
passenger assistance intercom sip intercom application place

==>>>>Product Detailed Pictures

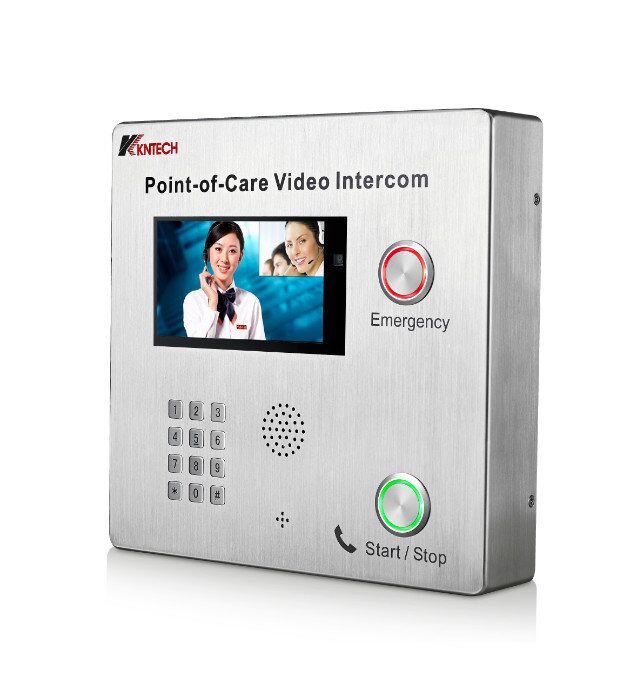

Sip intercom, two installation methods embedded and wall-mounted

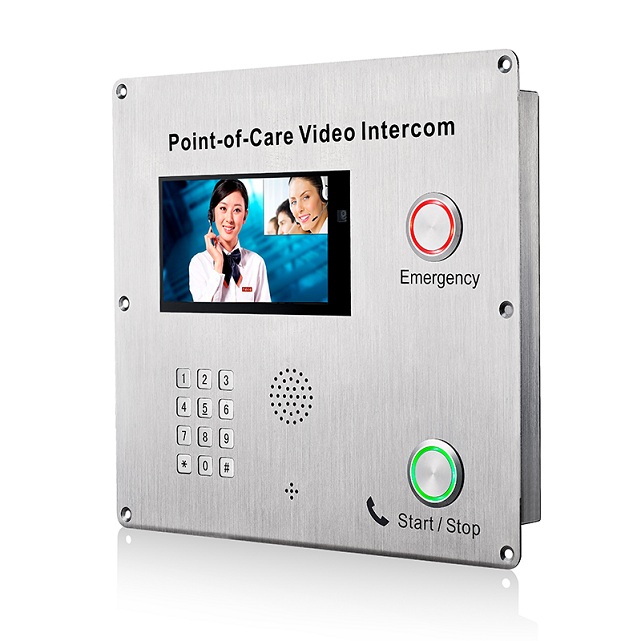

sip intercom embeded front view sip intercom wall mounted
