Wireless converged voice gateway

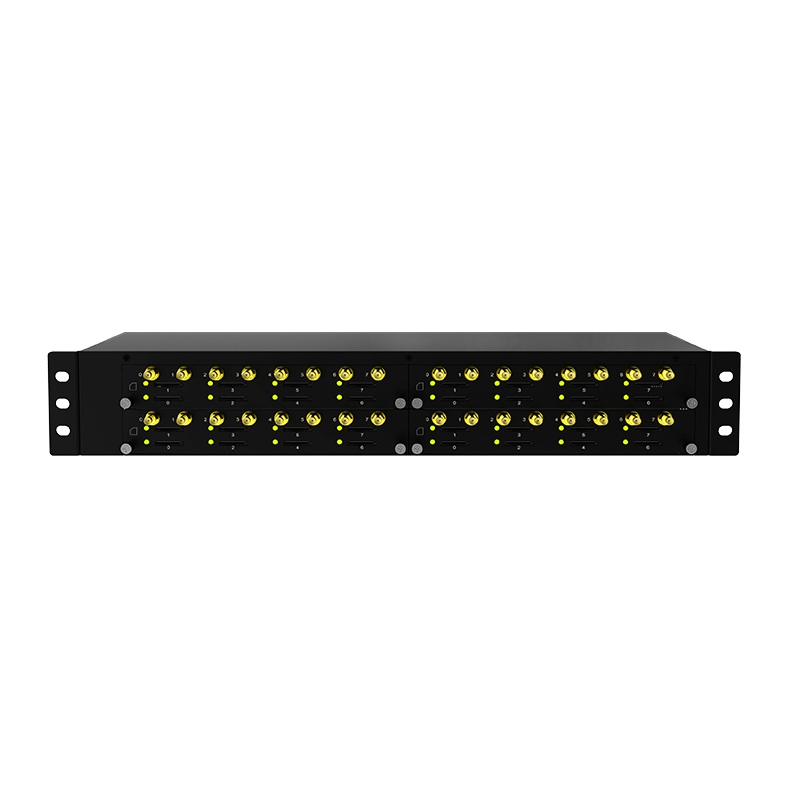

Wireless converged voice gateway

model：KNXSGSM-32
size：
material：

Wireless-converged-voice-gateway
The KNXSGSM-32 Wireless Converged Voice Gateway is a versatile product for seamless connection to PLMN mobile networks and IP voice networks. The product supports access to the GSM mobile network and inherits the SMS sending and receiving and USSD interactive functions of the mobile terminal.
wireless converged voice gateway

Wireless converged voice gateway

KNXSGSM-32 GSM Gatway is a multi-functional product used to effectively implement the smooth transition between PLMN (GSM) and VoIP network. The GSM/CDMA VoIP gateway is designed for comfort, ease-of-use to satisfied necessary of customers. It is not only inherits tradition of quality voice communication over IP network but reduce the human resource of VoIP network deployment. It’s a cost-effective gateway for call termination (VoIP to GSM) and origination (GSM/CDMA to VoIP). It is fully compatible with leading soft switch and SIP server.


Provide SMS API interface


Wireless fusion gateway provides open HTTP API interface, convenient for users to secondary development of SMS function, used for external application program (SMS Server) remote control wireless fusion gateway send and receive SMS, using TCP bearer, using request/reply mode, all the number type of field use network order. And support SMS to email and email via SMS send function, flexible and convenient to use.



Simple management and easy maintenance

Web page management, friendly interface, simple operation;

Provide dedicated remote server (DRP) for centralized maintenance and management of equipment;

Provide complete SMS and SIM card history for easy inquiry;

Provide network capture package, system log download function, easy to locate the problem;



Support TLS and SRTP encryption protocols
The wireless convergence gateway supports SIP TLS and SRTP communication encryption mechanisms. When TLS is used to transmit SIP packets, the SIP packets are encrypted and transmitted throughout, protecting user data from being stolen by others, improving the security of voice communication. When TLS is used to transmit SIP packets, the SIP packets are encrypted and transmitted throughout, protecting user data from being stolen by others, improving the security of voice communication.

Rich application and flexible networking
The Wireless Converged Voice Gateway is a versatile product for seamlessly connecting PLMN mobile networks and IP voice networks, and inherits the SMS messaging and USSD interaction functions of mobile terminals. It adopts the standard SIP protocol and can be connected with a variety of SIP softswitches to realize the signaling interaction and voice call function between the mobile network and the IP voice network. It provides call minutes management, supports balance alarm and call minute limit functions, and supports flexible call control strategies to quickly build a low-cost, flexible and diverse PLMN-to-IP communication system.

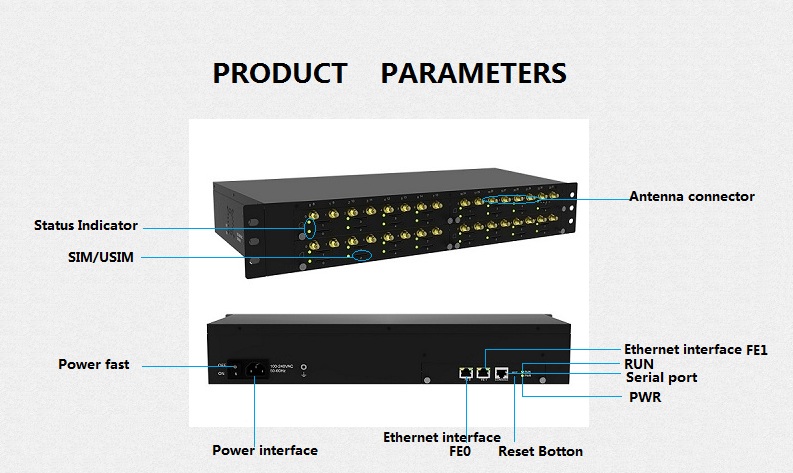

==>>>> Product Specification

Key benefits

SNTP

PIN can be modified

Ping/ Tracer on web

SMS/SMSC/USSD, support API

Up to 32 current calls

Manual /automatic selection operators

BCCH(Lock frequency)

Syslog way output tracking information

Compatible with SIMBOX and SIMBANK

---------------------------------------------------------------

Voice

G.711A/U law, G.723.1, G.729A/B

Silence Suppression & Detection

Comfort Noise Generation(CNG)

Voice Activity Detection(VAD)

Echo Cancellation(G.168)

Adaptive (Dynamic) Jitter Buffer

Call Progress Tone Generation

Programmable Gain Contro

---------------------------------------------------------------

SIP Characteristics

By port registration

By device registration(share account)

Support IP trunk and IP trunk group

Two 183 mode

Response code switch

All ports busy, redirected to other device

---------------------------------------------------------------

Mobile Specifications

Frequency Range:

GSM : 850/900/1800/1900MHz (optional)

WCDMA : 900/2100MHz (optional) Or 850/1900MHz (optional)

DTMF mode: Signal/RFC2833

SMS/SMSC/USSD

Provide API interface

Call duration limitation

One/two stage dial-up, Hotline

Polarity Reversal

Custom IVR PIN and IMEI modified Carrier select

CLIR

BCCH

---------------------------------------------------------------

Network Features

SIM card slot: 32 GSM channels

Ethernet Interface: 1 LAN*10/100M Base-Tx RJ45

Manage Interface: 1 Console RFC2833 Static IP, PPPoE, DHCP

Network Protocol Support: IP,TCP, UDP,TFTP, FTP, RTP, RTCP,

ARP,RARP,ICMP Ping, NTP, SNTP, Http, DNS NAT

traversal: Static NAT, STUN

Static/dynamic ARP request Up to 32 routing

VLAN

---------------------------------------------------------------

Physical properties

Power: 220 VAC

Power consumption:80W

Temperature(operation): 0 ℃ ~ 45 ℃ (storage): -20 ℃ ~80 ℃

Operation Humidity: 10%-90%

no condensation

Dimension(w/D/H): 440*330*66mm

Weight: 6.4kg

---------------------------------------------------------------

Maintain & Upgrade

Web based configuration

Telnet configuration

Configure backup/restore

Support English and China language

Firmware upgrade by TFTP

Web & telnet login password modify

Factory reset

Output CDR/Tracking news by syslog

Ping and Tracer test on web

Traffic statistics: TCP,UDP,RTP

VoIP call statistics

PSTN call statistics: ASR,ACD,PDD

---------------------------------------------------------------

Packing Content

Gateway

RJ-45 Network cable

Antenna

---------------------------------------------------------------

==>>>>Telephone System
Wireless converged voice gateway

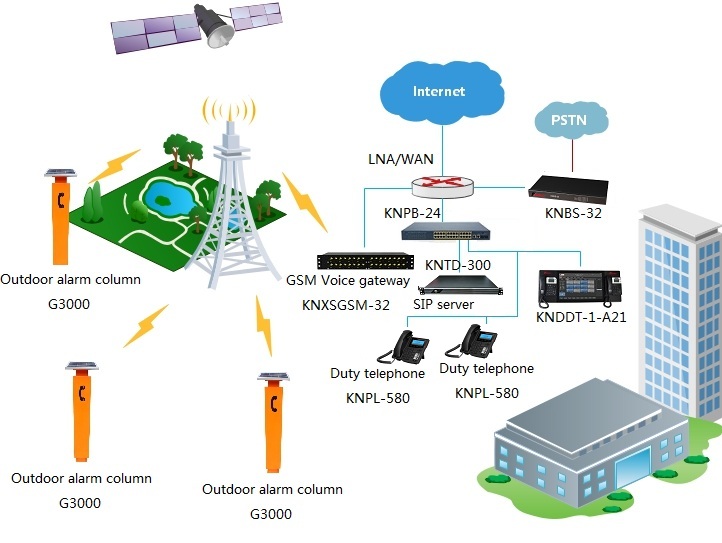

==>>>>Product Application

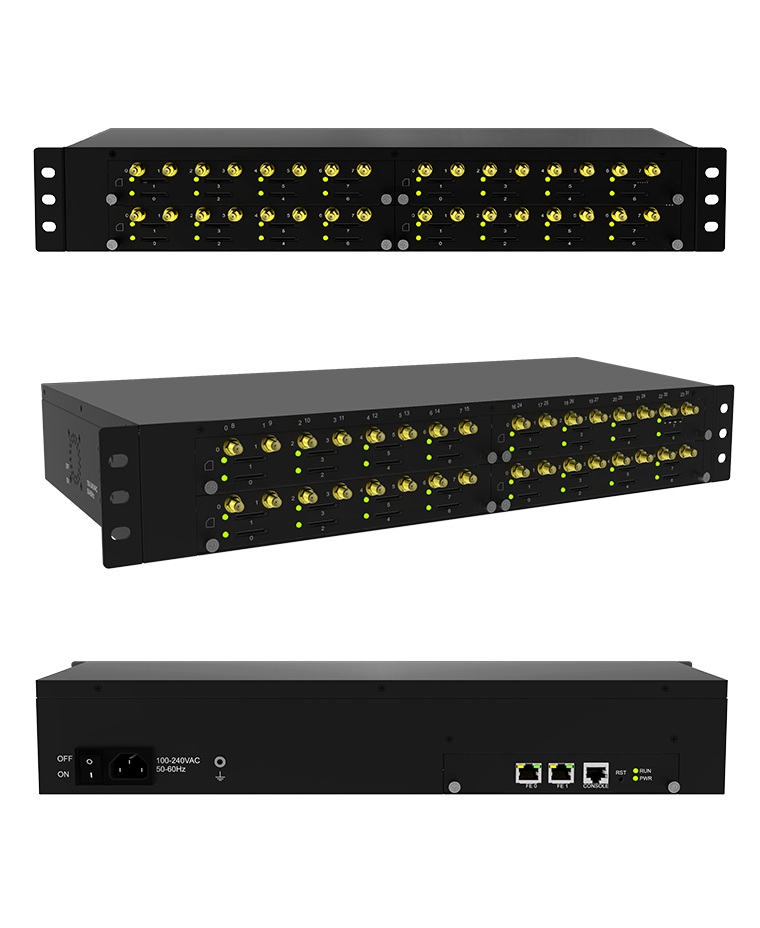

==>>>>Product Detailed Pictures
wireless converged voice gateway
==>>>>Product Video
==>>>>Please Email US marketing@koontech.com

This product model:KNXSGSM-32

*
*
*
*
