Voip Phone

Voip Phone

model:KNPL-800
size:234*213*82.2(mm)
material:

VoIP phone

The video telephone for conference KNPL-800

Video Telephony is a versatile conference room phone designed for conference rooms, using the latest ip technology to transmit data over the network. The video phone is only installed with the rear bracket. You can easily place it on the desktop, which is beautiful and easy to use. With the latest sip protocol, with rich media features, you can expand the function according to your needs, currently has Bluetooth, wireless, SMS, fax and other functions. Using standard international communication protocols, you can arbitrarily connect video calls to other switches and register to other brands of sip servers.

Video telephone system

Video telephony systems require video telephones for all telephone terminals. Videophone components include high-definition cameras and large-screen displays, microphones and speakers, and data conversion devices. Data transmission signals include audio, video, text, etc. The intelligent functions we developed include external Bluetooth devices, wireless networks, and headsets. Use the video telephone in the conference room, use the video conferencing function, all the telephone terminals enter the same virtual number, enter the password, and then multi-party video.

Our 6 line Enterprice- class video telephone for conference

KNPL-800 is a high-end business IP phone, which is suitable for users who need flexibility and advanced functions, so that they can easily cope with the busy and complex work needs in their work. The KNPL-800's 7.2-inch main color display has 10 DSS keys. Used to set up BLF / fast dialing, multicast functions, etc. KNPL-800 is also equipped with high-definition voice, built-in Bluetooth, WIFI links, EHS support, Gigabit dual-port PoE, and IP camera.

The Voip Telephone Special Function

the special function about the video telephone
1.HD audio,handset and speakerphone with support for wide band audio.
2.6 Line keys with up to 4 SIP accounts,8MPK extension keys with dual-color LED with 2 Left/Right keys.
3.Dual LCD screens with digital BLF keys.
4.Enterprise-level protection including secure boot,dual firmware images, and  encrypted data storage.
5.Integrated dual-band 802.11 a/b/g/n WiFi
6.Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE.
7.Swappable face plates to allow for easy logo customization
8.Integrated Bluetooth

7.2-Inchs Colorful screen Two 3.5-Inchs DSS screen

The surface design is very elegant,with touhch screen and high resolution screen.
With the intelligent user interface it could be breakthrough surface and experiment.

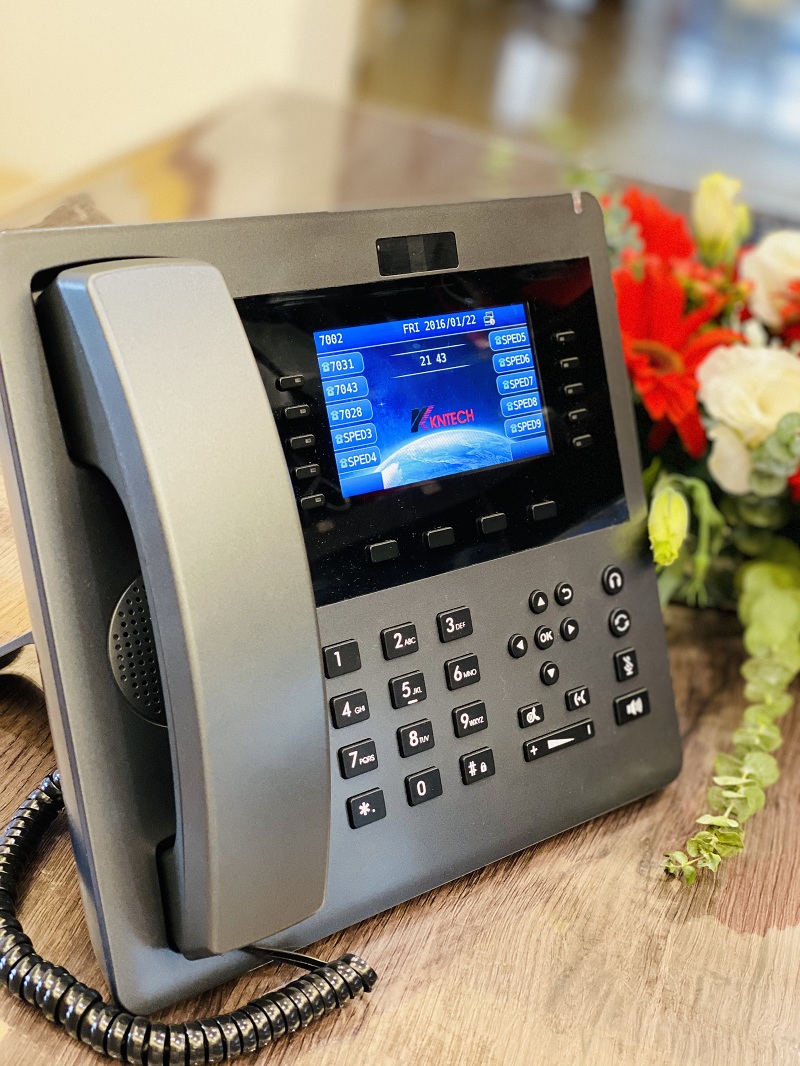

the video telephone screen

Funtion schedule

*6 SIP Lines tripartite conference.
*HD sound quality.(handset and speaker)
*7.2-inches colorful screen
*Two 3.5-inchs DSS colorful LCD.
*Equipment 106 DSS key.
*Megabytes Double Network Port,POE is optional function.
*Inner Bluetooth function.
*Connectible Wifi.(Wi-fi Dongle)
*Surport EHS earphone.
*H.264 Video Decoding for Video telephone.
*Surport Mainstream IP PBX/softswitch/IMS Platform
*3cx,Asterisk,Broadsoft,Elastix,Avaya.

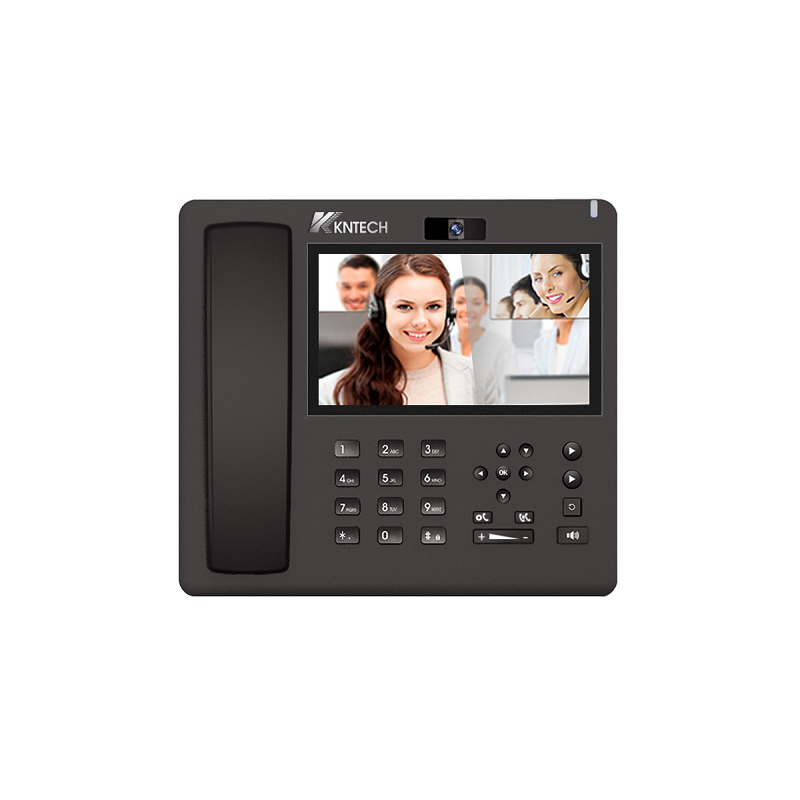

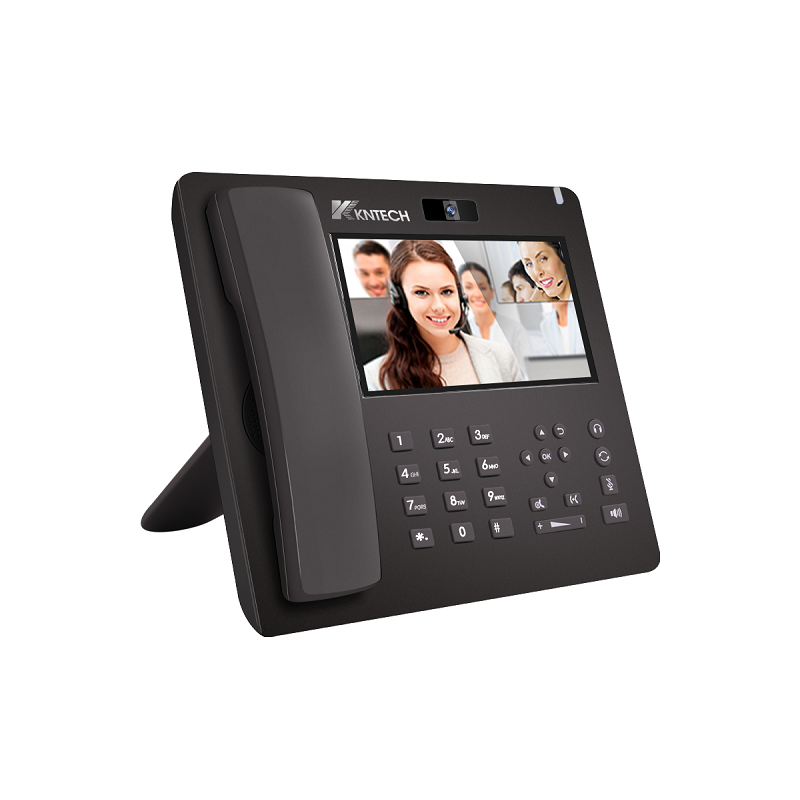

the video telephone front view

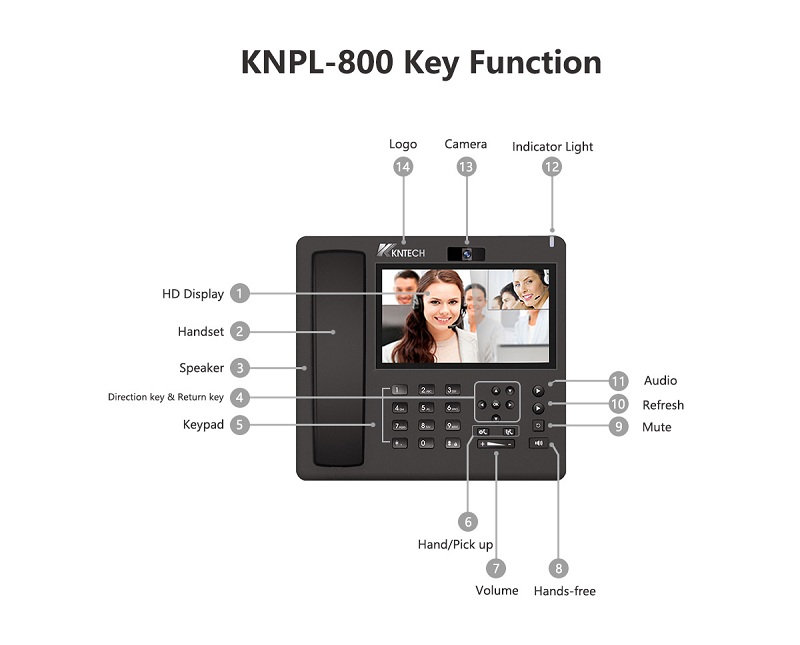

The key function abot the cenference video telephone

key function about the cenference video telephone
1.HD Display: HD display. Clear images and support multi-window multi-person video conferencing.
2.Handset: Magnetic handle, hang up and the phone hangs up.
3.Speaker: Speaker, power up to 8w.
4.Direction key and return key: functional button
5.Keypad: available for dialing and text input
6.Hand/Pick up
7.Volume: used for volume adjustment
8.Hands-free
9.Mute: Main menu
10.Refresh: Used for data refresh.
11.Audio
12.Indicator light
13.Camera:
14.KNTECH: HONGKONG KOON TECHNOLOGY LTD logo, using laser engraving technology, engraved on the phone panel, not easy to fade and destroy.



==>>>> Product Specification
Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record,SRV,NAPTR), DHCP,PPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, IPV4.
Network Interfaces Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE.
Graphic Display 7.2 inch.
HD Audio Yes,HD handset and speakerphone with support for wideband audio.
DSS Key 10 DSS key on 7.2 inch screen.
Voice Codecs and Capabilities Support for G7.29A/B, G.711μ/ a-law, G.726, G723, i n-band and out-of-band DTMF (i n audio, RFC2833), SIP INFO).
Feature Keys 6line keys with up to 6SIP accounts,,8MPK extension keys with dual-color LED with 2Left/Right keys, 4XML programmable context sensitive softkeys,5navigation/menu keys,11dedicated, for: MESSAGE (with LED indication), phonebook,transfer,conference,hold,handset,mute,send/redial,speakerphone,vol+,vol-
Base stand Base support
Telephone Feature Hold, transfer, forward, call park, call pickup, downloadable phonebook(XML,LDAP, up to 2000 items), call waiting, call log(up to 2000 records), off-hook auto dial, auto answer, flexible dial plan,hot-desking, personalized music ringtones and music.on hold, server redundancy and fa l-over
QoS Layer 2 QoS (802.10, 802. 1P) and Layer 3 (ToS, Dferv, MPLS) QoS
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,Korean, Japanese etc.
Security User and administrator level passwords, MD5 and MD5-sess based authentication, TLS, 802.1x media access control, secure boot
Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS/TR-069, mass provisioning.
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10Cto 60°C Humidity: 10% to 90% Non-condensing
Power & Green Energy Efficiency Universal power adapter included - Input:100-240V ; Output: +12V, 1.5A ; IntegratedPower-over- Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE)

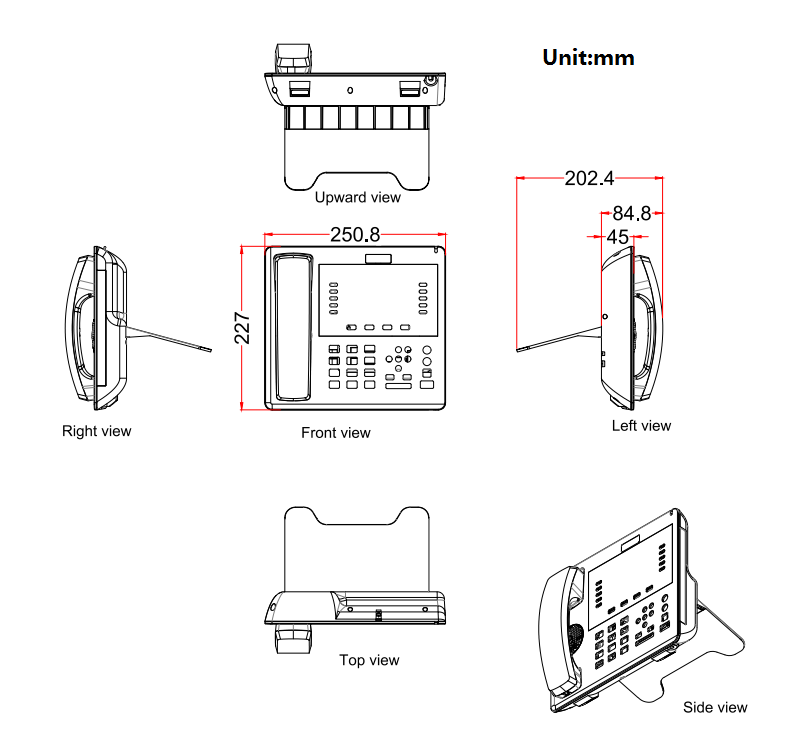

Package Content Unit weight: 950g ; Package weight: 1460g Dimension: 234mm x 213mm x 82.2mm
800 characteristic 10 DSS keys two colorful screen
Compliance CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN 301489-17;EN 300328; EN 301893; EN 62311RCM AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 4268; AS/NZS 60950.1; AS/CA S004;12V power adapter

==>>>>Telephone System

Our video telephone for emergency for the emergency phone system

snmp unified network management system KNTECH

==>>>>Product Application

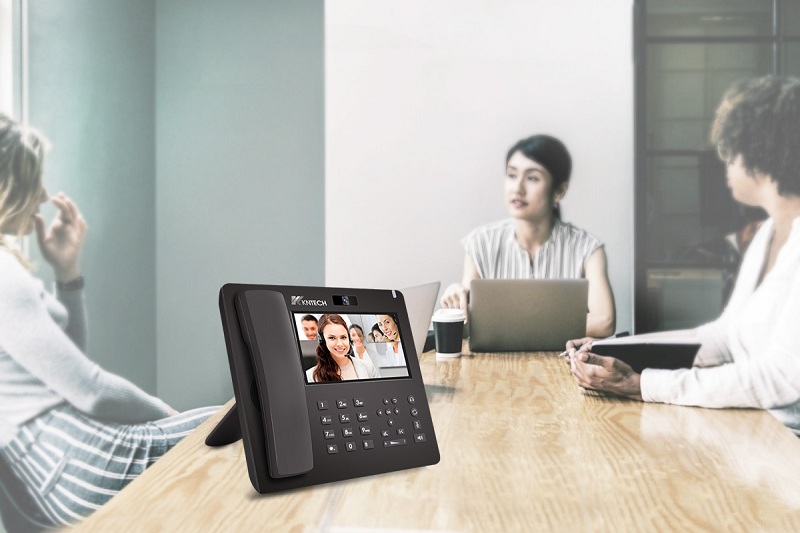

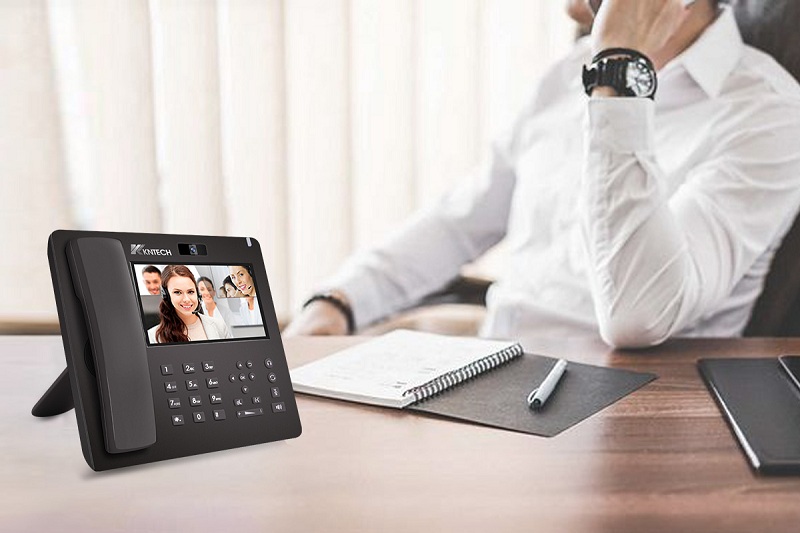

Video telephone use in office and conference

video telephone for conference video telephone for conference office desk

==>>>>Product Detailed Pictures

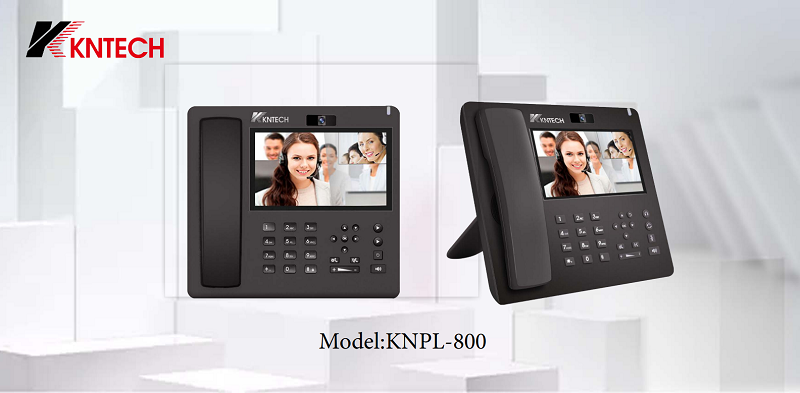

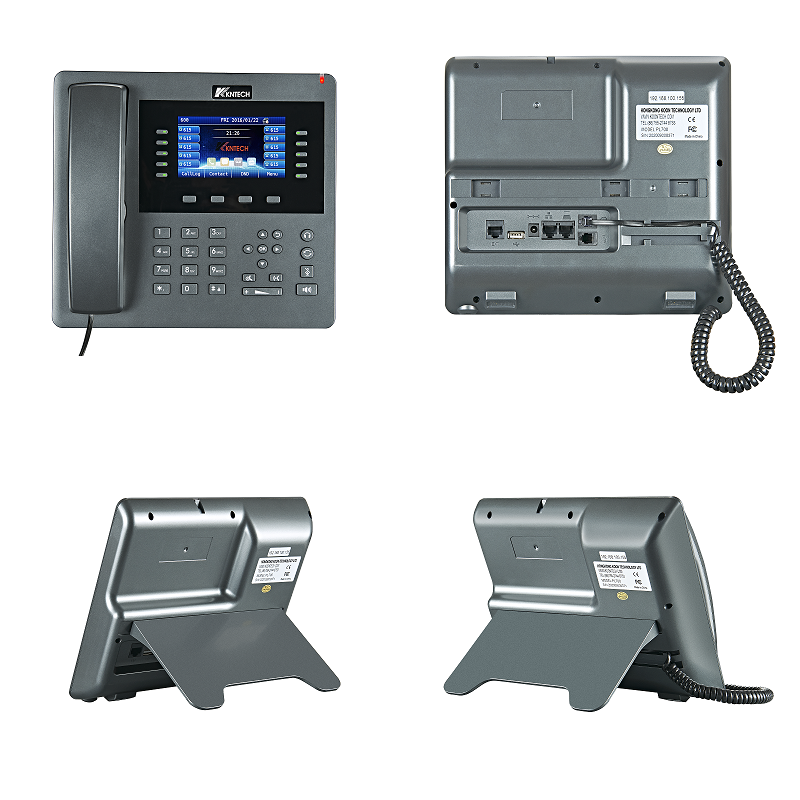

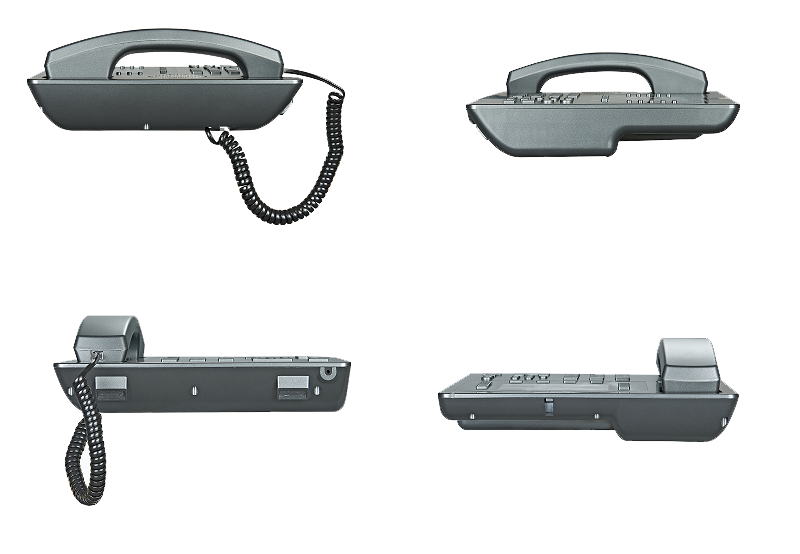

The detail about the video telephone for conference

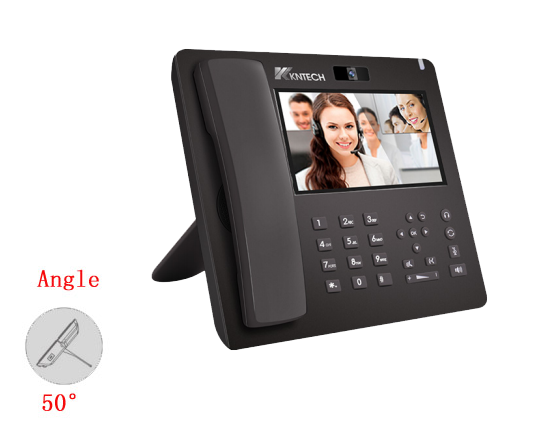

the detail about the video telephone

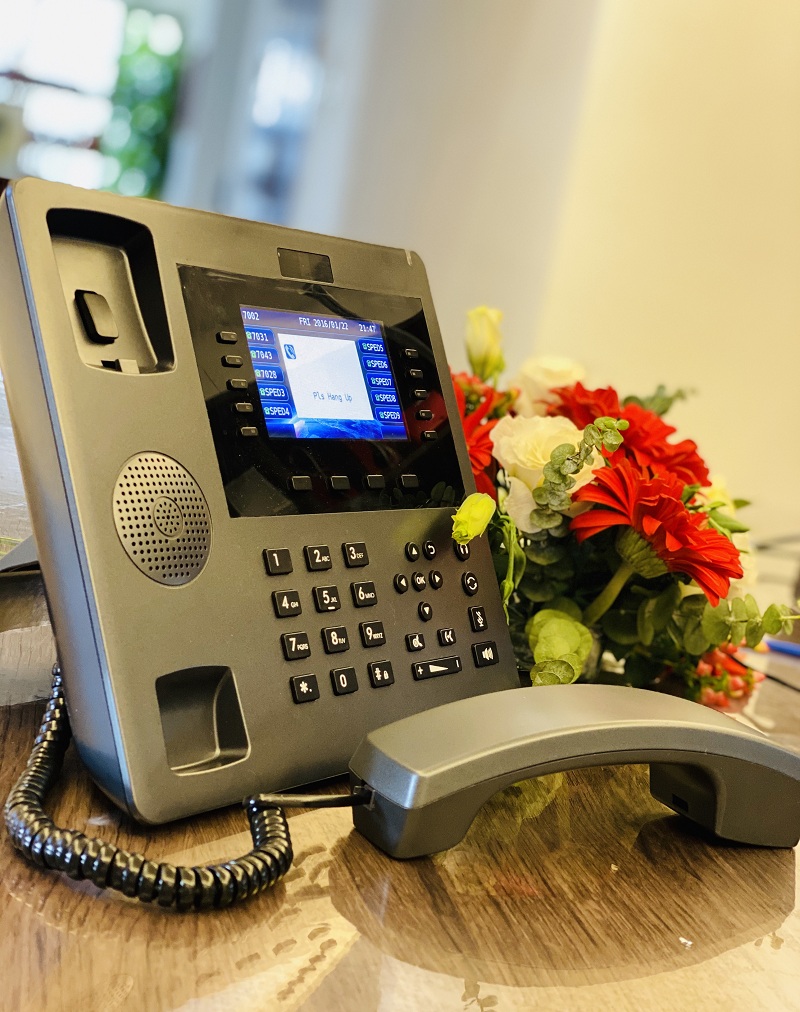

video telephone for conference
