IP Telephone

IP Telephone

model:KNPL-700
size:234*213*82.2(mm)
material:

ip-telephone
IP telephone digitizes the voice signal, compresses it, packs it, transmits it through the network, and then decompresses it to restore the digital signal to voice for the other party to hear.

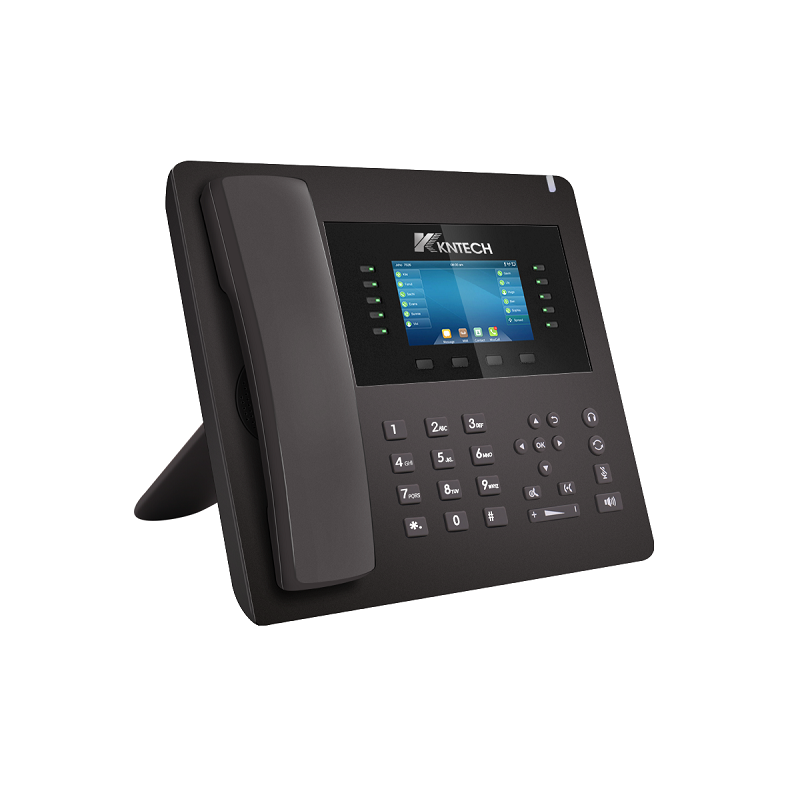

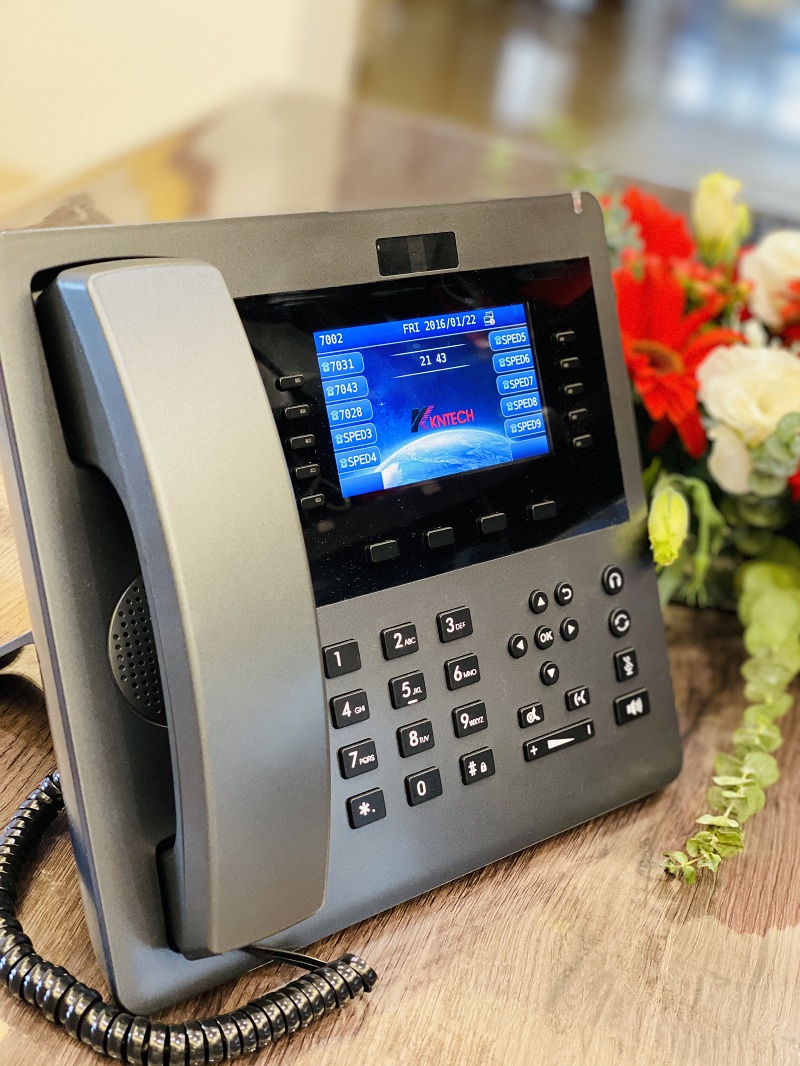

the ip telephone beatiful view

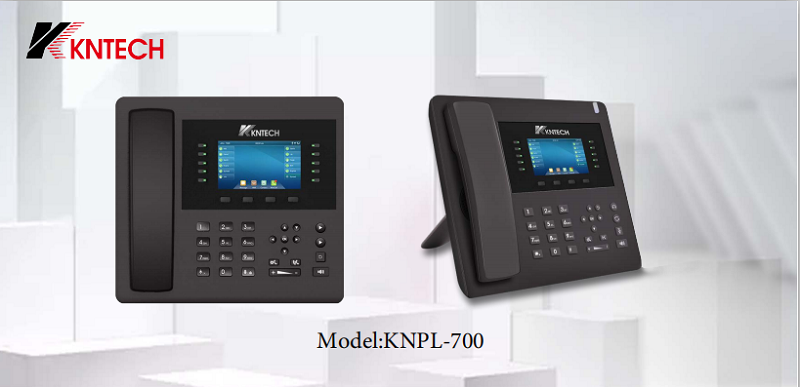

Ip telephone for office KNPL-700

Ip telephone KNPL-700 is a desktop phone specially used for corporate offices, with multiple sets of speed dial, one-key call and other functions. Support ipv4 protocol, Internet phone, call is completely free. It is the best choice for the office telephone system of small and medium enterprises.

The 6 line enterprice-class ip phone for office

The KNPL-700 is a high-end business IP phone for users who need flexibility and advanced features to easily handle busy and complex work needs at work. The KNPL-700's upgraded color display has 10 DSS buttons for setting up BLF/speed dialing, multicasting, and more. KNPL-700 is also equipped with high-definition voice, built-in Bluetooth, support WIFI link, support EHS, 100M dual network port PoE, can be connected with Ip camera 1 video access control. The KNPL-700 with high-end features can greatly improve the efficiency of corporate communications.

The Voip Telephone Special Function

the ip telephone special function
1.HD Audio,handset and speakerphone with support for wide-band audio.
2.6 line keys with up to 6 SIP accounts,8MPK extension keys with dual-color LED with 2 Left/Right keys.
3.Dual LCD screens with digital BLE keys.
4.Swappable face plates to allow for easy logo customization
5.Dual sitched auto-sensing 10/100Mbps Megabytes Ethernet ports with integrated POE.

7.2-Inchs Colorful screen Two 3.5-Inchs DSS screen

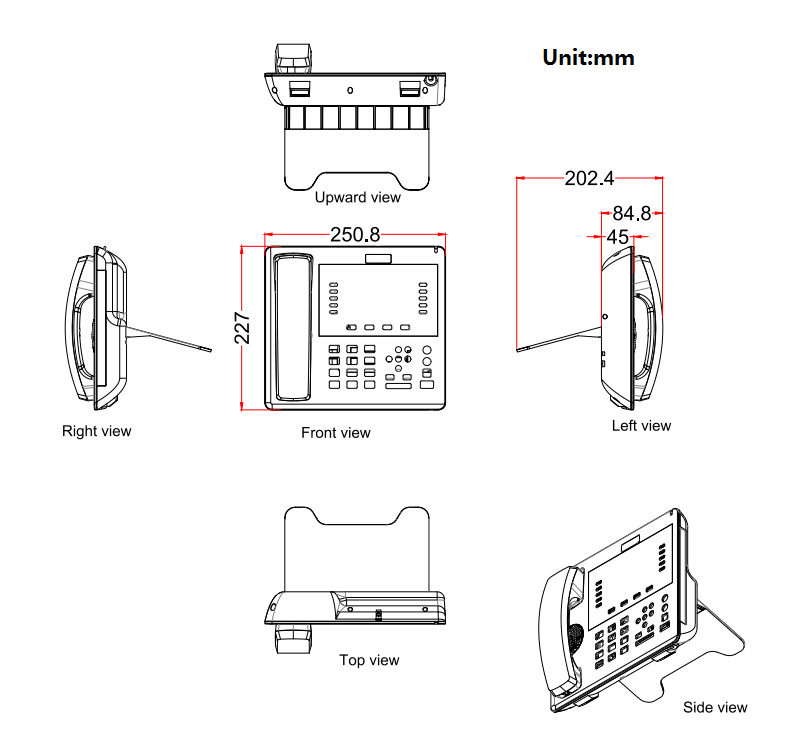

The surface design is very elegant,with touhch screen and high resolution screen.
With the intelligent user interface it could be breakthrough surface and experiment.
the ip telephone screen

Function Schedual

*6 SIP Line tripartite conference
*HD sound quality.(handset and speaker)
*4.3-inches colorful screen
*Two 3.5-inchs DSS Colorful screen
*Equipment 106 DSS Key
*Megabytes Double Network Port,POE is optional funtion
*Inner Bluetooth function
*Surport EHS earphone
*Surport mainstream ip/pbx/softswitch/IMS Platform/3CX,Asterisk,Broadsoft,Elastix,Avaya.

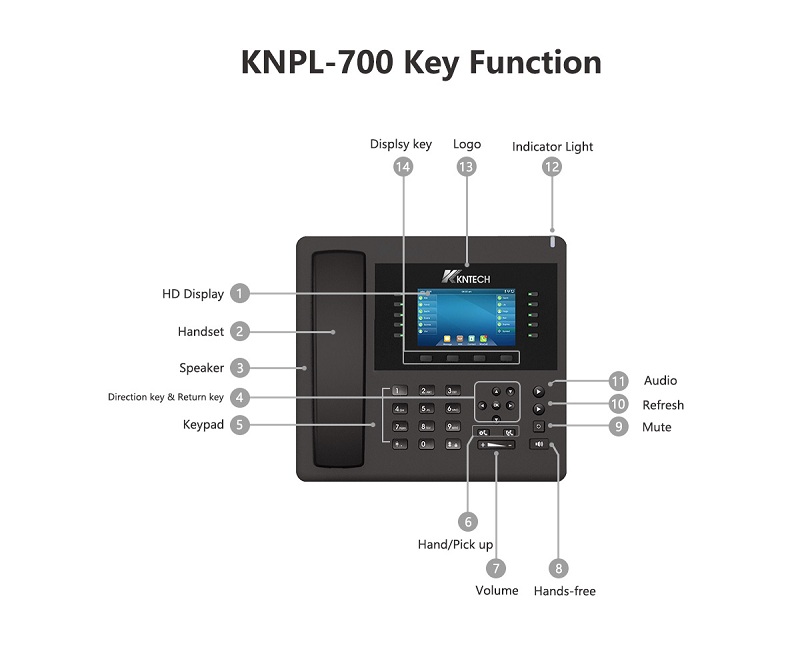

The ip office phone key function

the ip telephone key function
1.HD Display: HD display. Clear images and support multi-window multi-person video conferencing.
2.Handset: Magnetic handle, hang up and the phone hangs up.
3.Speaker: Speaker, power up to 8w.
4.Direction key and return key: functional button
5.Keypad: available for dialing and text input
6.Hand/Pick up
7.Volume: used for volume adjustment
8.Hands-free
9.Mute: Main menu
10.Refresh: Used for data refresh.
11.Audio
12.Indicator light
13.Camera:
14.KNTECH: HONGKONG KOON TECHNOLOGY LTD logo, using laser engraving technology, engraved on the phone panel, not easy to fade and destroy.

PACKING

packing

Unit size: 230*167*85mm Unit: N.W: 0.65KG
1pcs packing box size: 240*177 *95mm N.W: 0.65KG G.W: 0.93KG
12pcs in 1 outer Carton box: size: 480*354*175mm N.W: 8.4KG G.W: 9.6





==>>>> Product Specification
Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record,SRV,NAPTR), DHCP,PPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, IPV4.
Network Interfaces Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE.
Graphic Display 4.3 inch.
HD Audio Yes,HD handset and speakerphone with support for wideband audio.
DSS Key 10 DSS key on 4.3 inch screen.
Voice Codecs and Capabilities Support for G7.29A/B, G.711μ/ a-law, G.726, G723, i n-band and out-of-band DTMF (i n audio, RFC2833), SIP INFO).
Feature Keys 6line keys with up to 6SIP accounts,,8MPK extension keys with dual-color LED with 2Left/Right keys, 4XML programmable context sensitive softkeys,5navigation/menu keys,11dedicated, for: MESSAGE (with LED indication), phonebook,transfer,conference,hold,handset,mute,send/redial,speakerphone,vol+,vol-
Base stand Base support
Telephone Feature Hold, transfer, forward, call park, call pickup, downloadable phonebook(XML,LDAP, up to 2000 items), call waiting, call log(up to 2000 records), off-hook auto dial, auto answer, flexible dial plan,hot-desking, personalized music ringtones and music.on hold, server redundancy and fa l-over
QoS Layer 2 QoS (802.10, 802. 1P) and Layer 3 (ToS, Dferv, MPLS) QoS
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,Korean, Japanese etc.
Security User and administrator level passwords, MD5 and MD5-sess based authentication, TLS, 802.1x media access control, secure boot
Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS/TR-069, mass provisioning.
Temperature and Humidity Operation: 0°C to 40°C, Storage: -10Cto 60°C Humidity: 10% to 90% Non-condensing
Power & Green Energy Efficiency Universal power adapter included - Input:100-240V ; Output: +12V, 1.5A ; IntegratedPower-over- Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE)
Package Content KNPL-700 phone, handset with cord, phone stand, 12V power adapter, network cable,Quick Installation Guide
Physical Unit weight: 950g ; Package weight: 1460g Dimension: 234mm x 213mm x 82.2mm
700 characteristic 4.3 inch colorful screen
Compliance CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN 301489-17;EN 300328; EN 301893; EN 62311RCM AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 4268; AS/NZS 60950.1; AS/CA S004;12V power adapter

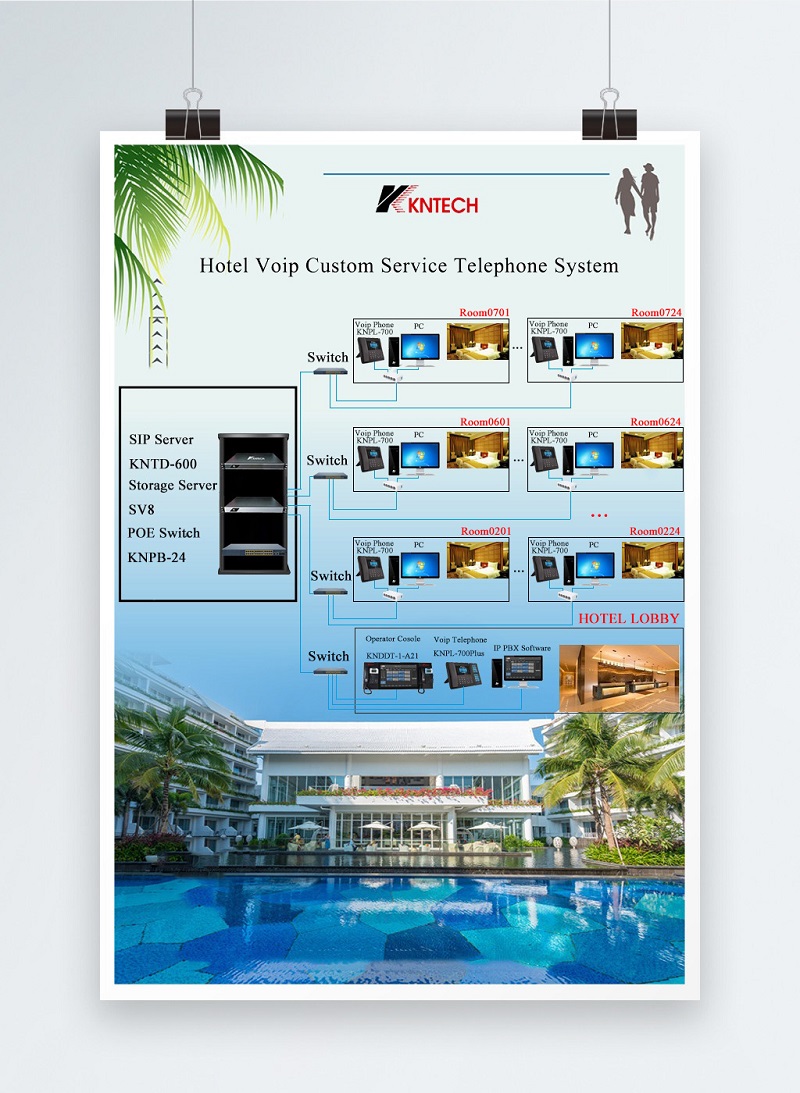

==>>>>Telephone System
snmp unified network management system KNTECH

==>>>>Product Application

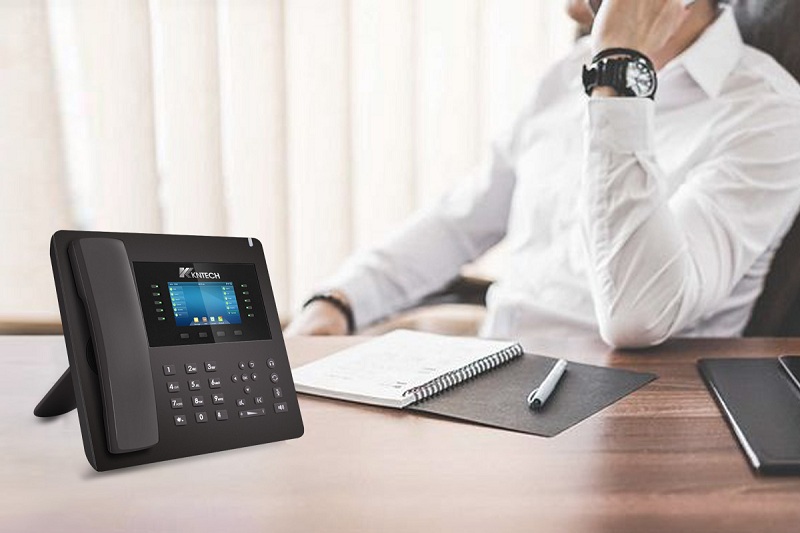

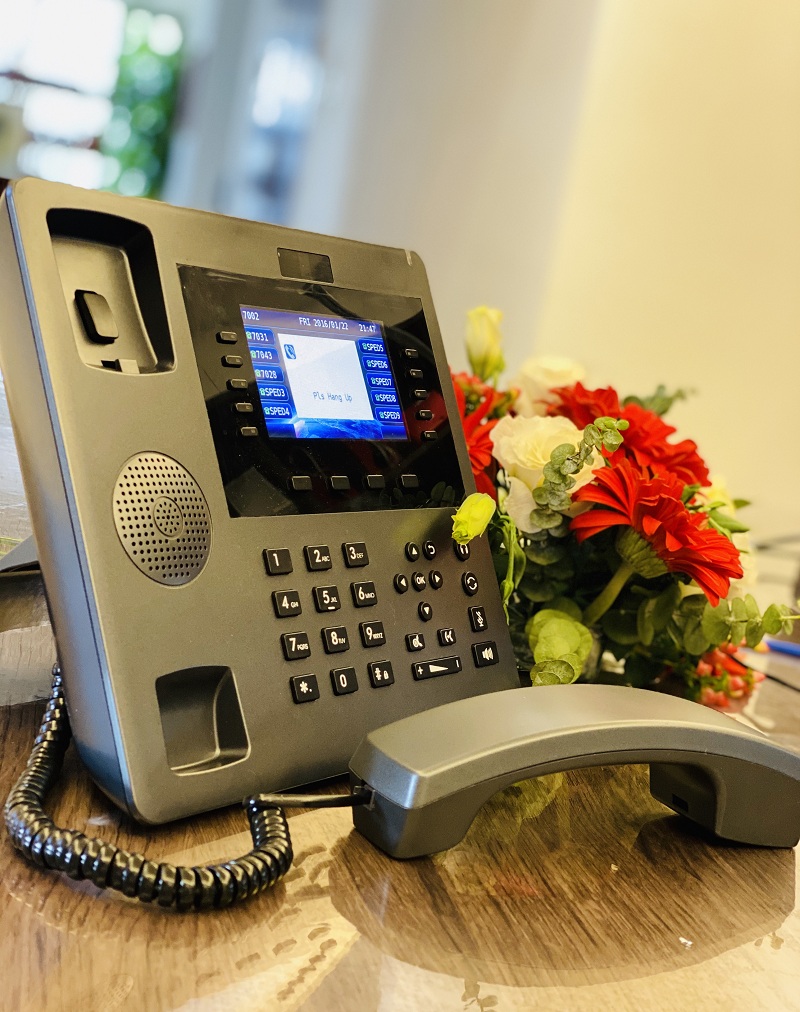

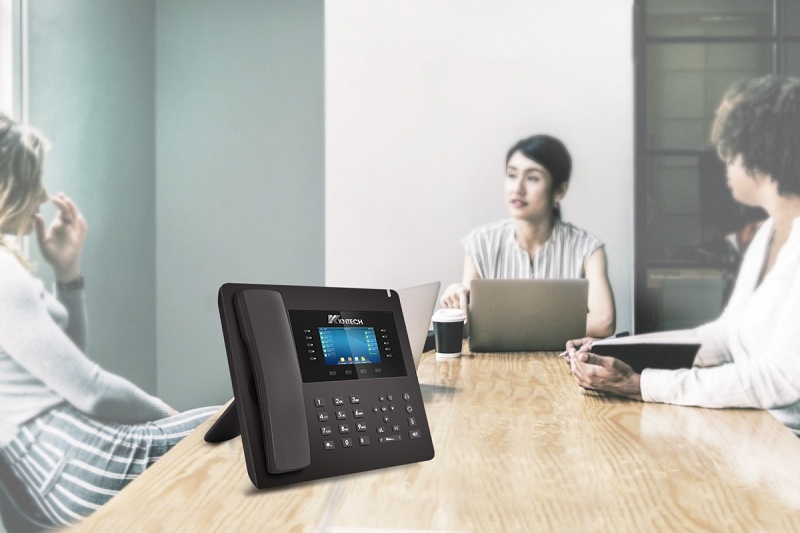

the ip telephone on the conference desk the ip telephone in the office desk office ip telephone voip telephone view side view office telephone the ip phone side view

==>>>>Product Detailed Pictures

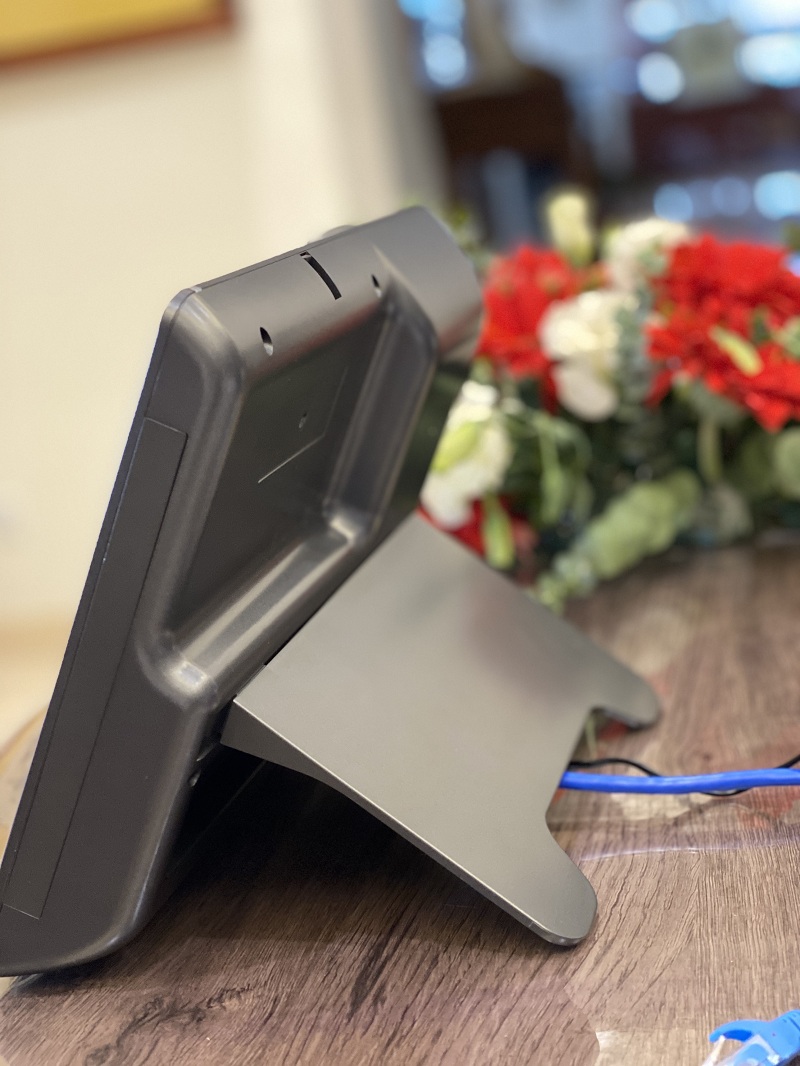

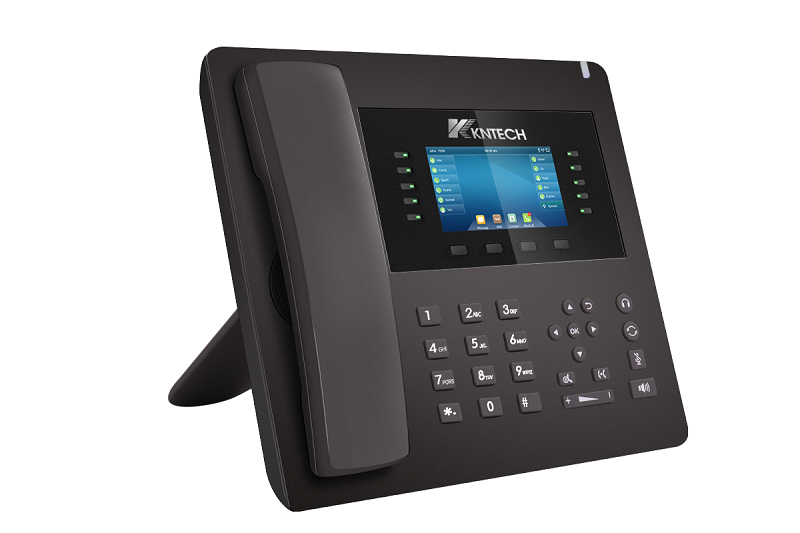

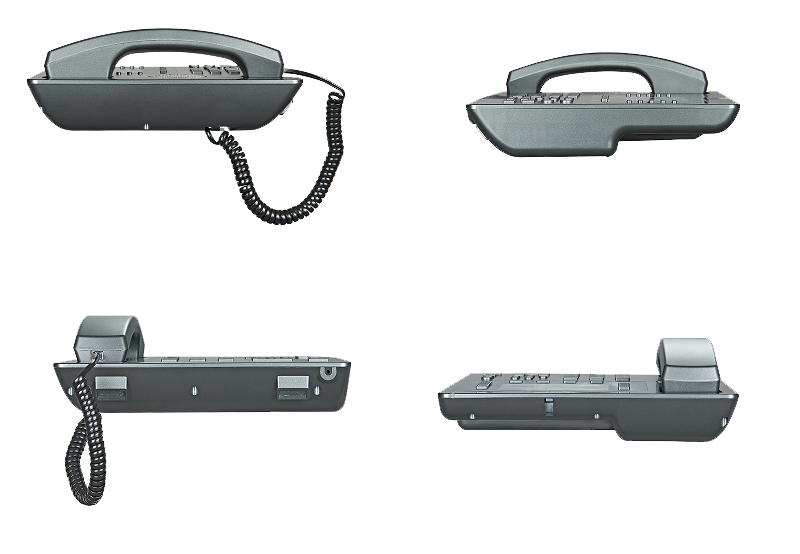

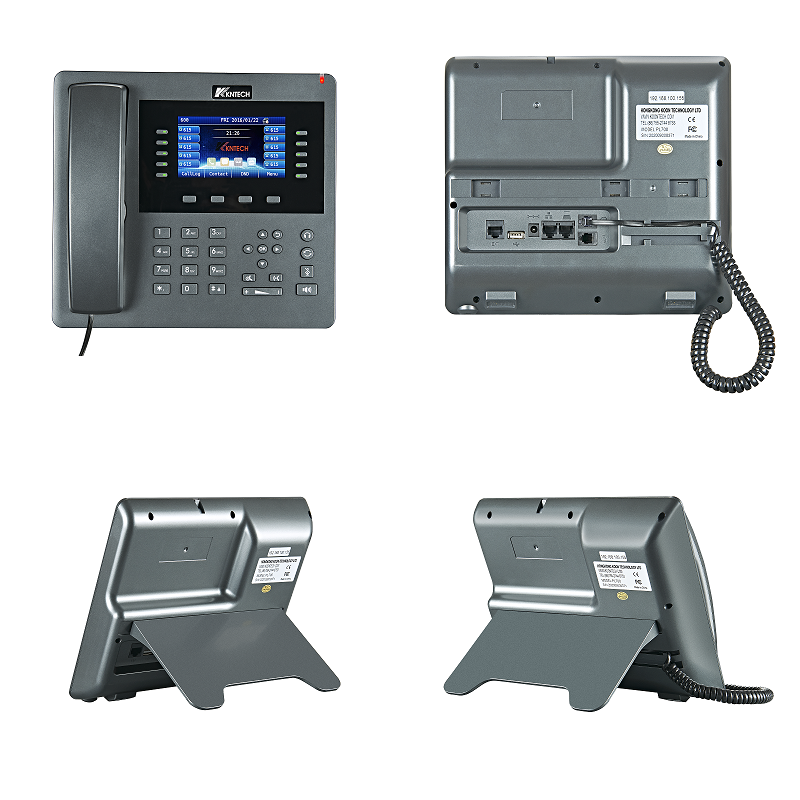

the side view about the ip telephone

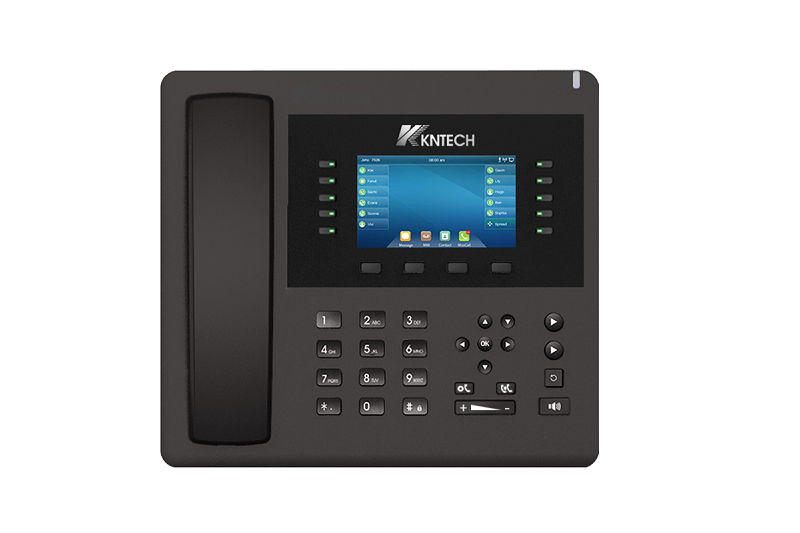

the front view about the ip telephone
office ip telephone voip telephone view side view office telephone the ip phone side view

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNPL-700

*
*
*
*
