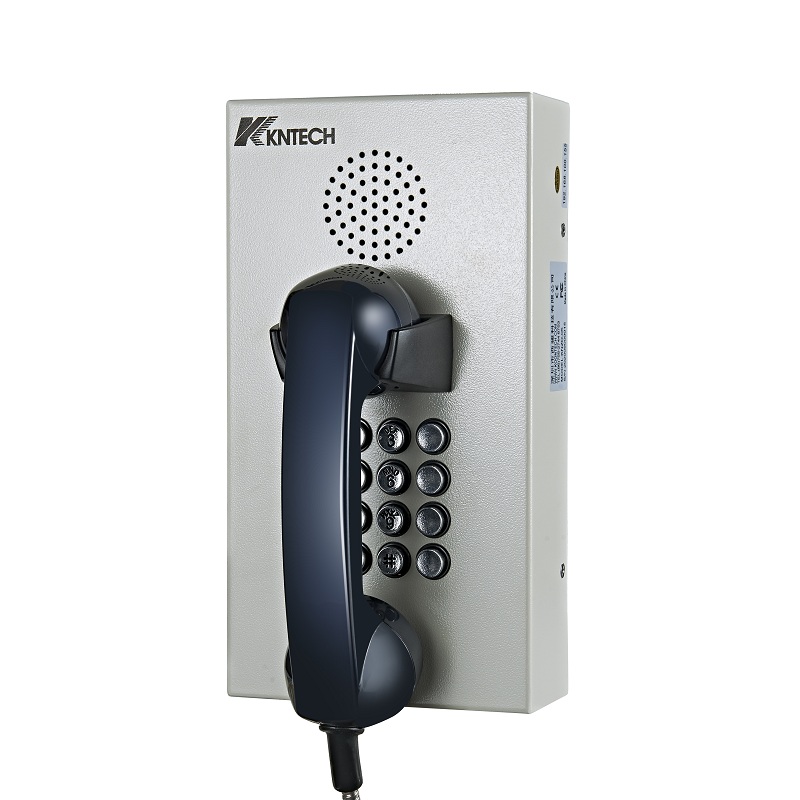

Vandal proof phone

Vandal proof phone

model:KNZD-05
size:280*150*130 mm
material:Cold-roll steel sheets

Vandal-proof-phone-Analogue
Vandal-proof-phone-VoIP
User-Manual-ZD-Series-Analogue
User-Manual-ZD-Series-IP

 vandal proof phone

KNZD-05 vandal proof phone

vandal proof phone for inmate phone calls purpose.  made of metal body. The vandal proof phone is rugged and durable. The vandal proof phone widely use in Jail and prison  for inmate calls. The vandal proof phone are strong. The inmate can put money on phone for inmate calls.vandal proof phone for inmate phone calls purpose.  made of metal body. The vandal proof phone is rugged and durable. The vandal proof phone widely use in Jail and prison  for inmate calls. The vandal proof phone are strong. The inmate can put money on phone for inmate calls.

DESCRIPTION ITEM

1. Cold-roll steel body for easy Installation.

2. Waterproof rating IP55 dust proof.

3. Led indicator for incoming calls, support hot-line calling.

4. Weather resistant to IP55 standard, service temperature range from -30 degree to +75 degree.

5. Lightening protection to ITU-T recommendation K.21.

6. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.

7. Handset with industrial strong armored cord .

8. Phone integrity wiring to enable the telephone system to check if the telephone unit is still

Operational.(If PABX have this available we can provide this function).

9. Optional 7 minute time out to release the line if the handset is left off hook. This function

upon buyer’s requirement).

10. Powder coated in UV stabilized polyester finish.

11. The housing covered with a layer of reflective label for easy identification at night.Optional

12. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc.

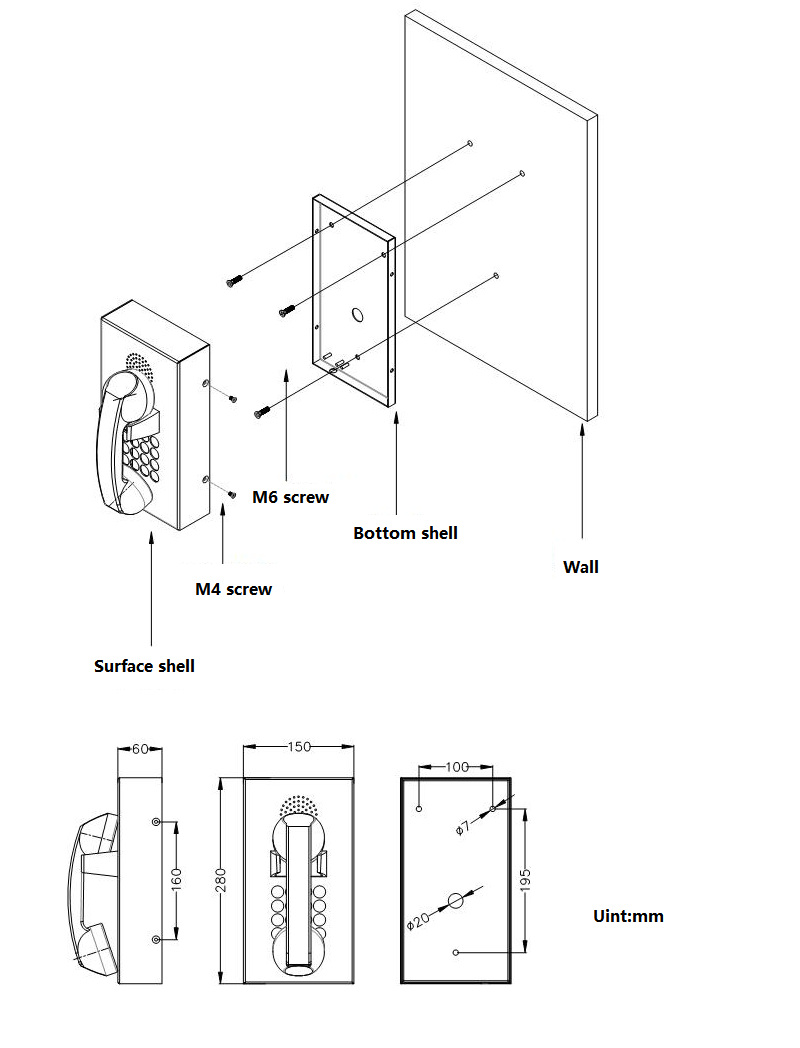

 INSTALLATION

vandal phone install

 CERTIFICATION

EN55022: emissions                                            EN55024immunity

Ingress Protection: GB4208-93 IP66 FCC        ITU-T Recommendations K21

EMCEN50121(Railway application-Electromagnetic Compatibility)


 PACKAGING


Unit size:280*150*130mm   Unit: N.W:2.37KG

1pcs packing box size: 320*190*190mm      Unit N.W:2.37KG   Unit G.W:2.9KG

6pcs in 1 outer Carton box: size: 510*370*390mm  N.W:14.22KG  G.W:18.44KG




You May Like:

KNZD-05 LCD

Vandal proof telephone

NMS-X1 SNMP

Unified network management system

KNZD-14

Hotline telephone

KNZD-13

Call box




==>>>> Product Specification

 SPECIFICATION - Analogue(Model NO.ZD0050012)

1. PSTN analogue telephone                                          2. DTMF dialing

3. MTBF:100000hours                                                    4. MTTR: 2 hours

5. Connection: RJ11 screw terminal pair cable               6. Sound level of ringing:over 70dB(A).

7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM

8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.

9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected

10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)

11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%

12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)

 SPECIFICATION - VoIP(Model NO.ZD0050022)

1. VoIP SIP2.0 telephone                                              2. DTMF dialing

3. MTBF100000hours                                                   4. MTTR: 2 hours

5. Auxiliary Contacts:1 Aux Output, dry contact            6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

7. Contact Ratings. Load: Resistive load                      8. Echo cancellation code:G.167/G.168

9. Rated carry current:1A                                             10. Max.switching current:1A

11. Max.switching voltage:125 VAC,60VDC                 12. Audio Codes:G.711, G.722, G.729

13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

14. Free dial (maximum length of each number is 16 digits)

15. Communication: Full duplex 2-way hands-free communication

16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)

17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better

18. Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDc,Idle 2W, Max 10W

19. Programming:Non-volatile flash memory programming and configuration through Web GUI

20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)


==>>>>Telephone System

jail system

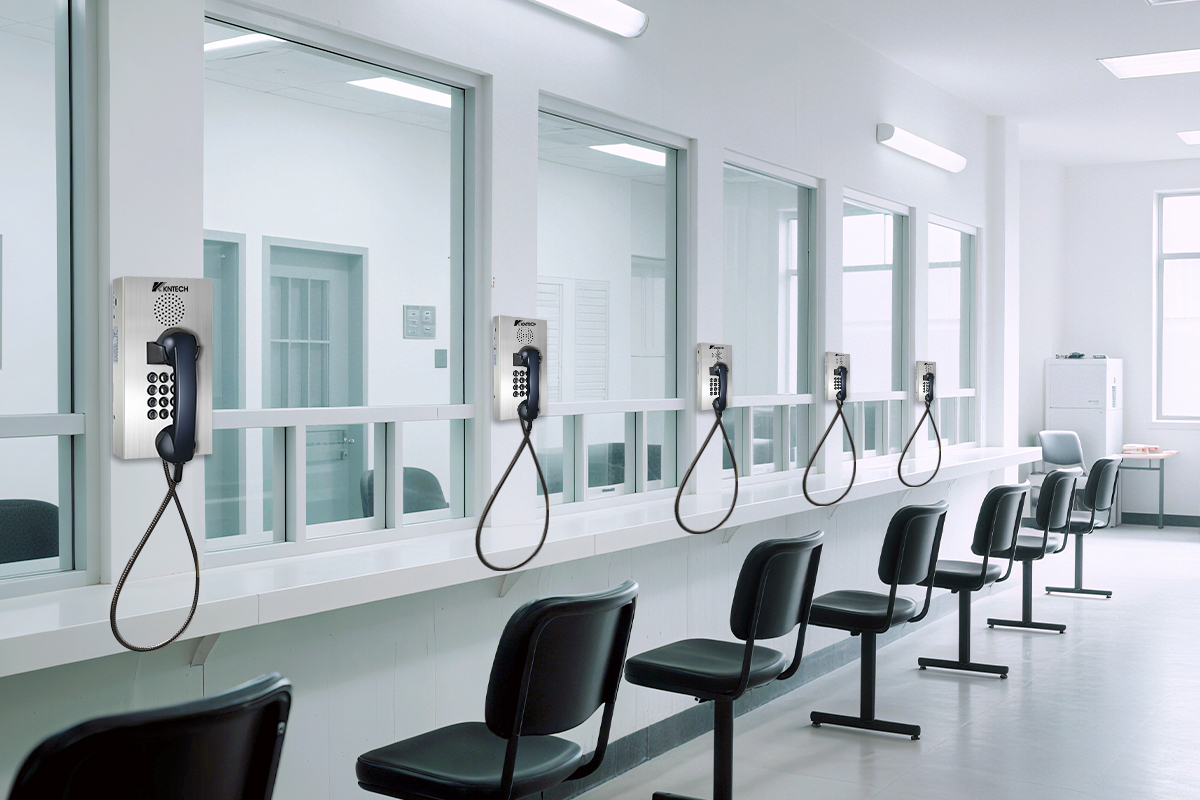

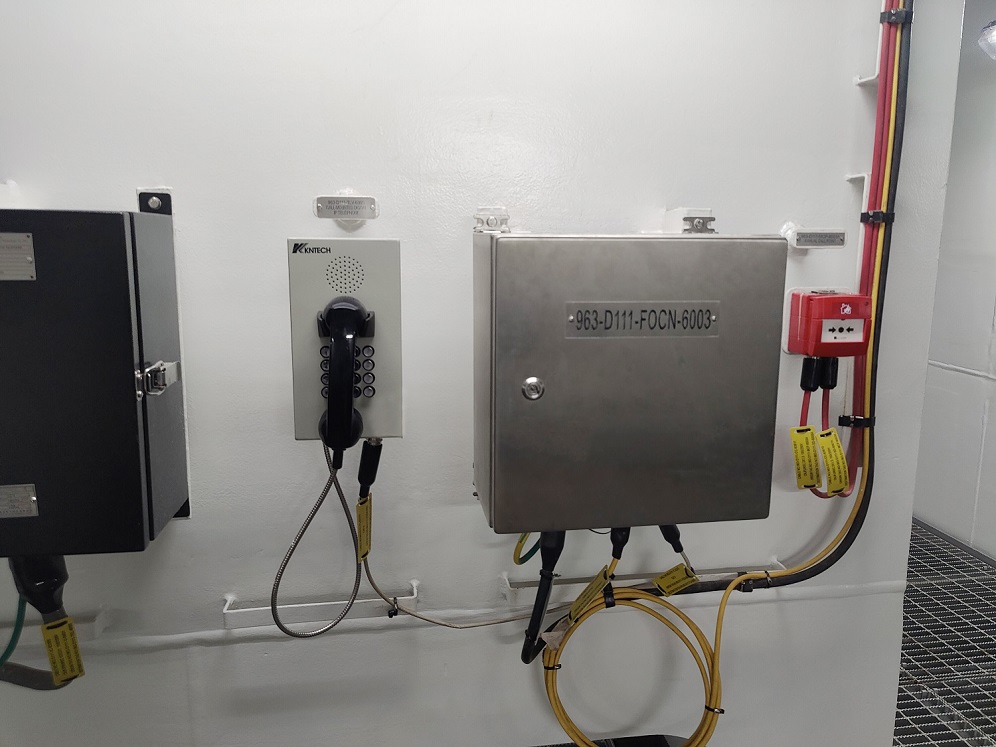

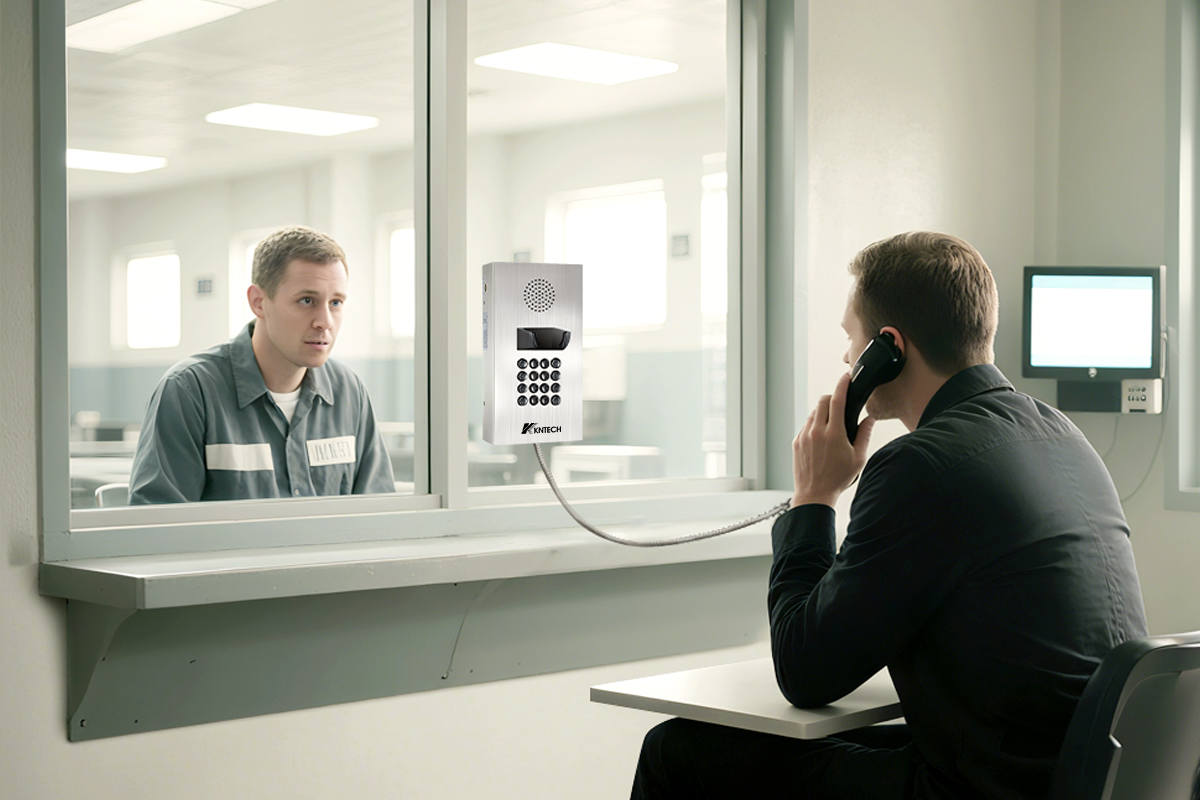

==>>>>Product Application

vandal proof phone

vandal proof telephone

 rugged vandal proof telephone

vandal proof phone

vandal proof telephone



==>>>>Product Detailed Pictures

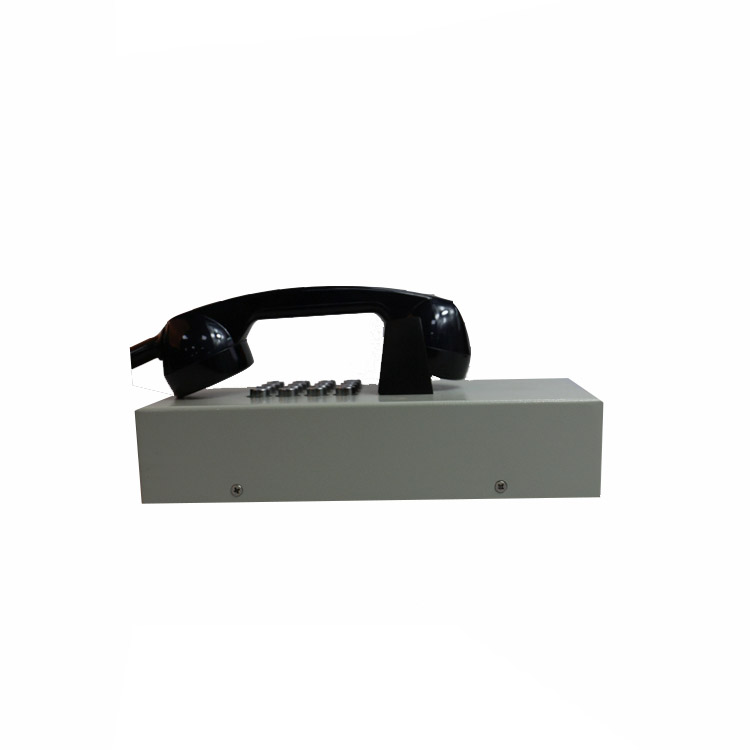

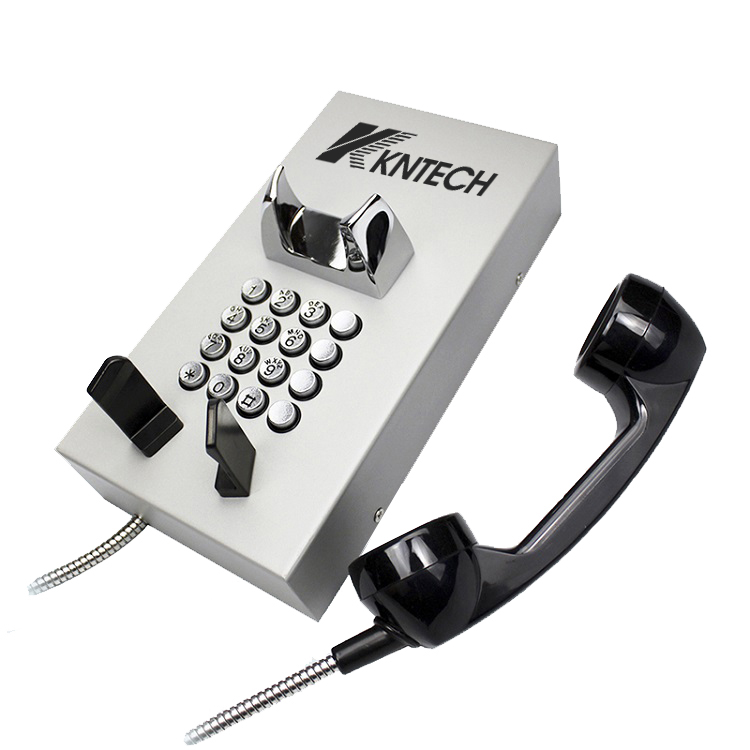

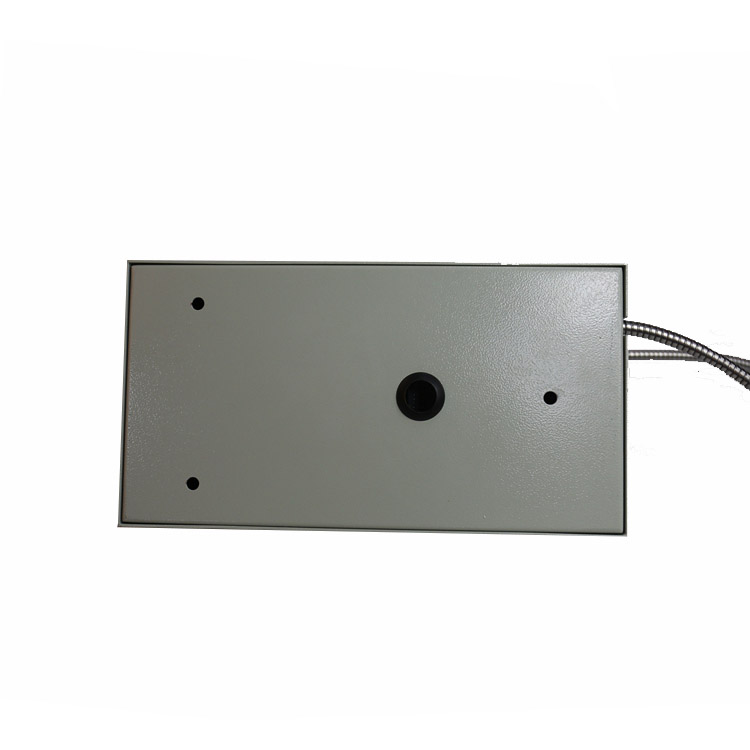

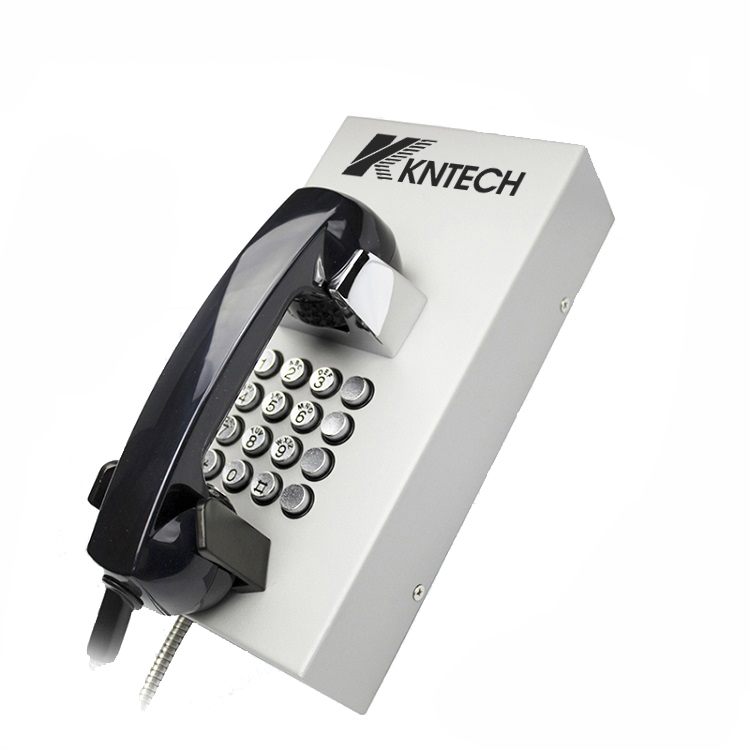

vandal proof phone vandal proof phone
vandal proof phonevandal proof phone
vandal proof phonevandal proof phone

==>>>>Product Video

==>>>>Please Email US marketing@koontech.com

This product model:KNZD-05

*
*
*
*
