Fingerprint Access Control Video Intercom

Fingerprint Access Control Video Intercom


The powerful Fingerprint Access Control Video Intercom is the most advanced entrance guard management system at present. Knzd-58 uses the most advanced biometric access control technology.
Fingerprint Access Control Video Intercom
Fingerprint Access Control Video Intercom
        The fingerprint Access Control Video Intercom is different from the common biometric recognition device and is suitable for installation in severe environment. With its unique design and fingerprint algorithm, fingerprint entrance guard video has not only good moisture-proof, dustproof and water-proof performance, but also stable and reliable performance when used in harsh outdoor and indoor environments. Adopt the world's leading fingerprint algorithm to automatically analyze the differences between the latest fingerprint and the previous one, and make corresponding updates to ensure the high accuracy and optimal speed of fingerprint identification. Fingerprint + Password Access Control Video Door Telephone has strong installation adaptability to meet all kinds of modern decoration and installation requirements. The knzd-58 looks stylish and sophisticated, with a high-definition camera and 12 high-quality metal buttons, giving users a smooth experience. Fingerprint entrance guard video intercom is a reliable, efficient and safe access control management system. The appearance design is exquisite, the function is complete, the fingerprint identification response time is extremely short.

       +Industry leading fingerprint verification technology

       +Powerful sensors can capture and process fingerprint images even under harsh working conditions

       +Instant match and authentication

       +The intelligent fingerprint identification algorithm can collect and verify dry or wet fingerprints

       +Rapid verification with high accuracy

       +The verification precision of fingerprints of various shapes and sizes is high

       +Live finger detection function

       +Thin and exquisite fuselage design

       +Elegant appearance and humanization

       +Elegant and compact appearance

       +Shock proof housing

       +Suitable for all kinds of material surface

       +Easy to install and operate

       +Have access control, visitor registration, instant camera, and other functions

       +Support two authentication modes (password + fingerprint)

       +Hd cameras can be seen even in harsh outdoor conditions and in low light

       +The operation is simple and clear to improve user efficiency

       +Using the hd camera, which clearly shows, users can enjoy technological advances on the fingerprint video intercom

       +Touch key technology, waterproof, dustproof and durable
      *Supper good sound clarity during conversation
      *Support standard Session Initiation Protocol(SIP), RFC 3261
      *Remote software upgrade, configuration and mornitoring
      *Power over Ethernet(PoE,802.3af), local 12V DC
      *IP66 vandal resistant marine grade stainless steel faceplate
      *LED indicator *Echo cancellation *Password, fingerprint, Video, Remote program
biometric access control

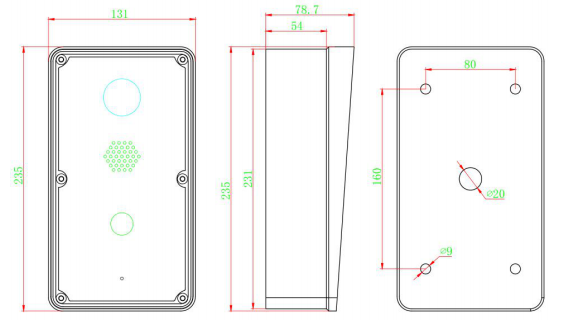

      Unit size: 235*131*78.7mm; N.W.: 2.3kg;
      1pc carton:32.5*18*13.5cm; N.W.: 2.3kg; G.W.: 2.6kg
      4pcs carton: 37*35*27cm; G.W.: 8.7kg

You May Like:


Access Control


Outdoor intercom


Video Intercom System


IP door phone

==>>>> Product Specification

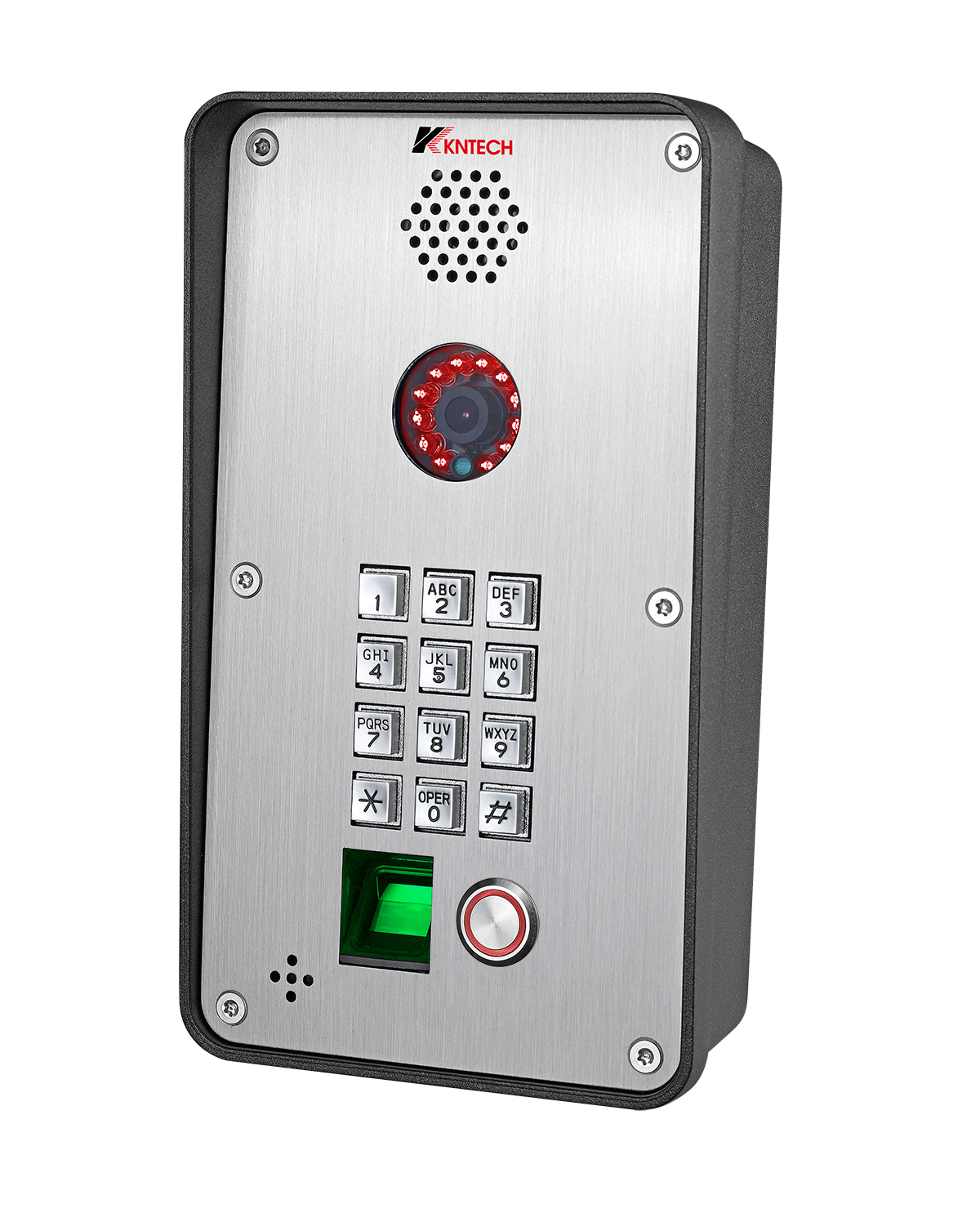

Model KNZD-58
Construction Robust aluminium  alloy die-cast body  stainless steel face plate
Dimensions(W*H*D) Unit size: 235*131*78.7mm;  Carton size each  box:32.5*18*13.5cm/G.W.: 2.3kg
Weight 2.3kg
Operating Temperature -40°F to  +158°F/ -40℃ to +70℃
Relative Humidity Up to 95%  non-condensing
Protection IP66, vandal-resistant  and water-resistant design
Communication Full duplex 2-way  hands-free communication
Call Control Signaling SIP(RFC compliant),  SIP Info(DTMF), RFC 2833(DTMF)
Audio Codes G.711, G.722, G.729

Camera mage Sensor OV9712
Total Pixels 480P 15fps
Min. illumination 0.1lux
Field of view 150° horizontal  Opposite angles 170°
Lens 2.75mm
Framerate 15fps, 30fps, MJPEG, H.264
Streamine Dual-stream at  different frame rate and bandwidth
ONVIF compliant Yes

Power Power over Ethernet,  IEEE802.3af, Class 0 Local  power, 12VDc,Idle 2W, Max 10W
Auxiliary Contacts 1 Aux Output,  dry contact
Contact Ratings
Load: Resistive load
Rated load:0.3  A at 125 VAC;  1 A at 30 VDC
Rated carry current:1A
Max.switching  voltage:125 VAC,60VDC
Max.switching  current:1A
Network 10/100 BaseTX  Ethernet, RJ45  connectors, Cat5e or better
LAN Protocols Power over  Ethernet(PoE,802.3af),  WLAN(IEEE 802.3af), Network Access  Control(IEEE802.1x), STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Programming Non-volatile flash  memory programming and configuration through Web GUI
Management and Operation DHCP and static IP,  remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code G.167/G.168

==>>>>Telephone System

access control system

Video access control system

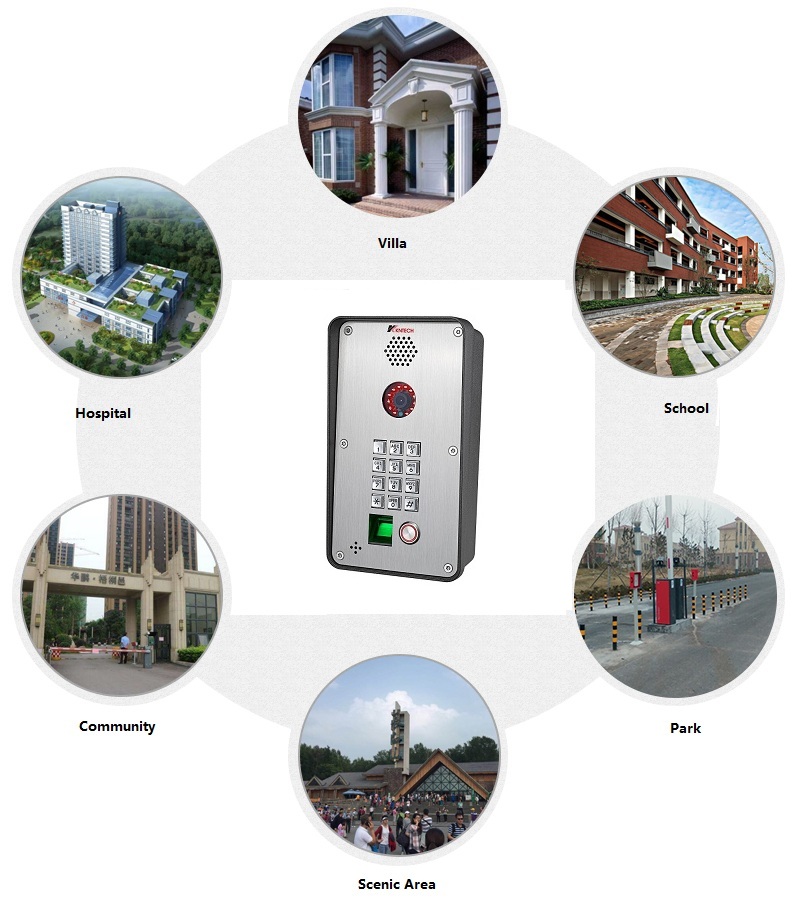

==>>>>Product Application
Fingerprint + Password Access Control Video Door Telephone

Fingerprint + Password Access Control Video Door Telephone Fingerprint entrance guard video intercom Fingerprint Access Control Video Intercom
Fingerprint + Password Access Control Video Door Telephone

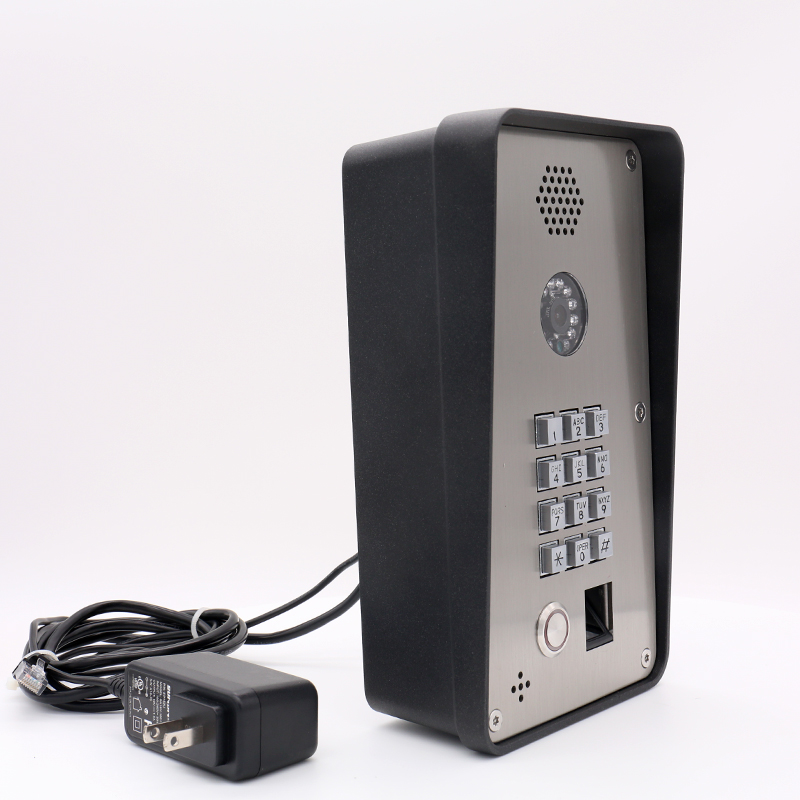

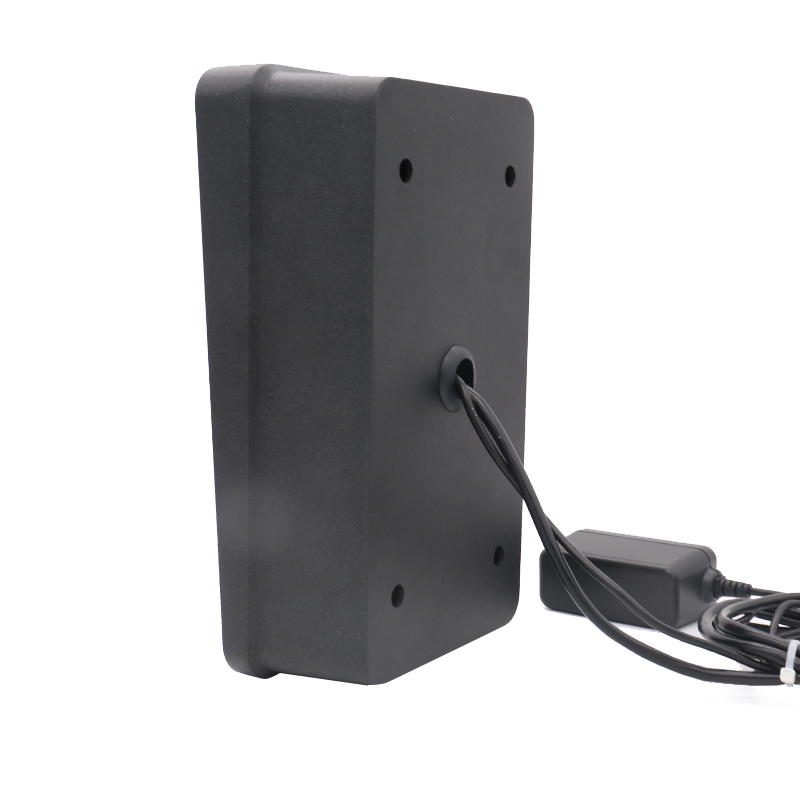

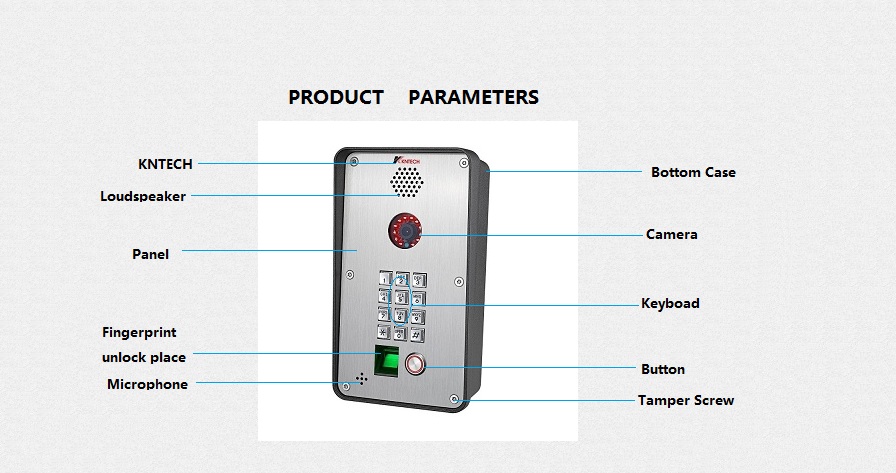

==>>>>Product Detailed Pictures
Fingerprint Access Control video intercom intercom

==>>>>Product Video



==>>>>Please Email US marketing@koontech.com

This product model:KNZD-58
