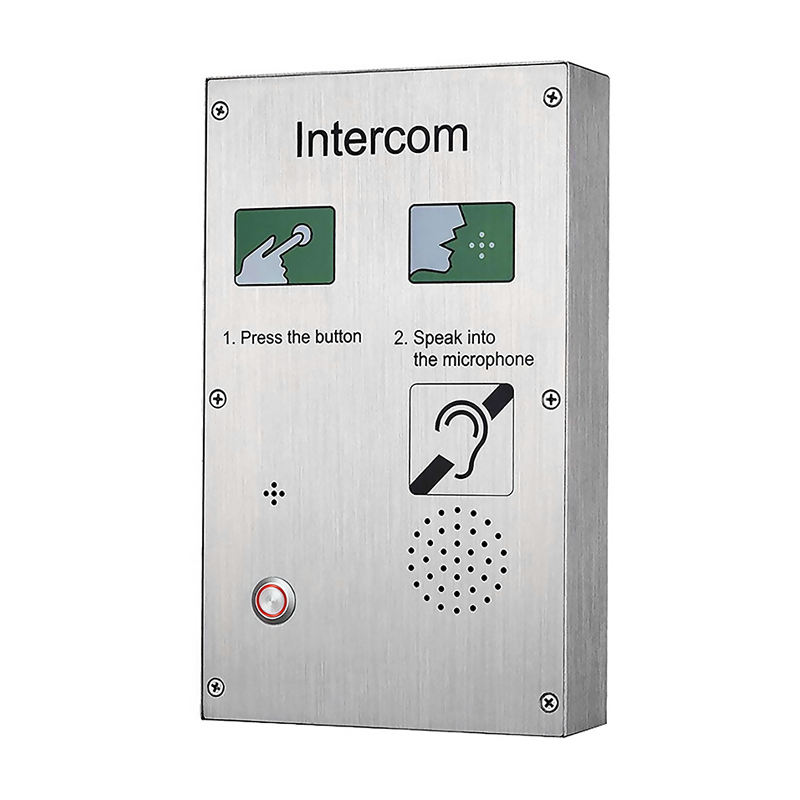

Audio intercom

Audio intercom

model:KNZD-30IL
size:297*177*44mm
material:Stainless steel

Audio intercom-voip
User Manual ZD Series IP
KNTECH offers high quality audio intercom with a stainless steel housing that can be used as a home door intercom or as an emergency intercom in public.The emergency audio intercom has a sip version and an analog version.
audio intercom description

Emergency audio intercom for gate  KNZD-30IL

We are the manufacturer of emergency audio intercom intelligent audio digital door phone intercom With POE power supply  electrical equipment in hazardous areas.The audio intercom adopts one-touch speed dialing and has two-way voice calling function. Often used in subways, airports, train stations and other public places as an emergency audio intercom.

What is a home intercom system?

The home intercom system is a modern residential residential service measure that provides two-way visual communication between visitors and residents, achieving dual recognition of images and voices, thereby increasing safety and reliability, while saving a lot of time and improving work efficiency. More importantly, once the door magnetic switch, infrared alarm detector, smoke detector, gas alarm and other equipment installed in the household are connected to the security type indoor unit of the video intercom system, the video intercom system is upgraded. For a security technology prevention network, it can communicate with residential property management centers or community guards wired or wirelessly, thus providing security protection against theft, disaster prevention, gas leakage, etc., providing maximum security for the owner's life and property. Guarantee. It can improve the overall management and service level of the home and create a safe community living environment.

The role of home audio intercom

The intelligent home intercom system includes the communication of the entrance of the residential building, the residential and the residential property management department in the same network. It is an important line of defense against illegal invasion of the house and can effectively protect the personal and property safety of the residents.
Prevent the entry of idlers and improve the safety level of the family.

 DESCRIPTION ITEM
1. Stainless steel 304 body, vandal & tamper-resistant hardware, easy Installation.
2. Waterproof rating IP55 dust proof.
3. Support induction loop.(optional)
4. Hands-free button, double loudspeaker.
5. Lightening protection to ITU-T recommendation K.21.
6. POE power supply or DC12V.
7. Temperature range from -40 degree to +70 degree.
8. Support echo cancellation.
9. Remote software upgrade, configuration and monitoring.
10. Optional 7 minute time out to release the line if the handset is left off hook. This function
upon buyer’s requirement).
11. The housing covered with a layer of reflective label for easy identification at night.Optional
12. Application: Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant,
bridge etc.


 INSTALLATION
audio intercom desing
 CERTIFICATION
EN55022: emissions   EN55024: immunity
Ingress Protection: GB4208-93 IP66 FCC
ITU-T Recommendations K21
EMC: EN50121(Railway application-Electromagnetic Compatibility)
audio intercom certificate

PACKAGING

Unit size:210*135*44mm   Unit: N.W:1.2kg





==>>>> Product Specification

 SPECIFICATION
VoIP SIP2.0 telephone        DTMF dialing
MTBF:100000hours             MTTR: 2 hours
Hotline (maximum length of each number is 16 digits)
Communication: Full duplex 2-way hands-free communication
Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
Power:Power over Ethernet, IEEE802.3af, Class 0  Local power, 12VDC,Idle 2W, Max 10W
Auxiliary Contacts:1 Aux Output, dry contact
Contact Ratings. Load: Resistive load
Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
Rated carry current:1A
Max.switching voltage:125 VAC,60VDC
Max.switching current:1A
Audio Codes:G.711, G.722, G.729
Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
Programming:Non-volatile flash memory programming and configuration through Web GUI
Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code:G.167/G.168


==>>>>Telephone System

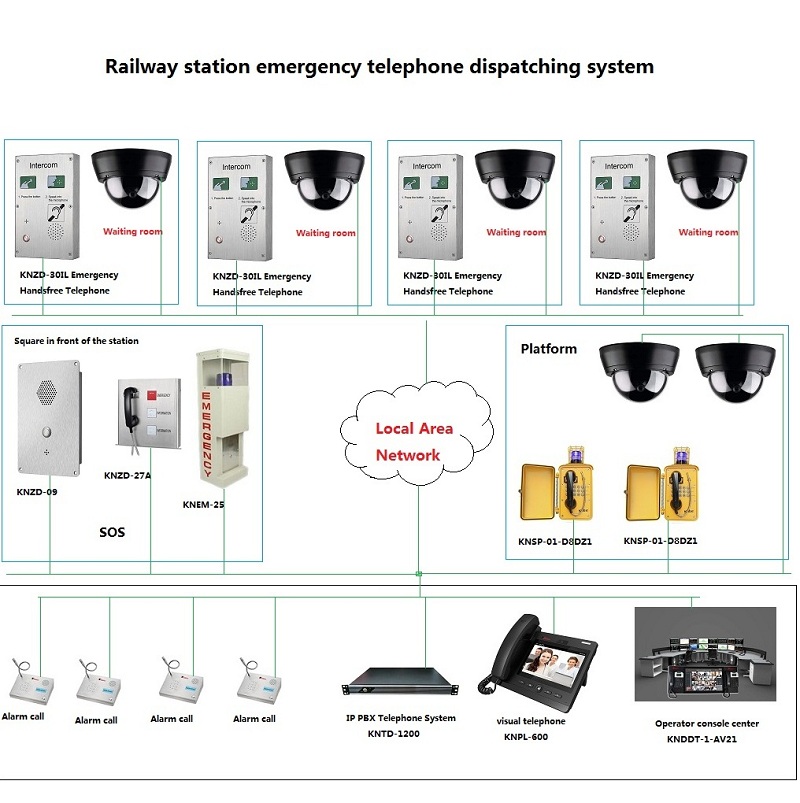

Audio intercom and railway intercom system

audio intercom application emergency system

==>>>>Product Application

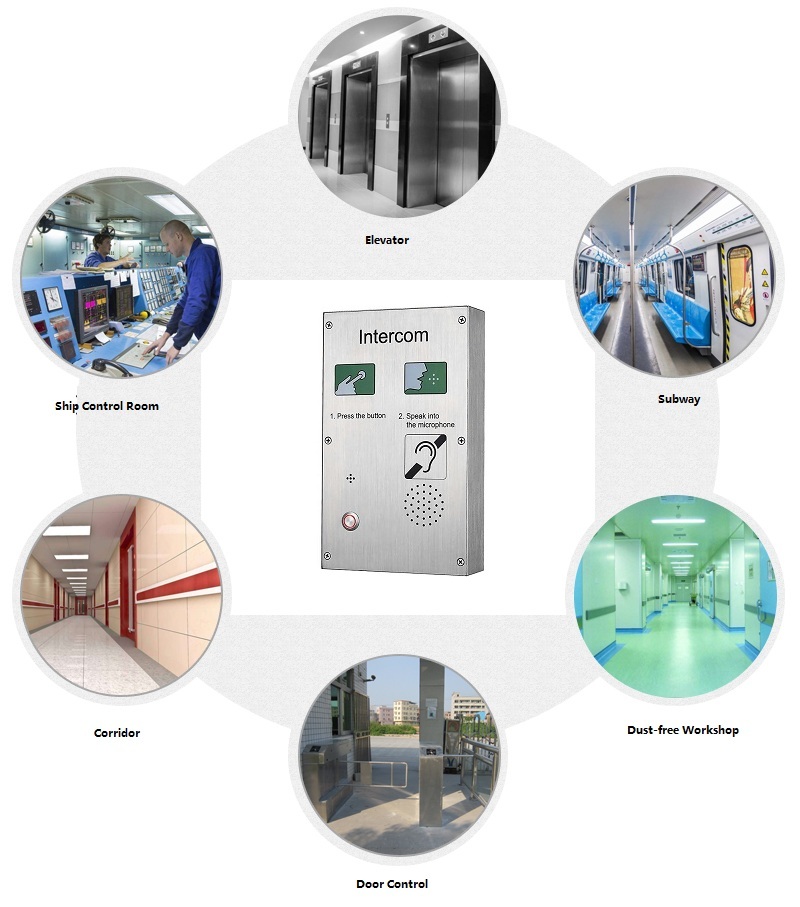

Audio intercom application place

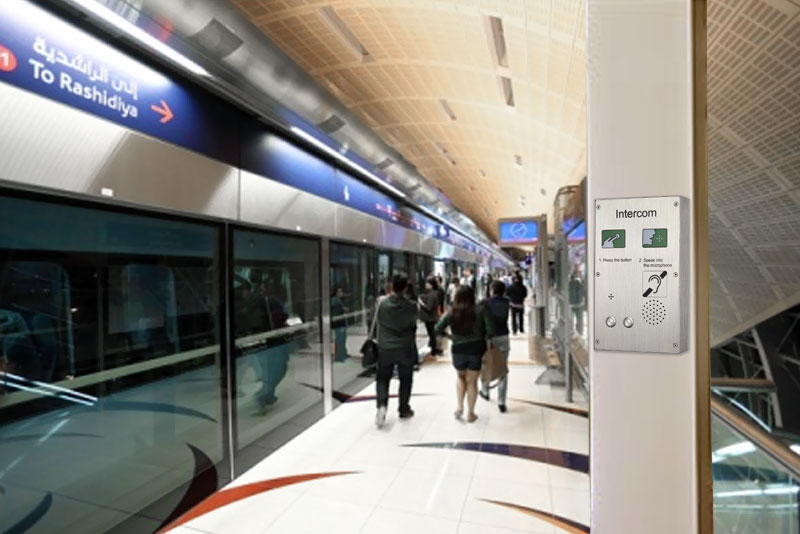

audio intercom in subway

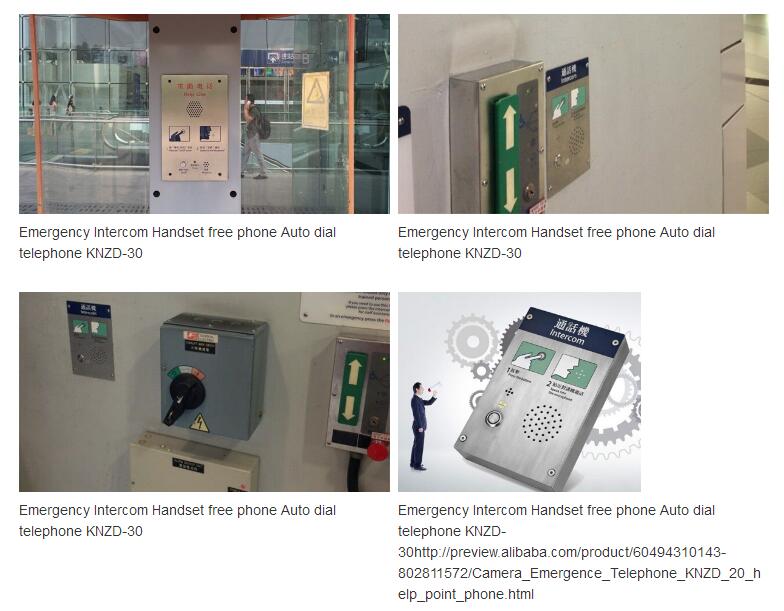

audio intercom and how to install audio intercom application place

==>>>>Product Detailed Pictures

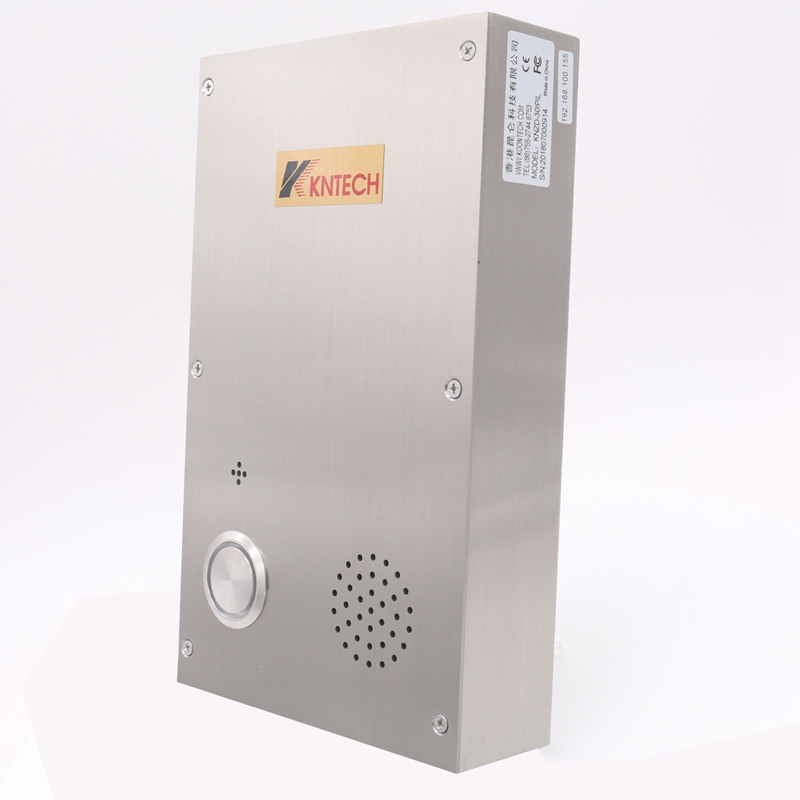

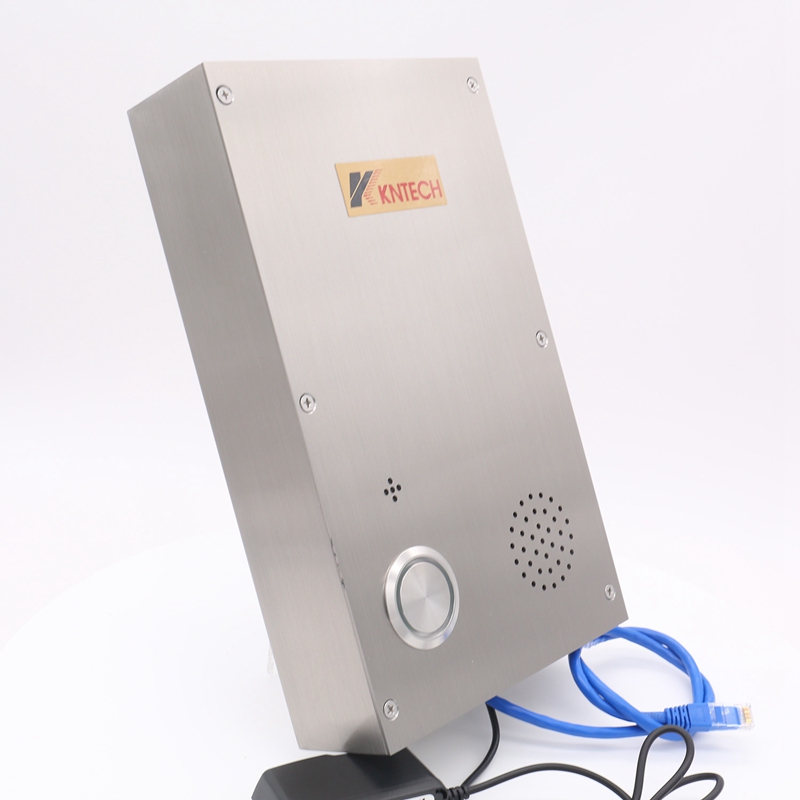

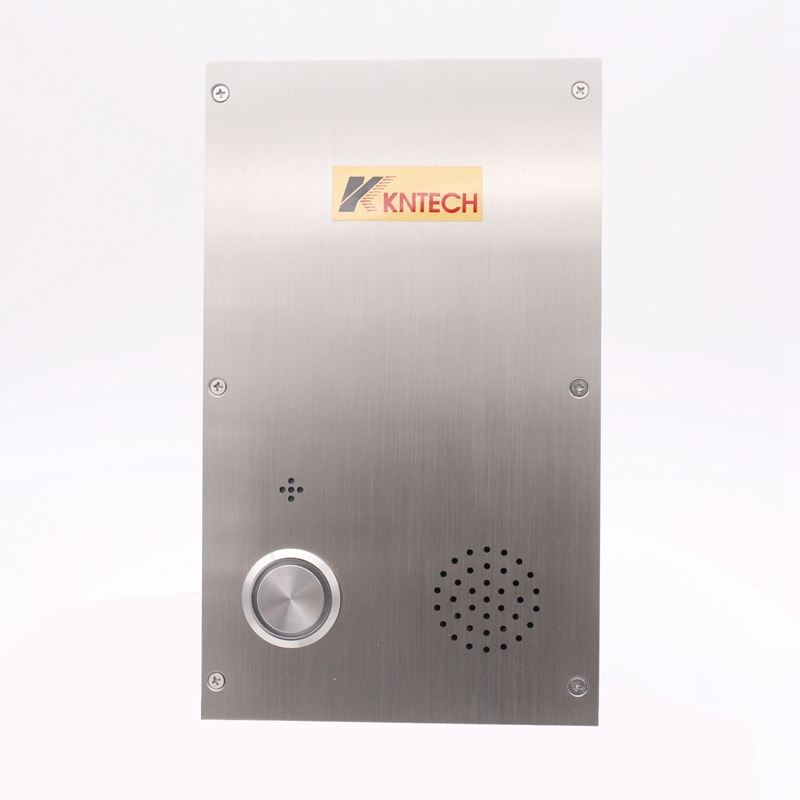

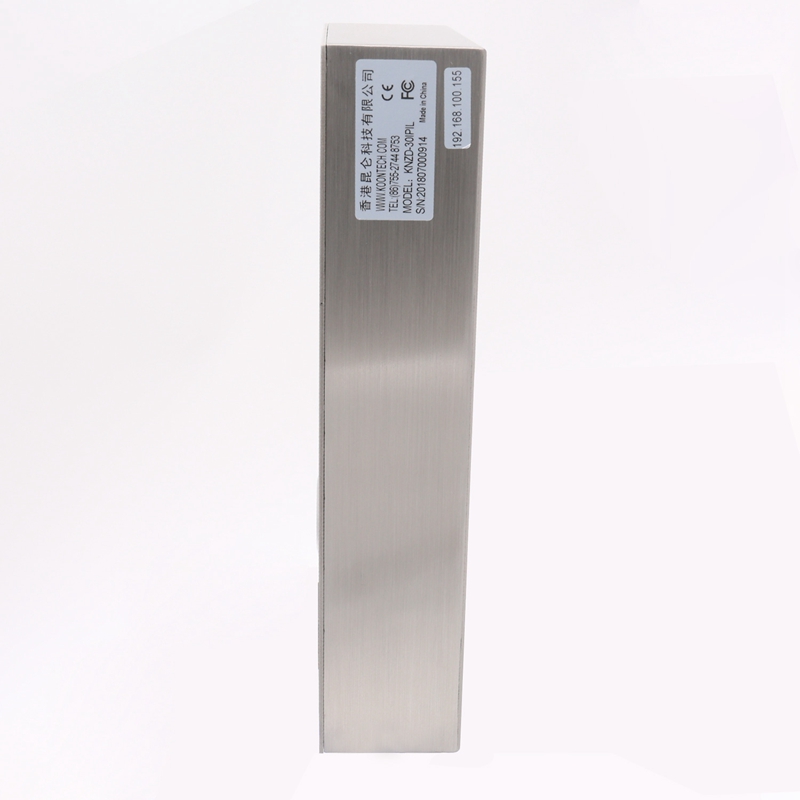

audio intercom right view audio intercom left view audio intercom front view audio intercom side view
